They said it couldn't be done - S&S carb install (Read 81 times)
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
They said it couldn't be done - S&S carb install
07/20/19 at 19:00:47
I have pretty much finished up with installation and initial tuning of the S&S Super E carburetor. It’s a true 40mm conventional carburetor and not nearly as sophisticated as the stock 35.5 mm constant velocity Mikuni. But I like to be different, and I also am a big fan of WOT performance. After flow testing carburetors it was obvious to me that the S&S had the potential to beat the socks off the stocker at WOT performance. It didn’t disappoint me.
The S&S dropped the second-gear 4K to 7K time by .17 seconds. I’m very satisfied with that. It wouldn’t surprise me if there’s more in it. It’s very rich right now and I suspect I might be able to improve the acceleration a bit if I go down a couple of sizes on the main jet.

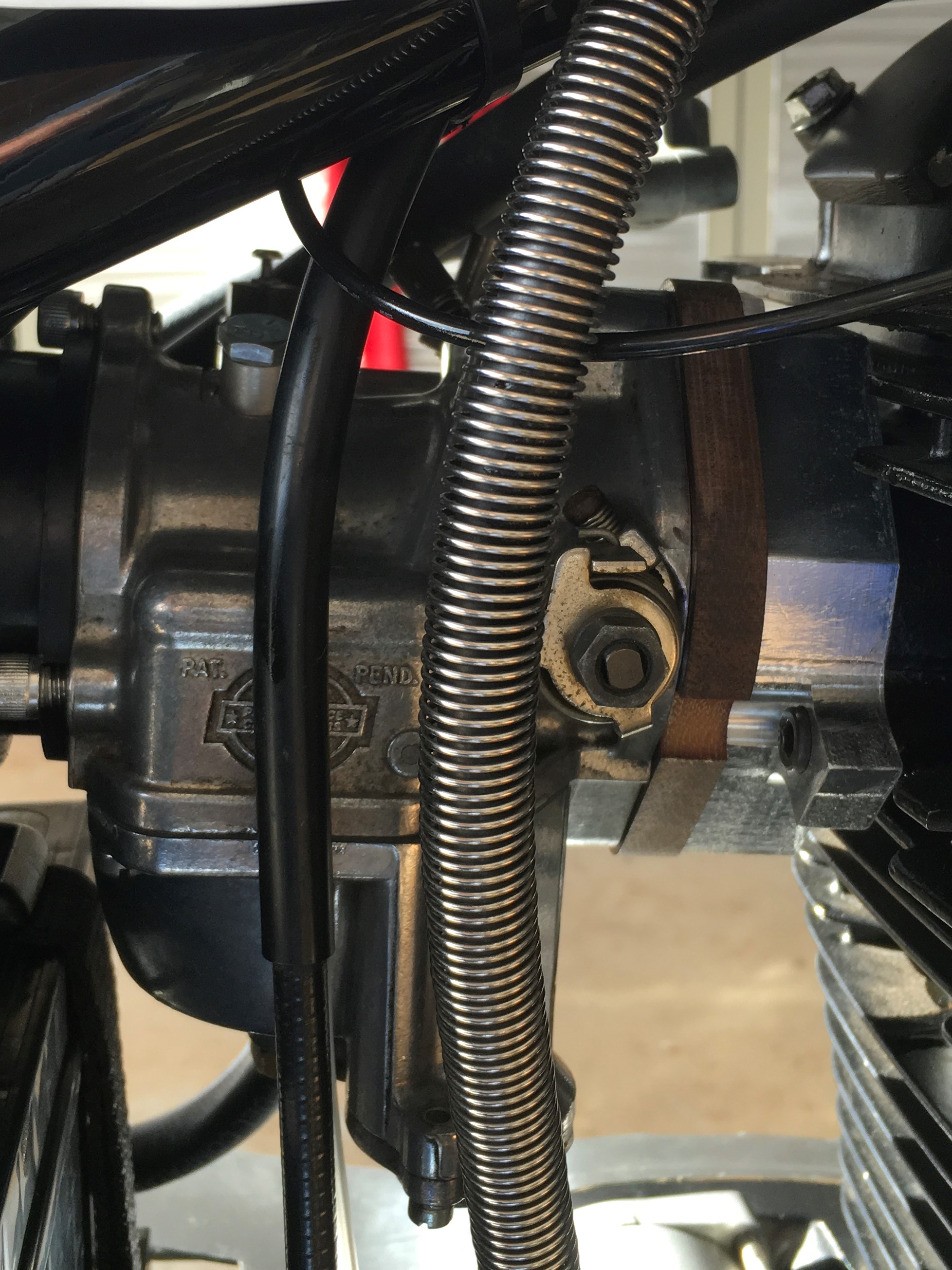

It’s a thirty-year-old carburetor. Here’s a shot of the installation. I think it looks pretty good.
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #1 -
07/20/19 at 19:05:13
This link will take you to a YouTube vid of the finished install.
https://youtu.be/pe1sGabmchE
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #2 -
07/20/19 at 19:06:57
This link will take you to a YouTube vid of initial operation in my garage.
https://youtu.be/rl1_LF7ujeI
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #3 -
07/20/19 at 19:08:49
This link will take you to a vid of some WOT ops in 2nd & 3rd gear.
https://youtu.be/8UXTVIxABIc
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #4 -
07/20/19 at 19:12:02
If you're wondering about the fun factor, this link takes you to a vid of running through the gears and granny shiftin. As you can see, it's a fun scoot to play on.
https://youtu.be/LKgN6kqoLZA
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #5 -
07/20/19 at 19:15:24
I don't think drivability is an issue. Here's a vid of some 5th gear roll-ons.
https://youtu.be/WfYjXAOspY8
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #6 -
07/20/19 at 19:16:36
Some steady state cruizin.
https://youtu.be/J591VU3lYBs
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #7 -
07/20/19 at 19:18:13
And some surface street slow-speed ops.
https://youtu.be/cu_48m8-cMc
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #8 -
07/20/19 at 19:21:49
It runs pretty good but still has a couple of hiccups. At very low throttle openings between 3 and 4 thousand rpm it tends to go way rich, to the point of stumbling. Open the throttle and the stumble goes away completely. The idle is also a bit rough. Other than that, it runs very well for a first attempt.
When I first installed the carb, I had it set up with a 28 Intermediate Jet (IJ), a 62 Main jet (MJ), and a 100 Air Bleed (AB). It’s an old carb that was previously modified for a ThunderJet, so it has an adjustable AB (utilizes Mikuni MJ for AB). That didn’t run well at all. It had a terrible stumble any time you tried to accelerate, but at WOT it ran fine. It looked like the IJ and MJ had too much overlap so I started increasing the AB. It immediately got better and continued to improve as I kept throwing in larger ABs. When I got up to about a 150 it stopped improving. I’m thinkin I need a new hole or two in the emulsion tube. Anybody out there know anything about emulsion tube mods?
I think I can clean up the rough idle by drilling a small hole in the throttle plate (an old hot rodder trick used on engines with low idle vacuum). Right now, I think the throttle plate is open too much and overlaps the transfer ports at idle.
Things are lookin up.
Sorry for not placing multiple hyperlinks in one post, I just couldn't get it to stick.
Back to top
Knowledge is power.
IP Logged
RocketScienceSmurf
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 268
Sweden
Gender:
Re: They said it couldn't be done - S&S carb insta
Reply #9 -
07/20/19 at 22:51:18
Wow! Really nice job and a beautiful bike. It looks brand new!
Two questions: What is the insulator spacer made of and what is the small meter up to the right beside the tachometer?
Back to top
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4140
Honolulu
Re: They said it couldn't be done - S&S carb insta
Reply #10 -
07/21/19 at 15:02:33
Kamelryttarn, thanks for the kudos.
The insulator is made from a phenolic material. S&S makes them in two thicknesses, 1/4" and 3/8". S&S part numbers 16-0491 & 16-0497.
The small meter to the right of the tachometer is an oil pressure gage, 0-15 psi, liquid filled. I have it tapped in to the head cover. It is a Marshall part number LB00015. You can view the details of the install here.
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1559853083
