New mounting position for the license plate (Read 72 times)

RocketScienceSmurf

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male

New mounting position for the license plate
05/26/19 at 01:01:39

This winter I bought a -94 Suzuki Savage in good condition with a plan to modify in to a bobber or something similar. I will wait until next year to really get started on the rebuild but I wanted to get rid of some chrome and saddle bags for this season and since the previous owner had welded the mounting plate for the license plate to the right side of the bag holders I decided to try ad find a better place for it the didn't very much or any modifications to the bike and I came up with the left side passenger foot peg mount (if that is what it's called?).

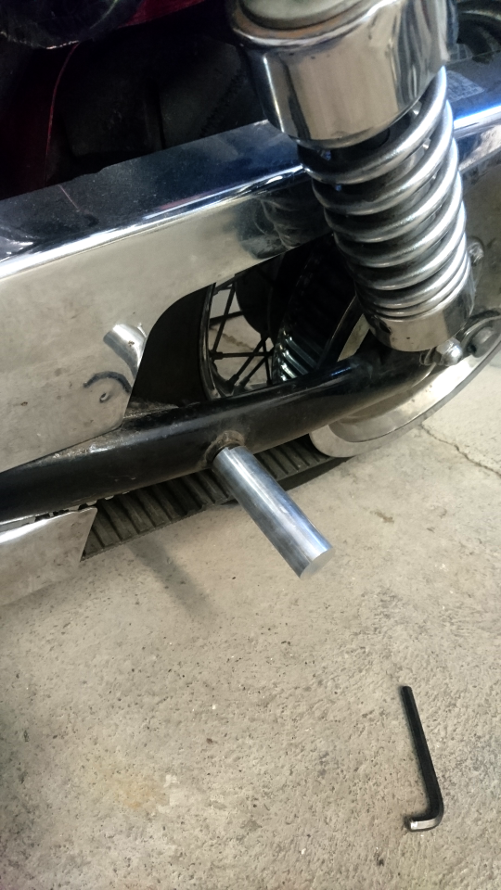

I bought a cheap plate holder from Banggood and machined a small piece of aluminium to use as a long spacer and mount. The spacer is made from a 25mm OD aluminium rod with a milled slot to fit the mount on the swing arm.

The original bolt was a fine thread pitch M10 with 1.25mm per turn but I decided to use a regular 1.5 pitch M10 on my spacer and use new bolts instead.


IP Logged

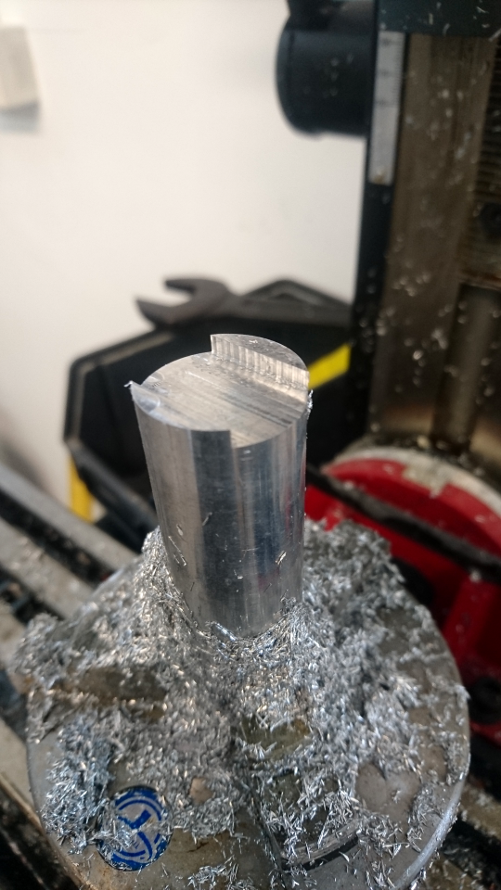

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: New mounting position for the license plate Reply #1 - 05/26/19 at 01:03:36 After making the end of the rod flat I did the wide slot
Back to top	milled_1.png IP Logged

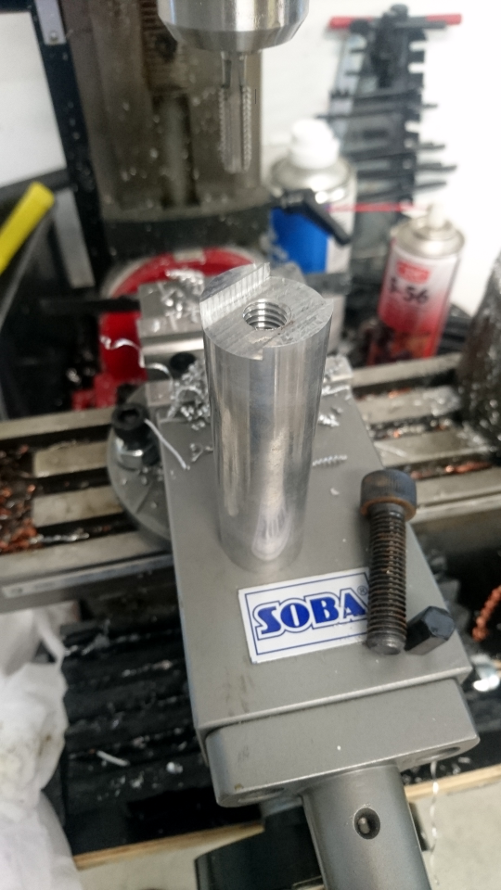

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: New mounting position for the license plate Reply #2 - 05/26/19 at 01:04:43 Here is what it looks like before mounting it on the bike just after I finished with the threads
Back to top	finished_1.png IP Logged

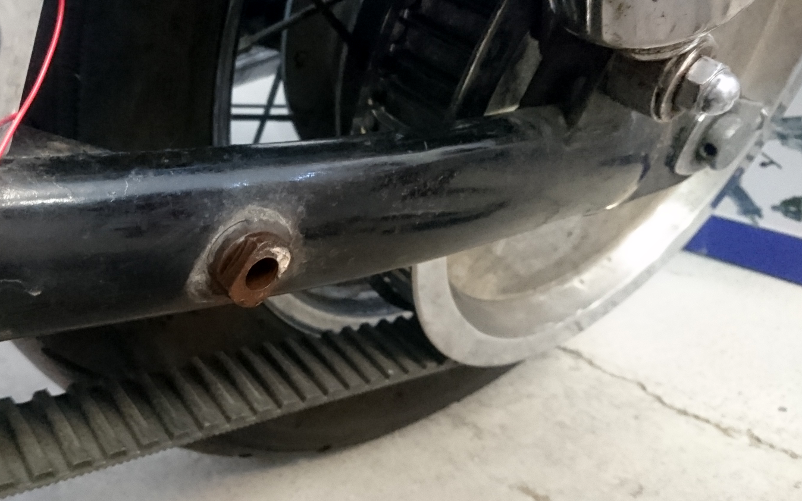

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: New mounting position for the license plate Reply #3 - 05/26/19 at 01:06:51 The is what the peg mount looks like. You can clearly see that notch that fits in the milled slot of the spacer. The original bolt to hold the peg was about 55mm long so I will try and get a 60 or perhaps even 70mm long bolt for my spacer since I drilled it fairly deep.
Back to top	peg_mount.png IP Logged

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: New mounting position for the license plate Reply #4 - 05/26/19 at 01:10:14 This is the plate holder I ordered. I will not use the small "tilt bracket" but instead bolt the holder directly to my aluminium spacer. https://www.banggood.com/Motorcycle-License-Plate-Holder-Aluminum-Alloy-Mount...
Back to top	IP Logged

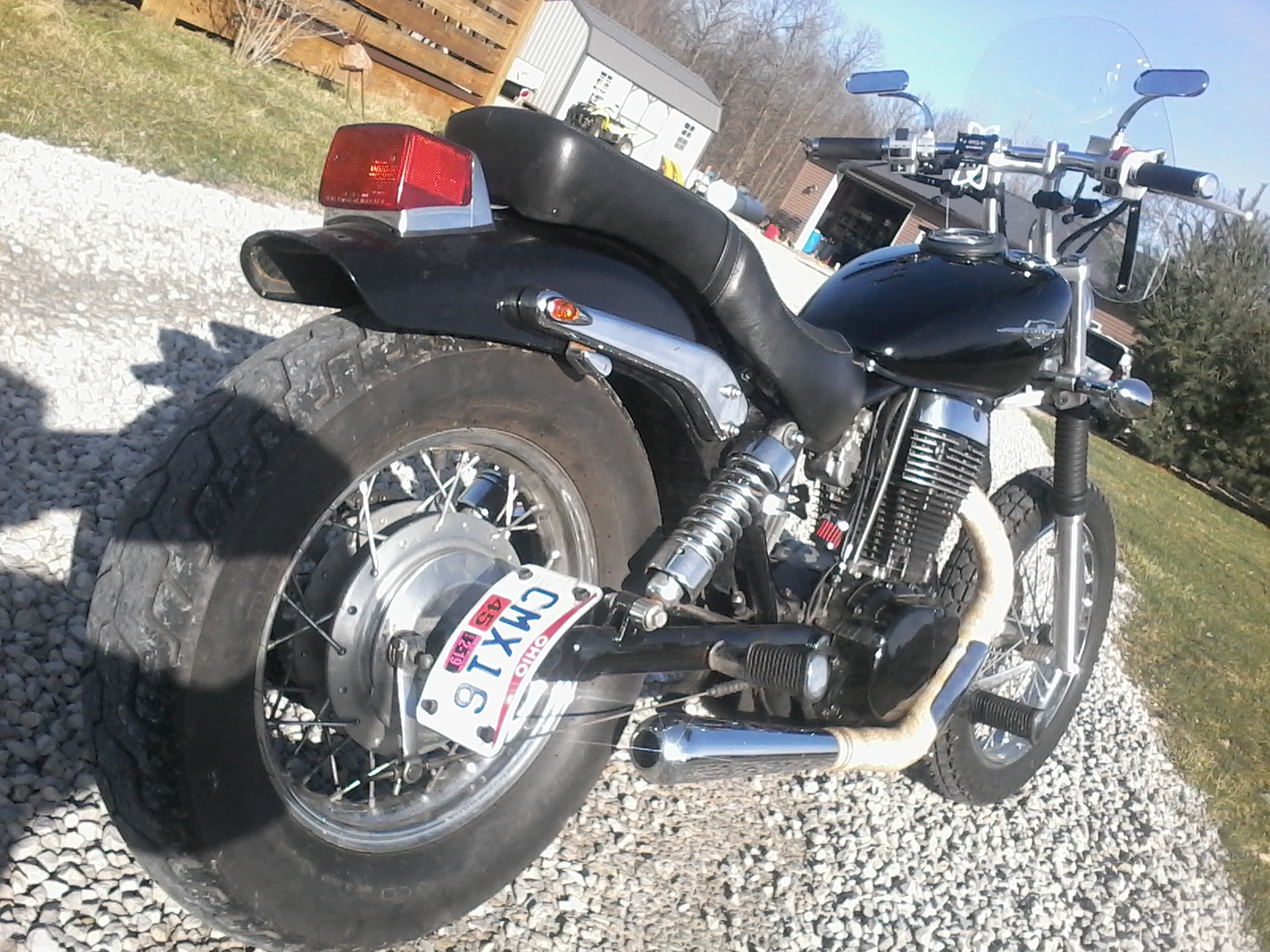

BrokeAss Junior Member Offline SuzukiSavage.com Rocks! Posts: 69	Re: New mounting position for the license plate Reply #5 - 05/26/19 at 06:30:23 $20 for these: https://www.ebay.com/itm/Motorcycle-Side-Mount-License-Plate-Bracket-Fits-Har...
Back to top	20190403_174702.jpg IP Logged

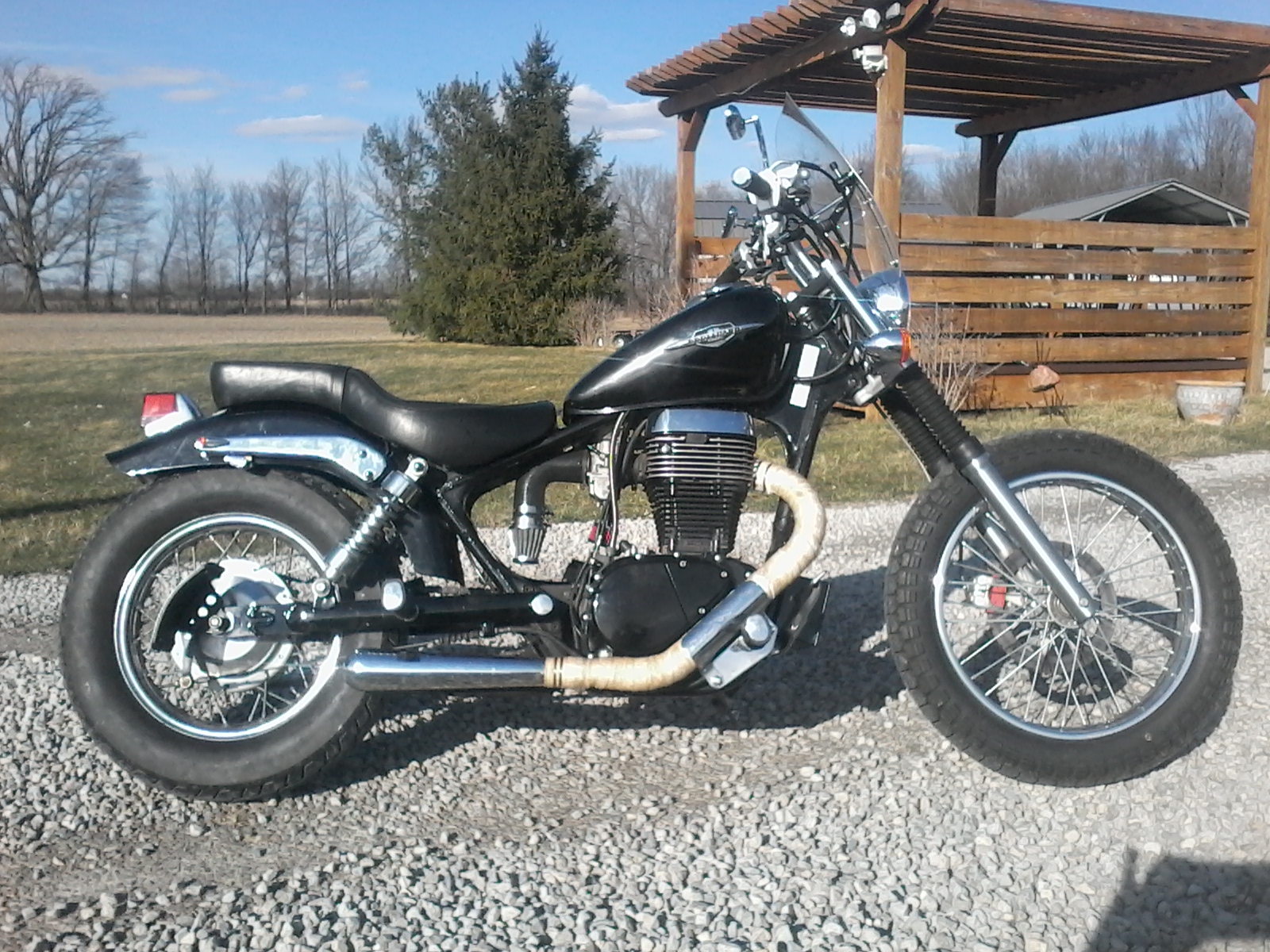

BrokeAss Junior Member Offline SuzukiSavage.com Rocks! Posts: 69	Re: New mounting position for the license plate Reply #6 - 05/26/19 at 06:42:55 Side view:
Back to top	20190403_174640_001.jpg IP Logged

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: New mounting position for the license plate Reply #7 - 05/26/19 at 07:06:03 Nice looking but the Swedish plate is much larger and I'm not sure bending the plate is street legal here either.
Back to top	IP Logged

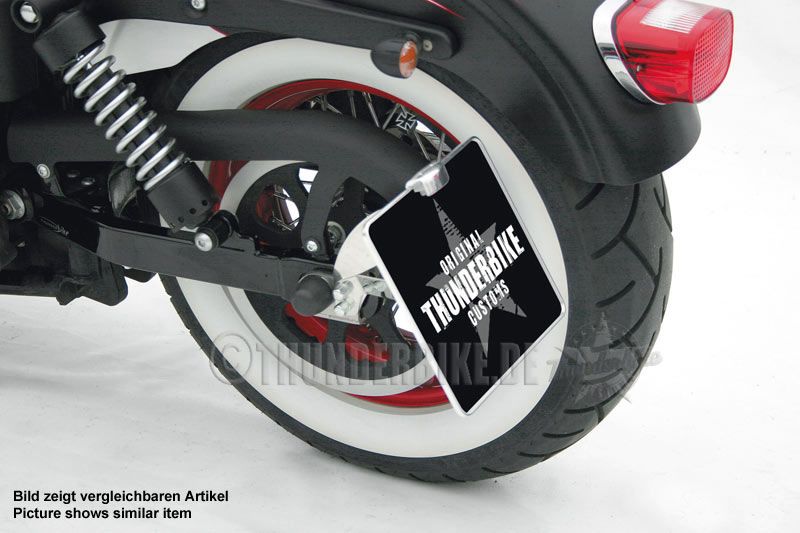

BrokeAss Junior Member Offline SuzukiSavage.com Rocks! Posts: 69	Re: New mounting position for the license plate Reply #8 - 05/26/19 at 07:45:43 Perhaps:
Back to top	28-73-090-2.jpg IP Logged

RocketScienceSmurf

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male

Re: New mounting position for the license plate
Reply #9 - 05/26/19 at 08:12:31

That would probably work great

I am a bit reluctant to touch the bolt holding the back wheel though.

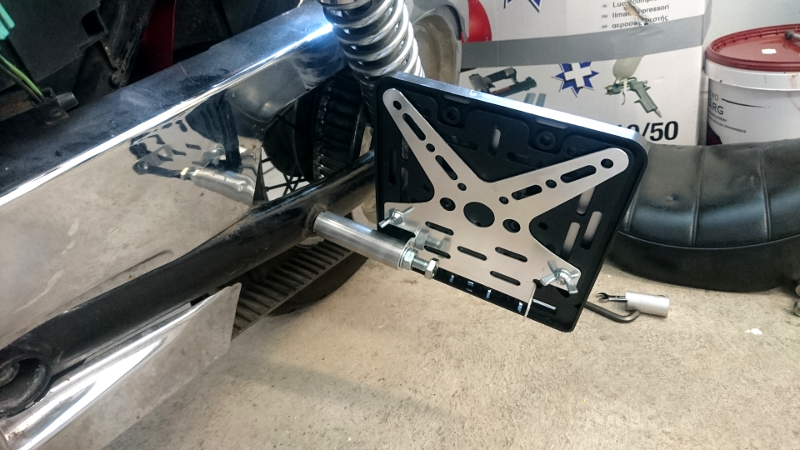

I drilled and tapped the M10 thread on the opposite side today and test mounted it to the bike. It worked very will. A friend will help be with a small piece of aluminium pipe to put between the two mounting points to help with stability.


IP Logged

BrokeAss Junior Member Offline SuzukiSavage.com Rocks! Posts: 69	Re: New mounting position for the license plate Reply #10 - 05/26/19 at 08:52:30 Looks good, nice work! FWIW, I wouldn't worry too much about plate mounts that use the axle, they're quite commonplace here in the States. They're typically only about 3/32" thick or so.
Back to top	IP Logged

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: New mounting position for the license plate Reply #11 - 05/26/19 at 09:48:53 Thanks BrokeAss Btw, where did you hide the battery on that build? It looks awesome and so clean.
Back to top	IP Logged

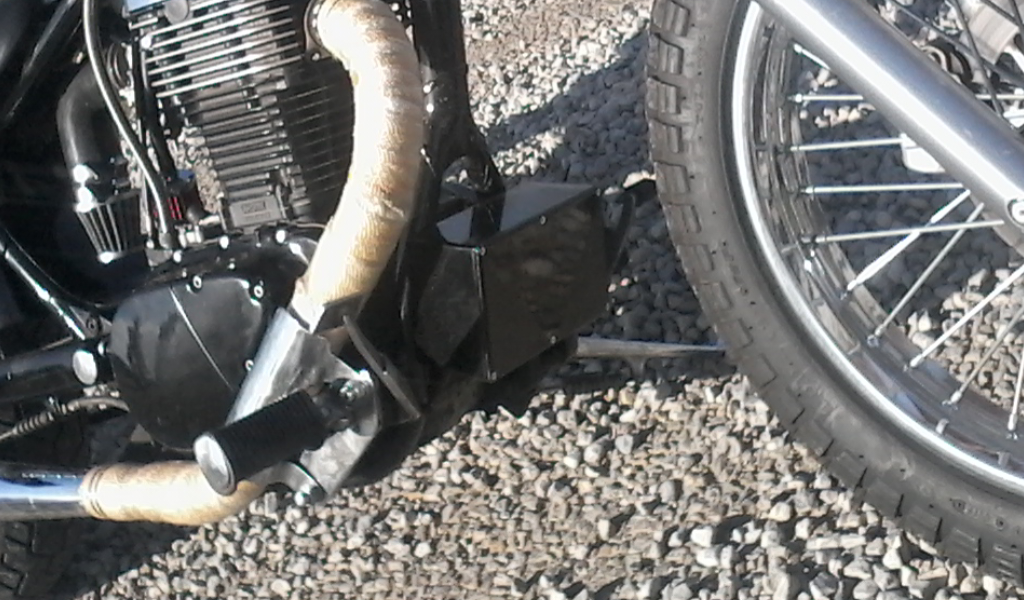

BrokeAss Junior Member Offline SuzukiSavage.com Rocks! Posts: 69	Re: New mounting position for the license plate Reply #12 - 05/26/19 at 14:38:09 RocketScienceSmurf wrote on 05/26/19 at 09:48:53: where did you hide the battery on that build? It looks awesome and so clean. Thank you kindly! It's right up front:
Back to top	Screenshot_2019-05-26-17-37-16.png IP Logged
