Mystery Hose - Where does it connect?
05/20/19 at 20:46:18

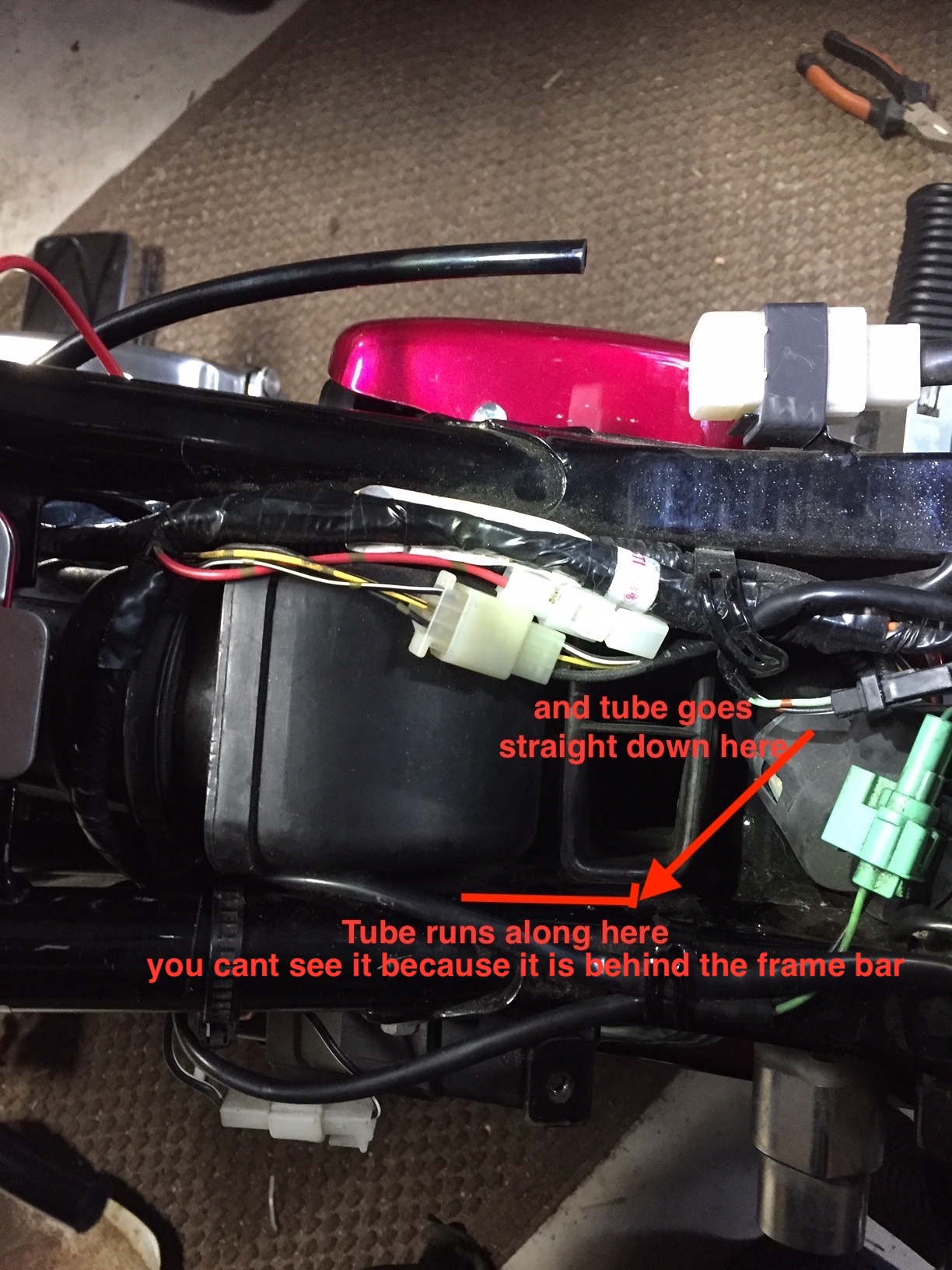

I have an 07 Suzuki s40 Boulevard ls650 - same as a Savage. I took off the seat, tank and battery to add a louder horn, and put it all back together, but there is one hose left that I cannot figure out where it connects to. The hose originates from under the seat straight down into the middle of the bike. Not sure how I can attach more than one photo.
Photo attached. Anyone know?
Thanks so much!
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28754
L.A. California
Gender:
Re: Mystery Hose - Where does it connect?
Reply #1 -
05/20/19 at 20:57:19
California bike?
If so it might be the tank vent line.
if it connects to the air box, then it might be the head breather line.
Although it looks too small.
Back to top
Versey's Place
Tech Section Index
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17801
Camp Springs, Kentucky
Gender:
Re: Mystery Hose - Where does it connect?
Reply #2 -
05/21/19 at 04:06:52
That is not a factory hose....or factory hose clamps.
Looks like a previous owner added something.
Is the other end connected to anything?
Back to top
Someday I will be old......But not today!
IP Logged
VortecCPI
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 127
Re: Mystery Hose - Where does it connect?
Reply #3 -
05/21/19 at 06:31:05
https://www.mrcycles.com/oemparts/a/suz/50d33085f8700232d0b3db46/evap-system-e33
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17801
Camp Springs, Kentucky
Gender:
Re: Mystery Hose - Where does it connect?
Reply #4 -
05/21/19 at 07:16:59
Well the parts diagram does show the hose clamps to look the same - so I guess that hose is supposed to connect to the fuel tank, up near the speedometer......the California tank with the vent tube.
Back to top
Someday I will be old......But not today!
IP Logged
savagemama
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 9
Re: Mystery Hose - Where does it connect?
Reply #5 -
05/21/19 at 08:51:59

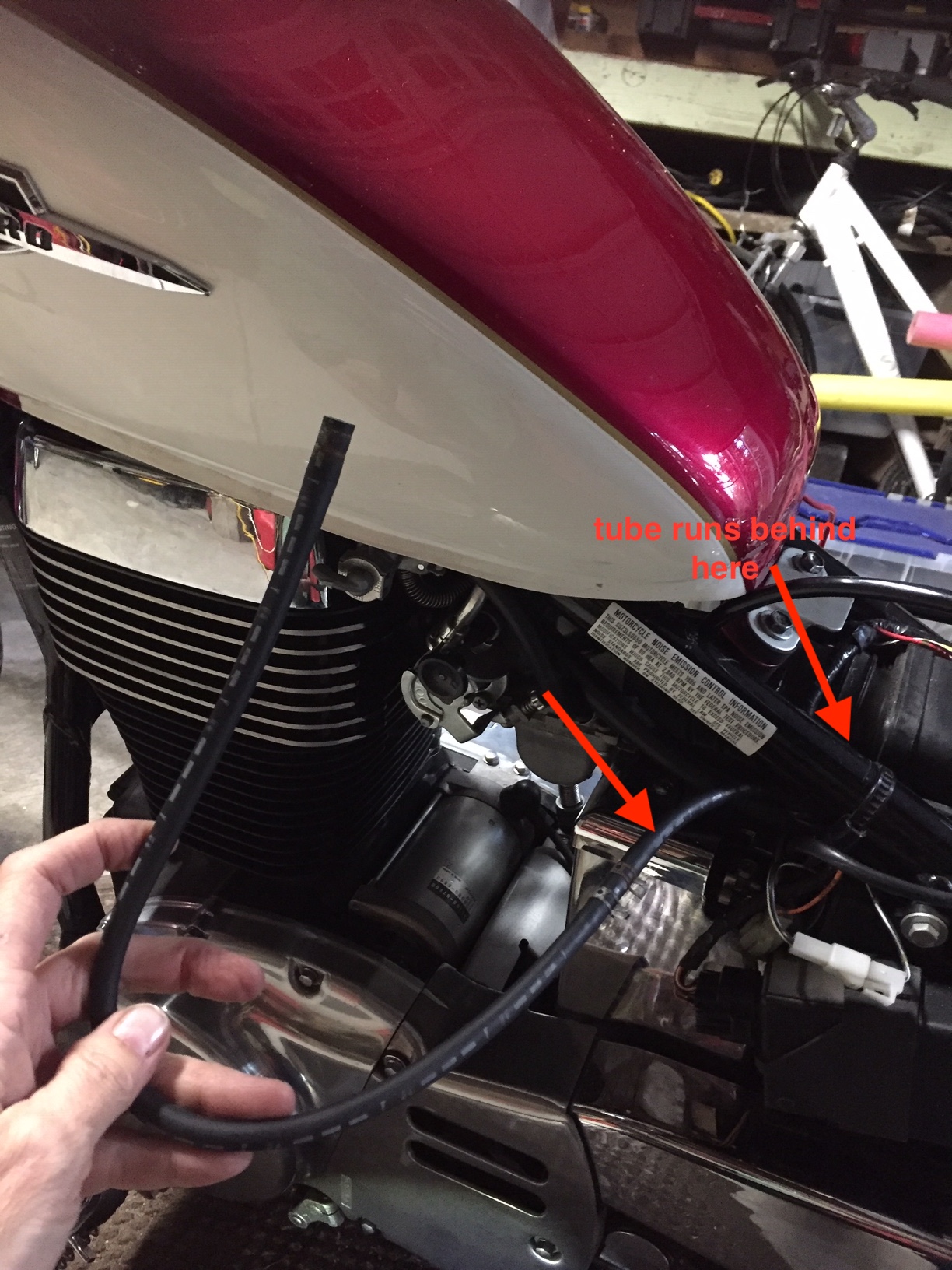

Here is the other end of the hose - it connects from under the seat area.
Back to top
IP Logged
savagemama
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 9
Re: Mystery Hose - Where does it connect?
Reply #6 -
05/21/19 at 08:53:56

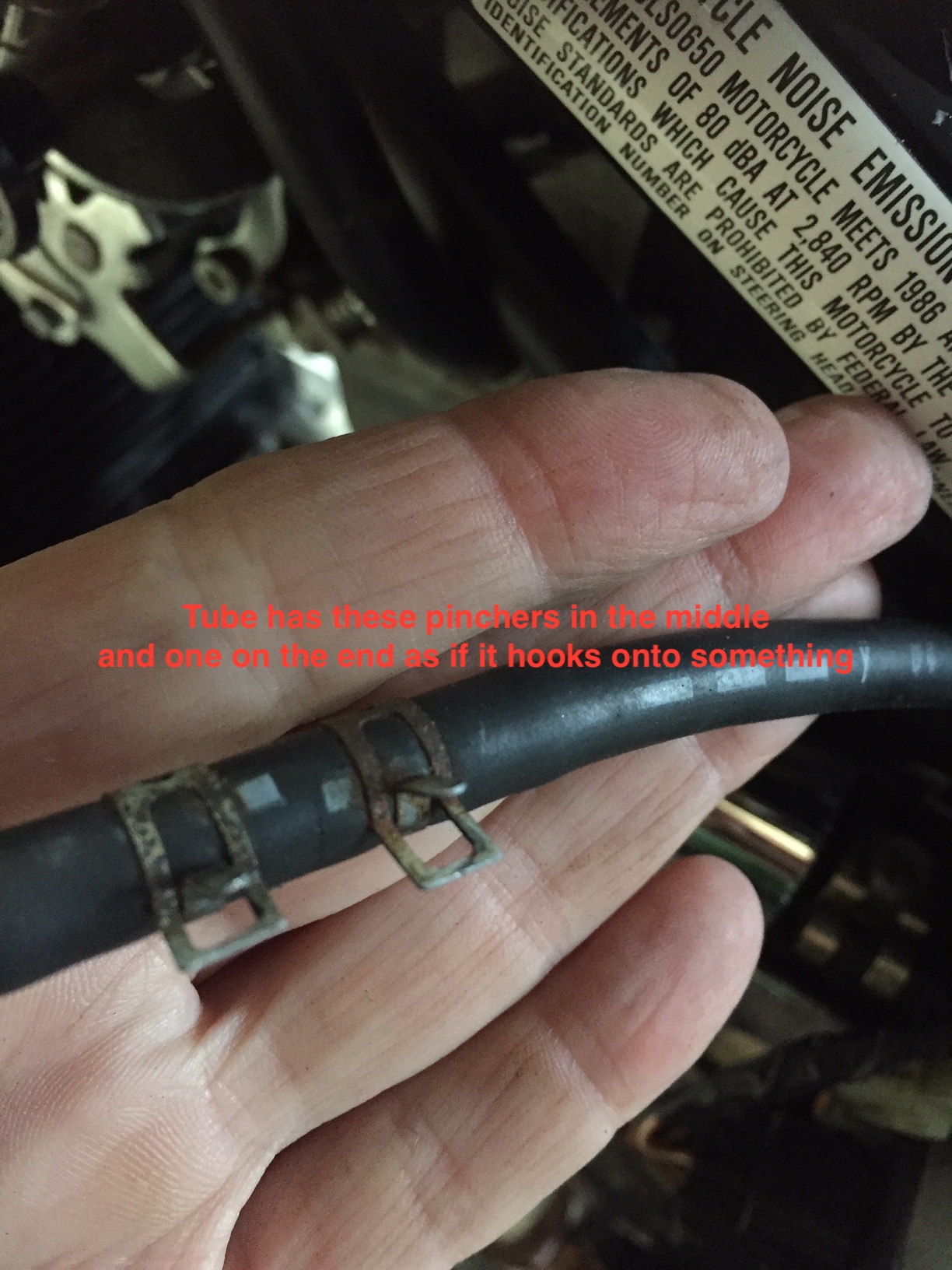

Close up of the hose.
Back to top
IP Logged
savagemama
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 9
Re: Mystery Hose - Where does it connect?
Reply #7 -
05/21/19 at 08:55:11
Yes, it is a California bike.
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17801
Camp Springs, Kentucky
Gender:
Re: Mystery Hose - Where does it connect?
Reply #8 -
05/21/19 at 09:13:47
I believe that connection in the middle is so you can leave the fuel tank end connected when you remove/install the tank - but you can disconnect the hose in the middle.
Back to top
Someday I will be old......But not today!
IP Logged
VortecCPI
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 127
Re: Mystery Hose - Where does it connect?
Reply #9 -
05/21/19 at 10:03:47
Is this of any help?
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1359489873
Back to top
IP Logged
savagemama
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 9
Re: Mystery Hose - Where does it connect?
Reply #10 -
05/21/19 at 10:07:19
Thanks so much, no that photo does not help, but thanks!
Back to top
IP Logged
VortecCPI
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 127
Re: Mystery Hose - Where does it connect?
Reply #11 -
05/21/19 at 10:15:03
How about this?
Back to top
IP Logged
savagemama
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 9
Re: Mystery Hose - Where does it connect?
Reply #12 -
05/21/19 at 10:28:10

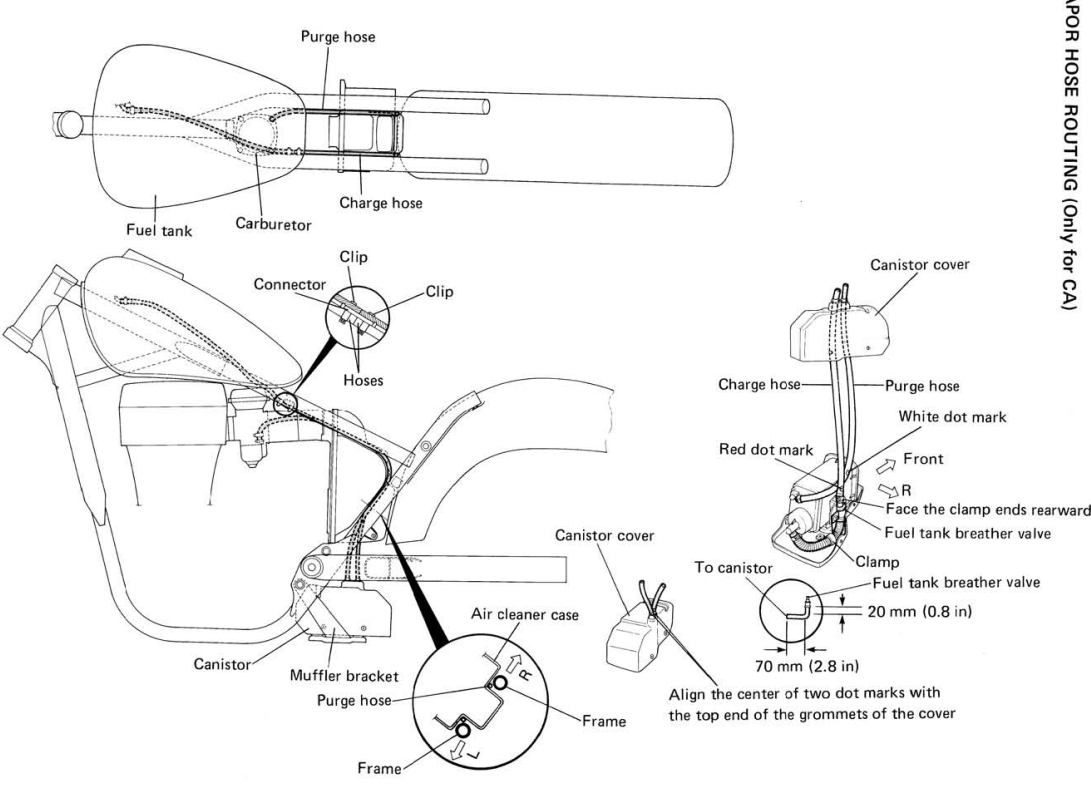

Yes! I just found this diagram also. Very helpful!! Looks like maybe the line connects under the gas tank, though none of the tank diagrams, etc. show it. I'm gonna yank the tank off and see what I see. SUre appreciate your help!
