Mikuni Carb Differences 24c5 vs 24c4 (Read 31 times)
cuda_tim
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 4
Mikuni Carb Differences 24c5 vs 24c4
05/05/19 at 12:43:28
Hey, so I'm working on a 1999 Savage that was in storage for many years, and it appears that the system was never drained of fuel.
Hence, the float is stuck (among other problems) due to a green varnish stuck to everything.
So rather than try and rebuild the original 24c5 carb, I found a "slightly used rather clean" 24c4.
The only obvious difference (and there are probably many more internally) is a missing hose connection on the 24c4.

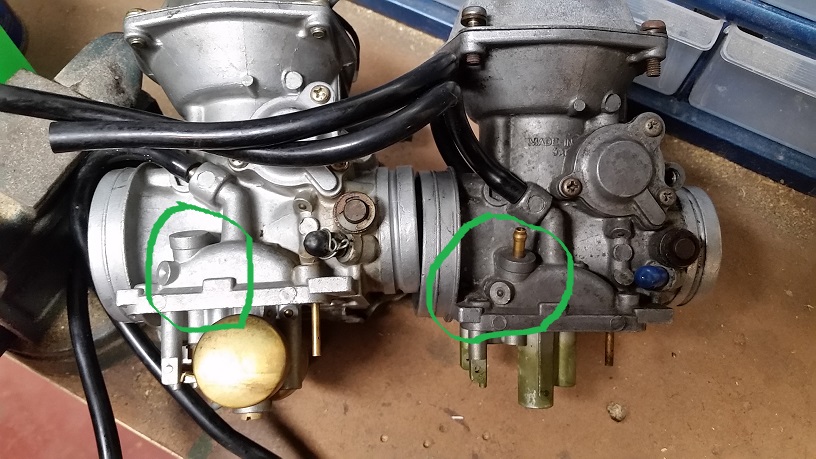

Since this is my first post, the next message includes a picture of both carbs, side-by-side (24c4 is on the left).
I have tried (not too hard) to locate where the hose connects to, somewhere down below the airbox.
But I figured I'd ask first, and also get a reading on how important the connection might be.
Also, if someone can direct me to a reference document on each carb, that might be nice to have.
Anybody?
Thanks!
Back to top
IP Logged
cuda_tim
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 4
Re: Mikuni Carb Differences 24c5 vs 24c4
Reply #1 -
05/05/19 at 12:44:28
Here is the pic...
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28886
L.A. California
Gender:
Re: Mikuni Carb Differences 24c5 vs 24c4
Reply #2 -
05/05/19 at 13:56:41
The one on the right is a california model and the extra port connects to a carbon canister that sits below the swingarm.
