Spoiler Alert! I fabricated one of these and it didn't work. Actually went a bit slower. Ya win some ya lose some. If any of you have better luck please share your experience. DBM 6/6/21.

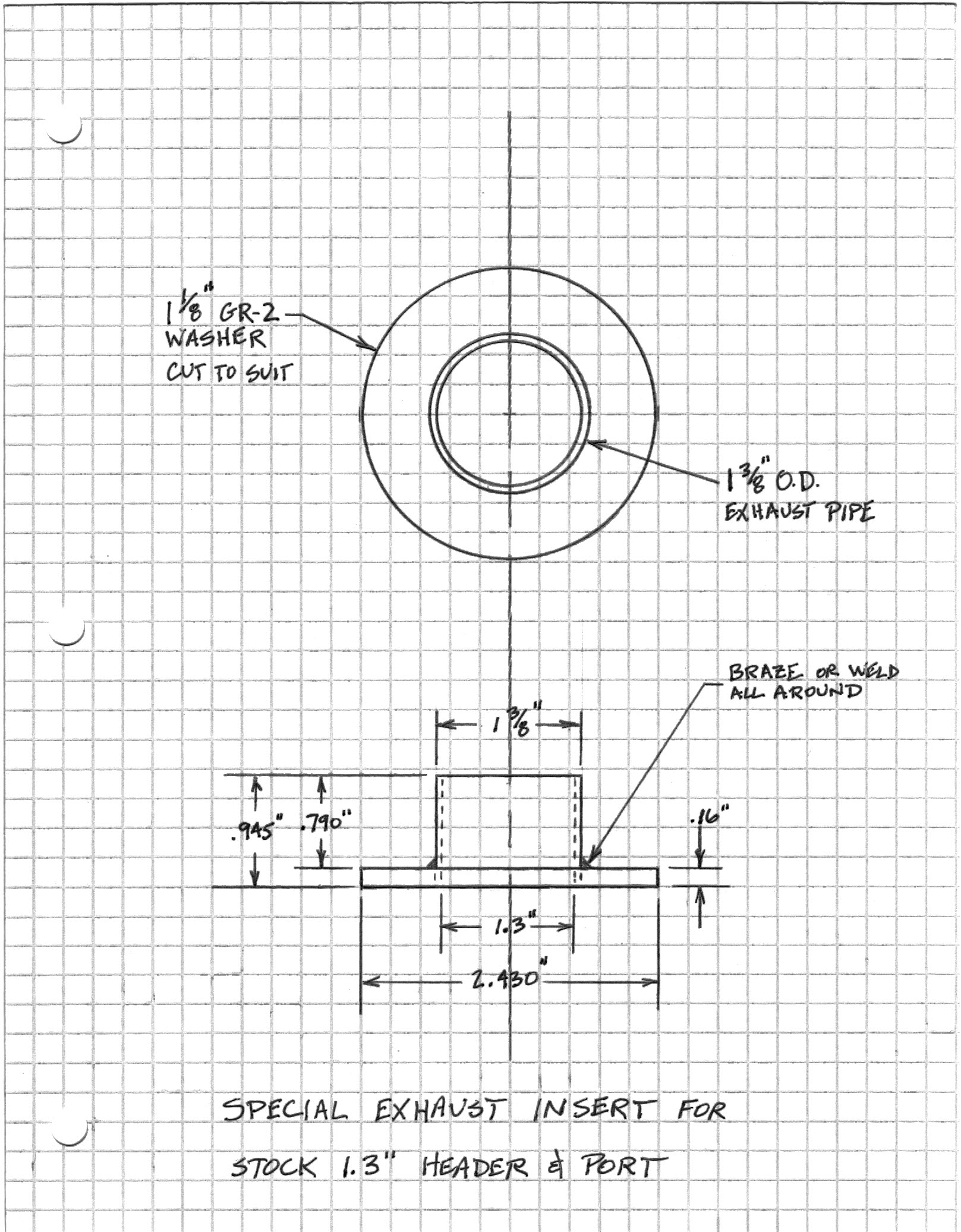

On my recent post regarding cylinder head flow, I mentioned that I had come up with a design for a special insert that bridges the gap between the cylinder head 1.3” diameter exhaust port outlet and the header pipe 1.27” diameter inlet. When used on a head with a stock port outlet, in conjunction with the stock header, the mock insert showed a 4.2% increase in average flow and a 5.3% increase in maximum flow (139.5 CFM vs 132.5 CFM). This 1.3” insert doesn’t work on a head that has a port outlet larger than 1.3”. I tested the stock header on a head with a 1.5” diameter outlet and a special insert like the one described in this post, except the insert OD & ID were enlarged so that the ID of the insert matched the port outlet (1.5”). The other dimensions on the insert remained the same. When used on the modified head with a stock header pipe, the special 1.5” ID insert showed a 2.0% increase in average flow and a 2.8% increase in maximum flow (152.9 CFM vs 148.7 CFM). Every little bit counts. While I don’t suggest that you run a stock header on a port outlet larger than 1.3”, if that’s all you’ve got, the special 1.5” ID insert will help a little.

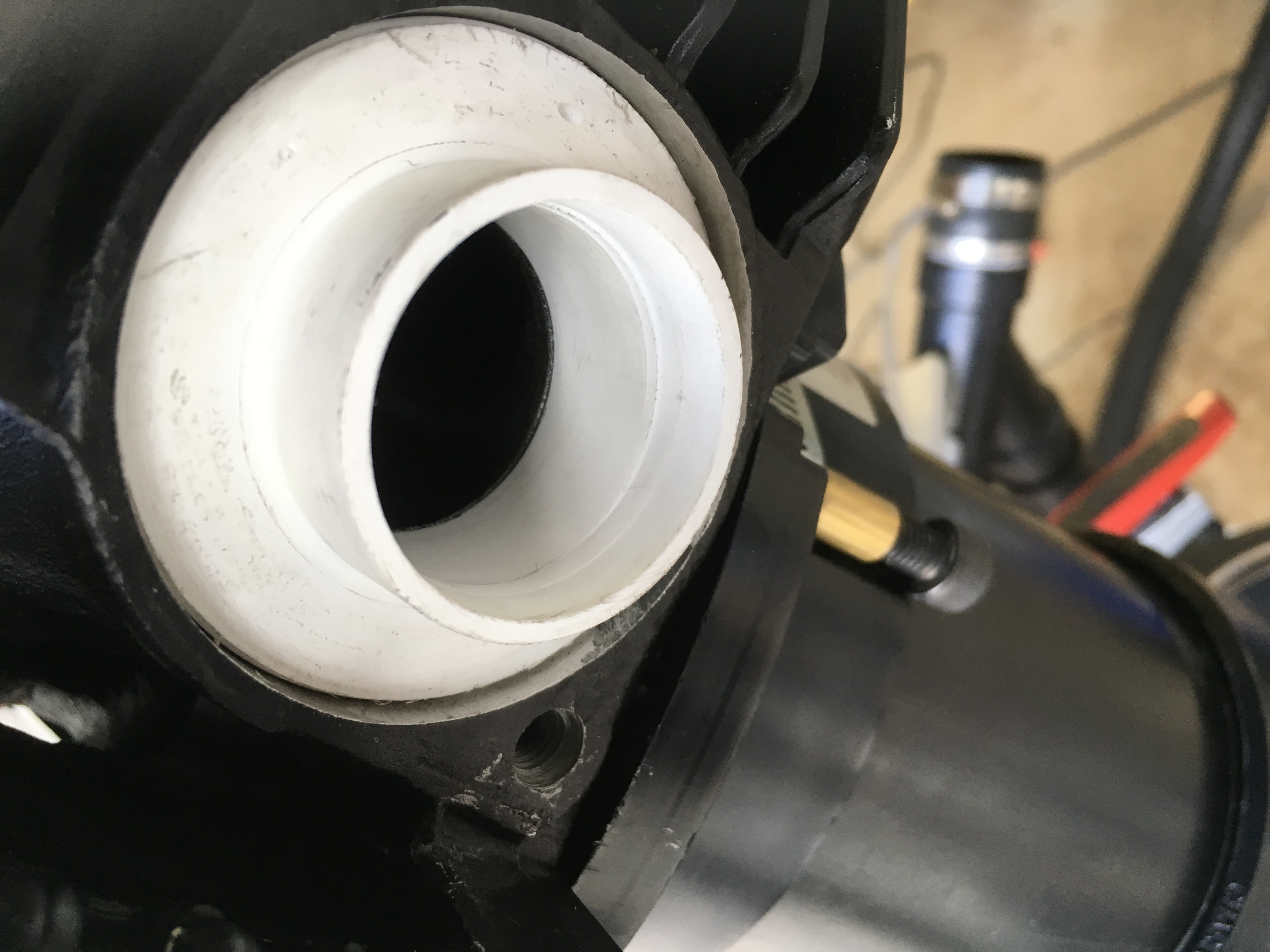

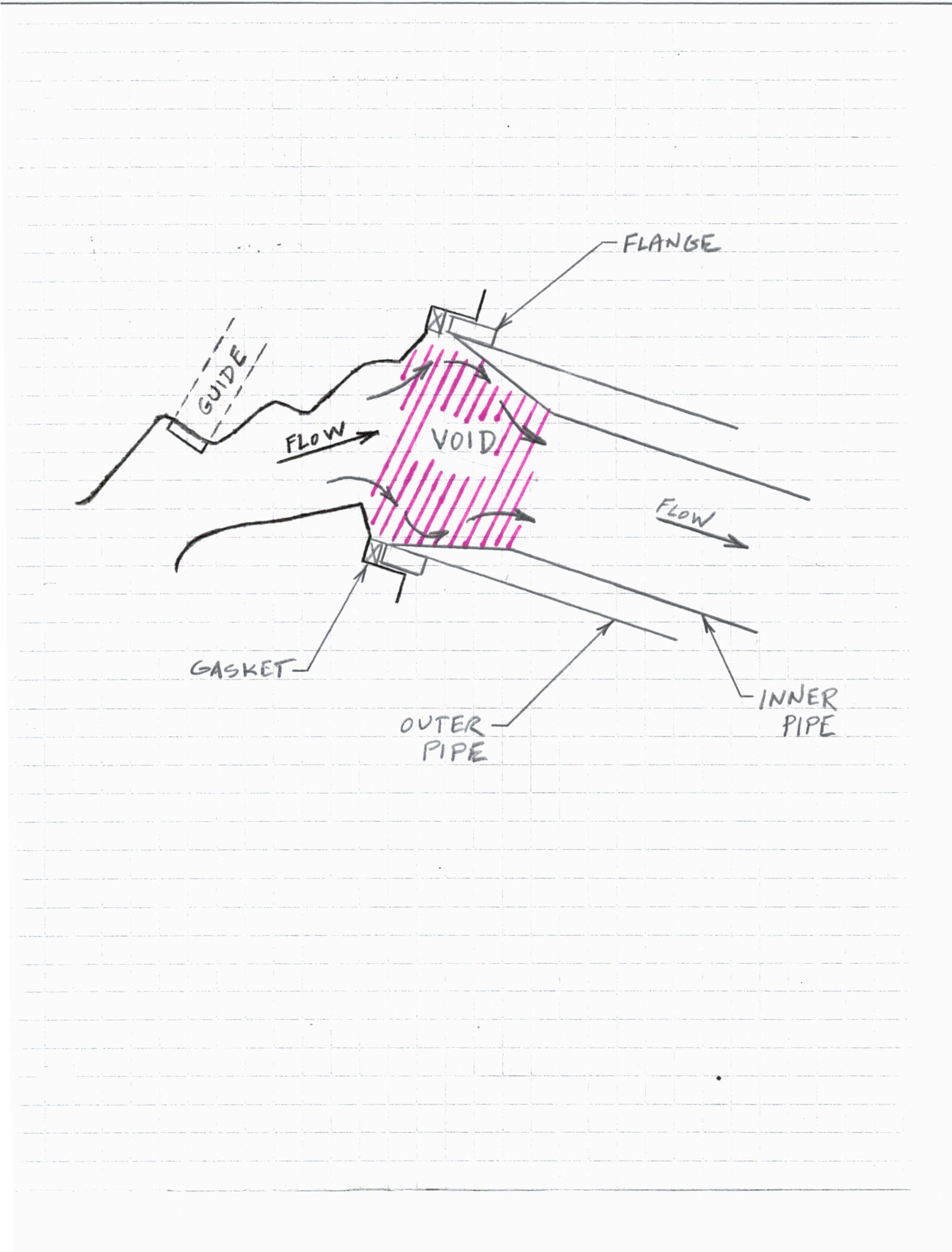

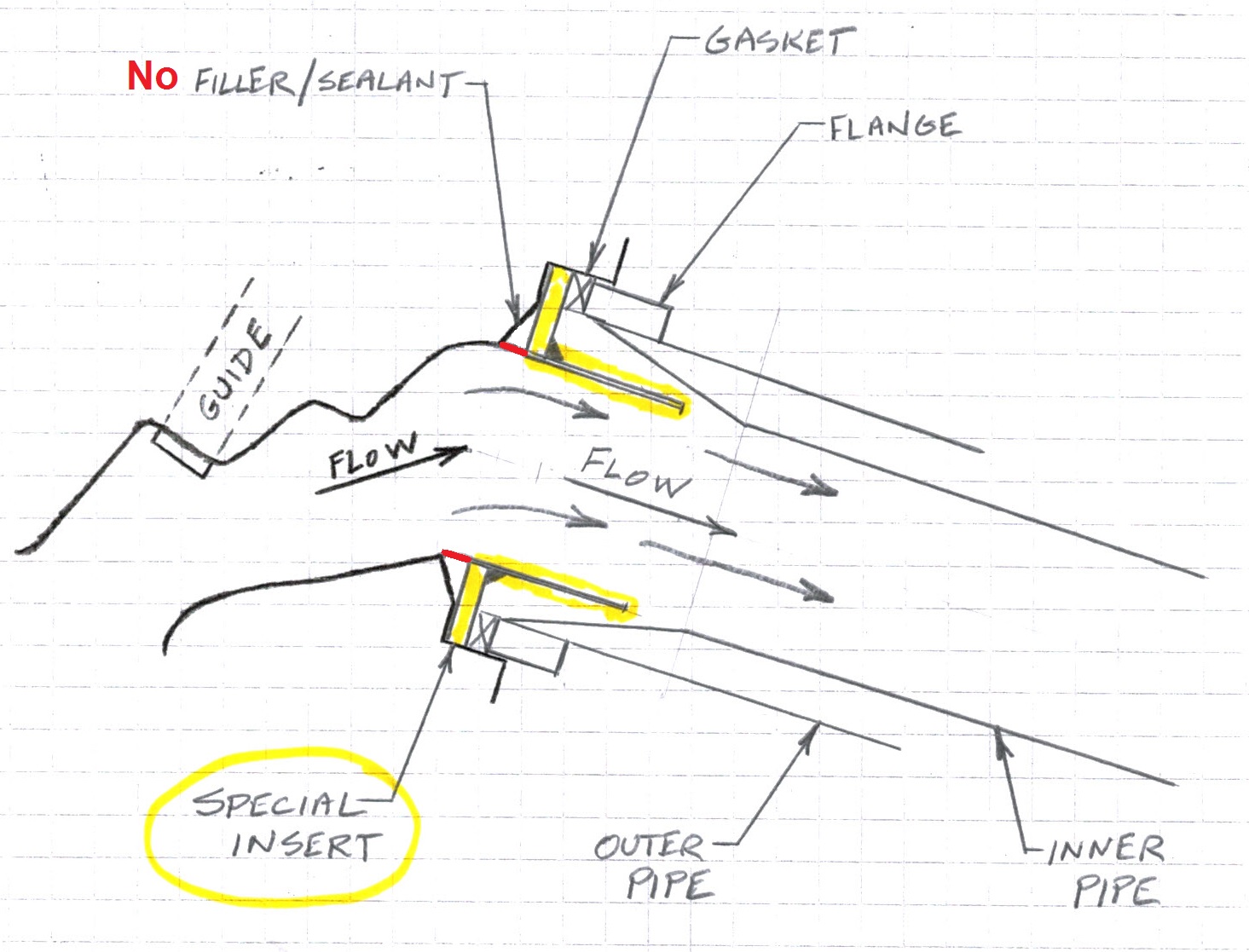

I used 28” H2O test pressure for my flow tests. I wanted the air moving as fast as possible. The concept behind the special fitting is to provide a uniform cross section flow path from the port 1.3” outlet to the pipe 1.27” inlet. It bridges the void resulting from the diverging bevel on the outlet, the .20” thick gasket, and the converging funnel in the inner pipe leading to the 1.27” pipe inlet. The following sketch should give you a good idea of the problem area.
|
