Pin striping (Read 163 times)

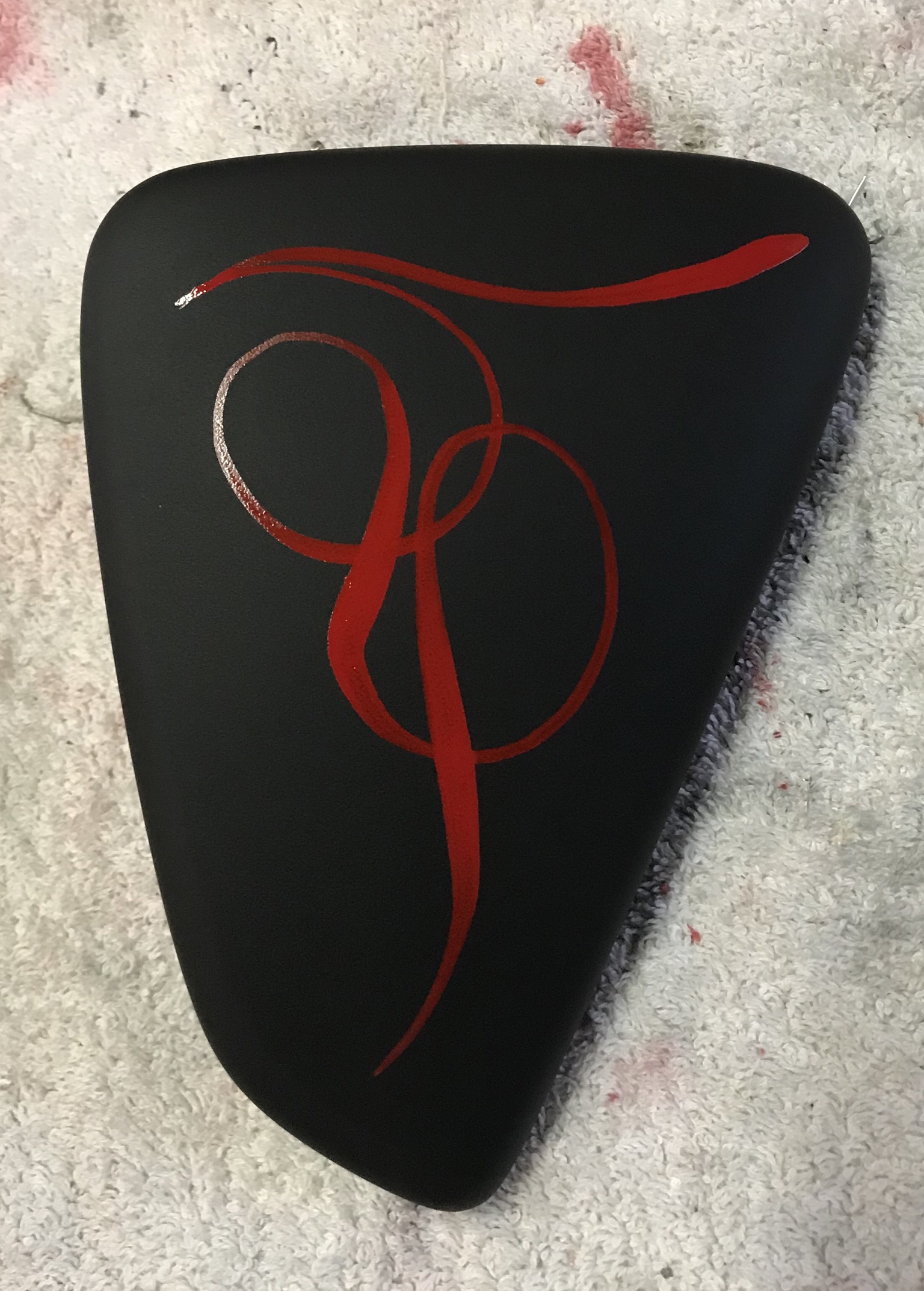

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Pin striping 02/03/19 at 12:29:20 After a couple months of practice I got up my courage and did an actual piece that is going to stay on the the bike.
Back to top	423A25AB-AAC7-4BEE-9626-0DC0E7A1C270.jpeg IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Pin striping Reply #1 - 02/03/19 at 12:54:24 Very nice, I don't have the courage or the skill.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

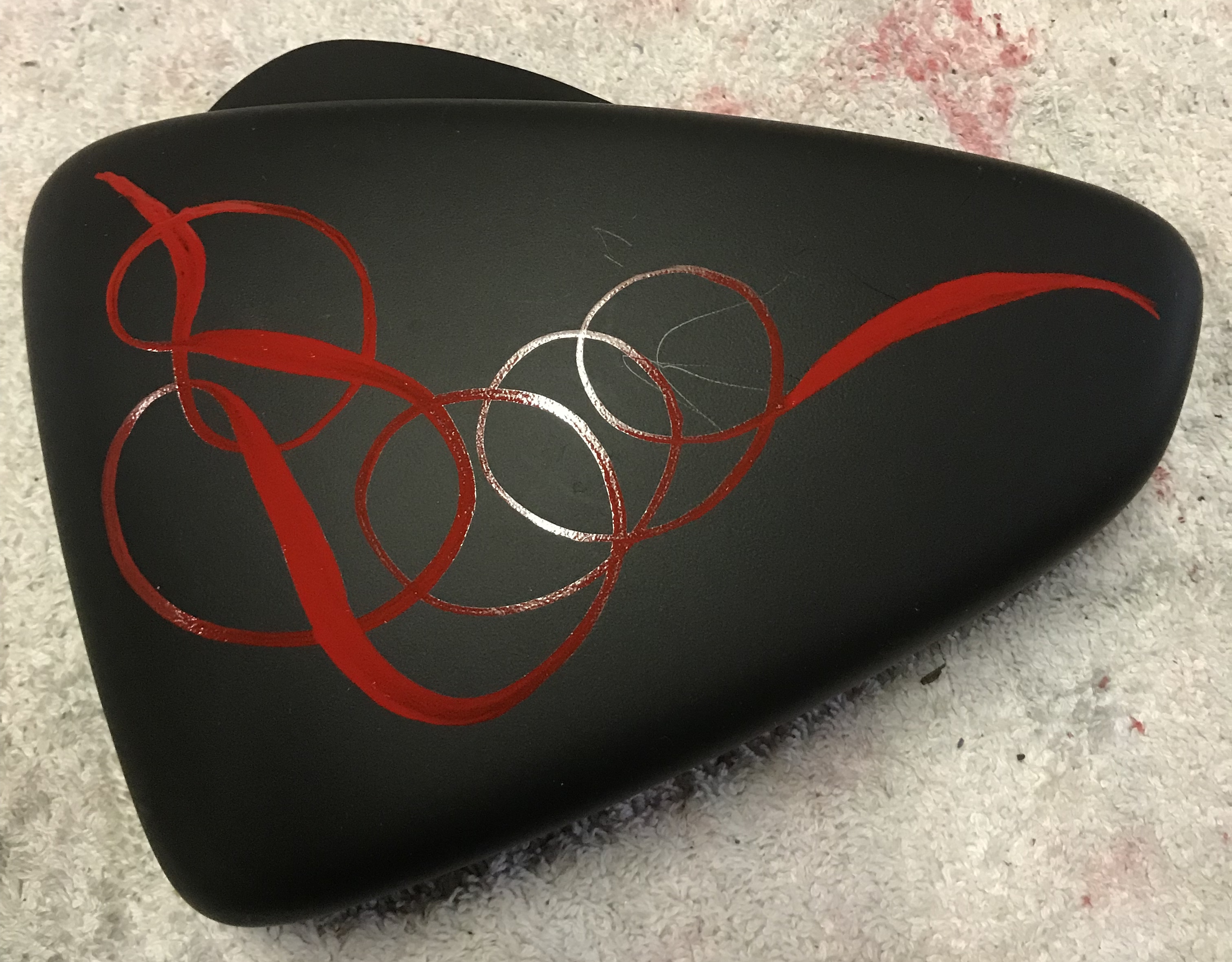

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #2 - 02/03/19 at 13:56:57 Other side
Back to top	ABBCD43D-B9BC-40DA-BBBB-67372E69D236.jpeg IP Logged

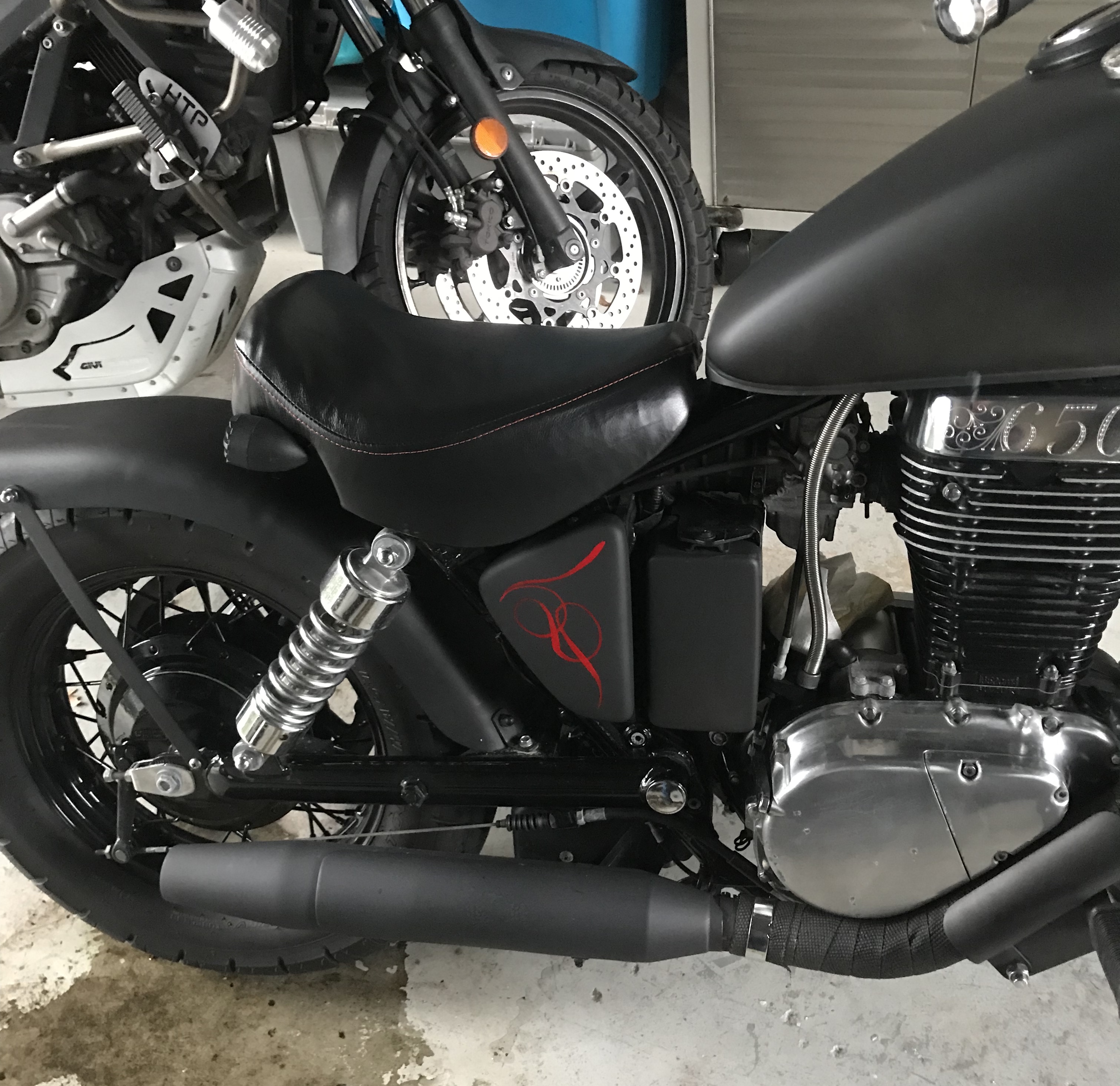

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #3 - 02/03/19 at 13:59:58 On the bike
Back to top	F100C25C-EF15-4BF5-BB48-CE22D6EF5C0A.jpeg IP Logged

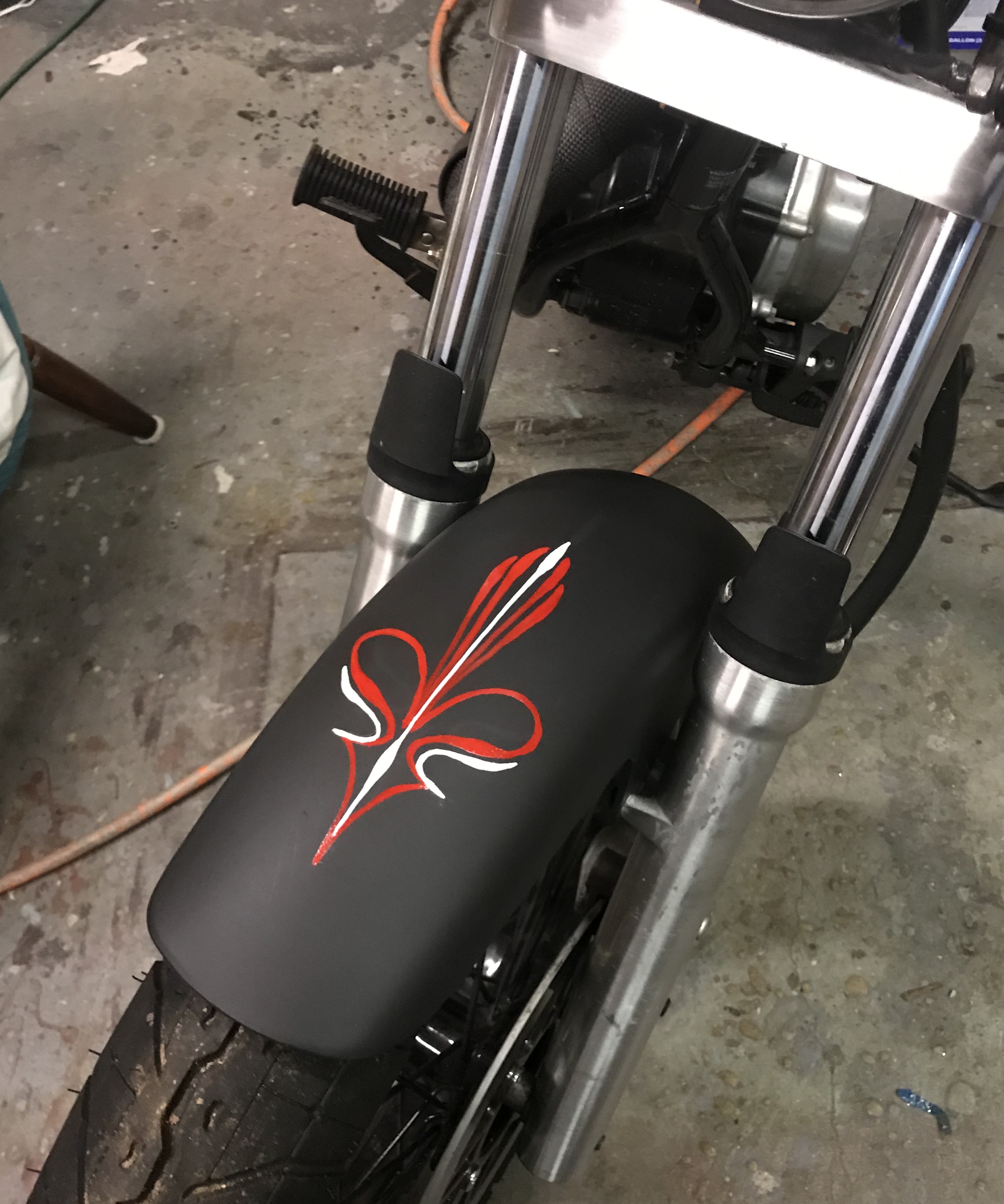

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #4 - 02/11/19 at 18:19:48 More parts done
Back to top	51AEA8DB-321D-4FA4-BACF-065FC76E446F.jpeg IP Logged

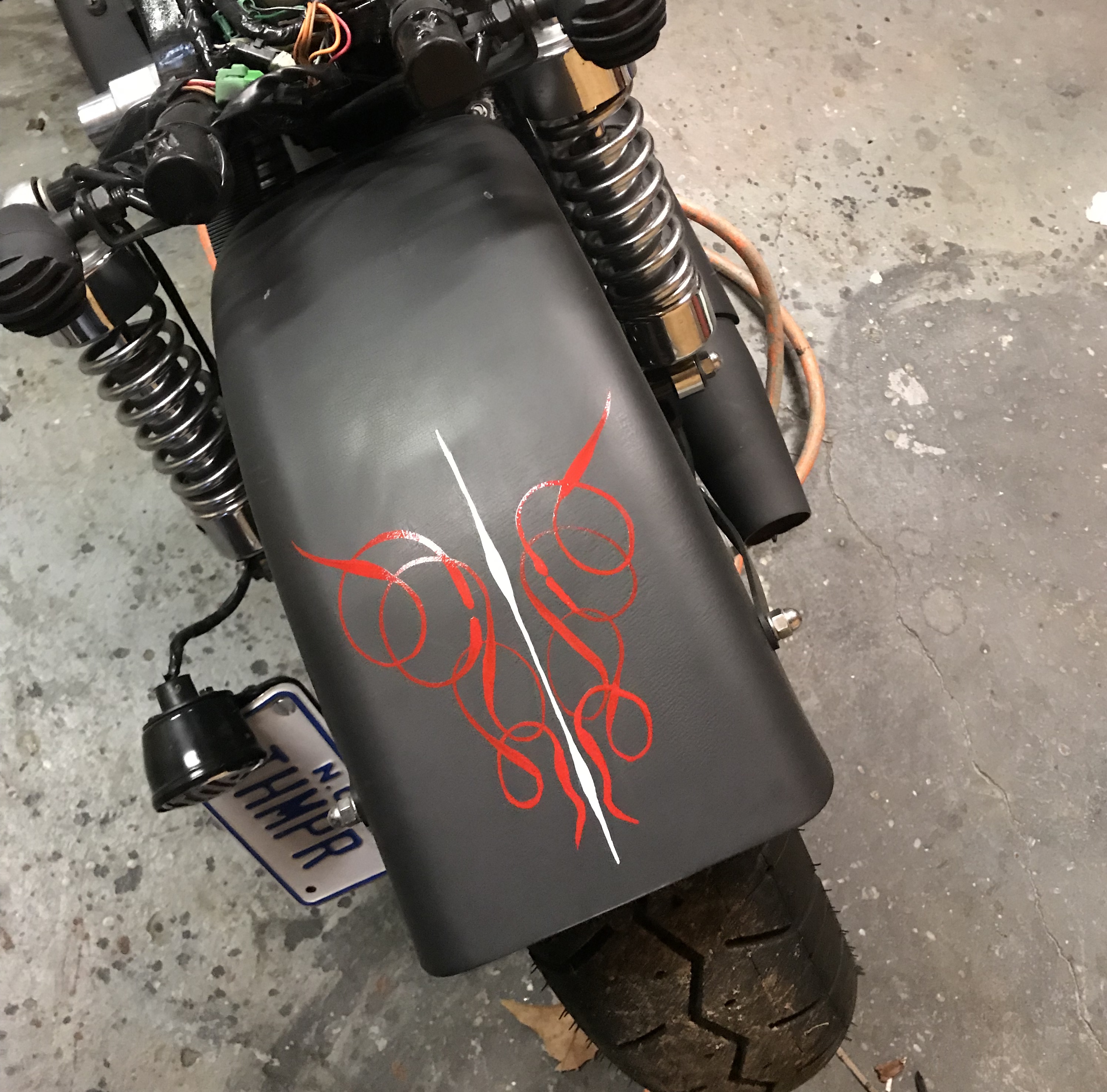

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #5 - 02/11/19 at 18:20:24 And rear fender
Back to top	1C5301E1-5345-48FB-AE60-89770B057004.jpeg IP Logged

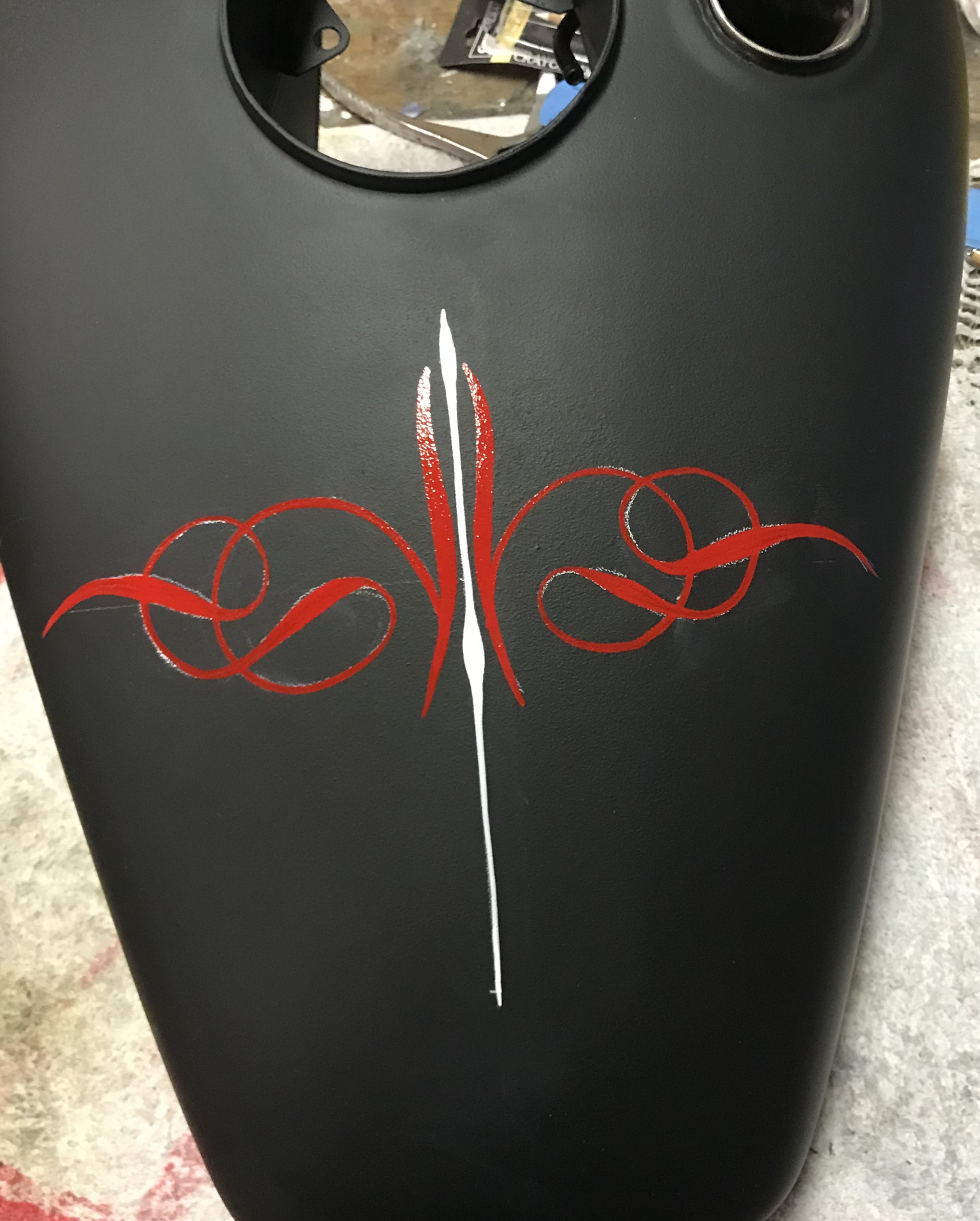

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #6 - 02/11/19 at 18:20:57 Tank
Back to top	FAB6168E-AB4A-445B-8EBD-0A08E9B98092.jpeg IP Logged

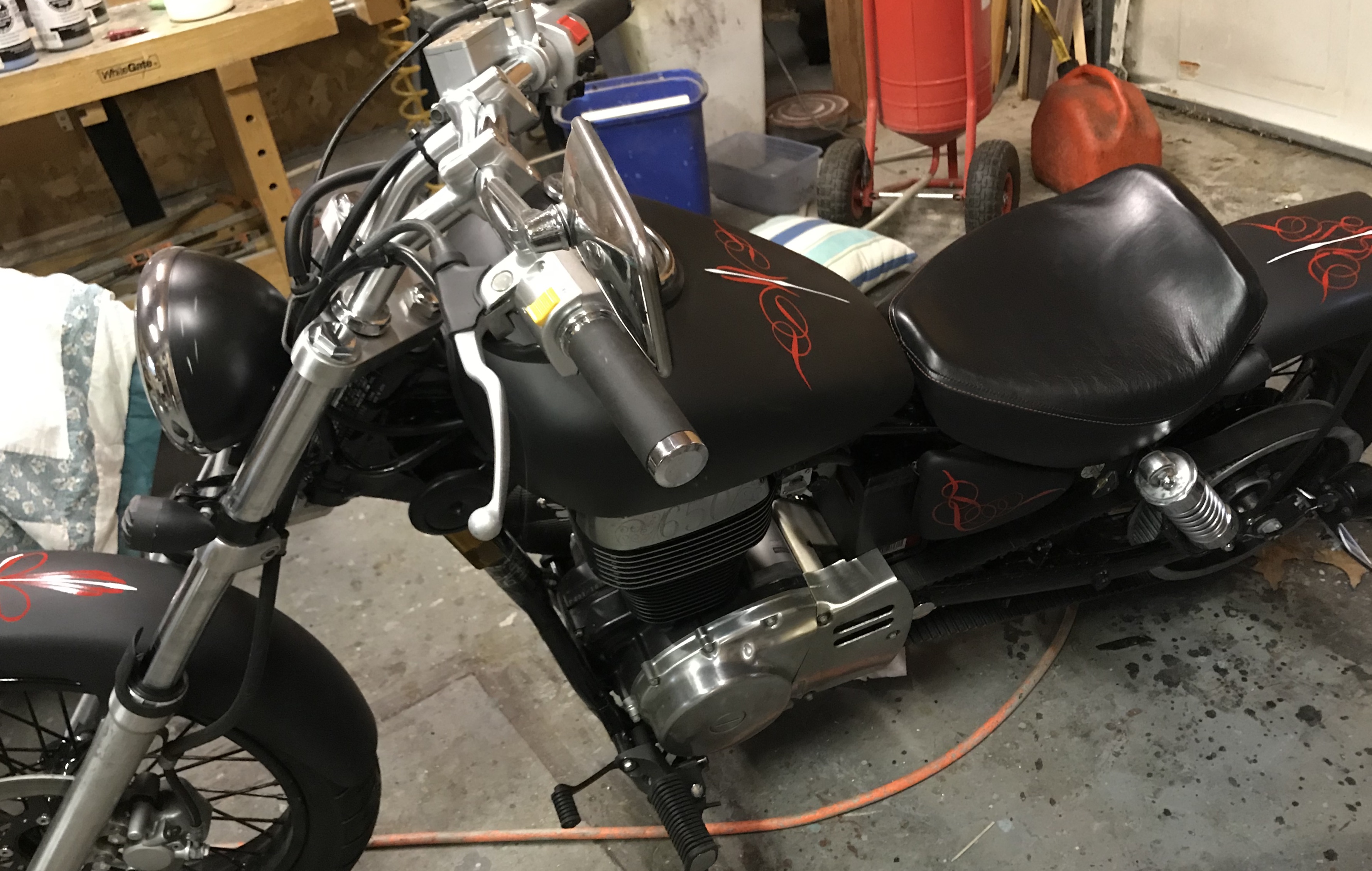

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #7 - 02/11/19 at 18:22:53 And the whole package
Back to top	1BBC555E-22DB-46FA-B29A-C8004AB41979.jpeg IP Logged

SlabSlider

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 18
Macon, GA
Gender: male

Re: Pin striping
Reply #8 - 02/20/19 at 15:53:26

Zook, like the pinstripes, great job! I also noticed in the pics it looks like you mounted your rear fender without having to weld up any brackets. Ive been pondering doing something similar since i dont have access to, or know how, to weld. Can you provide any tips on how you did it? Appears the swingarm was drilled in the back on both sides for mounting struts and in the front for the L brackets attached to the fender. Did you attach the L bracket to the swingarm with sheetmetal screws in the front?

IP Logged

Zook

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 47

Re: Pin striping
Reply #9 - 02/20/19 at 18:06:27

I drilled and bolted the support pieces to the fender and the swing arm near the axle. At the front of the swing arm I made a bracket that bolted to the fender and bolted to the mounting that formerly held the built guard on th left side. On the right I made an L bracket that bolted to the fender and drilled a hole in the swing arm and used a large self taping sheet metal screw.

IP Logged

SlabSlider YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 18 Macon, GA Gender:	Re: Pin striping Reply #10 - 02/20/19 at 18:36:56 Thank you for the info Zook! Sounds like something i may be able to do. No rear fender right now and it's pretty messy riding in the rain!
Back to top	IP Logged

playhard67 Full Member Offline SuzukiSavage.com Rocks! Posts: 111 Gender:	Re: Pin striping Reply #11 - 02/23/19 at 03:53:03 you did a great job on the pinstriping Zook. I couldn't do that...hand not steady enough.
Back to top	IP Logged

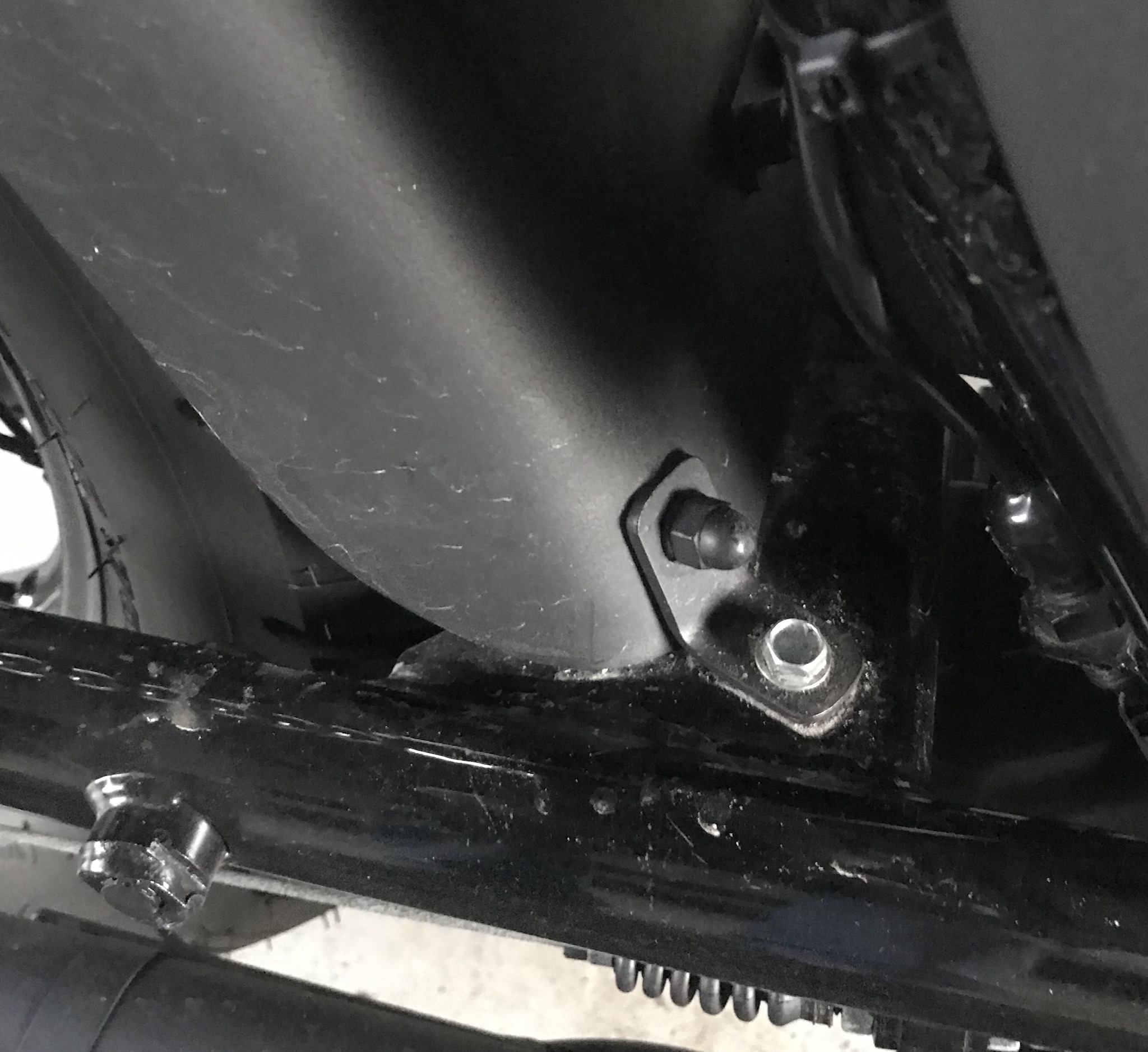

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #12 - 02/25/19 at 16:55:14 SlabSlider wrote on 02/20/19 at 18:36:56: Thank you for the info Zook! Sounds like something i may be able to do. No rear fender right now and it's pretty messy riding in the rain! Here are some close up pics so you can hopefully see what aI did . Fender is for a trailer. I bought it at a farm supply store for $46.
Back to top	3D33206A-C176-4DCF-A534-9F97A8A4C9B1.jpeg IP Logged

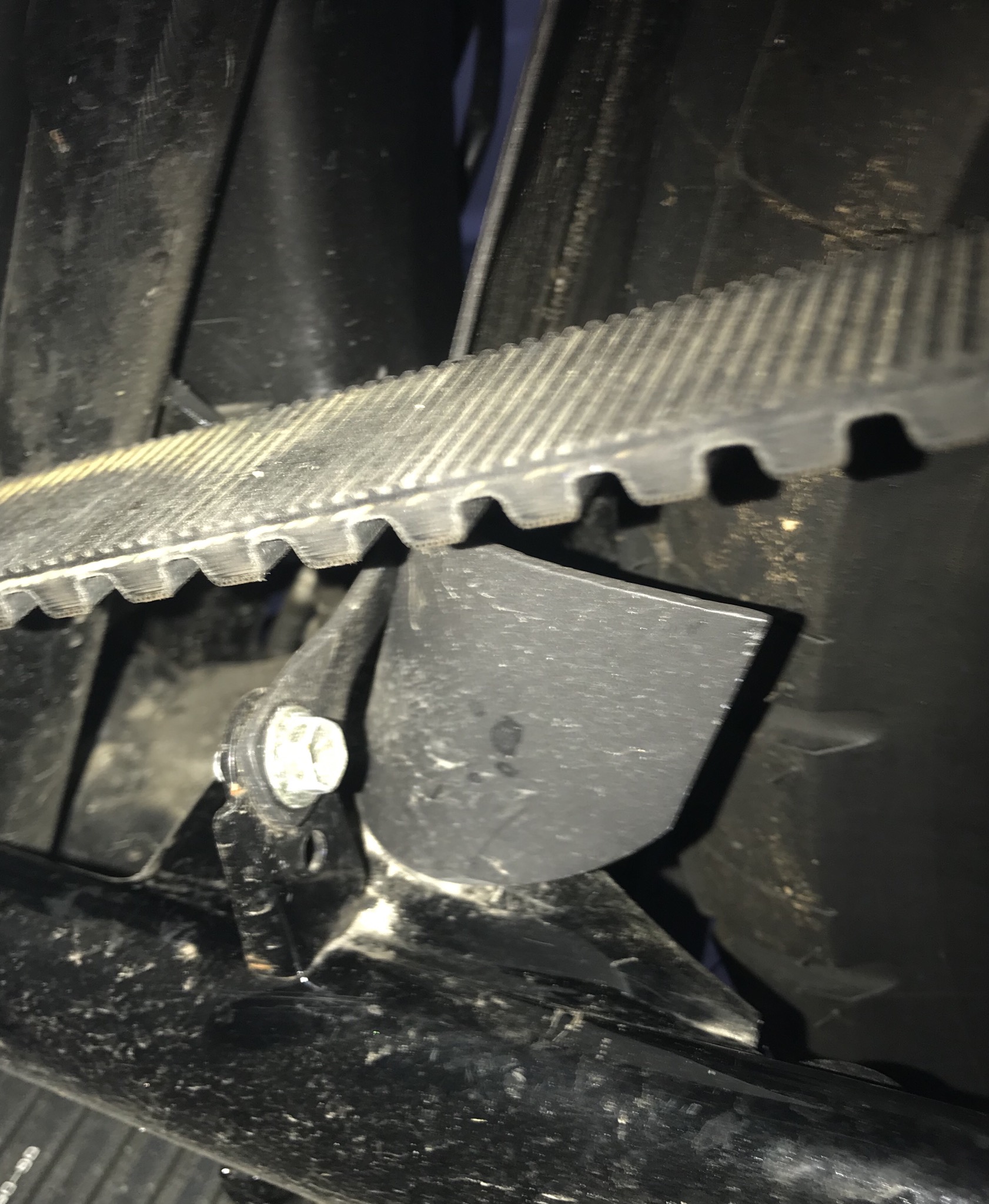

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #13 - 02/25/19 at 16:56:10 Other side using the bracket that held the belt guard.
Back to top	CDFFA505-C51E-4595-8DCC-1C4E6315A48C.jpeg IP Logged

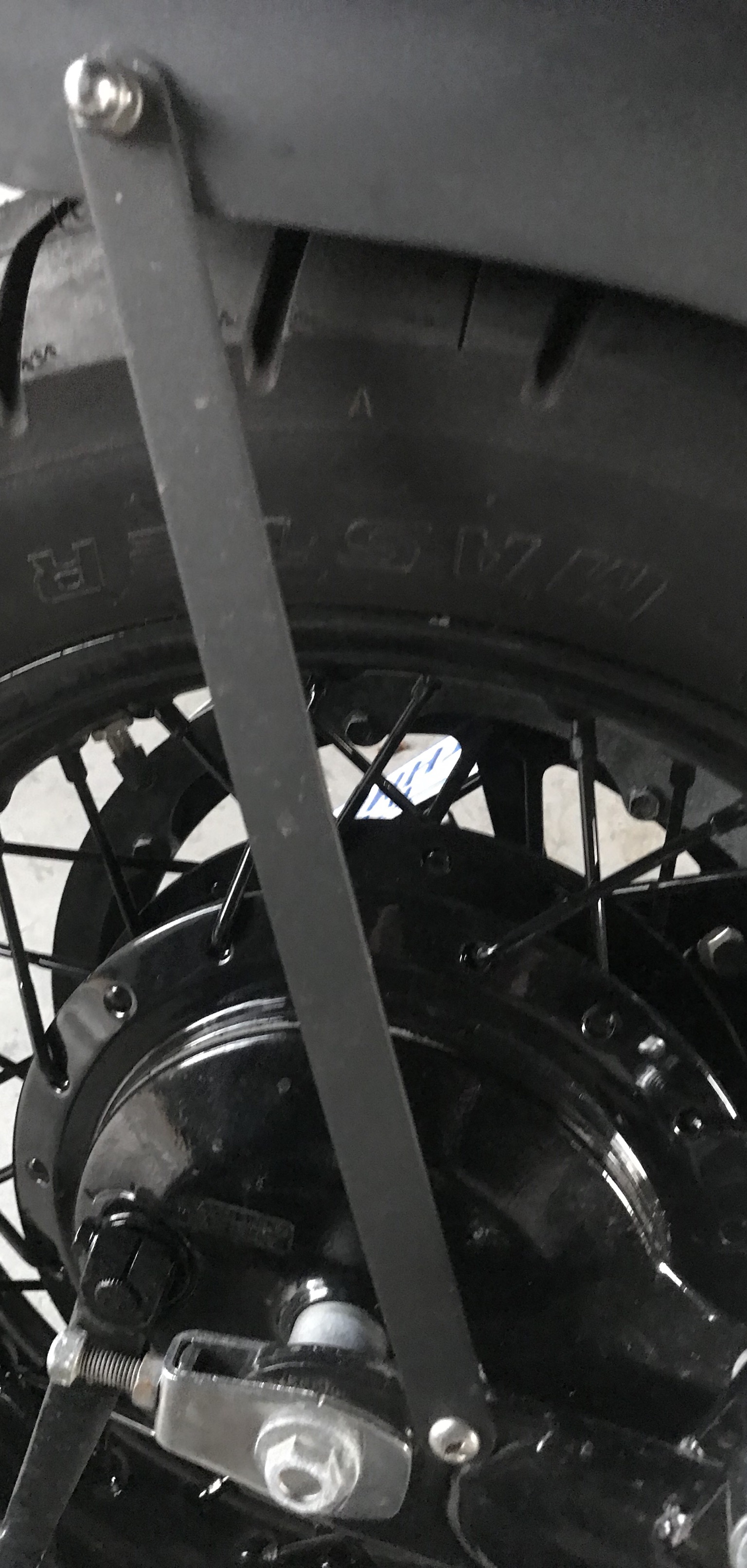

Zook YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 47	Re: Pin striping Reply #14 - 02/25/19 at 16:56:58 Fender brace made from flat stock.
Back to top	9346B871-7B48-49D2-9C8F-88D10DF0676A.jpeg « Last Edit: 02/26/19 at 05:49:34 by Zook » IP Logged
