Looking for ideas for a Fake Oil Tank (Read 161 times)
RazBarlow
Full Member
Offline
Timing Is Everything
! R U Advanced or
Retarded ?
Posts: 125
Keene Texas
Looking for ideas for a Fake Oil Tank
01/18/19 at 10:50:41
Looking for ideas for a home built fake oil or the like in order to hide all my wires and electronics.
Any info. would greatly be appreciated.
Thank You
Back to top
IP Logged
Fast 650
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 392
Valrico, FL
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #1 -
01/18/19 at 12:46:29
Take a look at pictures of the Harley K models, or the early panhead and knucklehead for ideas. They used a horseshoe shaped oil tank centered below the seat. If you were to duplicate that I think it will do what you are wanting. That also allows you to hide the ignition switch by placing it where the oil filler cap would be on the tank.
Back to top
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #2 -
01/18/19 at 13:16:20
I often thought about this myself , I would use PVC. A length cut to size ,with two end caps and an other length cut to fit between the end caps when attached would be the basic parts. the first piece would have a slot cut in it just short of the entire length and toward the motor, wide enough to allow access to the components . the second piece would have about 2/3 of the diameter cut away , and cut to a length to fit between the end caps allowing it to be rotated (like a roll top desk?) to both cover or expose the slot. A shelf of open metal mesh (or other material ) could be used to mount components ,and small holes drilled in the side away from the motor in the area not covered, both top and bottom to allow air in and out if the rectifier is inside ( and would allow grounding) . the stock ignition switch could be mounted in one of the end caps. PVC is light weight, strong, and with a light sanding could be painted the color of choise. Wires running in and out could be run inside PVC pipe which could be bent (formed) by using a heat gun, and glued into the tank.
Back to top
my old work mates called me MacGyver
IP Logged
Fast 650
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 392
Valrico, FL
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #3 -
01/18/19 at 14:11:49

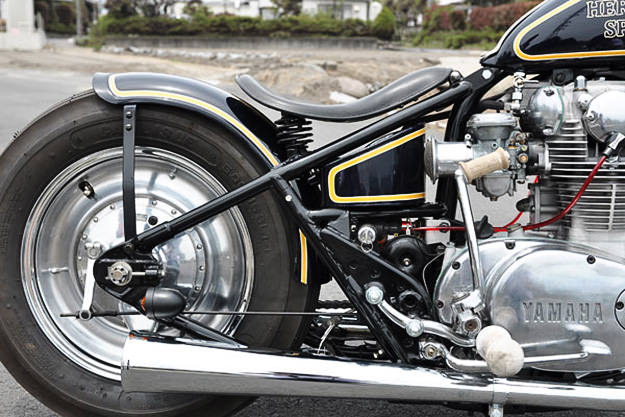

Something like this for the fake tank shape will work nicely.
Back to top
IP Logged
DieselBob
Full Member
Offline
Thumper - One Who
Thumps
Posts: 189
Goshen, IN
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #4 -
01/18/19 at 15:29:48

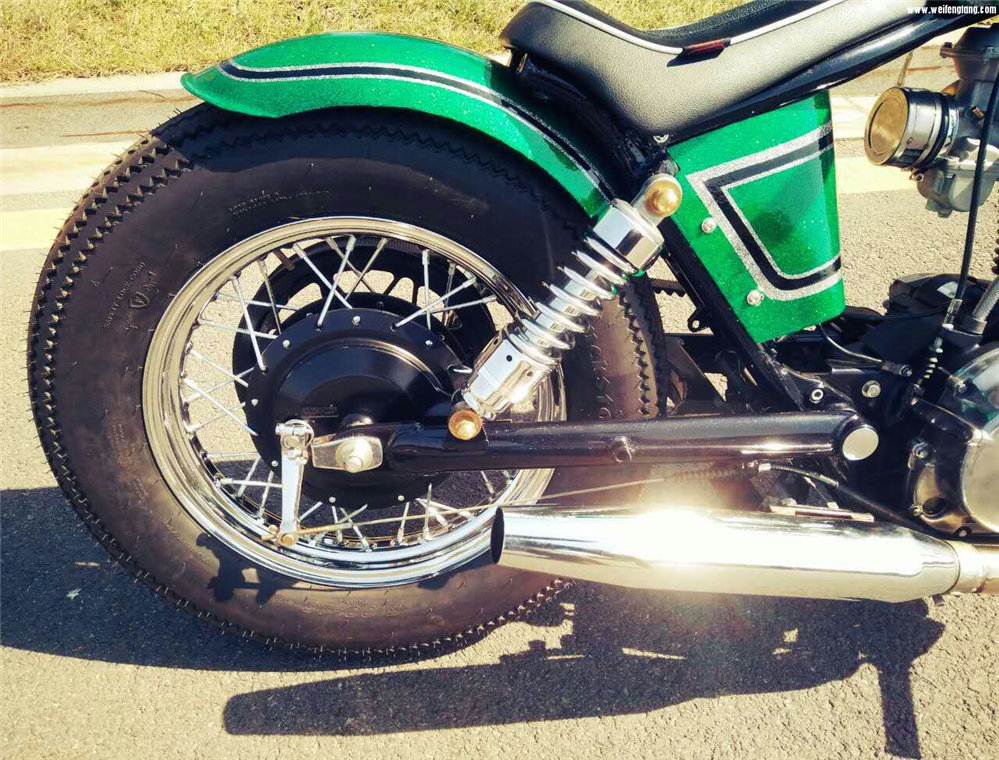

How the Chinese do it.
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17808
Camp Springs, Kentucky
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #5 -
01/20/19 at 03:55:50
Several folks in the Bike Builds section have made fake oil tanks.....peruse that forum section for ideas.
Back to top
Someday I will be old......But not today!
IP Logged
ohiomoto
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2681
WTF is JOG?
Re: Looking for ideas for a Fake Oil Tank
Reply #6 -
01/20/19 at 06:07:38
I like how the Chinese do it.
Back to top
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #7 -
01/20/19 at 12:26:39
They do make it look easy!
Back to top
my old work mates called me MacGyver
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17808
Camp Springs, Kentucky
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #8 -
01/20/19 at 13:57:22
The Chinese must believe that the engine needs very little air!
Back to top
Someday I will be old......But not today!
IP Logged
DieselBob
Full Member
Offline
Thumper - One Who
Thumps
Posts: 189
Goshen, IN
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #9 -
01/21/19 at 10:15:45
Like humans in China who wear face masks to reduce the impact of smog, their Savages may need to restrict their intakes as well.
But, even though those are 400s, they seem severely restricted.
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Online
Where there's a
will, I want to be
in it.
Posts: 28755
L.A. California
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #10 -
01/21/19 at 10:37:18
2 Hubs caps with sheet metal in between?
Air filters covers?
HVAC ducting?
They also sell locking caps to make tool boxes from pvc piping.
Back to top
Versey's Place
Tech Section Index
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #11 -
01/21/19 at 10:50:11
Neither one of those bikes are 400''s they're 650's ,but they may be running the smaller jets like some of the euro bikes (135 mains).
Back to top
my old work mates called me MacGyver
IP Logged
DieselBob
Full Member
Offline
Thumper - One Who
Thumps
Posts: 189
Goshen, IN
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #12 -
01/22/19 at 03:53:15
I stand corrected. The green one is indeed a 650. Only the gold one is a 400. Good call Batman. I suspect I saw the absence of a compression release on one and assumed that for both.
Their respective builds below. Pics take a bit to load.
http://www.lnmoto.cn/bbs/thread-739971-1-1.html
http://www.lnmoto.cn/bbs/thread-728308-1-1.html
Back to top
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Looking for ideas for a Fake Oil Tank
Reply #13 -
01/22/19 at 09:34:42
Well now I stand corrected! It's one of each. I guess that makes us both half right
Back to top
