Valve Spring Installed Height. (Read 86 times)

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4121 Honolulu	Valve Spring Installed Height. 07/13/18 at 15:07:27 Does anyone know the installed height of a stock S40 valve spring? That would be the distance from the top of the steel spring seat to the bottom of the spring collar when the valve is closed. I appreciate any help you can provide.
Back to top	Knowledge is power. IP Logged

Fast 650 Senior Member Offline SuzukiSavage.com Rocks! Posts: 387 Valrico, FL Gender:	Re: Valve Spring Installed Height. Reply #1 - 07/15/18 at 05:33:31 I don't think that you will find those specs anywhere. I haven't seen it in any of the manuals yet, nor online.
Back to top	IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4121
Honolulu

Re: Valve Spring Installed Height.
Reply #2 - 07/15/18 at 12:12:52

Yes, I agree. I haven't been able to dig the info up in any sort of literature. I was hoping someone had an old head laying around with springs installed, and they could possibly measure the distance for me. Or possibly, someone had packed their springs on some prior build and kept records. I would hate to tear it apart just to take that measurement. And to think I had that open when I installed the DR cam and failed to measure the installed spring height. Man, I'm getting old.

Knowledge is power.

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28749 L.A. California Gender:	Re: Valve Spring Installed Height. Reply #3 - 07/15/18 at 12:33:53 33.49 from the top of the retainer to the top of the little cup it sits in. 1.38 from the top of the little cup to the spring seat. 1.77 from the top of the retainer to the valve seat. the retainer has another seat for the inner spring. 3.78 from the top ± a mile.
Back to top	Versey's Place Tech Section Index IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4121 Honolulu	Re: Valve Spring Installed Height. Reply #4 - 07/16/18 at 14:05:41 So I think I understand. Installed height should be about 33.49-1.38-1.77 or 30.34 mm give or take say about .5 mm. A very big mahalo to you Verslagen. Best regards, Mike
Back to top	Knowledge is power. IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28749 L.A. California Gender:	Re: Valve Spring Installed Height. Reply #5 - 07/16/18 at 14:30:35 DragBikeMike wrote on 07/16/18 at 14:05:41: So I think I understand. Installed height should be about 33.49+1.38-1.77 or ~~30.34~~ 33.10 mm give or take say about .5 mm. A very big mahalo to you Verslagen. Best regards, Mike
Back to top	Versey's Place Tech Section Index IP Logged

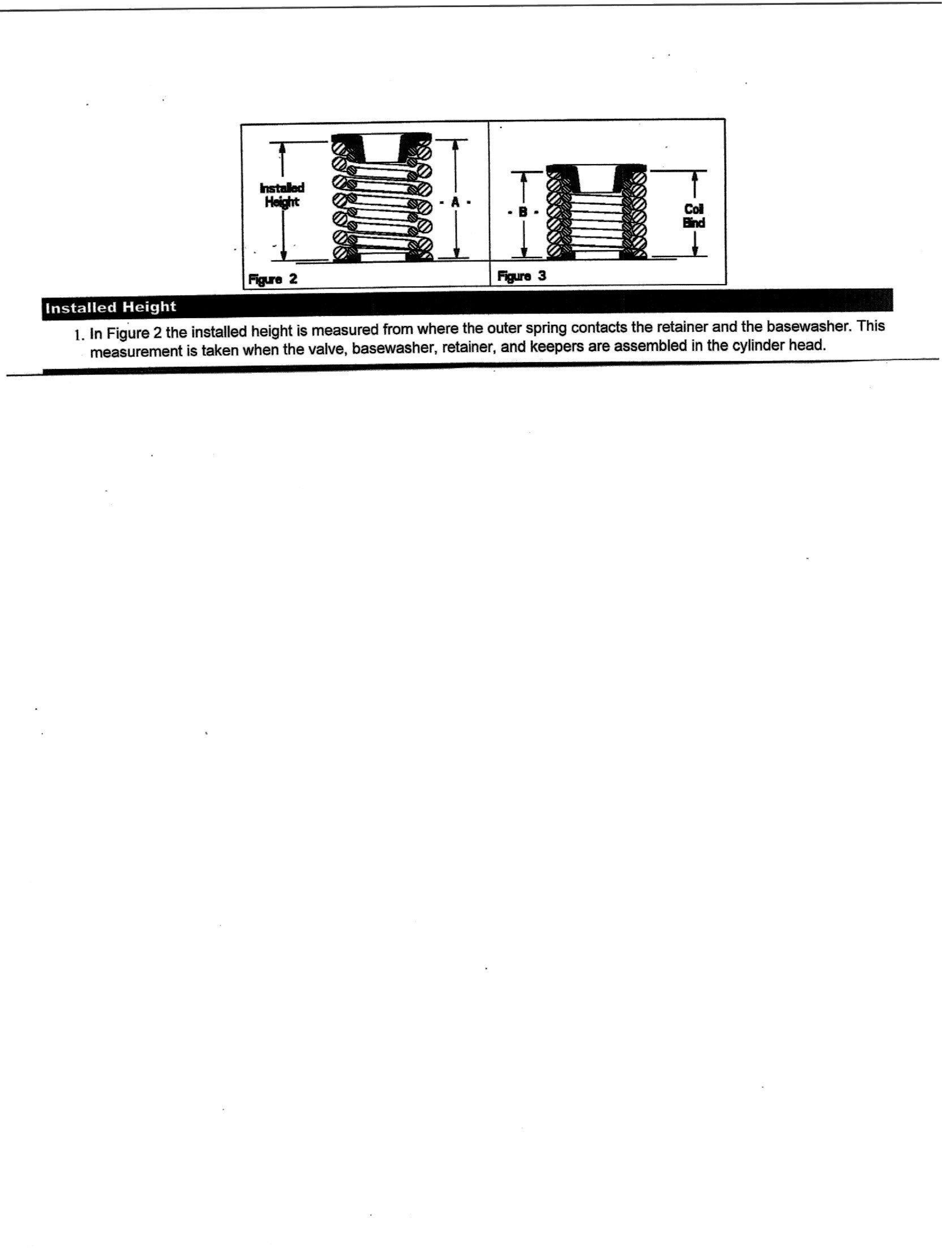

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4121 Honolulu	Re: Valve Spring Installed Height. Reply #6 - 07/17/18 at 22:34:45 I appreciate the clarification but I want to make sure I have it right. Please forgive me for beating this dead horse. The 33.10 mm dimension is the installed spring height, dimension "A", Fig 2 on the sketch I have attached below (hope it works). I really appreciate your help.
Back to top	Installed_height.jpg Knowledge is power. IP Logged
