Next rear tire will be a 16" (Read 94 times)
MMRanch
Serious Thumper
Offline
Evil flourishes if
Good Men do Nothing.
Posts: 5730
LYNCHBURG TN
Gender:
Next rear tire will be a 16"
05/31/18 at 20:52:36
just went mag wheels . No hurry , my current rear tire has 10,000 miles left on it … but … I hope its an easy conversion ?

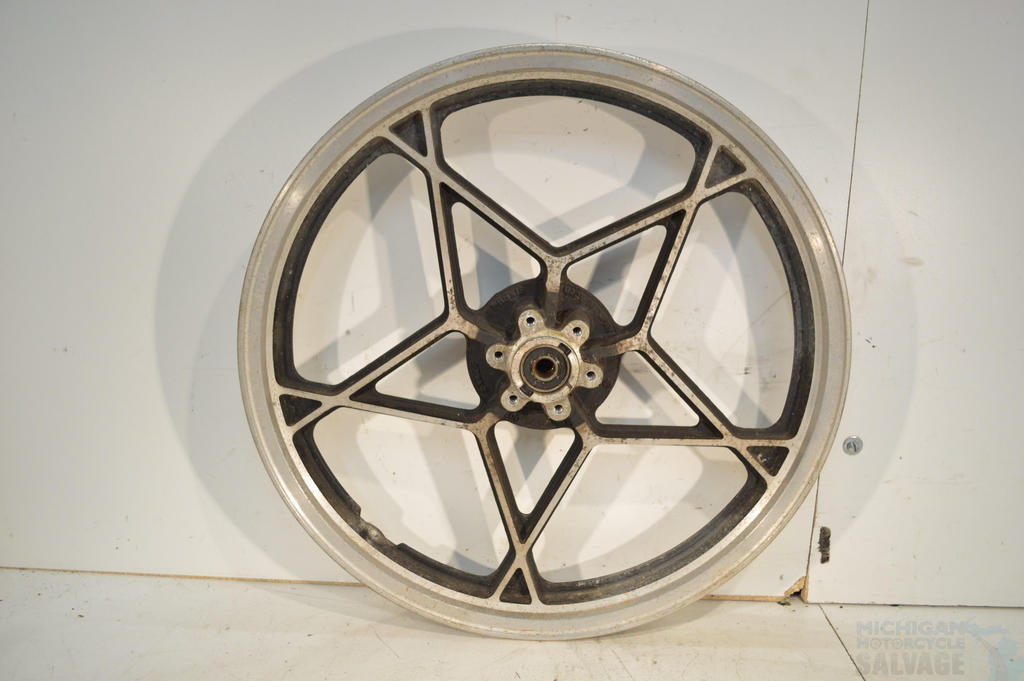

Yes , I got the front one too .
Back to top
I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know
IP Logged
MMRanch
Serious Thumper
Offline
Evil flourishes if
Good Men do Nothing.
Posts: 5730
LYNCHBURG TN
Gender:
Re: Next rear tire will be a 16"
Reply #1 -
05/31/18 at 20:57:32
front
They're both in the mail . I suspect it will be a project for next winter ?
Back to top
I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know
IP Logged
1st2know
Senior Member
Offline
Currently between
Savages
Posts: 295
Seattle, WA
Gender:
Re: Next rear tire will be a 16"
Reply #2 -
05/31/18 at 21:14:11
Will you be able to keep the belt drive?
How will the rear brake connect - will the Savage brake slip in?
Back to top
Kaw VN1700, V-Strom 650, Coal powered Chevy Spark.
IP Logged
MMRanch
Serious Thumper
Offline
Evil flourishes if
Good Men do Nothing.
Posts: 5730
LYNCHBURG TN
Gender:
Re: Next rear tire will be a 16"
Reply #3 -
05/31/18 at 21:44:44
I believe the rear brake will "just slip in" . I'm sure I'll have to go to a 130 series tire and that is OK.
Yes , I'll keep the belt at all cost . After getting rid of the chain lube and constant adjustment I don't think I could go back to the mess and maintance !
Back to top
I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28760
L.A. California
Gender:
Re: Next rear tire will be a 16"
Reply #4 -
05/31/18 at 22:25:54
You'll need a disc from a gs450 cut down to match the savage and about 0.28 or 0.32 (I forget which) spacers to align with the caliper.
Back to top
Versey's Place
Tech Section Index
IP Logged
MMRanch
Serious Thumper
Offline
Evil flourishes if
Good Men do Nothing.
Posts: 5730
LYNCHBURG TN
Gender:
Re: Next rear tire will be a 16"
Reply #5 -
06/01/18 at 08:02:11
I'll go ahead and start looking for one ,
, thanks Versey !
Back to top
I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know
IP Logged
springman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2191
Spring, Texas
Gender:
Re: Next rear tire will be a 16"
Reply #6 -
06/01/18 at 11:24:13
I'll be interested to see how this turns out. Good luck.
Back to top
06 S40 seat mod, airhawk, HD muffler, Shinko 712 140-90-15 rear tire, Shinko 230 front tire, versy cam chain tensioner, Rotella oil, Volar brake pads, EBC clutch & springs
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28760
L.A. California
Gender:
Re: Next rear tire will be a 16"
Reply #7 -
06/01/18 at 11:45:38
There's a thread in the tech section for the conversion and another in rsd called whale.
The biggest issue I had was getting the right spacers. But I also have spare wheels so if I get a flat or just wear out a tire it's no issue.
Back to top
Versey's Place
Tech Section Index
IP Logged
LANCER
Serious Thumper
Alliance Member
Offline
Savage Beast
Performance Parts
Posts: 10600
Oklahoma
Gender:
Re: Next rear tire will be a 16"
Reply #8 -
06/01/18 at 13:46:07

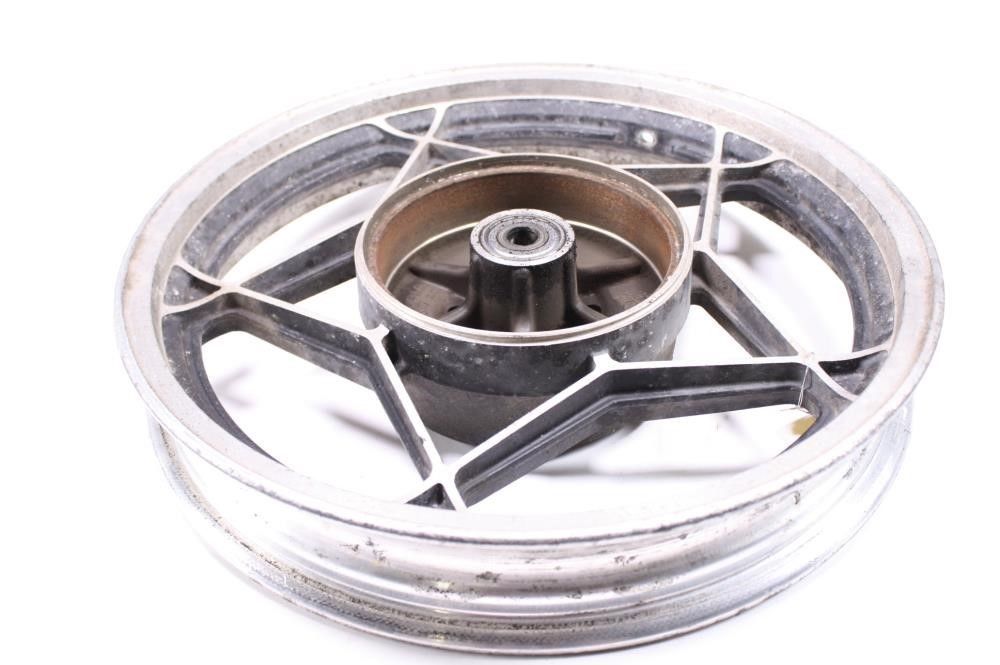

The rear wheel is easy, the brake does slip right in there, the belt pulley does as well, and the 130/90-16 (Metzler 880) seemed to be essentially the same width as the 140/90-15.
Back to top
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Next rear tire will be a 16"
Reply #9 -
06/04/18 at 11:09:46
and you'll need to pick up a 16"tube
Back to top
my old work mates called me MacGyver
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17810
Camp Springs, Kentucky
Gender:
Re: Next rear tire will be a 16"
Reply #10 -
06/04/18 at 17:16:56
batman wrote
on 06/04/18 at 11:09:46:
and you'll need to pick up a 16"tube
I thought this was being done so you don't need any tubes?
Why do you believe these rims need tubes?
Back to top
Someday I will be old......But not today!
IP Logged
badwolf
Serious Thumper
Offline
Ridin' my Lil'
Bagger - 153k miles
so far
Posts: 793
Palm Beach County, FL
Gender:
Re: Next rear tire will be a 16"
Reply #11 -
06/04/18 at 17:28:18
Mike, I have a disc turned down to the right dia. I used it on mine till I went to a bigger disc and dual piston caliper. I used 2 washers tween the caliper and mount. Let me know if you are interested.
Back to top
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Next rear tire will be a 16"
Reply #12 -
06/05/18 at 08:50:54
Dave , the early GS rims (before 1983 , are not tubeless) ,they still required use of a tube. So if your planning to go tubeless rather than just change tire size ,you need to know if the rims come from a bike 83 or newer.
Back to top
my old work mates called me MacGyver
IP Logged
LANCER
Serious Thumper
Alliance Member
Offline
Savage Beast
Performance Parts
Posts: 10600
Oklahoma
Gender:
Re: Next rear tire will be a 16"
Reply #13 -
06/05/18 at 09:30:16
Mine did not need a tube...trying to remember what year it is.
OK, found the file on it, I've got an '83 rear wheel.
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28760
L.A. California
Gender:
Re: Next rear tire will be a 16"
Reply #14 -
06/05/18 at 11:36:48
I believe the only difference maybe the design of the bead.
It maybe the same design, just not DOT certified.
On tubeless rims you'll find "tubeless" engraved somewhere.
