Testing Clutch Springs
05/22/18 at 05:11:57

Does any of our members have the ability to measure spring pressure?

I installed a set of EBC clutch springs that claim to be 10% stronger than the stock spring set.  The EBC springs actually have a slightly smaller wire diameter - but are a bit longer.  I don't know if they are stronger once installed, as the force on the clutch lever really doesn't feel any stiffer.

Does someone on this forum have equipment that would allow them to compress the spring to the installed length and measure the force?
Back to top



Someday I will be old......But not today!

  IP Logged
hotrod
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 326
NC
Gender: male
Re: Testing Clutch Springs
Reply #1 - 05/22/18 at 10:38:39

I installed the EBC springs and got clutch slip. Ordered the stock springs, and have no slip. Don't know what rates they were.
Back to top


  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #2 - 05/22/18 at 13:23:54

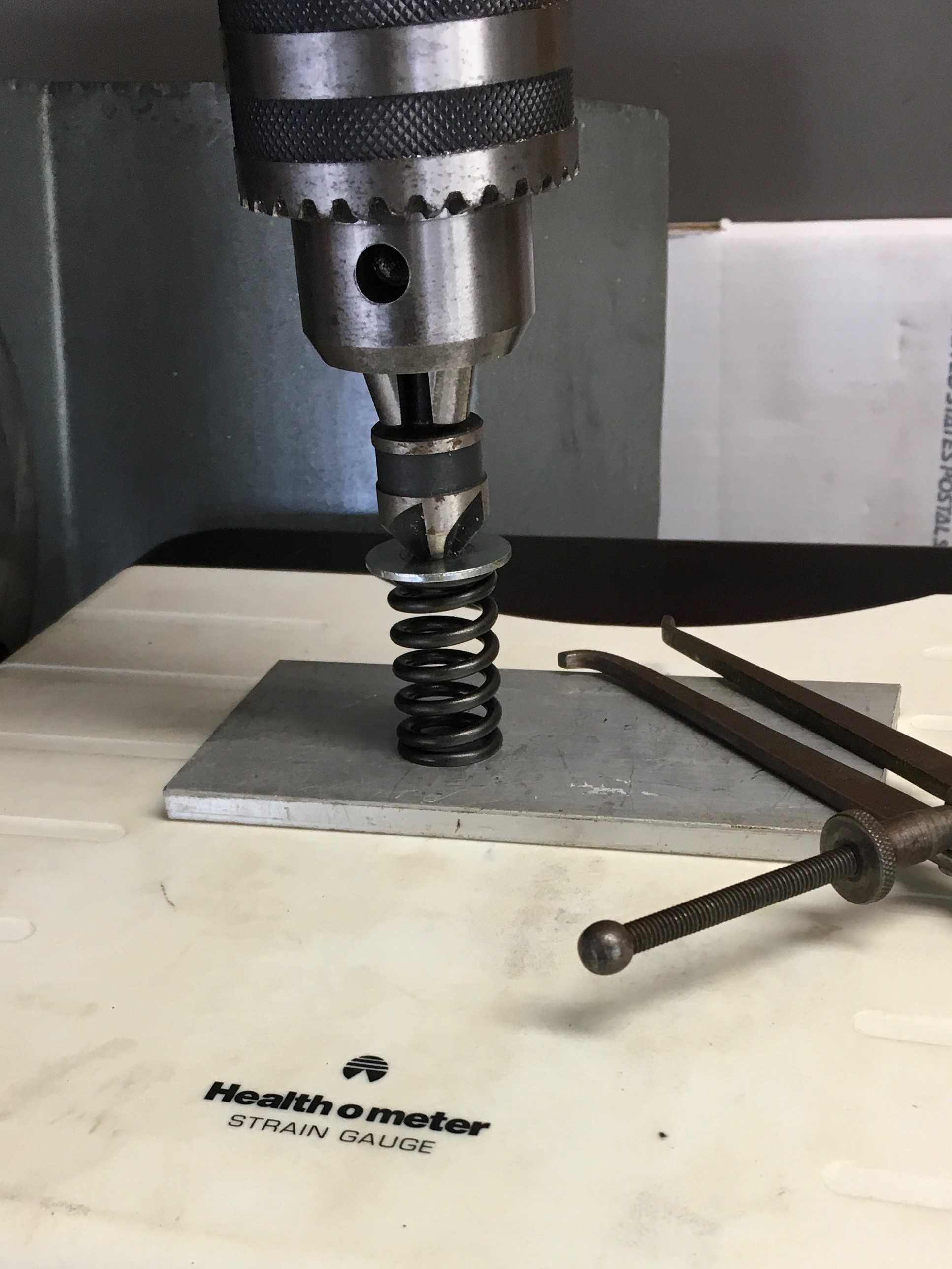

Take some measurements and figure out the installed height of the stock spring.  It should be the same for the new spring.  Place a bathroom scale on the table of your drill press.  Place a piece of 1/8 to 1/4" aluminum plate on the scale to distribute the force evenly.  Zero out the scale. Use the micro-feed on the drill press to compress each spring (stock & replacement) to the installed height, then take a reading from the scale.  Compare the readings.


If you want to get fancy,  check each spring at installed height, then compress in small increments (say 1/8" or 1/4").  Take several readings, then plot on a graph.  As long as they are not progressively wound springs the spring rate should be linear.


Let us know the results of your test.
Back to top



Knowledge is power.
  IP Logged
GT61 TURBO ZX14
Full Member
***
Offline

SuzukiSavage.com
Rocks!

Posts: 230
Minnesota
Gender: male
Re: Testing Clutch Springs
Reply #3 - 05/23/18 at 09:23:30

I put some  brunette Springs and I believe and there stiffer  but my stock ones where shot so it's hard to tell but with the big bore 97mm and cam and shaving 40 out of the jug. And me being 375 if I hit it the clutch did slip a Lil then I took the Rotella oil out and put my motul 7100 in and it hasn't slipped yet I think I am still going to make them stiffer
Back to top



Out of all the things I treasure most my mind is what I miss the most.
  IP Logged
Ruttly
Serious Thumper
*****
Offline

Thumpers Rule

Posts: 4968
Manteca , CA
Gender: male
Re: Testing Clutch Springs
Reply #4 - 05/23/18 at 11:55:32

I Always use blonde springs ! Grin Grin Grin
Back to top



The Topic Terminator
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Testing Clutch Springs
Reply #5 - 05/23/18 at 14:28:18

I test them every time I ride.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #6 - 05/23/18 at 23:02:24

I had my clutch cover off to revisit the chain tensioner, so I opened up the clutch and checked out the springs.  The bike is a 2016 and only has a little over 1100 miles so these springs should be pretty close to new.  Here's the data.

Free length: 35mm
O.D.: 20mm
I.D.:  14mm
Wire diameter: 3mm
Installed length: 28mm
Force @ 28mm: 42 lbs +/- 1 lb


Back to top



Knowledge is power.
  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Online

SuzukiSavage.com
Rocks!

Posts: 17738
Camp Springs, Kentucky
Gender: male
Re: Testing Clutch Springs
Reply #7 - 05/24/18 at 02:30:10

Send me your mailing address in a PM....and I will send you a pair of the EBC springs to test!
Back to top



Someday I will be old......But not today!

  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #8 - 11/09/18 at 22:56:38

So Dave sent me the springs.  He sent 2 stock springs and 2 EBC springs.  In the mean time, I ordered a set of EBC springs from Dennis Kirk, so I had lots of springs.  Let's get started.

First I did a visual inspection of Dave's stock springs (don't know if they were new or used).  My visual criteria for a good spring in this application is it must be perpendicular (i.e. stand up straight) and it must be free from visual defects.

The stock springs looked pretty darned square.

Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #9 - 11/09/18 at 22:58:33

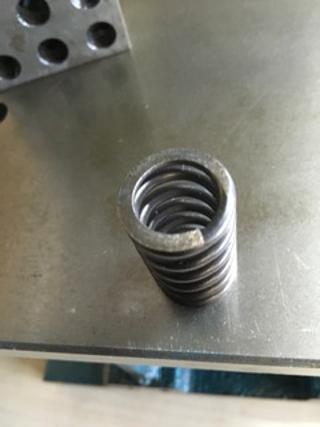

And the end grinds looked nice.  I also didn't see any cause for concern in the windings.  The stock springs exhibited typical Japanese quality.

Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #10 - 11/09/18 at 22:59:58

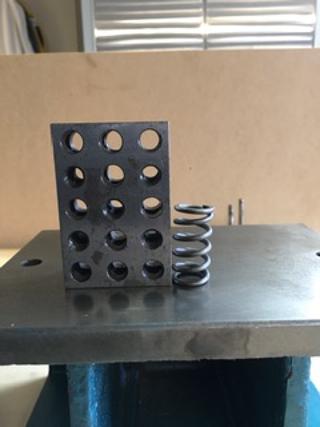

Then I took a look at his EBC springs.  The perpendicularity was a bit off.

Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #11 - 11/09/18 at 23:00:42

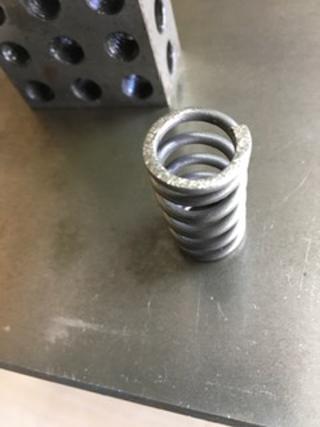

And the end grinds were pretty funky.

Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #12 - 11/09/18 at 23:02:36

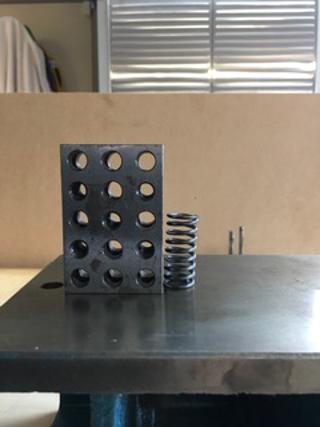

Is this sort of quality control typical of the EBC product???  Let's take a look at the EBC springs I received from Dennis Kirk.  Perpendicularity?  You be the judge.

Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #13 - 11/09/18 at 23:03:47

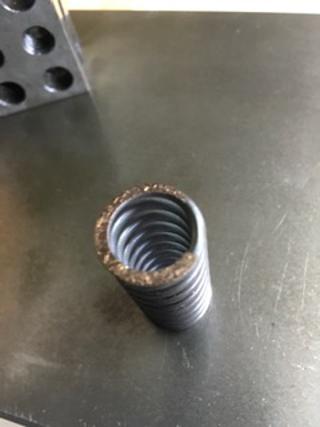

Visual of the end grind.  Yuk!

Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Testing Clutch Springs
Reply #14 - 11/09/18 at 23:24:03

Just based on the visuals of the EBC product I doubt I would install them.  But lets move on to the actual spring constant tests.  Note that the dimensional inspections came out OK.  The EBC springs can probably be installed without grinding or filing on anything.  So how did the spring force at installed height check out.

I checked the stock springs first.  They were 39 lbs @ installed height (28mm), 44 lbs at 27mm, and 48 lbs at 26mm.  That works out to a constant of about 4.5 lbs/mm.  They were about 2 lbs shy of almost new springs but what the heck, they're used.

Then I checked Dave's EBC springs.  They were 39 lbs @ 28mm, 43 lbs @ 27mm, and 48 lbs @ 26mm.  Again, a spring constant of about 4.5 lbs/mm.  Note that the new EBC springs apply the same pressure at installed height as a used stock spring, and 2 lbs less than a stock new spring.

Then I checked a couple of my brand new, right out of the sac, EBC springs.  They dialed in at 24 to 25 lbs at 28mm, and went to coil bind at 40 lbs.  I didn't even bother to measure the height.  It was such a gross disparity that it didn't deserve any sort of measurement.  A picture is worth a thousand words.
