extended fork tubes...
04/26/18 at 17:54:41

Anyone running plus 4s or plus 6 fork tubes? trying to decide which length to go with. I was pretty dead set on plus 4's but now i'm considering the 6's possibly. Thoughts, pictures, experience? Thanks.
Back to top


  IP Logged
Fast 650
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 396
Valrico, FL
Gender: male
Re: extended fork tubes...
Reply #1 - 04/26/18 at 23:28:20

4's look okay as is if you don't mind it sitting higher in the front. Any longer than that will require frame modifications or raked trees.
Back to top


  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: extended fork tubes...
Reply #2 - 04/27/18 at 05:23:52

 Due to the Savage's 35 degree neck angle anything over 4 " may cause flex in the tubes themselves , as the tubes become longer the neck angle increases.
Back to top



my old work mates called me MacGyver
  IP Logged
yetimeister
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 41
Maine
Gender: male
Re: extended fork tubes...
Reply #3 - 04/27/18 at 14:12:40

Thanks guys. I'll stick with my gut then and do the 4's.
Back to top


  IP Logged
Chip 2010
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 30

Re: extended fork tubes...
Reply #4 - 04/27/18 at 20:06:33

I went with 3 over tubes for a few reasons.
1.  modding something for the kickstand is impractical and after using wood blocks to adjust for height I decided that 3" more height was the tallest I could go without the bike leaning too far over on the stand.
2.  My bike is an 08 model and the brake line is just long enough to fit when I changed to the shortest risers I could find that would still allow the stock bars to clear the tank.
Back to top


  IP Logged
yetimeister
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 41
Maine
Gender: male
Re: extended fork tubes...
Reply #5 - 04/28/18 at 12:14:13

Chip 2010 wrote on 04/27/18 at 20:06:33:
I went with 3 over tubes for a few reasons.
1.  modding something for the kickstand is impractical and after using wood blocks to adjust for height I decided that 3" more height was the tallest I could go without the bike leaning too far over on the stand.
2.  My bike is an 08 model and the brake line is just long enough to fit when I changed to the shortest risers I could find that would still allow the stock bars to clear the tank.



I plan on modifying my kicker or replacing it so not a big deal. Also I have ape hangers so ill be getting longer lines regardless. Where'd you get your plus threes from?
Back to top


  IP Logged
Chip 2010
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 30

Re: extended fork tubes...
Reply #6 - 04/29/18 at 15:46:00

Franks forks.  It was cheaper to call him and order direct than it was to go through some of the websites that order from him and then mark up.
Back to top


  IP Logged
hotrod
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 326
NC
Gender: male
Re: extended fork tubes...
Reply #7 - 04/29/18 at 17:31:18

If anything, I would go shorter. I can't think of anything positive with going longer.
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17837
Camp Springs, Kentucky
Gender: male
Re: extended fork tubes...
Reply #8 - 04/30/18 at 04:52:46

hotrod wrote on 04/29/18 at 17:31:18:
If anything, I would go shorter. I can't think of anything positive with going longer.


It all depends on your goals....and wants from your motorcycle.

For better handling....lower the front 2", raise the back 2".

For "badass" looks......longer forks! Wink
Back to top



Someday I will be old......But not today!

  IP Logged
Fast 650
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 396
Valrico, FL
Gender: male
Re: extended fork tubes...
Reply #9 - 04/30/18 at 10:02:14

hotrod wrote on 04/29/18 at 17:31:18:
If anything, I would go shorter. I can't think of anything positive with going longer.


Straight line stability is one positive gain if it is done right. There is a reason so many sportbikes have steering dampers from the factory. They need them.
Back to top


  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: extended fork tubes...
Reply #10 - 04/30/18 at 11:12:35

 Yetimeister 's problem stems from the (opinion) poor design of the VV hardtail he used  which forces you to seek a larger rear wheel and extend the forks to obtain workable ground clearance .
Back to top



my old work mates called me MacGyver
  IP Logged
norm92de
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1180
El Paso TX
Gender: male
Re: extended fork tubes...
Reply #11 - 05/01/18 at 07:18:47

I think we already have extended forks. I certainly wouldn't want them extended further.
Back to top



2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic.
  IP Logged
Chip 2010
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 30

Re: extended fork tubes...
Reply #12 - 05/01/18 at 19:44:14

I haven't noticed any significant differences in handling with my 3" over forks.  I have noticed a significant increase in my comfort level.  it raises the front of the bike just enough that my seat position is much improved for both my legs and my back.  I'm 6'1" with 35" inseam.  I was a little cautious with it at first, but there really wasn't a need.  I take corners comfortably at the same speeds I always have.  Not Crazy fast, but not slow for conditions either.
When I go faster than 60 I do notice a little more wind resistance.  I could always put the windshield back on, but ducking down a little closer to the bike works too.
Back to top


  IP Logged
Fast 650
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 396
Valrico, FL
Gender: male
Re: extended fork tubes...
Reply #13 - 05/02/18 at 09:48:12

Interesting bit of trivia... axle to fork crown measurement on a XA Harley 45 flathead springer is the same as a stock Savage front end. The military WL version is 2 inches shorter.
Back to top


  IP Logged
Blade
Full Member
***
Offline



Posts: 135
Sydney   Australia
Gender: male
Re: extended fork tubes...
Reply #14 - 06/02/18 at 06:57:32

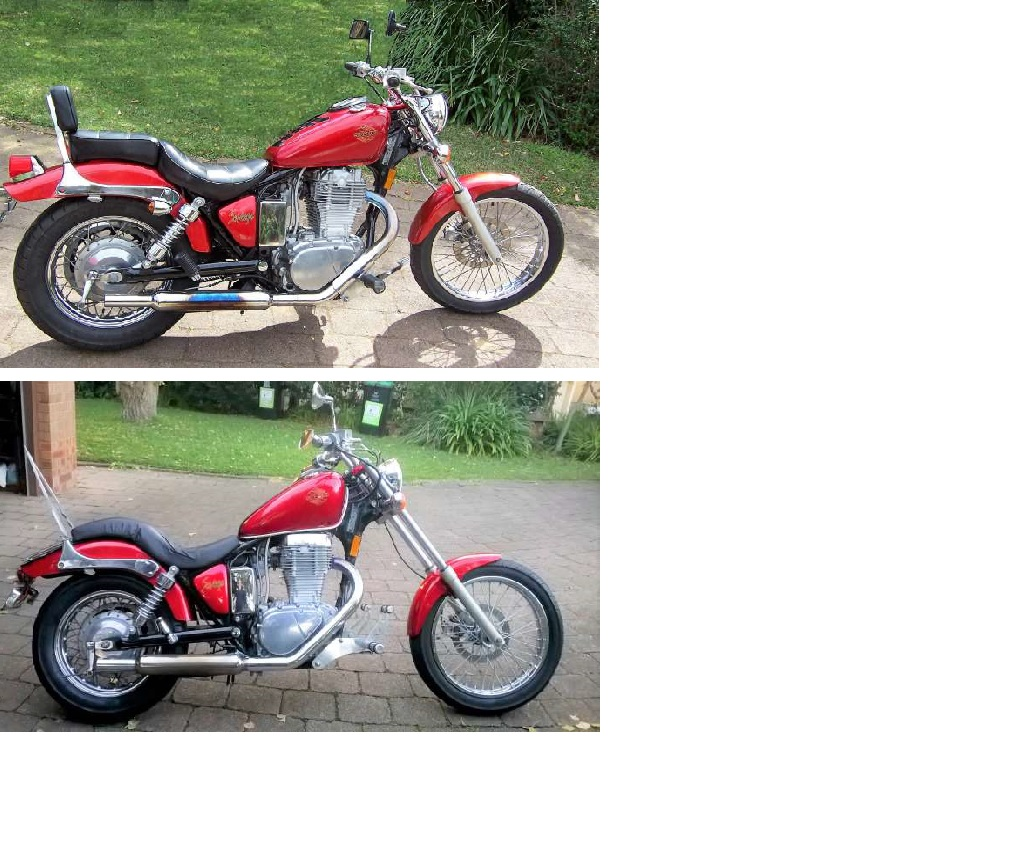

+4's from Franks - excellent handling and smile factor
