Timing Plug Tool on-the-cheap
04/21/18 at 16:34:32
I tried to take my timing plug out. Knew it would be tight so I got a big old washer and filed it down a bit so it would just fit in the slot. I stuck a 3/8" extension through the hole and that bad boy washer folded up like a wet noodle. Don't try that. You gotta bite that washer as close as possible to the plug.

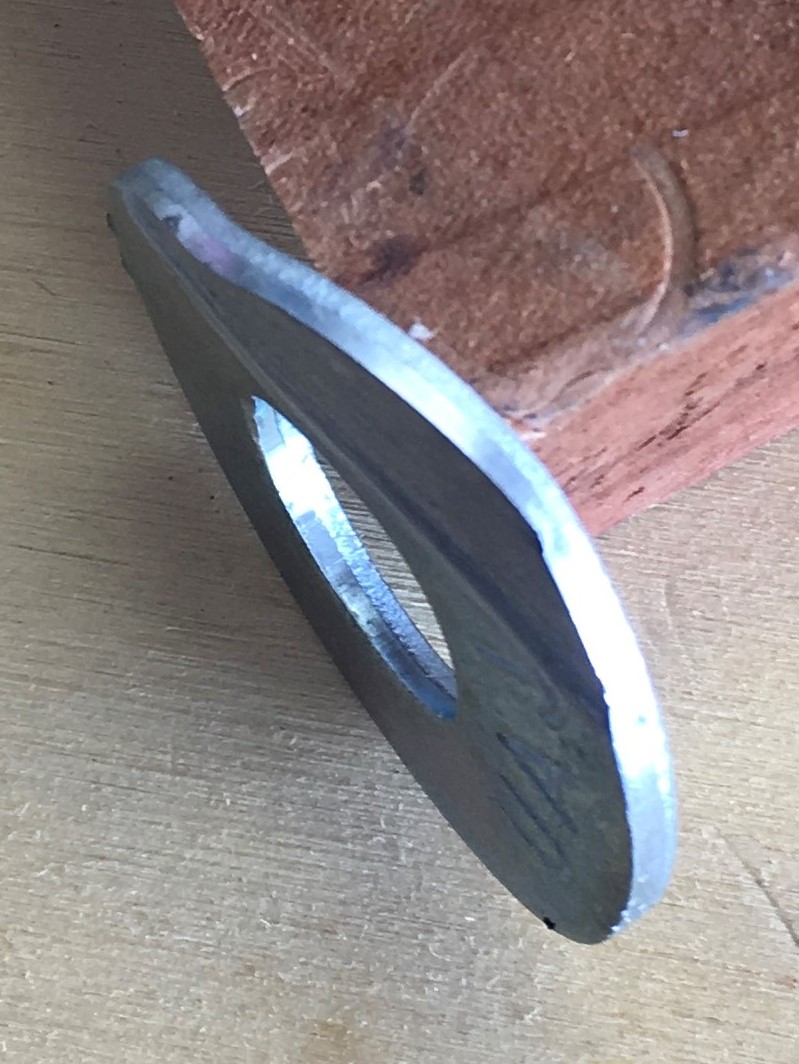

Here's a pic of what happens when you do it the wrong way:
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4160
Honolulu
Re: Timing Plug Tool on-the-cheap
Reply #1 -
04/21/18 at 16:36:50
So I grabbed another washer out of my junk bin. A washer with a 2-1/2" OD works perfect. File it down until it just fits into the slot. It should be tight such that you have to tap it in with a small hammer.

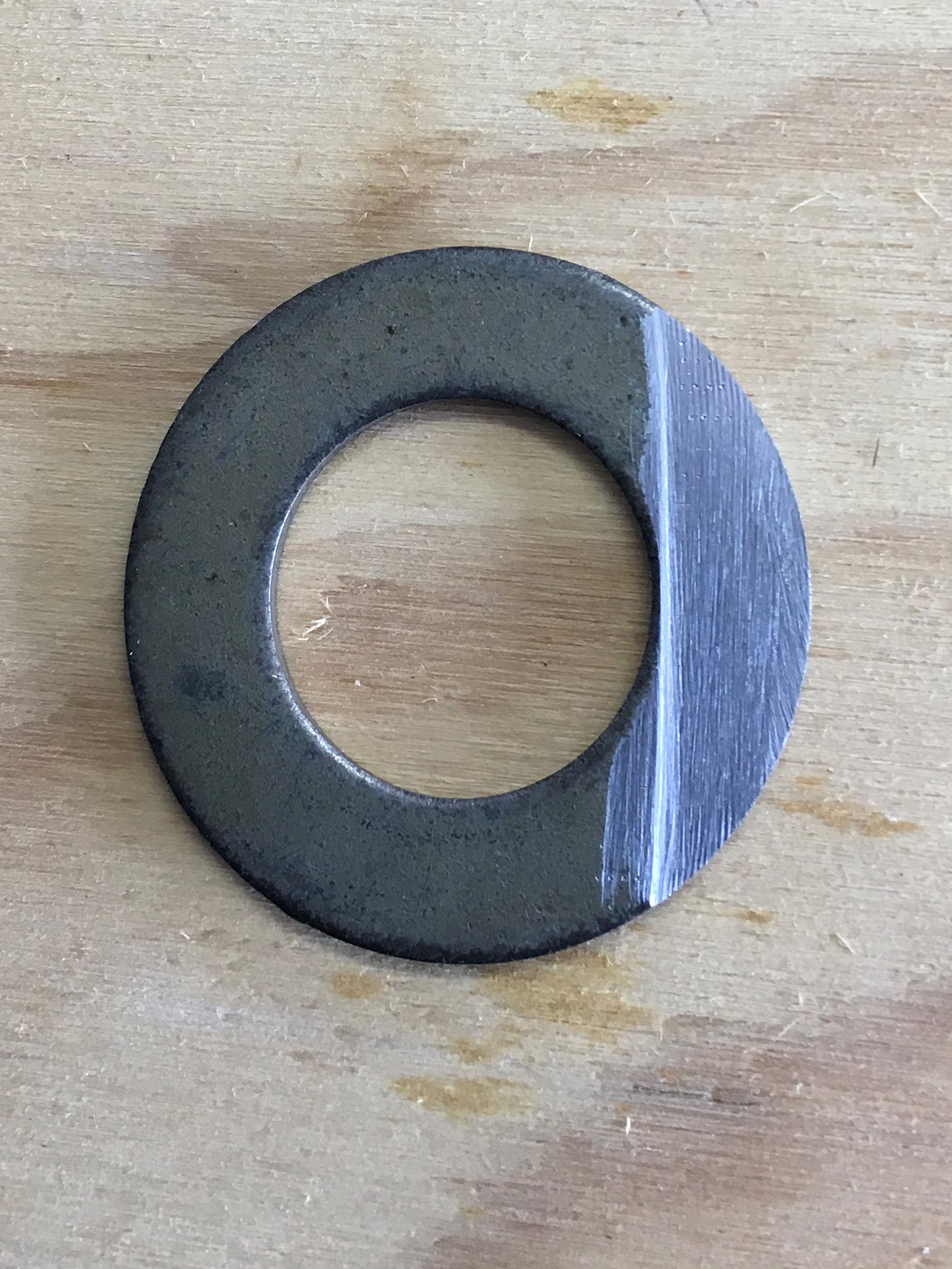

Here's a pic of the filed down washer:
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4160
Honolulu
Re: Timing Plug Tool on-the-cheap
Reply #2 -
04/21/18 at 16:38:54
Then grab that washer as close as you can to the plug. Not so close that you mar the finish on your case, but close enough to keep the bending moment on the washer to as low as reasonably achievable.

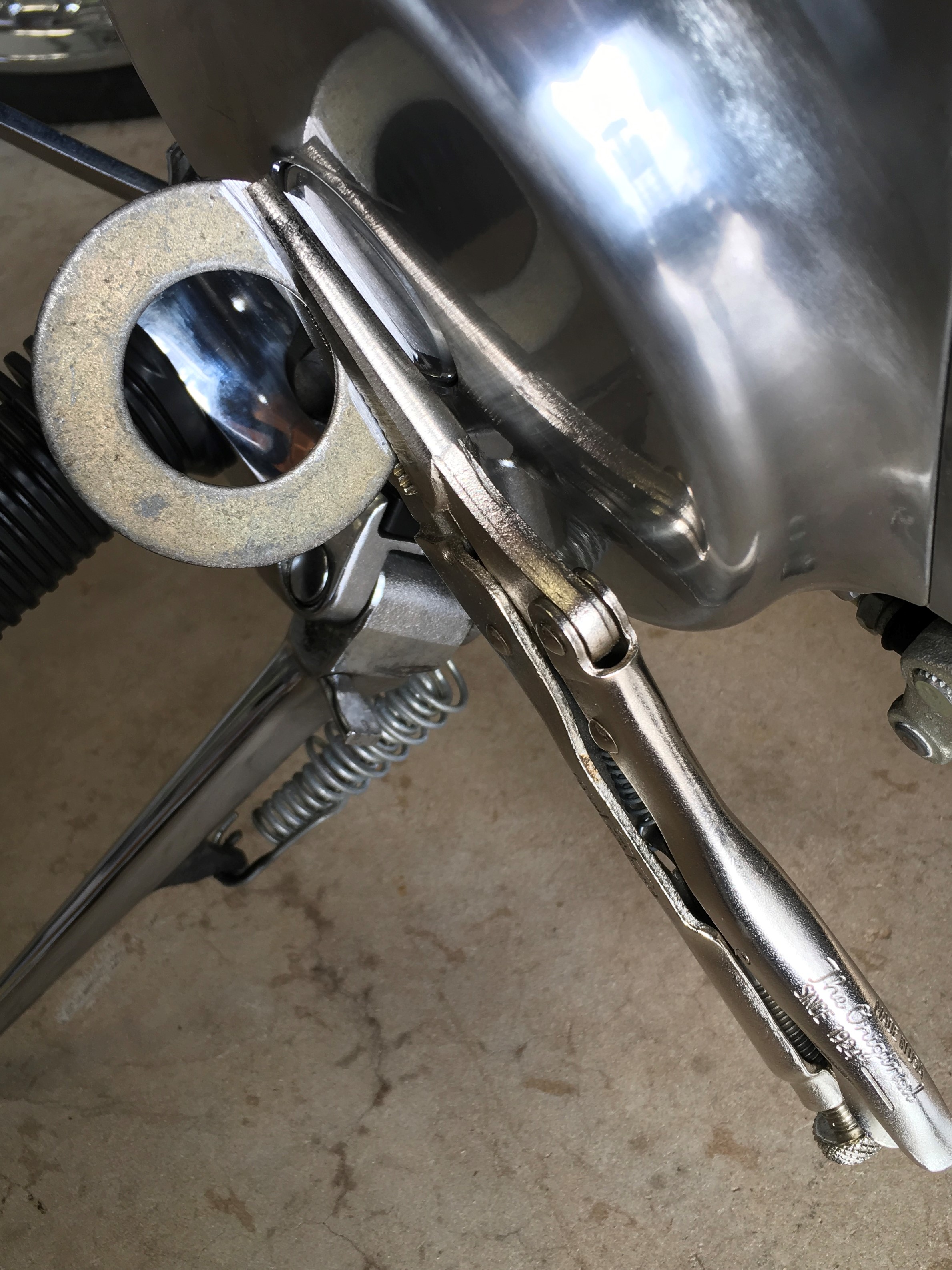

Here's a pic of the grab:
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4160
Honolulu
Re: Timing Plug Tool on-the-cheap
Reply #3 -
04/21/18 at 16:39:53
Now give it a yank and pop that bad boy loose. Geeeeez! These things are tight.
Back to top
Knowledge is power.
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28754
L.A. California
Gender:
Re: Timing Plug Tool on-the-cheap
Reply #4 -
04/21/18 at 16:47:21
think cheaper...
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1232437043
Back to top
Versey's Place
Tech Section Index
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28365
Tucson Az
Gender:
Re: Timing Plug Tool on-the-cheap
Reply #5 -
04/21/18 at 16:53:41
..or get a plug for an S50... They take an allen wrench.
It will cost $10 though...
Worth it, if you plan on keeping the bike for while...
Back to top
Ludicrous Speed !... ...
...
IP Logged
eau de sauvage
Serious Thumper
Offline
Posts: 2565
Queensland
Gender:
Re: Timing Plug Tool on-the-cheap
Reply #6 -
04/21/18 at 17:09:20
The first time was a nightmare it was in so tight had to take it to a garage.
So the next time, I measured the maximum width before the slot curves up on the sides, which was 23mm I went to the local sheet metal cutter and they found a piece that was 2mm thick it could be a bit thicker maybe 5/64ths but this was enough. They sliced me a piece 23mm wide no charge. Used channel locks to grip it.
verslagen1 wrote
on 04/21/18 at 16:47:21:
think cheaper...
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1232437043
http://www.savageriders.com/verslagen/ValveAdj/DSCN0487.JPG
Yeah that'll work if the plug is ready to fall out, but if it's tightened up a bit, you're having a larf with that. Even if you use the tang that hold the tank on it will bend, as I found out.
Back to top
MAGA! Make the Assholes Go Away
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Timing Plug Tool on-the-cheap
Reply #7 -
04/21/18 at 17:26:07
My
Fixing too tight
Tool is a piece of a lawnmower blade.
I'll probably never need it again.
Antisieze is your friend.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
norm92de
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 1180
El Paso TX
Gender:
Re: Timing Plug Tool on-the-cheap
Reply #8 -
04/21/18 at 17:48:59
Of course when you put it back only tighten it a bit more than finger tight. Mine comes out without any problem at all. No leaks and no damage from tools trying to get it loose.
The Allen key solution sounds like a great idea.
Back to top
2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic.
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17799
Camp Springs, Kentucky
Gender:
Re: Timing Plug Tool on-the-cheap
Reply #9 -
04/22/18 at 03:56:18
Yep........finger tight with your washer/brake pad/etc. it all you need.
Here are the part numbers for the cover that used the hex wrench. It comes in chrome or painted.
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1416070003
