I will take on that TEV valve (I call it the coasting enricher system).

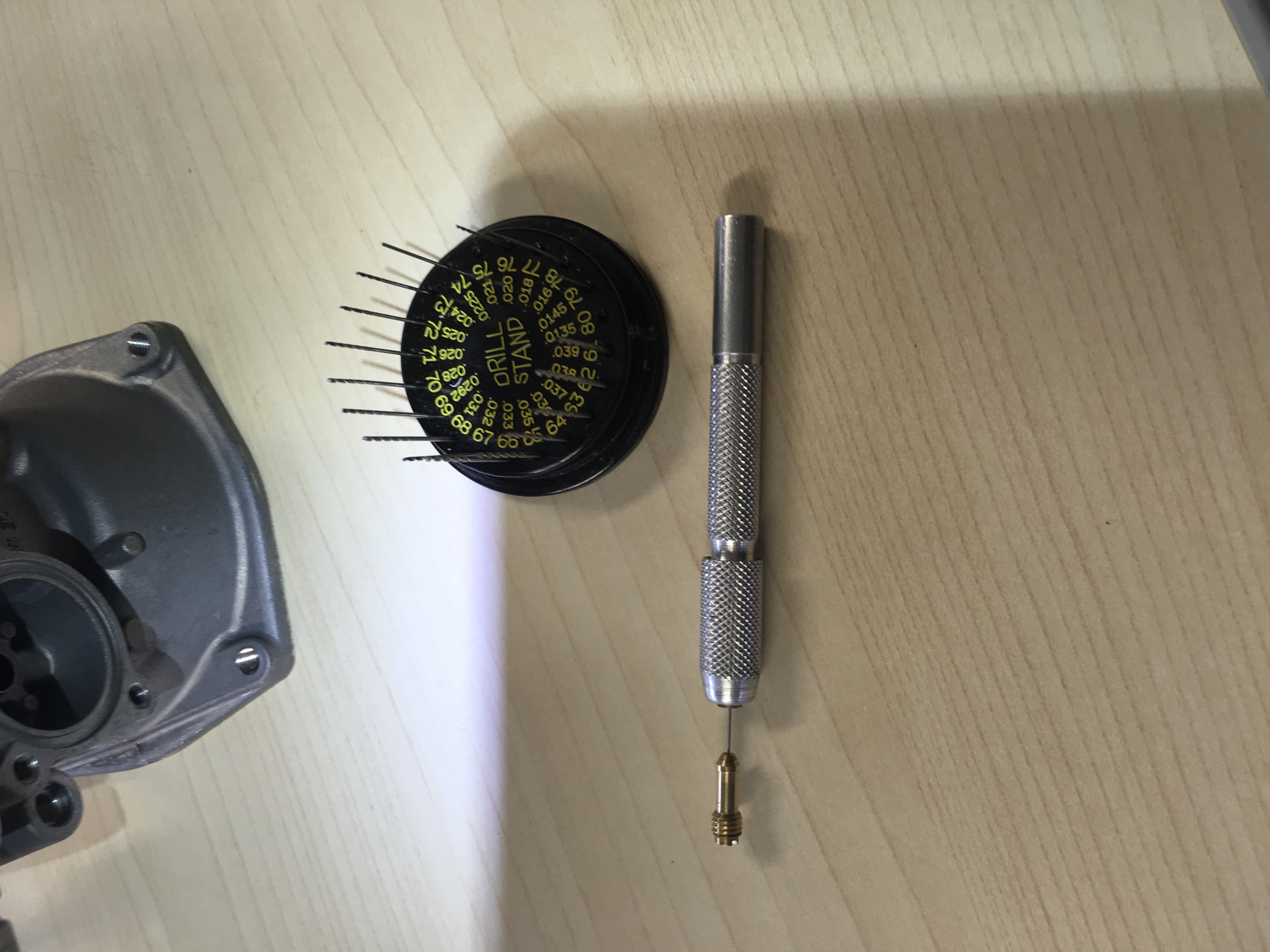

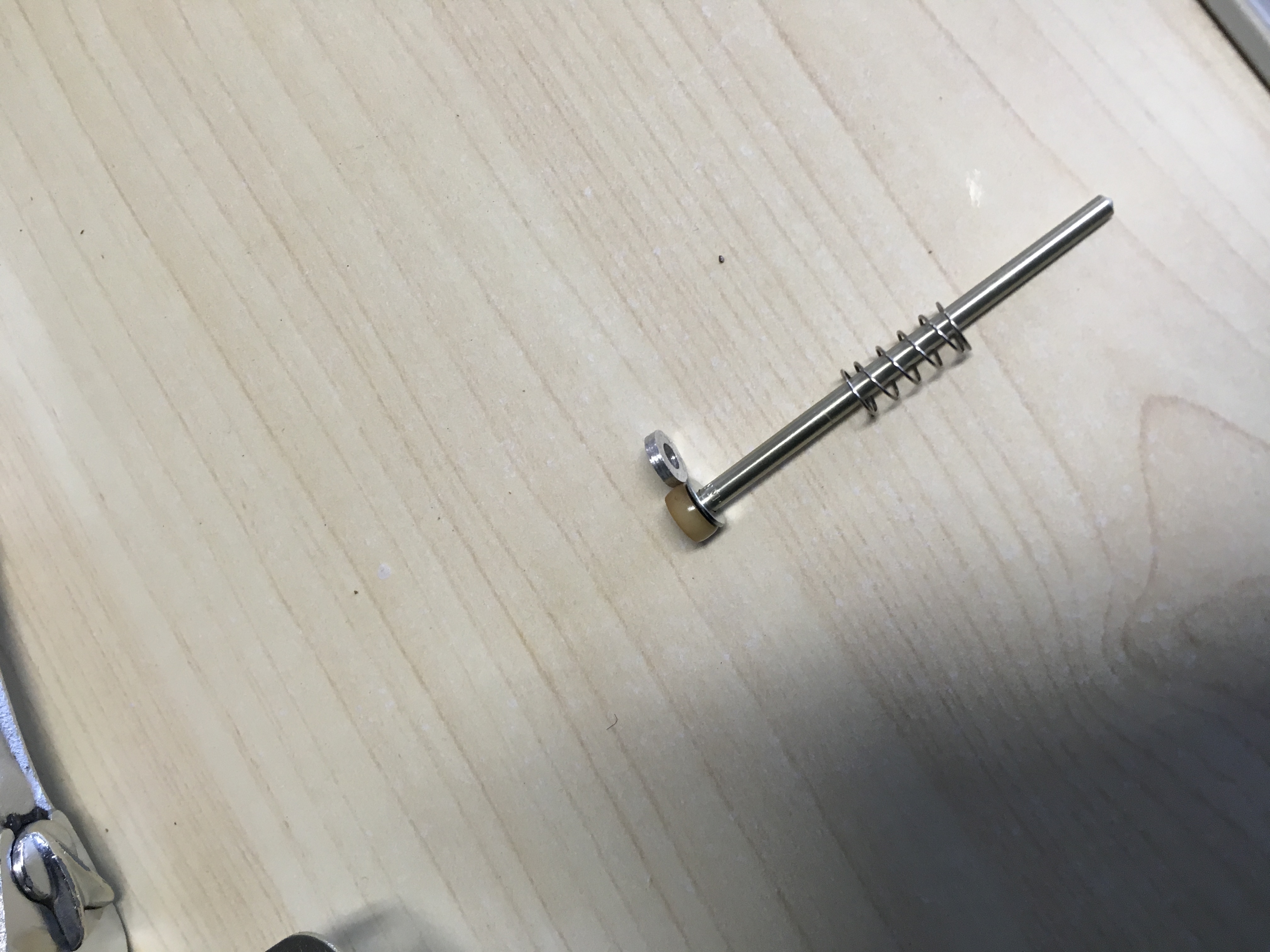

My understanding of that assembly is that under normal steady state and acceleration the spool valve is parked and air to the pilot and transition circuits is provided via the #230 pilot air bleed and #45 air bleed jet, located in the dome below the diaphragm. When manifold vacuum spikes during deceleration, the high vacuum acts on the TEV diaphragm to overcome the spring and shuttle the spool valve over the port that connects the #230 pilot valve to the pilot & transition circuits. Under the high vacuum condition, the pilot and transition circuit receives air only via the #45 air bleed jet. When I had the carburetor apart, I measured that #45 air bleed. It was greater than .016" and less than .018". That's pretty small. I didn't measure the threads on the jet. Does anyone know if these jets are available? Installing a smaller one will make the mixture richer on hard deceleration.
I think Batman's spring mod probably has merit, but also imagine it would be easy to go a bit too far and end up with that #230 air bleed covered up under normal driving conditions.

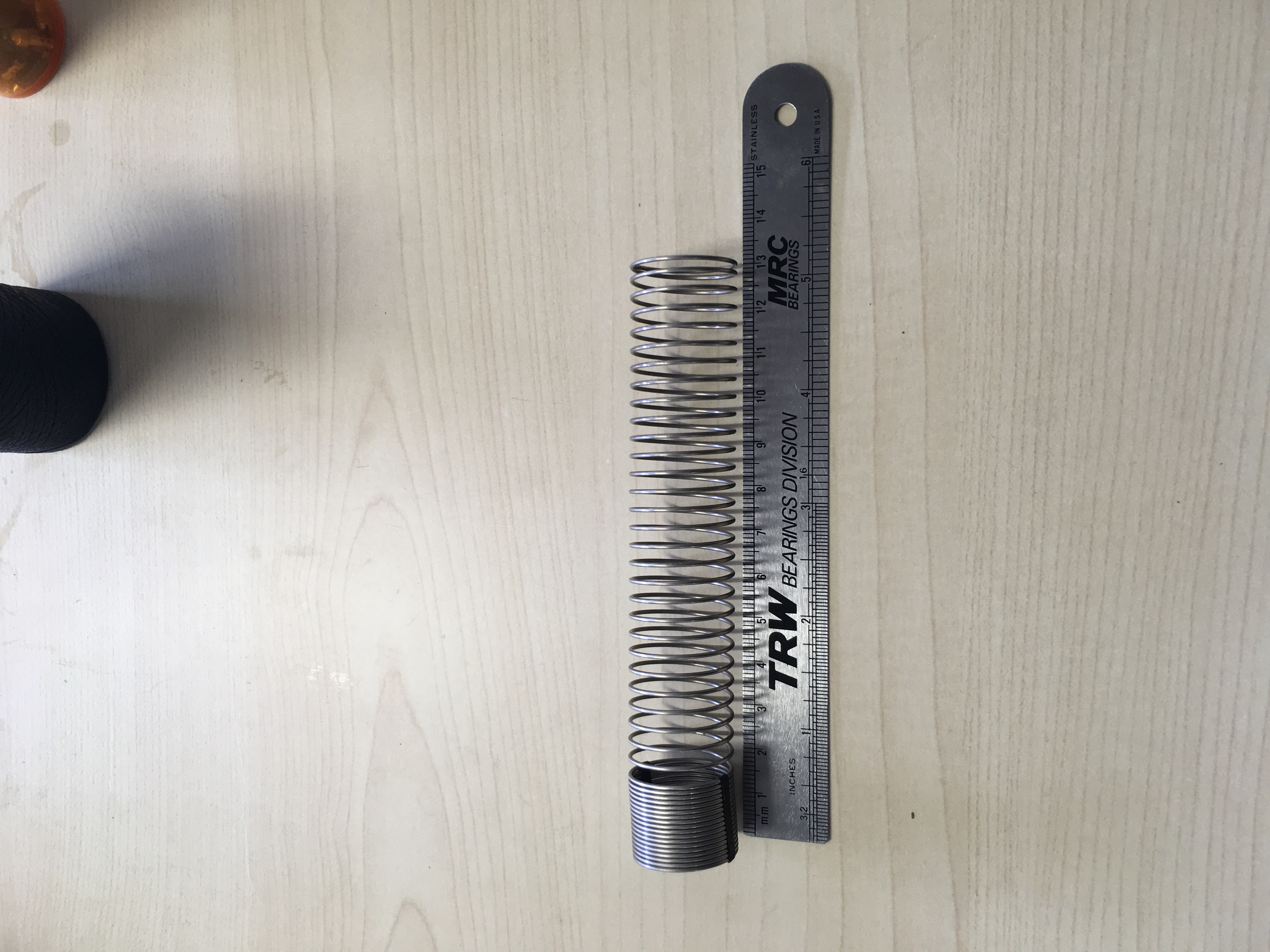

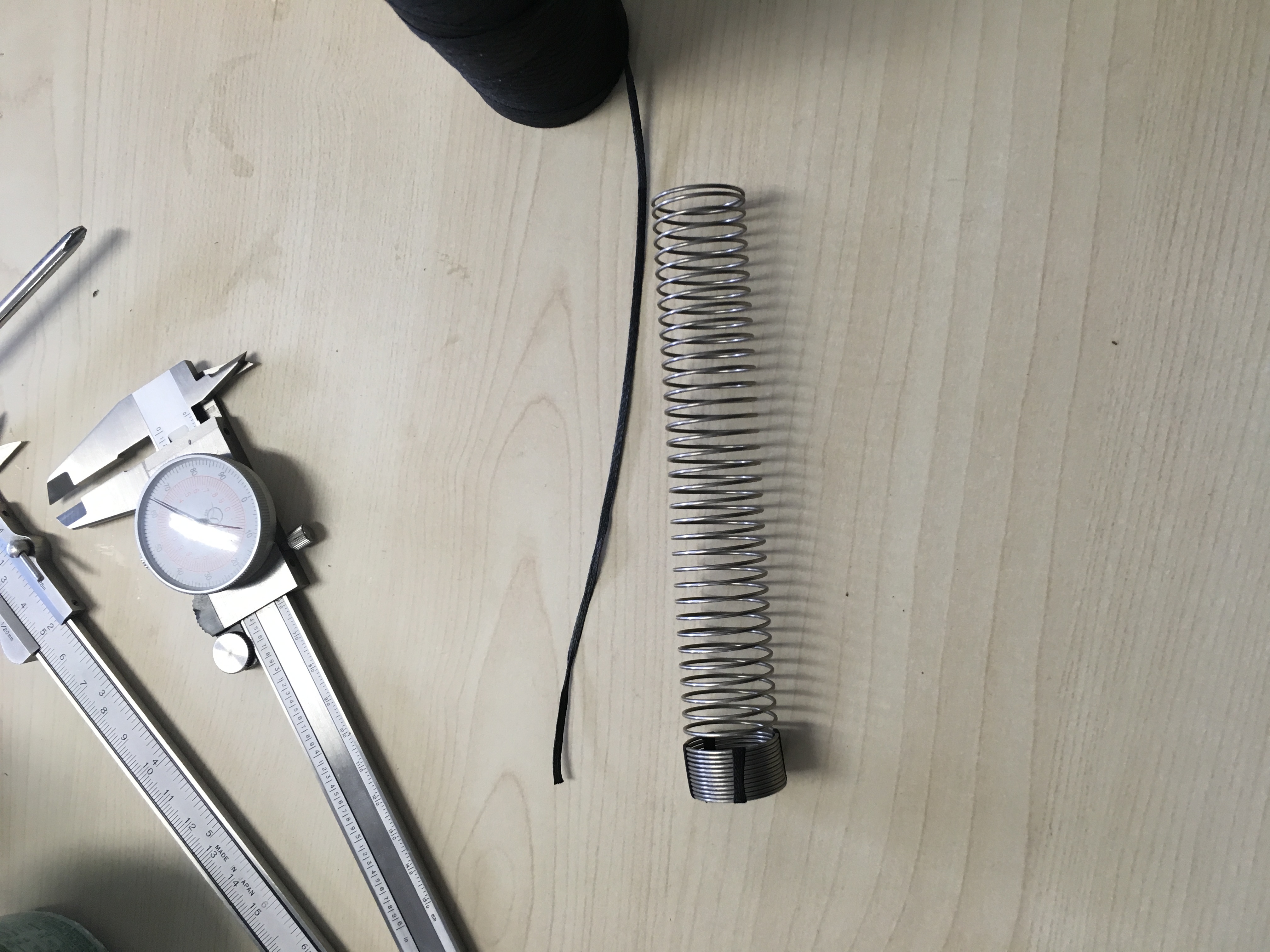

I will test the spring and determine what the preload is with the TEV valve in the parked position. Then can compare to diaphragm area and figure out how much vacuum is necessary to shuttle the valve. I will also do an operational test with a vacuum gage & damper to determine average driving vacuum and deceleration vacuum. We can get a better idea of where the spring should be set.
As I mentioned earlier, deceleration mixture can be made richer by installing a smaller air bleed jet (maybe a #40 or #35) if they are available. I have noted that on earlier models (86-88 & 95) the illustrated parts breakdown only shows one air bleed in the dome (a #70) and the TEV valve is incorporated. Those older models may have used a system where the TEV closed off ALL the air bleed. Maybe I will try plugging the #45 entirely just to test it and see how it works.
Wish me luck.

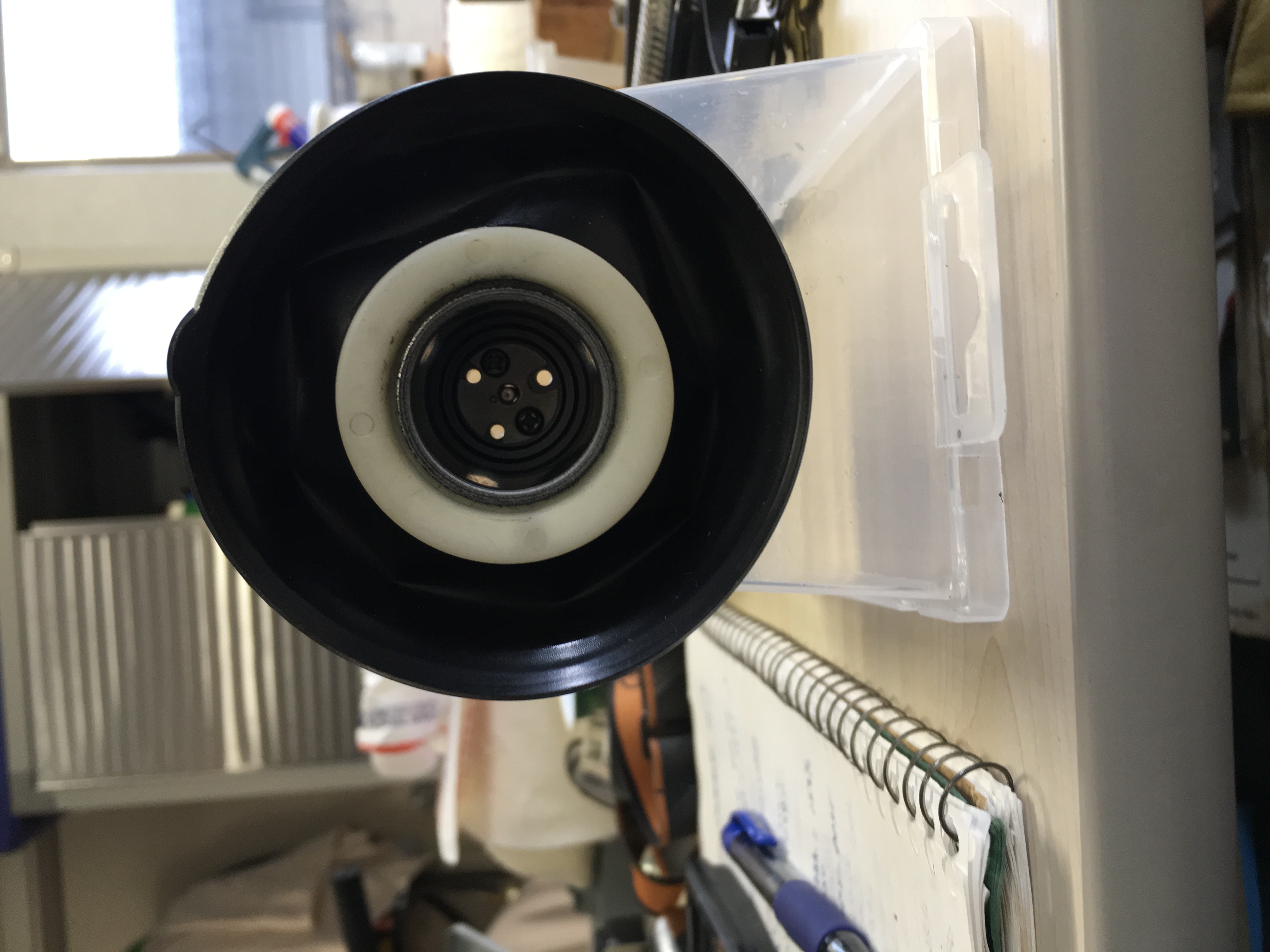

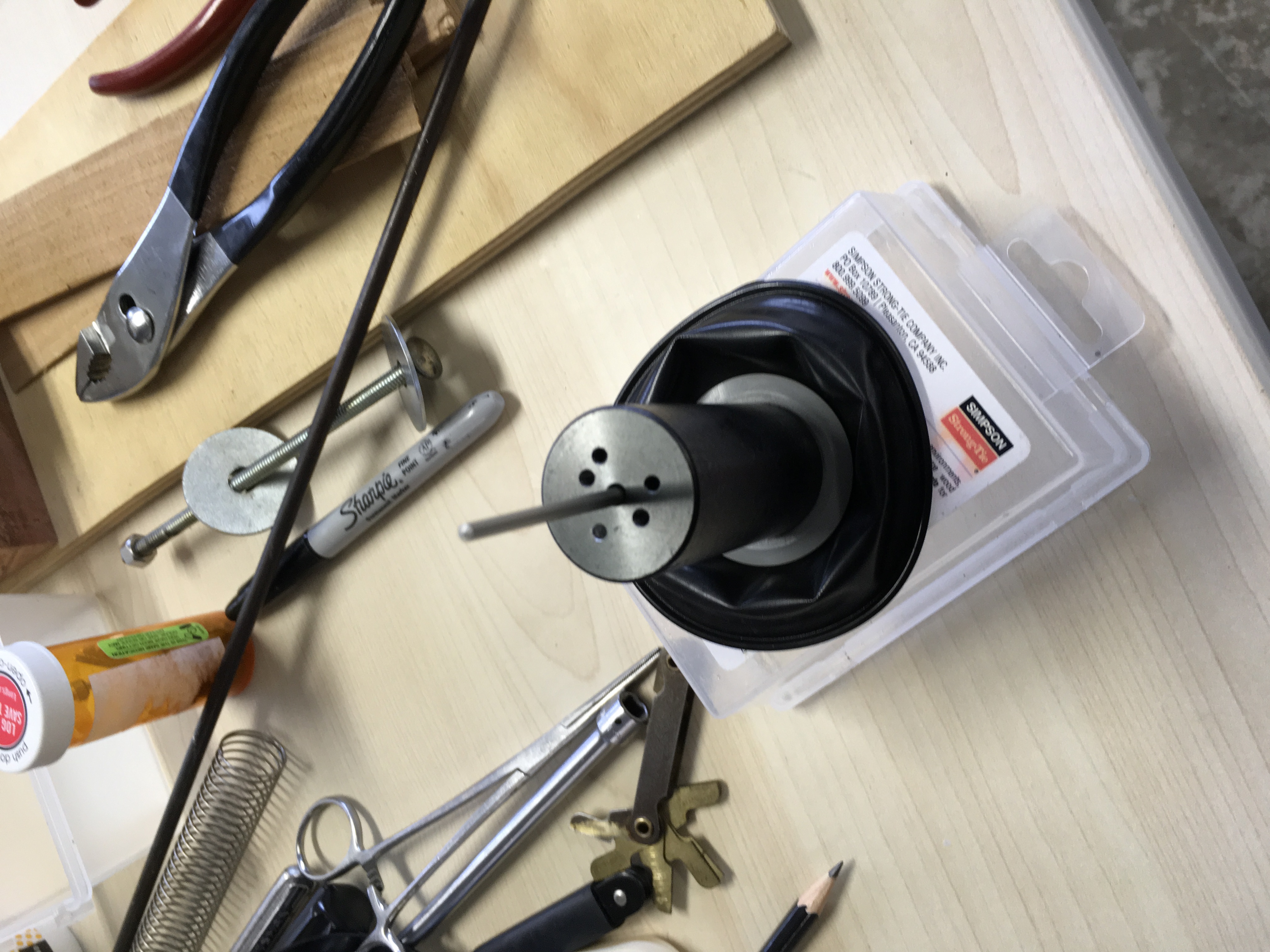

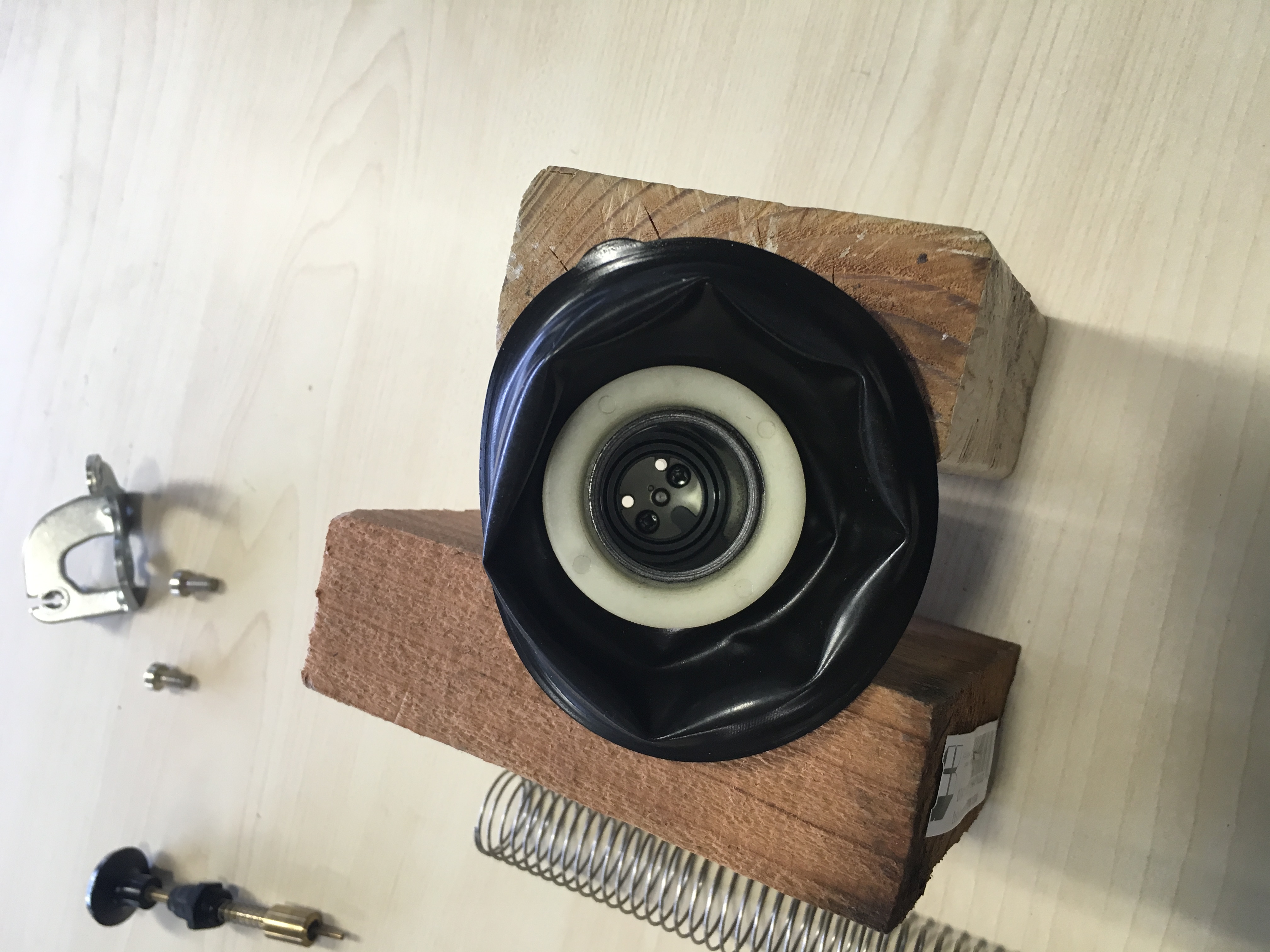

Hey Batman, in your opinion, how did the additional vacuum port in the bottom of the slide work? Do you feel that it improved the way the throttle responds to the twist grip? Does it feel more connected?
BTW, I checked out the YouTube vids on Gadgetman's groove. I am absolutely reluctant to turning a die grinder loose on that $525 carb. Do you happen to have any drawings or sketches that show exactly how that groove is configured? You know, depth, width, angles, etc. Have you incorporated it into your carb? If so, was it hard to do, did it work good?
|
