What year torque limiter (serial number)
03/23/18 at 16:39:20

I am looking at a bike that is a 1996. I know this is about the time for the torque limiter starting to show up. Does any one know what date, month, serial number. That this begins? It is hard to convince some one you are buying a bike from, "Hey can I pull the generator cover, dump a bunch of oil out so I can see the starter gears?" Roll Eyes

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28752 L.A. California Gender:	Re: What year torque limiter (serial number) Reply #1 - 03/23/18 at 18:49:46 As far as I know, all '96 and later have it. http://suzukisavage.com/cgi-bin/YaBB.pl?num=1240553196
Back to top	Versey's Place Tech Section Index IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: What year torque limiter (serial number) Reply #2 - 03/23/18 at 20:25:36 The 5speed trans came in 95 ,the torque limiter came in 96, If you feel, the need to check , should be able to remove the starter and reach in to feel the gear with your finger or a bent coat hanger,rather than remove the side case.
Back to top	my old work mates called me MacGyver IP Logged

Matchless G11 Senior Member Offline SuzukiSavage.com Rocks! Posts: 451 Newfoundland NJ	Re: What year torque limiter (serial number) Reply #3 - 03/24/18 at 10:19:27 , If you feel, the need to check , should be able to remove the starter and reach in to feel the gear with your finger or a bent coat hanger,rather than remove the side case. [/quote] Thanks again Batman. (I never seem to get tired of saying that, too bad Adam West is gone).
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17784
Camp Springs, Kentucky
Gender: male

Re: What year torque limiter (serial number)
Reply #4 - 03/24/18 at 11:13:49

batman wrote on 03/23/18 at 20:25:36:

The 5speed trans came in 95 ,the torque limiter came in 96, If you feel, the need to check , should be able to remove the starter and reach in to feel the gear with your finger or a bent coat hanger,rather than remove the side case.

The torque limiter gear is not the one that the starter shaft engages......it is the next one forward. I doubt if your finger or a coat hanger is going to be able to reach that far forward to feel the difference.

Someday I will be old......But not today!

IP Logged

batman

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male

Re: What year torque limiter (serial number)
Reply #5 - 03/24/18 at 22:20:52

Dave you better look again ,the starter gear engaged by the starter shaft sits well below the torque limiter gear, exposing the top half and bring it within about 1 inch of the opening for the starter. Your finger tip (or bent wire)should be able to detect a straight cut gear from one with three sets of teeth with gaps between them.

« Last Edit: 03/25/18 at 07:54:05 by batman »

my old work mates called me MacGyver

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28752 L.A. California Gender:	Re: What year torque limiter (serial number) Reply #6 - 03/24/18 at 23:58:17 a picture is worth a thousand words...
Back to top	Versey's Place Tech Section Index IP Logged

Matchless G11

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 451
Newfoundland NJ

Re: What year torque limiter (serial number)
Reply #7 - 03/25/18 at 06:37:40

Hi Dave

You brought up a valid point, can the gear be checked from the starter hole?

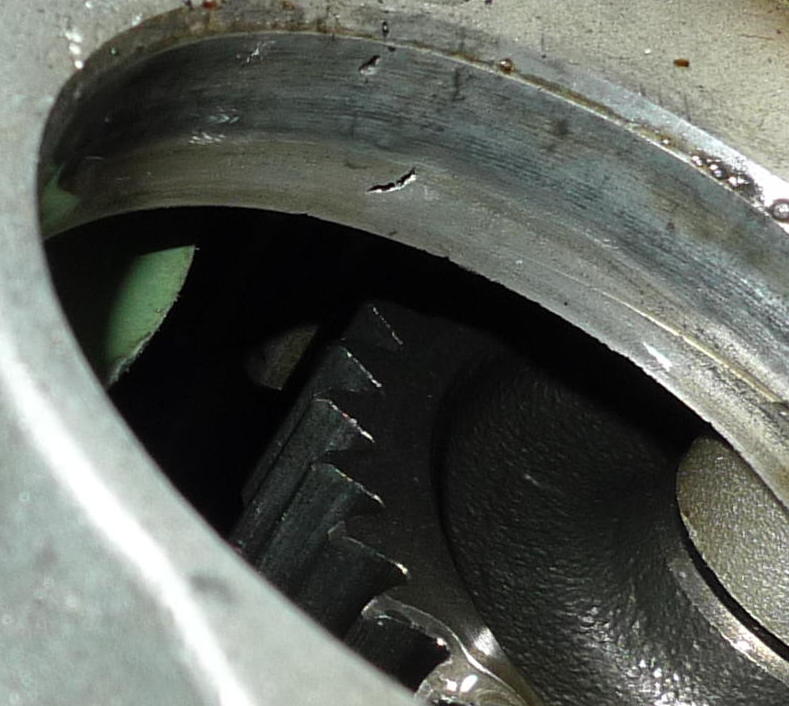

Last night I pulled my starter and found you could see with difficulty the gears.
I am glad I did, I had never pulled a starter on a savage, It is just a little more difficult than my old 1975 Moto Guzzi 850T

One can just barely see one tooth of the non torque limited (pre 96) gear.

Thanks!


« Last Edit: 03/25/18 at 07:51:47 by Matchless G11 »

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: What year torque limiter (serial number) Reply #8 - 03/25/18 at 08:10:29 Yeah thanks Dave!(huh ?)
Back to top	my old work mates called me MacGyver IP Logged

Matchless G11

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 451
Newfoundland NJ

Re: What year torque limiter (serial number)
Reply #9 - 03/25/18 at 09:49:22

batman wrote on 03/25/18 at 08:10:29:

Yeah thanks Dave!(huh ?)

Batman thanks again I was not belittling you (and others) contributions.

I was thanking Dave for he got me off my lazy bottom to go and pull the starter to find out the truth.

In the same way I will thank those who told me, "It can't be done", And I said. "Oh yea!"

I am also thankful for my enemies, for without which I would not know who were really are my friends. ; Cool

IP Logged
