Wiring diagram... LS650 2001.
01/26/18 at 07:26:56

Hi,
I'm currently having a no spark issue, recently I rewire the bike and remove the safety switches, but now the bike won't start.
the battery is fairly new... reads about 12.6v, new solenoid, new coil, new spark plug, new(used) CDI, new pickup coil, new startor, new negative wire to case.

All the lights do work.

Any suggestions are greatly appreciated.

Thanks!

Back to top


America is composed of 35 GREAT countries...

IP Logged

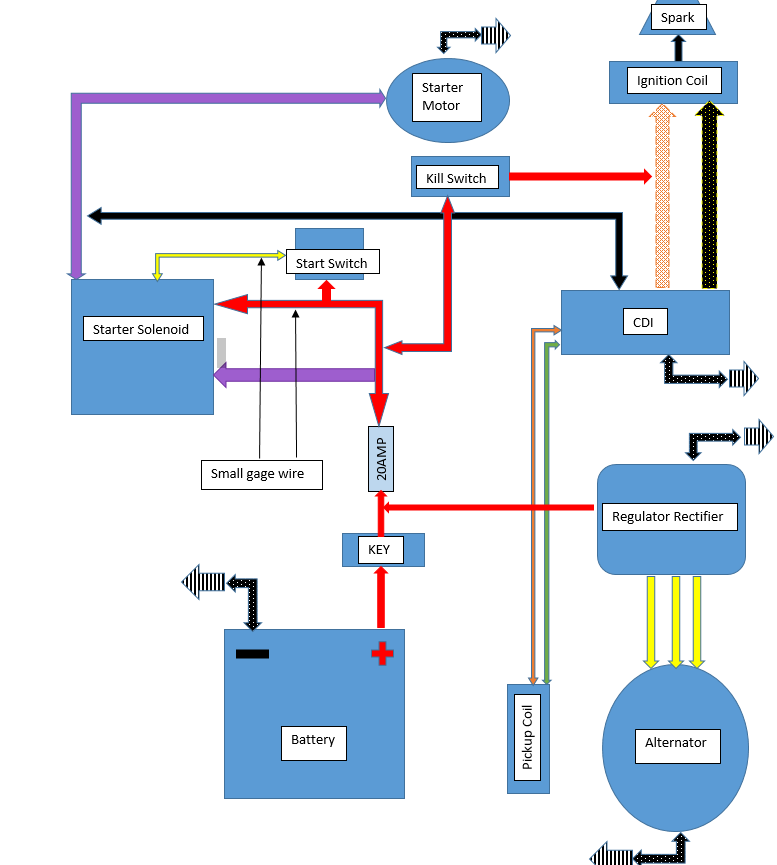

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28790 L.A. California Gender:	Re: Wiring diagram... LS650 2001. Reply #1 - 01/26/18 at 07:47:59 Your circuit diagram is wrong You can't run the starter thru the fuse/key, it will burn out every time. And I don't understand the CDI/coil power.
Back to top	Versey's Place Tech Section Index IP Logged

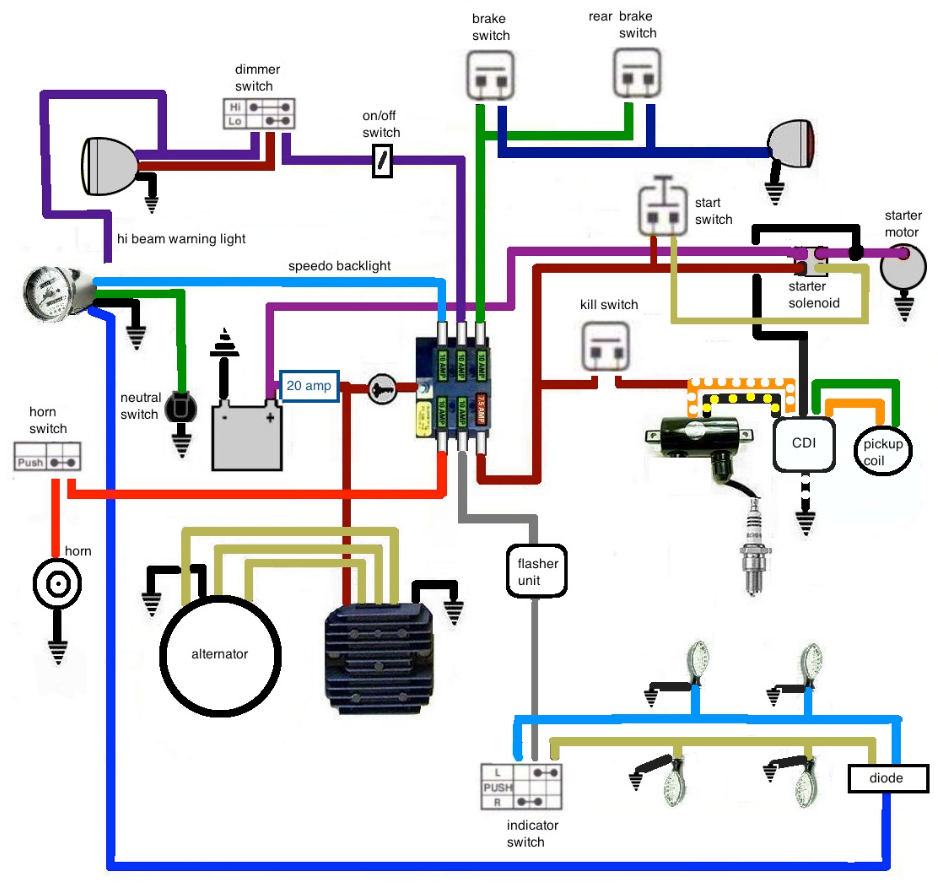

PerroVivo YaBB Newbies Offline Bobber power! Posts: 28 Tucson, AZ	Re: Wiring diagram... LS650 2001. Reply #2 - 01/26/18 at 07:56:48 Thanks for the reply! I appreciate your knowledge, I been reading the forum and you have solve so many issues in the past, is a true honor to hear from you... I was following this diagram I found in the forum. Any suggestions on how to fix it?
Back to top	Untitled_picture.png America is composed of 35 GREAT countries... IP Logged

PerroVivo YaBB Newbies Offline Bobber power! Posts: 28 Tucson, AZ	Re: Wiring diagram... LS650 2001. Reply #3 - 01/26/18 at 08:02:10 Or maybe a diagram you have used in the past that was successful on making the bike run
Back to top	America is composed of 35 GREAT countries... IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28790 L.A. California Gender:	Re: Wiring diagram... LS650 2001. Reply #4 - 01/26/18 at 08:09:46 That one looks almost correct. I doubt you have a 20 amp fuse going to a fuse block though. A stock savage has 2 20 amp fuses. Follow the power, confirm you have it at the CDI.
Back to top	Versey's Place Tech Section Index IP Logged

PerroVivo YaBB Newbies Offline Bobber power! Posts: 28 Tucson, AZ	Re: Wiring diagram... LS650 2001. Reply #5 - 01/26/18 at 08:29:22 Correct, no fuse block just the one 20amp fuse... will you recommend I add a second fuse? If you think it will be a good idea, at what point would you recommend I add it. Ones I get home I will check for power to CDI This is what it look before I made the mistake of thinking I knew what I was doing
Back to top	America is composed of 35 GREAT countries... IP Logged

PerroVivo YaBB Newbies Offline Bobber power! Posts: 28 Tucson, AZ	Re: Wiring diagram... LS650 2001. Reply #6 - 01/26/18 at 08:45:07 Sorry image was too big at first...
Back to top	Webp_net-compress-image.jpg America is composed of 35 GREAT countries... IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28790 L.A. California Gender:	Re: Wiring diagram... LS650 2001. Reply #7 - 01/26/18 at 08:51:30 Typically you have a 20 amp fuse for the lighting system and another for the ignition system. So if you only have 1, check the fuse. But I'm not going to be much help if the actual circuits don't match the diagram.
Back to top	Versey's Place Tech Section Index IP Logged

PerroVivo

YaBB Newbies

Offline

Bobber power!

Posts: 28
Tucson, AZ

Re: Wiring diagram... LS650 2001.
Reply #8 - 01/26/18 at 09:16:04

I see, The first diagram I posted is the diagram is the way that it is wire as of now...

Is there a diagram you will recommend I follow, as you can see I'm going for a bobber type of built... I'm anxious to be able to figure out the proper wiring since good weather is around the corner.

If you think that what I need is to start from the ground up, I will do just that, if rewiring and creating a new wiring harness is what it takes, I will do just that... will greatly appreciate it if you can direct me on a good starting point.

Back to top

America is composed of 35 GREAT countries...

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28790 L.A. California Gender:	Re: Wiring diagram... LS650 2001. Reply #9 - 01/26/18 at 09:50:42 The second diagram is close to what I'd expect the circuit would be except for the 20 amp fuse. I like the idea of a fuse block with fuses for each circuit, just bear in mind the values are incorrect as pictured, the sum total is 60 amps.
Back to top	Versey's Place Tech Section Index IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Wiring diagram... LS650 2001. Reply #10 - 01/26/18 at 10:37:35 Versy, Did I misunderstand something? I thought our bikes had two 20amp fuses for a total of 40amps.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28790
L.A. California
Gender: male

Re: Wiring diagram... LS650 2001.
Reply #11 - 01/26/18 at 10:52:41

norm92de wrote on 01/26/18 at 10:37:35:

Versy,
Did I misunderstand something? I thought our bikes had two 20amp fuses for a total of 40amps.

Yes 40 amps is correct.
His circuit shows a fuse box with 6 10 amp fuses and the sum is 60 amps.
I don't know what each of the 6 circuits require and it should be look into.
The requirements for 6 separate circuits might be different than 2 circuits.
As the wire sizes may allow more or less current.

My intent was to make him aware of the difference, at least you are.

Back to top

Versey's Place
Tech Section Index

IP Logged

PerroVivo YaBB Newbies Offline Bobber power! Posts: 28 Tucson, AZ	Re: Wiring diagram... LS650 2001. Reply #12 - 01/26/18 at 10:53:57 I found this thread, has lots of great knowledge in it, but all the diagrams are blocked by the bucket... http://suzukisavage.com/cgi-bin/YaBB.pl?board=tech;action=display;num=1173898705
Back to top	America is composed of 35 GREAT countries... IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28790 L.A. California Gender:	Re: Wiring diagram... LS650 2001. Reply #13 - 01/26/18 at 10:56:10 PerroVivo wrote on 01/26/18 at 10:53:57: I found this thread, has lots of great knowledge in it, but all the diagrams are blocked by the bucket... http://suzukisavage.com/cgi-bin/YaBB.pl?board=tech;action=display;num=1173898705 http://suzukisavage.com/cgi-bin/YaBB.pl?num=1516754930
Back to top	Versey's Place Tech Section Index IP Logged

PerroVivo YaBB Newbies Offline Bobber power! Posts: 28 Tucson, AZ	Re: Wiring diagram... LS650 2001. Reply #14 - 01/26/18 at 11:01:22 THANKS Verslagen1... the extension worked its magic!
