The Voltage Regulator From Ebay (Read 71 times)
Frikotr
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 16
The Voltage Regulator From Ebay
01/03/18 at 00:23:48
Hello,

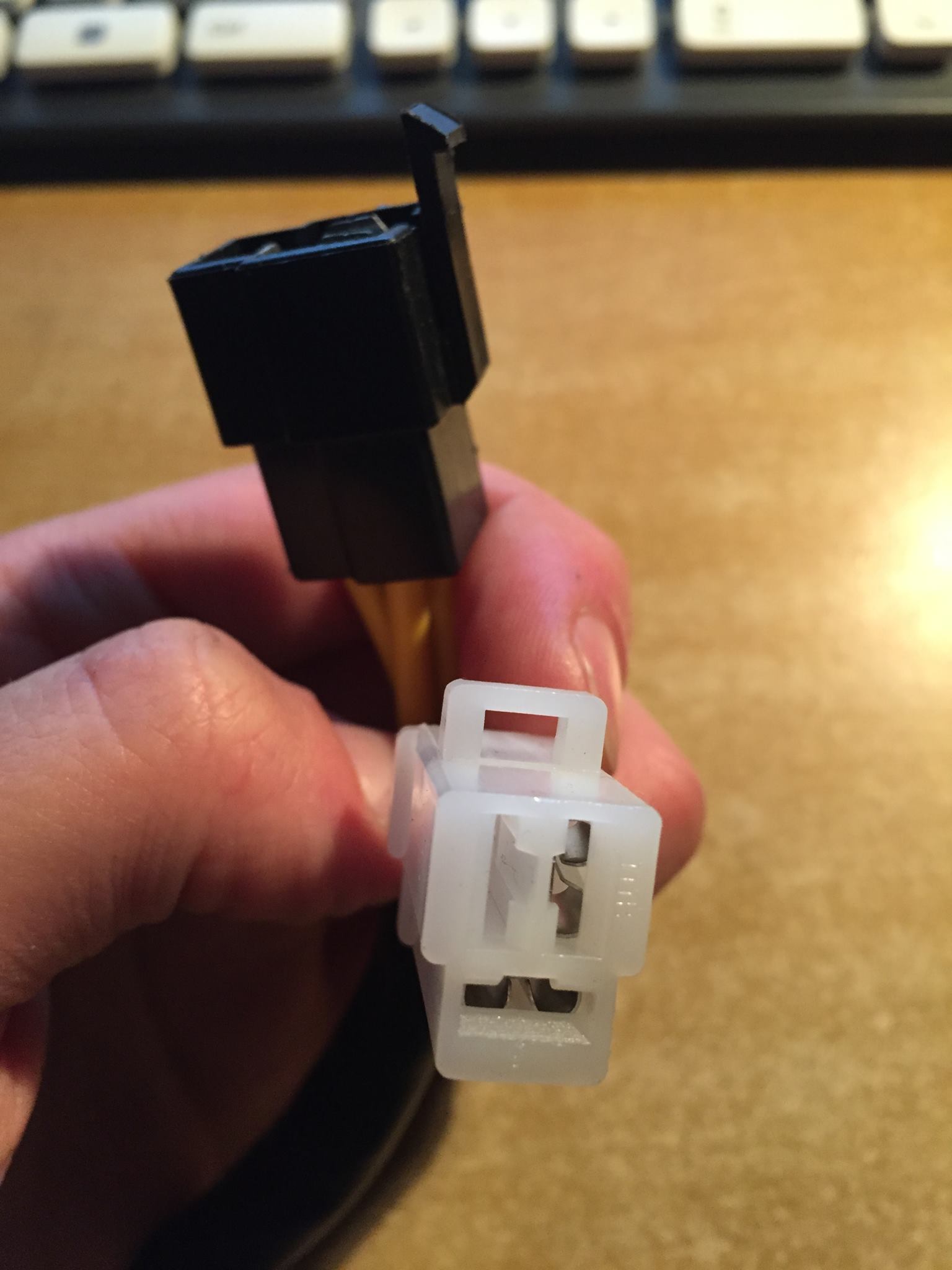

I hit the wall. I have recently bought the voltage regulator. The new terminal has two connections. The old terminal has three connections. Do you think it’s ground cable? Still safe to use? :'(
Back to top
IP Logged
Frikotr
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 16
Re: The Voltage Regulator From Ebay
Reply #1 -
01/03/18 at 00:24:57

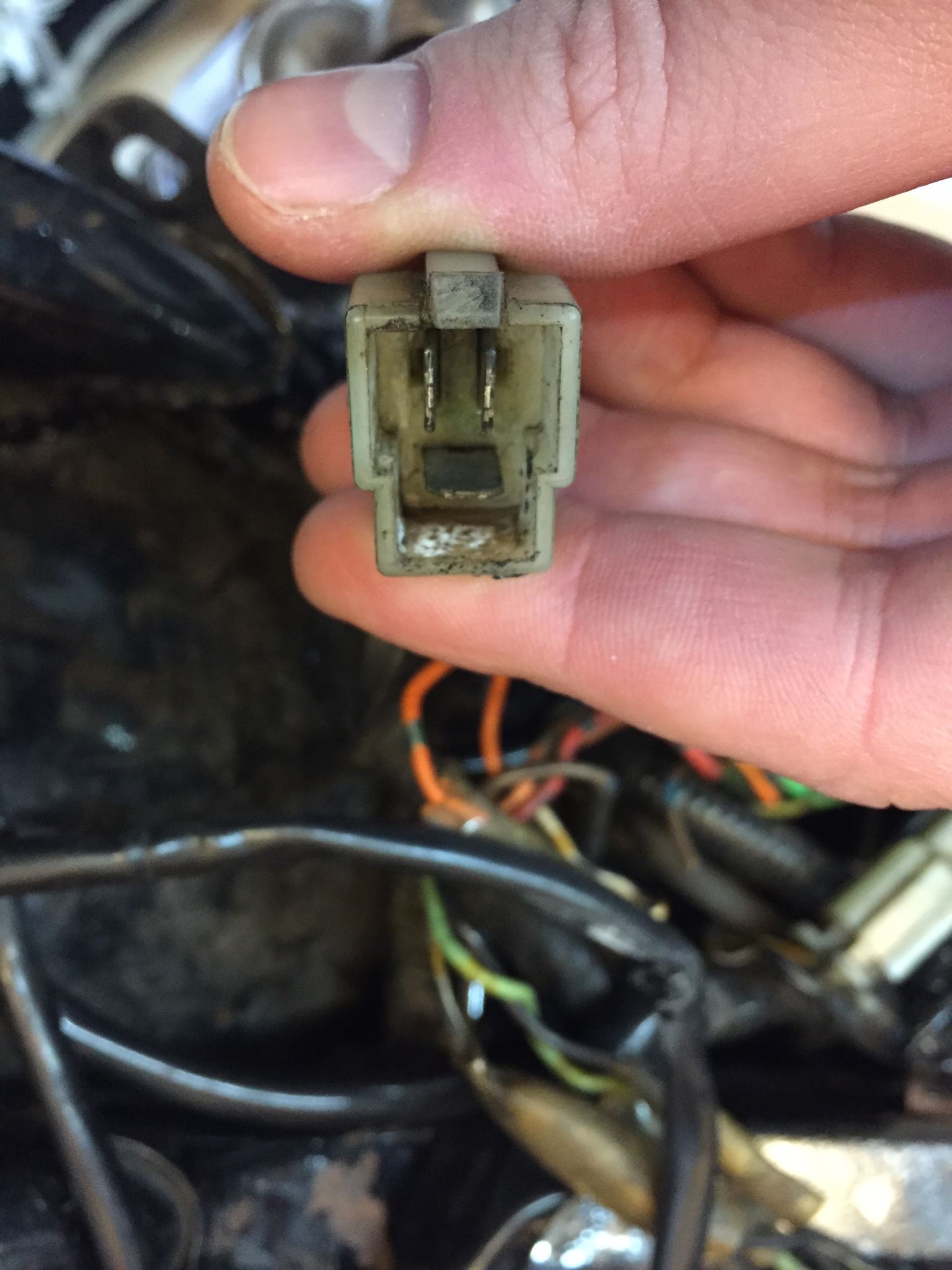

the old terminal
Back to top
IP Logged
Gary_in_NJ
Serious Thumper
Offline
LS650 Cafe Racer
Posts: 2633
Amongst the Twisty Roads
Re: The Voltage Regulator From Ebay
Reply #2 -
01/03/18 at 05:54:45
There are two parts of the part that you have in your hands; a rectifier and a voltage regulator.
On the input side of the R/R you have three yellow wires. These are the AC lines from the three legs of the stator. The rectifier takes the three phase AC (100+vac) and converts it (rectify) to DC.
On the output side there are two positive wires and a negative; a positive (red) and a switched positive (orange/black) and a negative (black). The DC output is regulated to 14.2-14.8 VDC.
Can you provide a better photo of the R/R itself, showing all of the wires? Is there no negative wire from the R/R?
Back to top
A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=>
http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28886
L.A. California
Gender:
Re: The Voltage Regulator From Ebay
Reply #3 -
01/03/18 at 07:10:15
If it was made for the savage it's probably ok.
The 3rd wire is to turn the regulator on.
After a few years they figured out if the motor was running it should be on and eliminated the wire.
Back to top
Versey's Place
Tech Section Index
IP Logged
Frikotr
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 16
Re: The Voltage Regulator From Ebay
Reply #4 -
01/04/18 at 06:19:11
Thanks for the reply.

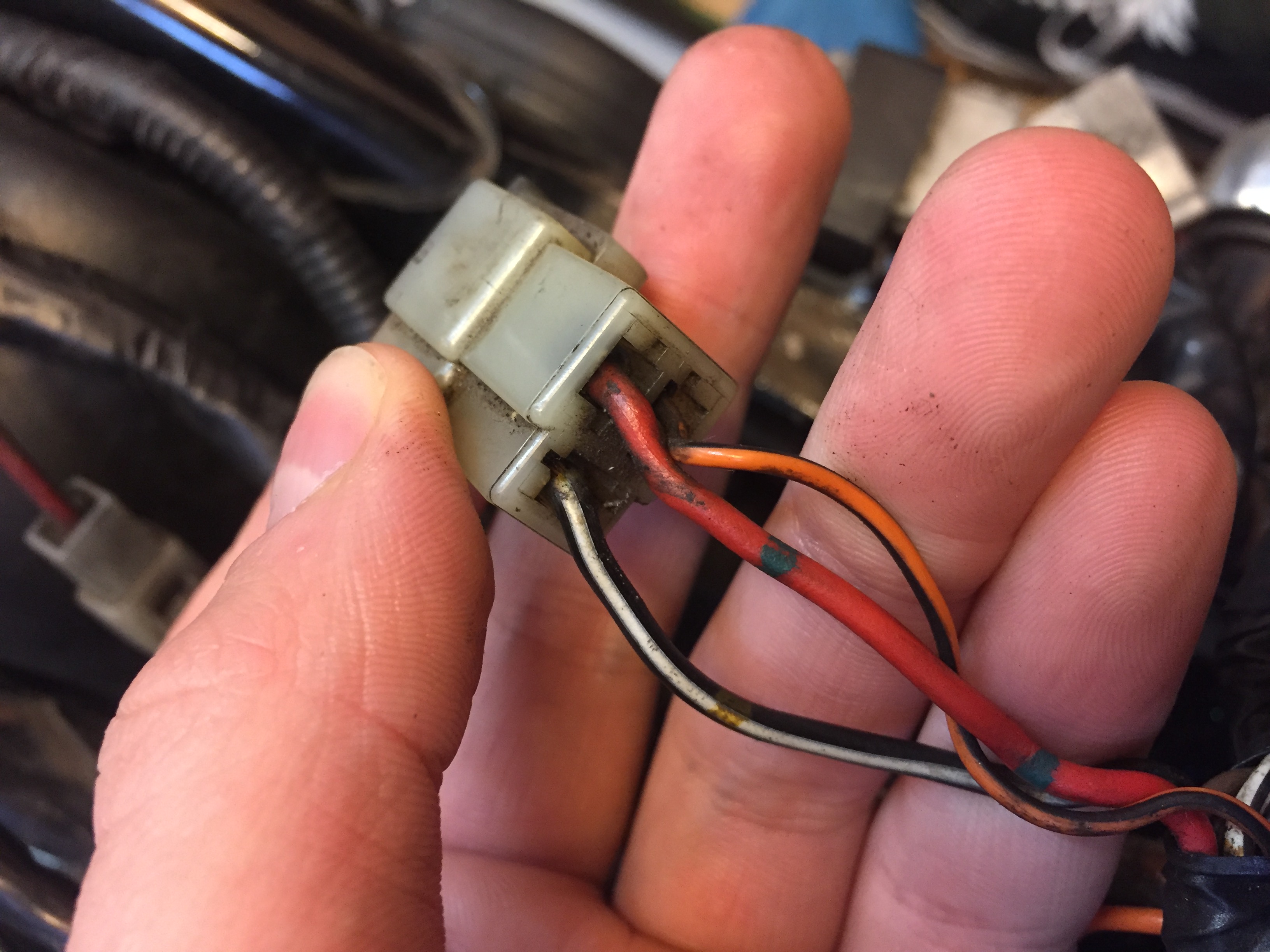

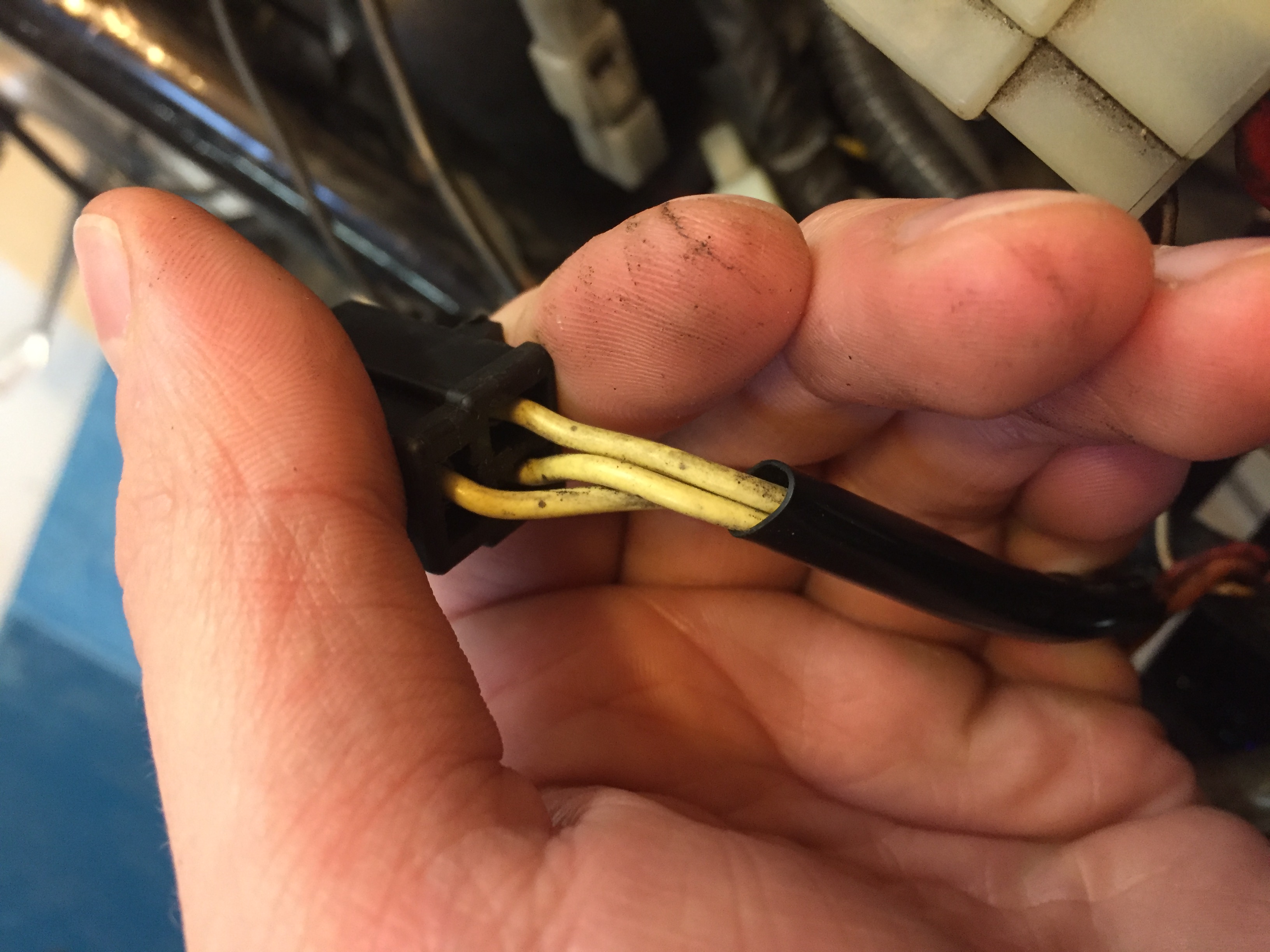

Here are better photos.
Back to top
IP Logged
Frikotr
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 16
Re: The Voltage Regulator From Ebay
Reply #5 -
01/04/18 at 06:20:31
The bike from 1987
Back to top
IP Logged
Gary_in_NJ
Serious Thumper
Offline
LS650 Cafe Racer
Posts: 2633
Amongst the Twisty Roads
Re: The Voltage Regulator From Ebay
Reply #6 -
01/04/18 at 06:52:57
It looks like your eBay R/R is missing the orange/black switched lead. As verslagen has pointed out, it's a redundant circuit and not necessary.
As a side note, I generally don't trust electronics purchased through eBay. There is always a good chance that they are import copies of the genuine article. Sometimes this is clear in the description, sometimes it isn't. I would suggest that you perform a voltage check on the output side at idle and 4,000 rpm. You should see 14.2 to 14.8 VDC at the output. Anything less and you will discharge the battery due to charging system inability to replenish the battery. A higher voltage will over charge the battery and shorten it's life.
Back to top
A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=>
http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
IP Logged
