Riser modification
11/18/17 at 07:59:51

Any of you forum members ever modified the pull back risers on your beast. My 2007 has the 6.5 inch risers which are proving to be a bit high for an old shoulder separation injury. I am thinking the same design 2" shorter would be a good place to start trying to find that sweet spot. I've checked eBay and Amazon...what is offered in 4-4.5" pull back risers do not have the appearance I was hoping to have. If I find modifying what I currently have is not high potential...I'll need to compromise on the appearance thing. And you all know how importance individual appearance is on these bikes. Thanks in advance for any tips, thoughts, experience.

* NMSavage

Back to top

2007 S40 is now a Savage Street Tracker, Hi-Comp piston, Mikuni Round Slide, Custom header, Chain conversion, Personalized by loving rebuild: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1536957321/0#0

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Riser modification Reply #1 - 11/18/17 at 10:40:25 Have you looked at Harley parts ? sometimes form has to follow function,as to individual appearance, I always wear a suit & tie when I ride.
Back to top	my old work mates called me MacGyver IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 5112 Manteca , CA Gender:	Re: Riser modification Reply #2 - 11/18/17 at 10:54:38 Yeah , sure you do !
Back to top	The Topic Terminator IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2775	Re: Riser modification Reply #3 - 11/18/17 at 12:13:59 I wouldn't want to mess with the only thing holding my controls to the bike. I got my bike used and it had 4" HD aftermarket risers on it. There must be hundreds of them out there to choose from. I'm sure you'll find something out there.
Back to top	IP Logged

NMSavage

Full Member

Offline

A Savage Twist of
the Wrist...no
mistakin' TORQUE!

Posts: 113
Las Cruces, New Mexico
Gender: male

Re: Riser modification
Reply #4 - 11/18/17 at 12:16:18

Yes...been looking at Harley parts...no luck as of yet. I mounted a mini tach and mini speedo...Harley risers do not look to have the same bolt hole dimensions as my cluster mounting bracket. I could make a new bracket that is true. Yeah I know...I'm being fussy...you know...like wearing a suit and tie when riding Wink

And yes there are aftermarket risers that are the length and offset I am seeking...but IMHO they look out of place on this one lung monster!!

Suit and tie huh? Going for that WWI aviator look?? Sweet!

* NMSavage

Back to top

2007 S40 is now a Savage Street Tracker, Hi-Comp piston, Mikuni Round Slide, Custom header, Chain conversion, Personalized by loving rebuild: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1536957321/0#0

IP Logged

NMSavage Full Member Offline A Savage Twist of the Wrist...no mistakin' TORQUE! Posts: 113 Las Cruces, New Mexico Gender:	Re: Riser modification Reply #5 - 11/18/17 at 12:19:34 Ohiomoto...I have the same thoughts. Risers are super critical to fit and function flawlessly. Don't need to be borrow ditch fodder. * NMSavage
Back to top	2007 S40 is now a Savage Street Tracker, Hi-Comp piston, Mikuni Round Slide, Custom header, Chain conversion, Personalized by loving rebuild: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1536957321/0#0 IP Logged

antmanbee

Full Member

Offline

4 Moto Guzzis and an
S40

Posts: 101
NE Florida

Re: Riser modification
Reply #6 - 11/18/17 at 13:56:34

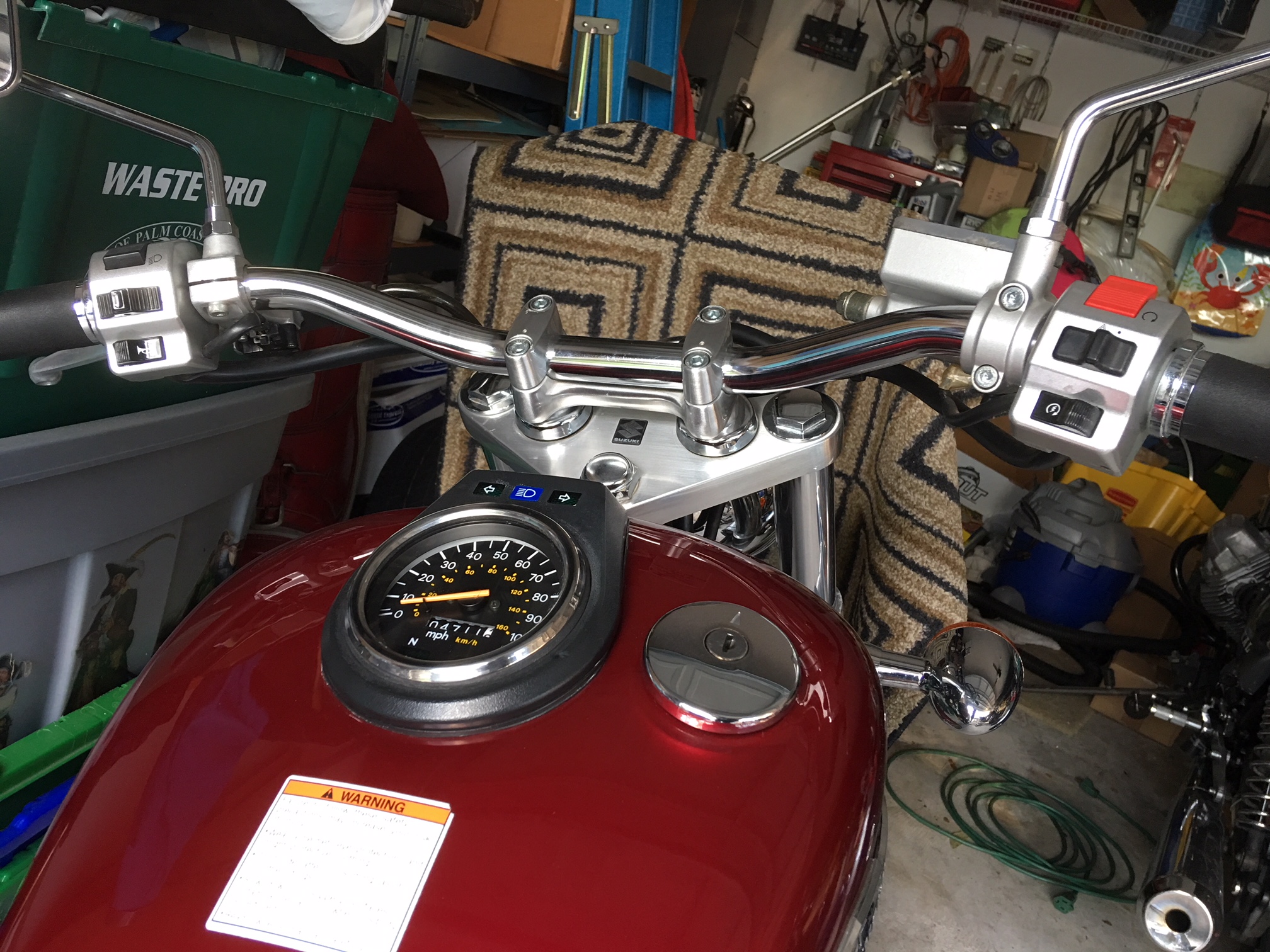

I took the risers out altogether and just got 2 new bolts of the right length for the clamps.
I used bars with a little bit of rise so the hand position is somewhat lower than with the risers and the flat stock bar.
The new bars are also a bit wider than stock, which feels better to me also.

I got these bars,
https://www.amazon.com/gp/product/B0055DNV1W/ref=oh_aui_detailpage_o03_s00?ie...

The chrome was good for cheap bars. It was a little difficult to measure and drill the holes for the switches and you need to check carefully where they go and what angle to have them at. There is not a millimeter to spare on the length where the grips, throttle and brackets go but it does fit.

Back to top


IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Riser modification Reply #7 - 11/18/17 at 14:00:00 I had Versy make me a set of plain 3" risers for my bike. They look like they came from Suzuki. The bars are 2" lower and about an inch further forward, they work very well for me.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

NMSavage Full Member Offline A Savage Twist of the Wrist...no mistakin' TORQUE! Posts: 113 Las Cruces, New Mexico Gender:	Re: Riser modification Reply #8 - 11/18/17 at 17:09:44 Hey antmanbee...that's a sweet setup!! Something to ponder for sure. Drilling chrome bars musta been a real treat. It came out very nice...looks great! norm92de...I never even thought of asking for some custom made risers. Versy's machine work is super impressive. * NMSavage
Back to top	2007 S40 is now a Savage Street Tracker, Hi-Comp piston, Mikuni Round Slide, Custom header, Chain conversion, Personalized by loving rebuild: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1536957321/0#0 IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28889 L.A. California Gender:	Re: Riser modification Reply #9 - 11/18/17 at 17:20:24 you don't need to drill the bars for the controls, just file off that little pin and they'll clamp on there tight.
Back to top	Versey's Place Tech Section Index IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Riser modification Reply #10 - 11/19/17 at 07:36:47 Versy, That's what I did. Filing off the spigots inside the switches only takes a few minutes and gave me complete flexibility on control position, mirrors etc.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

NMSavage

Full Member

Offline

A Savage Twist of
the Wrist...no
mistakin' TORQUE!

Posts: 113
Las Cruces, New Mexico
Gender: male

Re: Riser modification
Reply #11 - 11/23/17 at 13:03:47

Took the risers to a machine shop, but the guy wanted $100 to remove the studs, cut them off and redrill and tap the holes. I took them home and used my metal chop saw, drill press, metric tap and now they are done and remounted. The look and feel are what I was hoping to achieve.

Thanks for the input...Happy Thanksgiving!!

* NMSavage

Back to top

2007 S40 is now a Savage Street Tracker, Hi-Comp piston, Mikuni Round Slide, Custom header, Chain conversion, Personalized by loving rebuild: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1536957321/0#0

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Riser modification Reply #12 - 11/23/17 at 15:52:43 If your look for risers from H-D you have to buy the kind that aren't stock but two separate pieces ,as the distance between the mounting holes in the top tree is much narrower on H-D's.
