Mystery M6 x 1.0 x 1" bolt
07/30/17 at 21:20:19

So I washed both the S40 and the Ninja 250 today. Took them both out for a "blow dry" and all was well. Both rode solid and stable as always.

Was walking down the driveway tonight and found this M6 1.0 x 1" bolt laying in the driveway. I looked over both bikes pretty well (short of taking anything off/apart) and can find no missing bolts or any that match this head stamping. Clearly must be something after market but I checked all of the bolts in my shop supply and no match.

I checked the 4 wheeler as well. No dice.

I can see under the head flange that this bolt has been turned down on something before, but it is pretty darn clean to have been in a motorcycle for a while if in fact it was on a motorcycle?.

I'm wondering if it may have fallen out of my tool bag, which I was messing with this morning, and it fell on the bike and bounced off in the driveway.

So...anyone have any idea where all on the S40 a bolt of this size goes so I check all the right places just to be safe?

Back to top


IP Logged

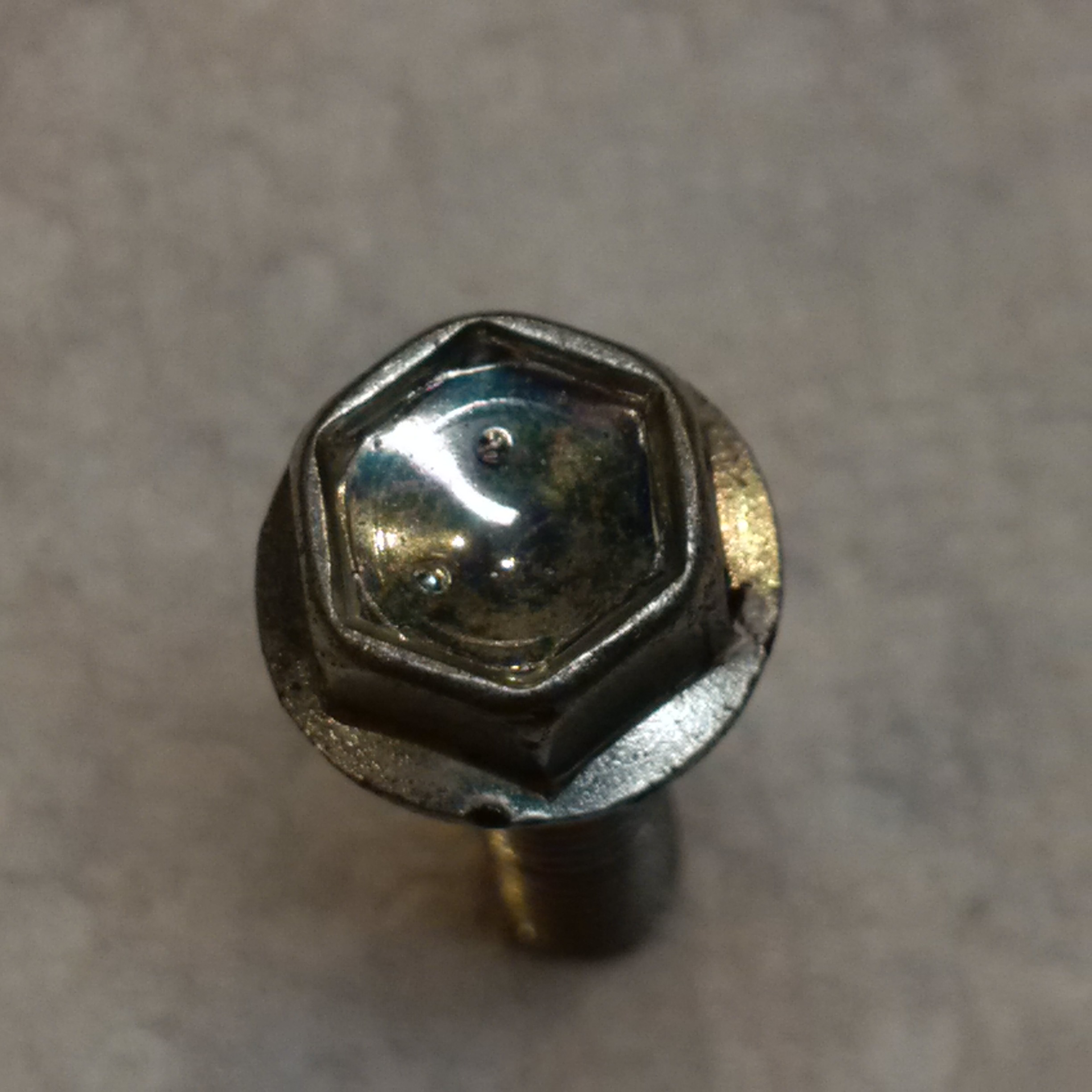

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2641 Auburn, AL Gender:	Re: Mystery M6 x 1.0 x 1" bolt Reply #1 - 07/30/17 at 21:20:58 Head
Back to top	IMG_20170730_230915.jpg 2008 \| 152/52.5–Air Mix 3/4 \| Rotella T4 \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

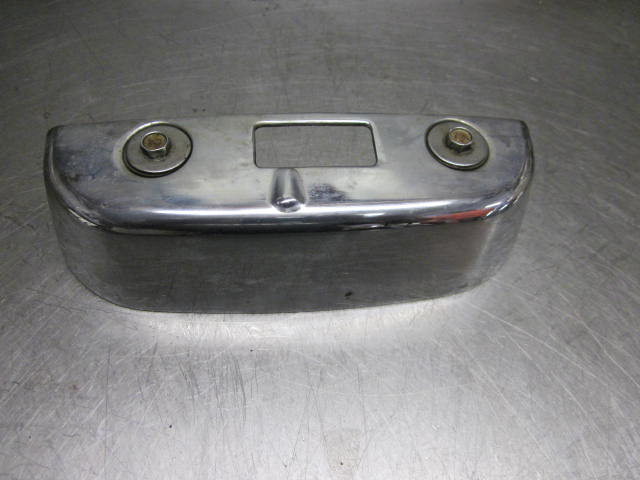

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18101 Camp Springs, Kentucky Gender:	Re: Mystery M6 x 1.0 x 1" bolt Reply #2 - 07/31/17 at 03:48:20 That looks a lot like the right side bolts on the chrome headcover caps....on the Savage.
Back to top	Someday I will be old......But not today! IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2633 Amongst the Twisty Roads	Re: Mystery M6 x 1.0 x 1" bolt Reply #3 - 07/31/17 at 05:12:03 The recess in the head makes me think it's not OEM Suzuki.
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

youzguyz Serious Thumper Offline Posts: 2538 San Antonio, Texas Gender:	Re: Mystery M6 x 1.0 x 1" bolt Reply #4 - 07/31/17 at 06:37:05 Dave wrote on 07/31/17 at 03:48:20: That looks a lot like the right side bolts on the chrome headcover caps....on the Savage. +1 That bolt does have the recess in head.
Back to top	2002 - Silver (Thumper) 2000 - Green (Mad Hamish) Most motorcycle problems are caused by the nut between the seat and the handlebars. Make sure yours isn't too tight or too loose. IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2641
Auburn, AL
Gender: male

Re: Mystery M6 x 1.0 x 1" bolt
Reply #5 - 07/31/17 at 06:50:20

It is definitely not OEM Suzuki. I looked all over the bike and no other bolt heads look like that and I do not recall ever having done work on the bike requiring removal of any bolts of that size. The PO never worked on the bike as I got it with just 400 miles on it.

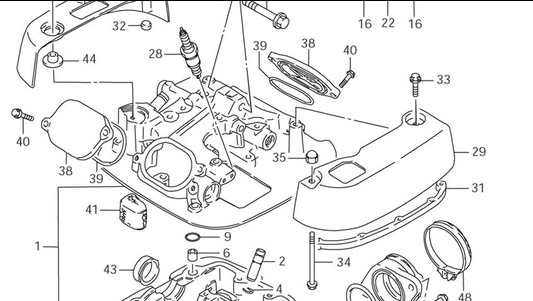

Dave, I'll check those head cover caps tonight. I looked online and #33 is what I assume you are referring to?

Odd thing is my "mystery" bolt is 1" / 25mm long and all of the 6x bolts listed on S40 the parts fiche are at least 50mm or longer. It looks eerily similar to a radiator bolt on the Ninja that I was messing with last year. I am going to back out the one that is in there and see if this one matches the size (head stamps are different) as it may have been a leftover from that project and could have just as easily bounced out of my Ninja trunk. Do you think NASA would worry with this or just chalk it up to something that isn't mission critical? Grin

Back to top


IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18101
Camp Springs, Kentucky
Gender: male

Re: Mystery M6 x 1.0 x 1" bolt
Reply #6 - 07/31/17 at 07:18:24

The bolt I was thinking about is from the other side - but the photo I found shows the bolt heads are not dished.

There is one chrome bolt on the cylinder head cover that does somewhat resemble the one you have....I will get a photo of it tonight. (Unfortunately the photos that were in the Tech Section were photobucket and they are gone).

Back to top


Someday I will be old......But not today!

IP Logged

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2641 Auburn, AL Gender:	Re: Mystery M6 x 1.0 x 1" bolt Reply #7 - 07/31/17 at 09:21:09 Thankfully I have a small lighted borescope so I can look around on top of the head (and other areas) on both bikes without having to take the tanks and farings off.
Back to top	2008 \| 152/52.5–Air Mix 3/4 \| Rotella T4 \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2775	Re: Mystery M6 x 1.0 x 1" bolt Reply #8 - 07/31/17 at 09:46:54 The fact that it seems to have fallen off screams HD to me. Are you SURE it's not SAE?
Back to top	IP Logged

SALB Serious Thumper Offline FSO Posts: 668 Whittier, AK Gender:	Re: Mystery M6 x 1.0 x 1" bolt Reply #9 - 07/31/17 at 10:21:11 I'm not sure about size, but the head looks a lot like the seat bolts. I take the seat off everytime I wash the bike.
Back to top	IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18101 Camp Springs, Kentucky Gender:	Re: Mystery M6 x 1.0 x 1" bolt Reply #10 - 07/31/17 at 10:29:28 SALB wrote on 07/31/17 at 10:21:11: I'm not sure about size, but the head looks a lot like the seat bolts. I take the seat off everytime I wash the bike. The seat bolts aren't 1" long.
Back to top	Someday I will be old......But not today! IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Mystery M6 x 1.0 x 1" bolt Reply #11 - 07/31/17 at 10:50:52 As soon as you get tired of trying to figure that out I'm gonna toss another bolt in your driveway.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Mystery M6 x 1.0 x 1" bolt Reply #12 - 07/31/17 at 10:56:45 I checked mine and it looks exactly like yours.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Mystery M6 x 1.0 x 1" bolt Reply #13 - 07/31/17 at 11:04:28 I didn't mention that it is the left side and is 20mm long. The right side are 25mm long and don't have the flange. Maybe they changed slightly from year to year.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2641
Auburn, AL
Gender: male

Re: Mystery M6 x 1.0 x 1" bolt
Reply #14 - 07/31/17 at 13:00:26

Thanks for the feedback gang. Here's where we are as of present:

- I checked the DYNA muffler bolts last night and they are all intact.
- I am positive it is an M6 x 1.0 metric, not SAE. I have a set of bolt and thread gauges.
- I checked my chrome head covers at lunch and they are intact with all required bolts. Mine on the right side have the really wide flange, wider than this bolt does. The heads on the left side were hard to see at a glance, but they are intact.
- I have completed the seat raise mod so the front clip of my seat doesn't use the stock bolts. I have an additional 1" stopper on each bolt and they are both maybe 2" long and both intact.
- The "side" seat bolts are shorter, and plus I don't have these on my side bolts any longer. I have my homemade wing bolt for quick seat removal.

So...the mystery continues. I'll get the borescope out after work and peek around in there and do the same on the Ninja.

My suspicion is that it was a bolt that I either lost in the S40 long ago and it finally fell out of whatever crevice it was in or it bounced out of the trunk of the Ninja. I was messing with the Ninja trunk yesterday morning and some junk I had tucked up in there and it could be a bolt that I threw in there for some reason that found it's way out.
