xaman Junior Member Offline SuzukiSavage.com Rocks! Posts: 97	RYCA build controls quick question 07/01/17 at 14:33:26 I have an odd question for those of you who have done a RYCA build -- is it possible to revert the mid controls to original forward controls? Or was there anything permanent about the installation of the mid controls? Thanks!
Back to top	IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 4997 Manteca , CA Gender:	Re: RYCA build controls quick question Reply #1 - 07/01/17 at 15:13:03 Kinda like a old mans diaper , Depends Ryca uses rear set controls not mids What Ryca are you building? Are you lowering the forks? Are you using longer shocks? Are you changing wheel sizes? As you see it all Depends
Back to top	The Topic Terminator IP Logged

xaman

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 97

Re: RYCA build controls quick question
Reply #2 - 07/01/17 at 15:21:10

Thanks for the reply

It's a Cs-2, their standard/scrambler kit. I don't know 100% if that's the same rear sets as the cafe CS-1, but I think so. 18" rear, 19" front. Forks lowered and longer shocks.

I'm not building it, it's already done. The RYCA cs-2 kit is installed and functioning fine. It's a sacrilegious question to some I know, but if I buy the used RYCA bike and as I fear the seat-peg distance is totally uncomfortable, is it easy enough to revert to forward pegs, but maintain the rest of the bike as a CS-2 standard (tank, subframe, seat, etc...).

I can't think of anything that would be irreversible with the controls, but then again, I've never seen the kit or built one. Thoughts? (Besides the obvious that most people think I'd be crazy to have forward controls on a "standard" bike) Grin

Back to top

IP Logged

xaman Junior Member Offline SuzukiSavage.com Rocks! Posts: 97	Re: RYCA build controls quick question Reply #3 - 07/01/17 at 15:27:35 Here's the link to the kit, it doesn't specify the location of the controls, but does show pics: http://rycamotors.com/RYCA-cs2-standard-&-scrambler-kit.html
Back to top	IP Logged

antmanbee Full Member Offline 4 Moto Guzzis and an S40 Posts: 101 NE Florida	Re: RYCA build controls quick question Reply #4 - 07/01/17 at 16:12:37 Please contact me by PM if you are interested in trading yours for a stock peg setup. antmanbee
Back to top	IP Logged

Ruttly

Serious Thumper

Offline

Thumpers Rule

Posts: 4997
Manteca , CA
Gender: male

Re: RYCA build controls quick question
Reply #5 - 07/01/17 at 19:03:10

I'm very familiar with the RYCA , putting stock controls back on might be a issue due to what gets cut off the frame in the area where stock controls are bolted and the cable as well. What I am saying is it can be done but most likely they just won't bolt on , may need to make spacers and weld brackets for cable back on. And will need stock bolts that go thru control brackets , frame & engine. I think I still have what I cut off mine. There are several members that have made their own mids instead of using the RYCA setup.
So it

Depends Grin

Back to top

The Topic Terminator

IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 4997 Manteca , CA Gender:	Re: RYCA build controls quick question Reply #6 - 07/01/17 at 19:10:19 And then there's the kick stand to deal with too ! Or not !
Back to top	The Topic Terminator IP Logged

xaman

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 97

Re: RYCA build controls quick question
Reply #7 - 07/01/17 at 19:23:50

Gotcha. That's what I was wondering, if there was anything cut off the front of the frame affecting the OEM forward controls. I have an extra full set of OEM stuff, so parts isn't a problem, unless as you said, things were cut. Well, I guess it's a roll the dice and see kind of thing. I'm deliberating whether it's worth it.

Thanks for the replies

Back to top

IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 4997 Manteca , CA Gender:	Re: RYCA build controls quick question Reply #8 - 07/01/17 at 20:47:29 Good Luck !
Back to top	The Topic Terminator IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17783
Camp Springs, Kentucky
Gender: male

Re: RYCA build controls quick question
Reply #9 - 07/03/17 at 03:25:26

xaman wrote on 07/01/17 at 19:23:50:

Gotcha. That's what I was wondering, if there was anything cut off the front of the frame affecting the OEM forward controls. I have an extra full set of OEM stuff, so parts isn't a problem, unless as you said, things were cut. Well, I guess it's a roll the dice and see kind of thing. I'm deliberating whether it's worth it.

Thanks for the replies

Most likely there was some cutting done. The front motor mount bolts also hold on the forward peg mounts. When the rear sets are used, the tubes the motor mount bolts go in are narrowed by cutting off the part that sticks out from the frame. If you wanted to put the forward pegs back on you would need to make spacers, and get a set of the original motor mount bolts.

Back to top

Someday I will be old......But not today!

IP Logged

xaman Junior Member Offline SuzukiSavage.com Rocks! Posts: 97	Re: RYCA build controls quick question Reply #10 - 07/03/17 at 06:47:30 Thanks Dave, that doesn't sound so bad...
Back to top	IP Logged

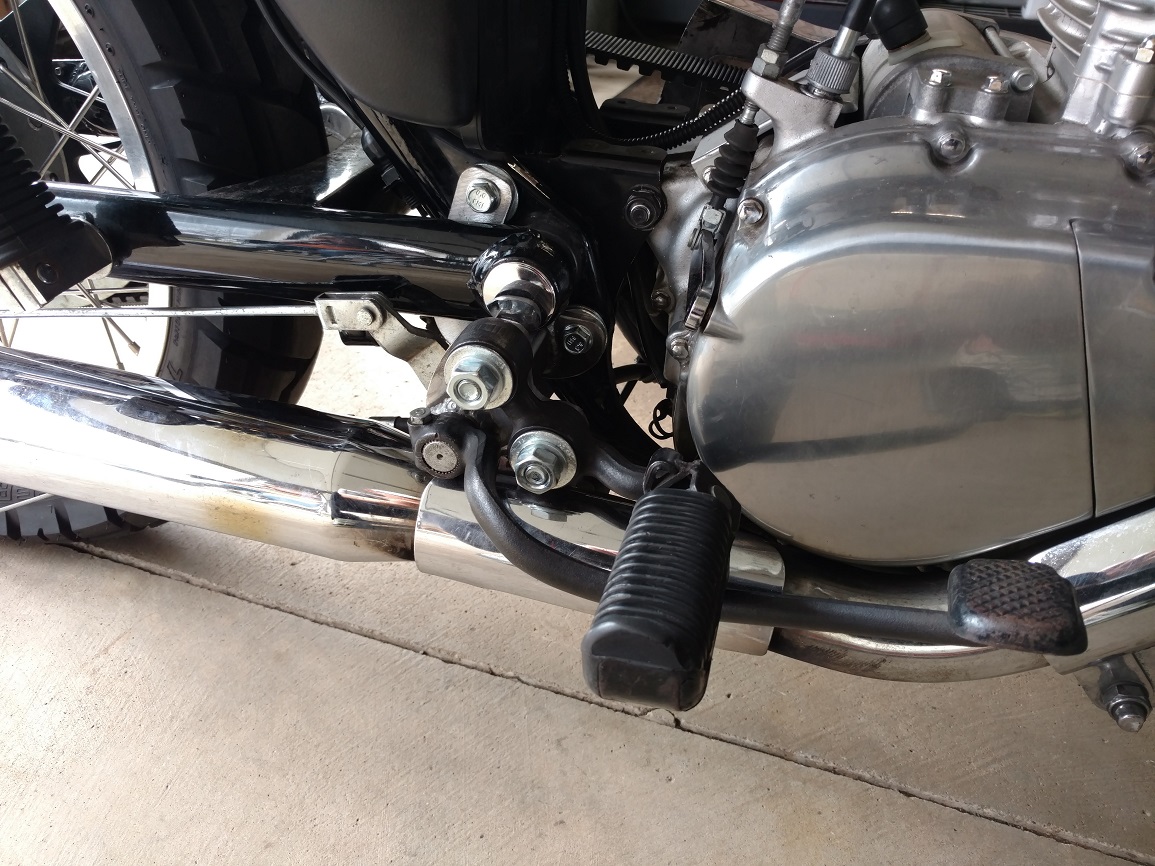

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2681 WTF is JOG?	Re: RYCA build controls quick question Reply #11 - 07/03/17 at 07:27:37 Or you could use the Ryca bracket and mount a set of mid-controls on them similar to what I did with my bike. Or you could probably fashion some sort plate that would allow you to position the rear sets in a similar fashion.
Back to top	IMG_20170326_155514279_002.jpg IP Logged

toebasko YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 10	Re: RYCA build controls quick question Reply #12 - 07/19/17 at 10:51:50 I just purchased a RYCA Scrambler conversion and I'm interested in doing this. Could it be as simple as attaching a bracket to the existing RYCA bracket to mount the existing rearsets forward more?
Back to top	IP Logged

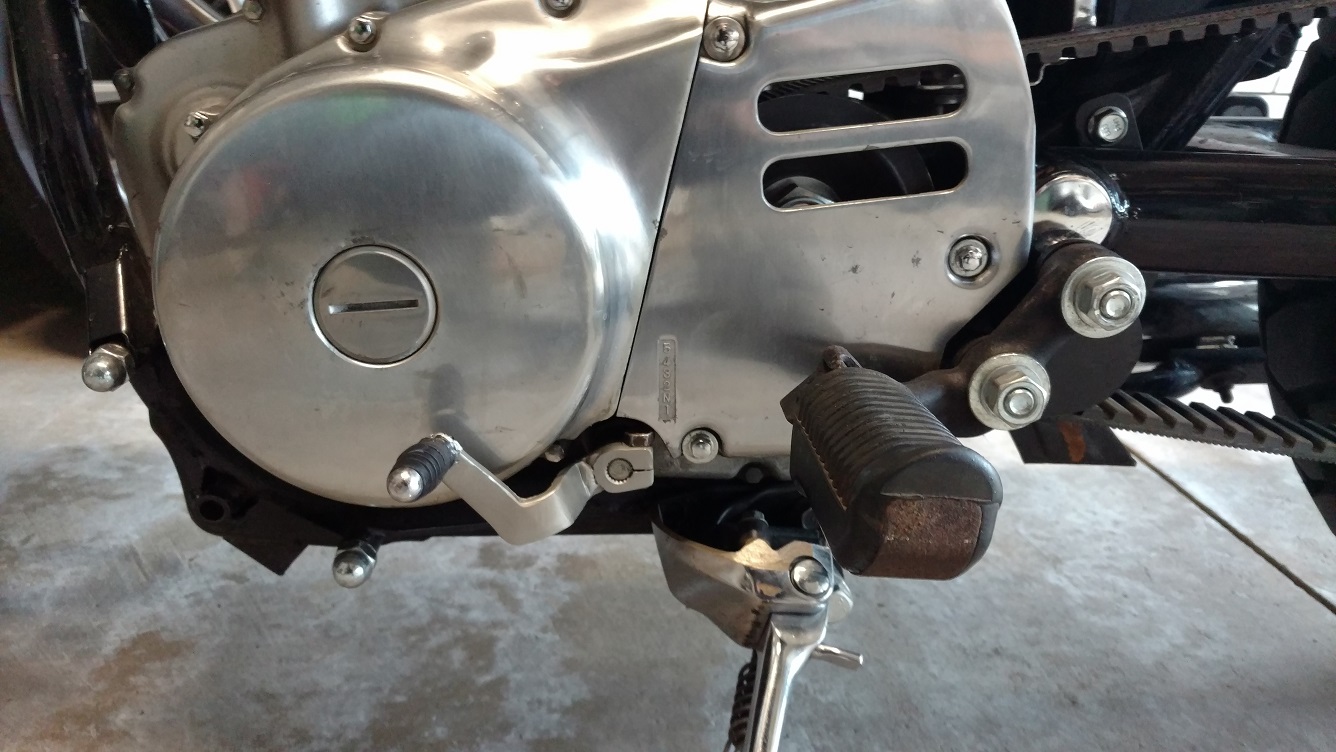

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2681 WTF is JOG?	Re: RYCA build controls quick question Reply #13 - 07/19/17 at 11:06:20 Pretty much. The only limiting factors are the linkages. I ended up using a shift lever with my set up but you should be able to use or modify the rearset linkages.
Back to top	IMG_20170414_072922614_001.jpg IP Logged

toebasko YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 10	Re: RYCA build controls quick question Reply #14 - 07/19/17 at 11:43:51 Perfect, thanks for the insight. I just purchased some CB700 footpeg brackets that I will be repurposing to relocate the rearsets. I'll report back with the results when I've completed everything.
Back to top	IP Logged
