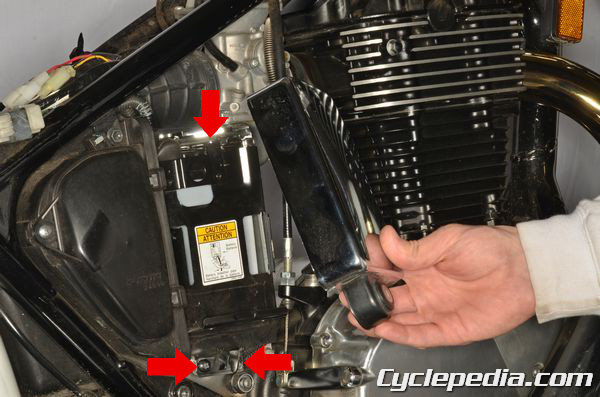

You have to take off the cover on the right side with the key, and then remove the two screws at the bottom and one at the top that are holding the black tool bag holder thingy onto the side of the battery box (pay attention and remember how the lock catch goes back on), then the battery is accessible.

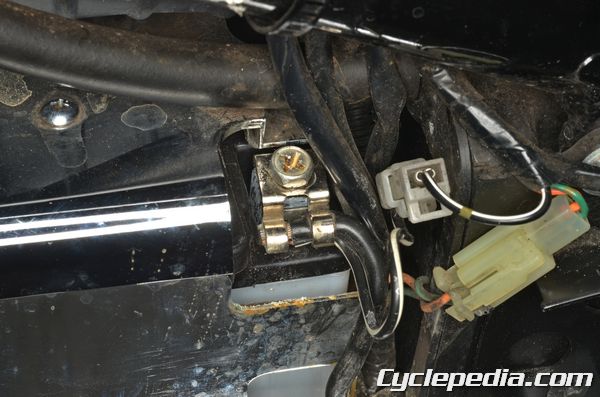

When removing the terminals, take the negative off first, which is in the LEFT side. You should be able to get a long phillips screwdriver down around the seat and frame area to unscrew the terminal bolt from the top if yours is not a bolt only (it should have phillips screw slots). Repeat the same on the other side to take off the positive (red) wire and them you can slide the battery out.
Make sense?
|
