Oil leak by kick stand. (Read 129 times)
ditz
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 40

Oil leak by kick stand.
03/12/17 at 11:29:11

I am sure this is a common problem but I did a search and did not find anything. I have yet to get down a try to figure out the problem as it is still cold out in the shop. This is a new used bike and I have yet to even ride it. Already changed the petcock as recommended and would like to get this oil leak fixed if it is not a major problem.
Back to top


  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Offline

Where there's a
will, I want to be
in it.

Posts: 28886
L.A. California
Gender: male
Re: Oil leak by kick stand.
Reply #1 - 03/12/17 at 11:48:24

1st, oil travels to the lowest point, then drips.
clean the engine, then you find where it's leaking 1st.
also the foot peg bolts go thru the case, sometimes the case leaks into the thru bolt hole.  only way to seal it is to tighten the bolts.  spec is 50 ftlbs.
Back to top


WWW   IP Logged
Ruttly
Serious Thumper
*****
Offline

Thumpers Rule

Posts: 5108
Manteca , CA
Gender: male
Re: Oil leak by kick stand.
Reply #2 - 03/12/17 at 11:52:01

Have you recently oiled your drive belt  ?  Grin
Back to top



The Topic Terminator
  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: Oil leak by kick stand.
Reply #3 - 03/12/17 at 12:54:05

You might want to remove the cover over the drive pulley and clean that area as well ,two other spots to check would be were the wires come from the forward case (alternator and pickup coil) and the seal around the foot shifter shaft.
Back to top



my old work mates called me MacGyver
  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male
Re: Oil leak by kick stand.
Reply #4 - 03/12/17 at 13:42:51

I vote for you to try tightening the footpeg through bolts first.....wouldn't hurt anything to know those are tight anyhow.

If they are loose and you get some tightening done......it will take a few days for the drip to stop, as there will be some oil around the bolts that will drip out even if the tightening stops the ooze.
Back to top



Someday I will be old......But not today!

  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Oil leak by kick stand.
Reply #5 - 03/12/17 at 14:28:59

If tightening the peg bolts, which requires a wrench on each end, doesn't get it, I'd be surprised.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
ditz
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 40

Re: Oil leak by kick stand.
Reply #6 - 03/13/17 at 08:54:58

Thanks fellas.....I haven't seen any leaks up in the normal visual range. Everything up high looks clean. I have yet to even ride this fine machine so no lubing of anything yet. I have been watching WalMart for the 10w50 oil that has been recommended. I intend to change the oil/filter before riding as well as the rear bald tire. I will put the torque wrench on the bolts recommended above and start there.

Thanks again
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male
Re: Oil leak by kick stand.
Reply #7 - 03/13/17 at 09:10:40

ditz wrote on 03/13/17 at 08:54:58:
I have been watching WalMart for the 10w50 oil that has been recommended.

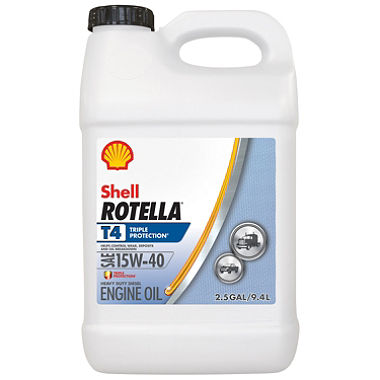

The oil that I recommend is the Rotella T-4.....and it is a 15W-40 oil.  And it likely is in stock every day....no watching required.



Back to top



Someday I will be old......But not today!

  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2633
Amongst the Twisty Roads
Re: Oil leak by kick stand.
Reply #8 - 03/13/17 at 10:09:04

If aforementioned bolts are to spec (don't just tighten them, they get torqued to 51-64 ft-lbs) then I would examine the counter shaft as there is a seal in that location. You'll have to remove the pulley to get a good view.
Back to top



A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
ditz
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 40

Re: Oil leak by kick stand.
Reply #9 - 03/14/17 at 12:51:06

Yea Dave, they do have the 15/40. I put the notes in my phone so I would get the correct stuff. I must have gotten mixed up some where. Thanks for the heads up.
Back to top


  IP Logged
ditz
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 40

Re: Oil leak by kick stand.
Reply #10 - 03/27/17 at 10:03:32

just as a follow up...... I first decided to tighten the two bolts thru the foot peg bracket as suggested. The first thing I found was that someone had put some sort of hard sealer around the lowest bolt head on the left side and I had to use a small chisel to break it off before I could put a socket on the bolt. Neither of the two bolts were any where near 50ft lb....both were less than 20#. I don't know for sure yet if the leak is fixed but I would say that there is a good chance that it is.

Thanks again fellas
