I thought some of you fenderless fans might appreciate this.

Once the front fender and dust covers are removed this little doo dad bolts right on. All dimensions are there, the only thing I suggest is taking an accurate measurement of your own bike to get it just right so you're not putting any unnecessary stress on your tubes. This clamps down on the landing where the dust cover would normally sit.

I did this all with a drill press, drill bits, thread tap, countersink, 2-1/4 hole saw, coping saw, file, and a dremel.

You can pick up a 12" long chunk of 4" X 1/2" flat bar from a local fabrication shop or a metal depot. I went with aluminum for weight factor and tapped the back half for a cleaner look with a countersunk fastener but you could also just bolt thru and put a nut on the back if you want.

I'm giving this drawing to the savage community in hopes that you guys can build, use, improve and contribute on this design.

Cheers

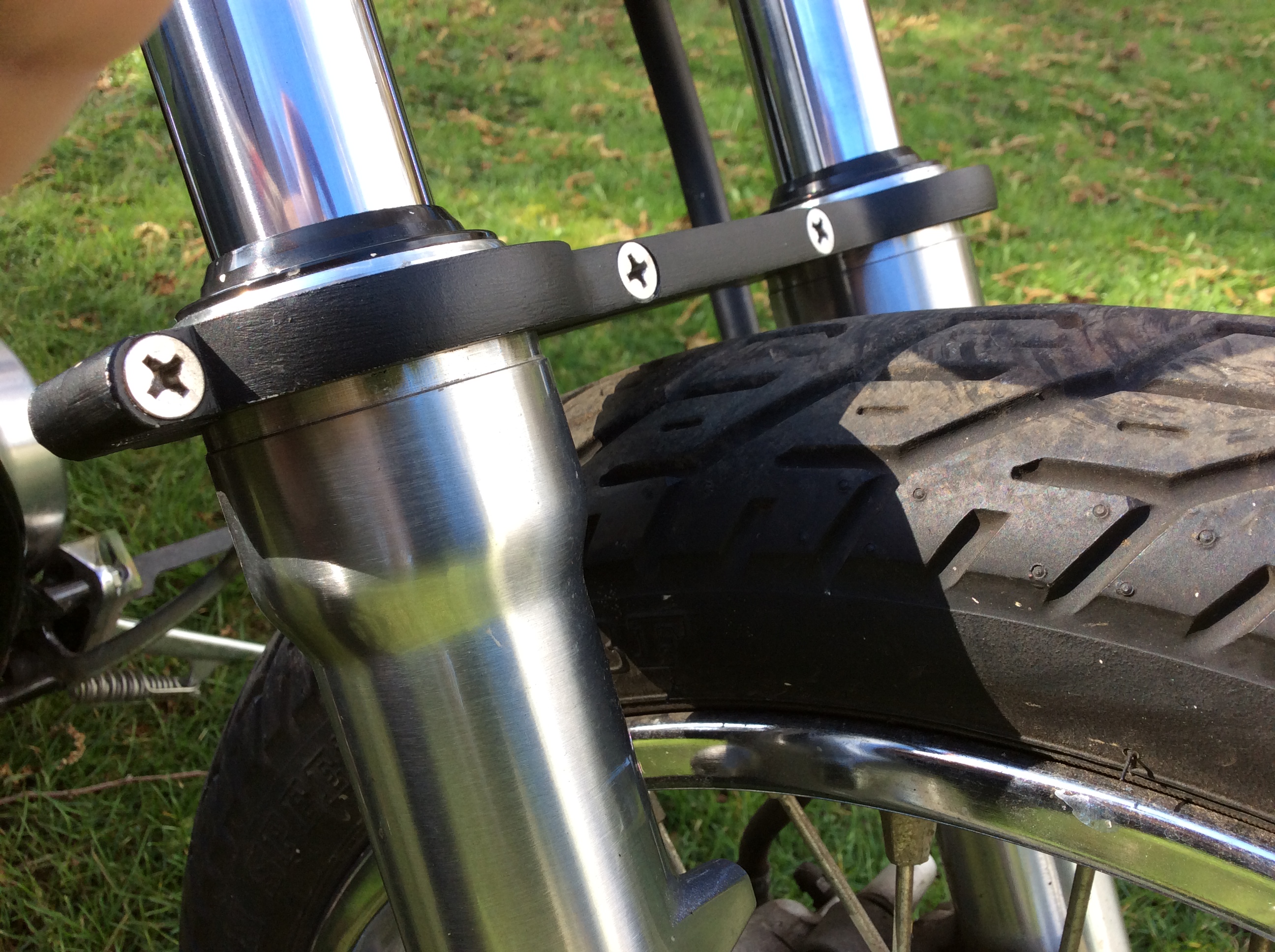

Finished product

While I'm not down with the fenderless approach, I always appreciate good engineering and straightforward problem solving. That looks like a good idea and, not being an engineer, I couldn't say it's stiff enough to be as good as the other available options, but I can't say it isn't.. Only way I'd know is a test ride.. I'd lean toward
It'll do the job..

JOG- as far as lateral and torsional flex is concerned, it nails the job to the wall. 1/2" looks to be the industry standard for the thickness of the collars on these devices and with a bike so light I'm not worried in the least. If one was concerned about about individual compression of the tubes the thickness of the flat bar can be increased to 5/8" or 3/4" to counteract this action further.

Batman- it ain't custom if you can pick it out of a magazine or buy it off the interweb. I don't feel the need to exploit the LS owners, there are braces that can be bought and shipped already. I'd much rather put out information and have a collaboration of ideas so readers can reference it and make their own.

What about us guys that like our front fenders? I guess this wouldn't work.

Nice work! Congrats!
