Crankcase Gasket
02/11/17 at 10:43:08

Hey guys, 2 questions about sealing up the crankcase

1) Im getting contradictory info about the liquid gasket to use for sealing the case halves together. Clymers says threebond 1216 and the Suzuki Service manual says Suzuki bond 1207b. I'm inclined to go with the service manual over Clymers. What do yall use?

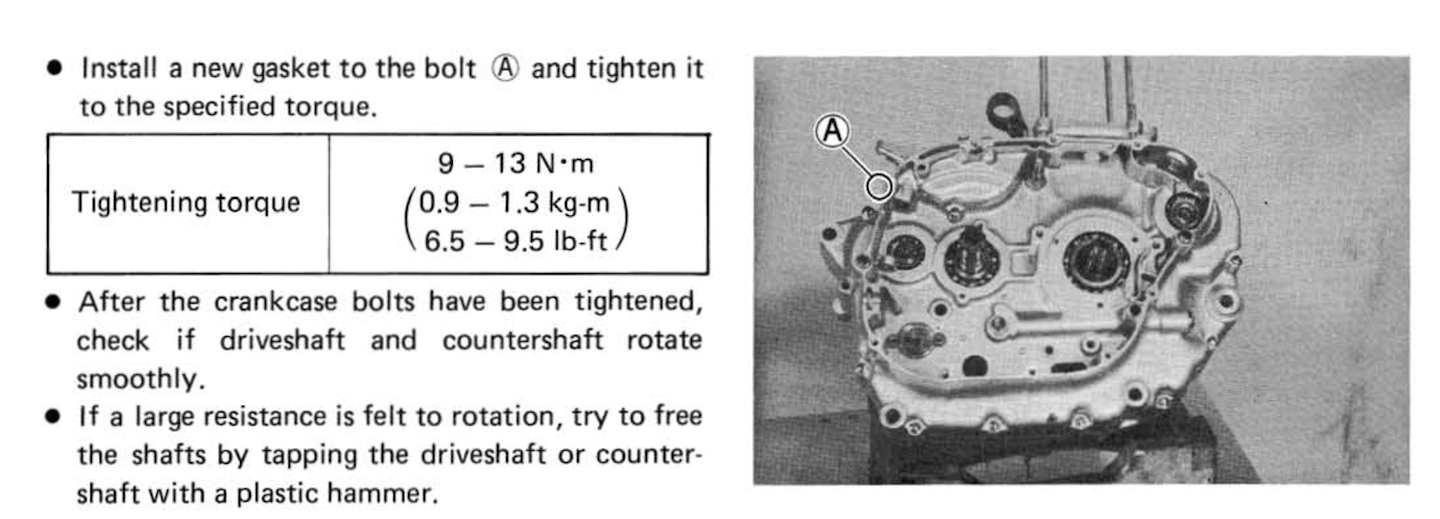

2) The service manual mentions putting a new gasket under this crankcase bolt (in the pic I attached) and clymers (pg135) mentions putting a new sealing washer under the rear right hand bolt. They point to different things and none of the OEM part listers show anything of the sort. Anyone got a part number on this mystery washer/gasket

Thanks!


IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28888 L.A. California Gender:	Re: Crankcase Gasket Reply #1 - 02/11/17 at 10:52:53 GASKET (5.8X13X1.2) 09168-06023 or 24 Get a handful of them, really useful, I use the old ones like star washers on those screws that keep loosening. I used Hondabond cause I found it first. Been together over a year, no leaks.
Back to top	Versey's Place Tech Section Index IP Logged

njohnso8 YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11 New Orleans, LA	Re: Crankcase Gasket Reply #2 - 02/11/17 at 12:04:13 Thanks Verslagen! A little bit of google searching is leading me to believe Hondabond is just Threebond 1216, I already have a tube of Suzukibond 1216 so maybe I'll just use that. Do you know if these are in fact all the same?
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28888 L.A. California Gender:	Re: Crankcase Gasket Reply #3 - 02/11/17 at 12:28:57 It does the job is all I care.
Back to top	Versey's Place Tech Section Index IP Logged
