What do these tubes do on the back of the carb?
01/20/17 at 01:18:47
Hey guys,

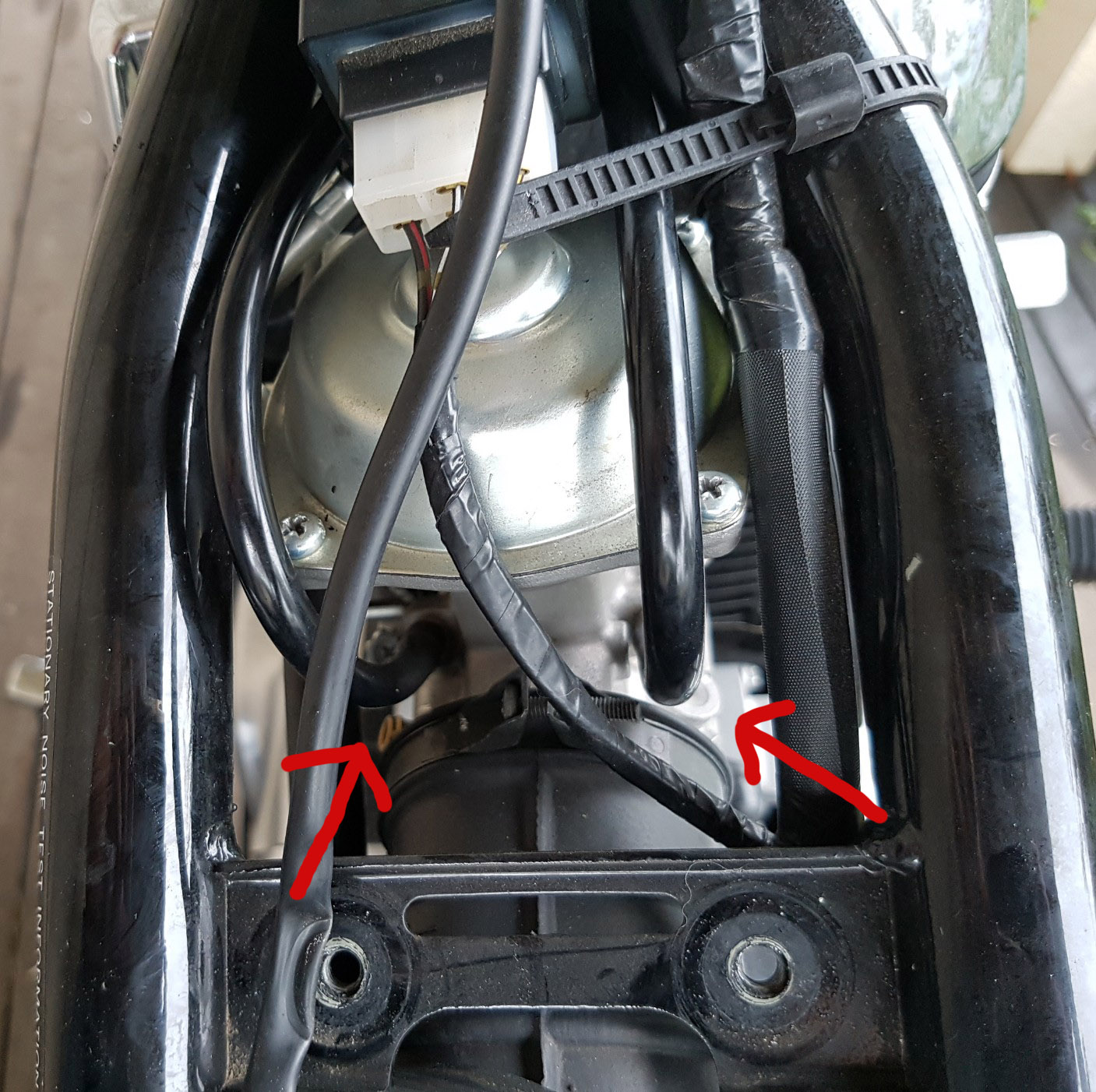

What do these two tubes do on the back of the carb (bottom of the picture). Are they breather tubes?
Mine are poked up into a little cavity in the frame. I am wondering if that restricts them in doing their job.
Thanks for your patience with this newbie question
Back to top
S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 18101
Camp Springs, Kentucky
Gender:
Re: What do these tubes do on the back of the carb
Reply #1 -
01/20/17 at 03:15:22
They are vents for the float bowl chamber.
Back to top
Someday I will be old......But not today!
IP Logged
IslandRoad
Serious Thumper
Offline
It doesn't vibrate,
it purrs!
Posts: 1147
The Kiewa Valley, Australia
Gender:
Re: What do these tubes do on the back of the carb
Reply #2 -
01/20/17 at 03:18:05
Thanks.
Dave wrote
on 01/20/17 at 03:15:22:
They are vents for the float bowl chamber.
Back to top
S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 18101
Camp Springs, Kentucky
Gender:
Re: What do these tubes do on the back of the carb
Reply #3 -
01/20/17 at 03:39:18
I have often wondered why they are arranged in that position. Most pre-EPA carbs would have the vent tubes routed downward, and if the bike tipped over the fuel would flow out of the tubes under the engine. If the Savage tips over the fuel flows out the tubes and into the frame under the fuel tank, and when you tip it back upright the fuel flows out of the frame and onto the top of the engine case.
I suppose this is just another reason that you should not let your bike fall over!
Back to top
Someday I will be old......But not today!
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: What do these tubes do on the back of the carb
Reply #4 -
01/20/17 at 15:50:56
That's why I cut mine back to about 3'' I didn't want fuel dripping on my hot motor.
Back to top
my old work mates called me MacGyver
IP Logged
IslandRoad
Serious Thumper
Offline
It doesn't vibrate,
it purrs!
Posts: 1147
The Kiewa Valley, Australia
Gender:
Re: What do these tubes do on the back of the carb
Reply #5 -
01/22/17 at 03:07:13
I'll add that to my "reasons not to crash" list!
Dave wrote
on 01/20/17 at 03:39:18:
I have often wondered why they are arranged in that position. Most pre-EPA carbs would have the vent tubes routed downward, and if the bike tipped over the fuel would flow out of the tubes under the engine. If the Savage tips over the fuel flows out the tubes and into the frame under the fuel tank, and when you tip it back upright the fuel flows out of the frame and onto the top of the engine case.
I suppose this is just another reason that you should not let your bike fall over!
Back to top
S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.
IP Logged
