Bash plate? (Read 200 times)
savageguy1
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 90

Bash plate?
01/07/17 at 16:08:13

Hello im am doing home tracker build and I noticed that the engine I right in the way of any rock and being aluminum , it might be easy to punch a whole straight through it, so I was wondering I any one here has ever made a bash plate for their savage?
Back to top


  IP Logged
pg
Serious Thumper
*****
Offline



Posts: 5273
In Transit
Re: Bash plate?
Reply #1 - 01/07/17 at 16:47:10

Surely their is someone here on the forum that could fab something....

Best regards,
Back to top



I don't make the rules, I just know what they are.....




  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Bash plate?
Reply #2 - 01/07/17 at 17:03:42

Aluminum plate. Couple of clamps. Look at where you want it, close your eyes, envision the solution. Build it.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Offline

Where there's a
will, I want to be
in it.

Posts: 28903
L.A. California
Gender: male
Re: Bash plate?
Reply #3 - 01/07/17 at 17:17:04

take note that the oil drain is down there and you'll need access.
I'd make a plate that swung on the front bolt and fixed in the rear some how.
Back to top


WWW   IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18137
Camp Springs, Kentucky
Gender: male
Re: Bash plate?
Reply #4 - 01/08/17 at 05:45:07

A "tracker" is not really a dual sport or adventure bike, and normally they stay on the street and don't need a bash plate.  Trackers are modeled after the bikes that race on circle dirt tracks......and they race on oval tracks that are graded smooth at the beginning of the race - but it can get some ruts or holes by the end of the race.

Are you planning on doing some serious off roading in the rocks?

You can make a skid/bash plate if you want the look, or believe you are going to be riding in an area with heavy rocks.
Back to top



Someday I will be old......But not today!

  IP Logged
groupus
Senior Member
****
Offline

Maintenance is as
much art as it is
science.

Posts: 296
PA
Gender: male
Re: Bash plate?
Reply #5 - 01/08/17 at 12:53:16

I did this for fun with an old license plate and some "reusable" zip ties. I will have to undo some of them for the next oil change or cut out a little notch. I know it's only thin aluminum, but could protect the frame/engine from bumps and scrapes.

Back to top



Faster, faster, faster, until the thrill of speed overcomes the fear of death. ~Hunter Thompson

'03 Savage bobber. Rebuilt too many times.
  IP Logged
thumperclone
Serious Thumper
Alliance Member
*****
Offline

PGR rider  riding
with respect

Posts: 6226
Grand Junction Colorado
Gender: male
Re: Bash plate?
Reply #6 - 01/08/17 at 13:11:10

mud flap would do the same thing
Back to top



standing for those who stood for US
















  IP Logged
Kris01
Serious Thumper
*****
Offline

Eat, sleep, RIDE!

Posts: 3767
Tennessee
Gender: male
Re: Bash plate?
Reply #7 - 01/08/17 at 13:53:56

I love the angle of that pic!
Back to top



There's no problem that a full tank of gas and a sunny day can't fix!

2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor
  IP Logged
xaman
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 97

Re: Bash plate?
Reply #8 - 01/08/17 at 14:29:54

Sometimes you can modify an existing one, which might be easier than starting from scratch.  I don't have any pics handy (could snap some later if desired) but I had an extra bash plate for a triumph Scrambler laying around that was a reasonably close fit.  Works well.  It's not for sliding over boulders, but works well for thrown gravel and lighter impacts.  It has to be removed for oil changes but that's only 4 bolts.

My bike is a street mostly scrambler, with frequent gravel roads and mild FS roads, but I occassionally end up in " rougher than intended" situations, so I think it makes sense to put some mild protection there.
Back to top


  IP Logged
savageguy1
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 90

Re: Bash plate?
Reply #9 - 01/08/17 at 16:02:06

Thanks, I can fab it myself I was just looking for ideas, and I know what a tracker, is but I would still like to have the plate there for extra protection. and I would love to some pics of the scrambler bash plate.
Back to top


  IP Logged
xaman
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 97

Re: Bash plate?
Reply #10 - 01/08/17 at 17:57:46

Just welded a flat plate up front, then used the triumph frame rail tabs (they just hook over the frame and snug down with bolts.   The savage frame is near or in the rear, so I had to slot at the bash plate to fit. I'm not real happy with the fit and then on the rear after all, so I plan to weld the tabs to the frame instead at the next oil change.





Back to top


  IP Logged
Kenny G
Serious Thumper
*****
Offline

SuzukiSavage.com The
Singles Club...LOL

Posts: 1754
Robson Ranch, Denton, Texas
Gender: male
Re: Bash plate?
Reply #11 - 01/08/17 at 18:16:16

Xaman,

I think your skid plate is pretty cool. It just goes to show what a guy can do that has an idea and the balls to stick with it.

I have wanted to try to make a skid plate and have someone with a louver press cut louvers in it for air circulation, but I haven't done it.

Kenny G
Back to top


  IP Logged
Kris01
Serious Thumper
*****
Offline

Eat, sleep, RIDE!

Posts: 3767
Tennessee
Gender: male
Re: Bash plate?
Reply #12 - 01/08/17 at 19:48:35

Would this affect cooling at all?
Back to top



There's no problem that a full tank of gas and a sunny day can't fix!

2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor
  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18137
Camp Springs, Kentucky
Gender: male
Re: Bash plate?
Reply #13 - 01/09/17 at 04:01:51

savageguy1 wrote on 01/08/17 at 16:02:06:
and I know what a tracker, is but I would still like to have the plate there for extra protection.

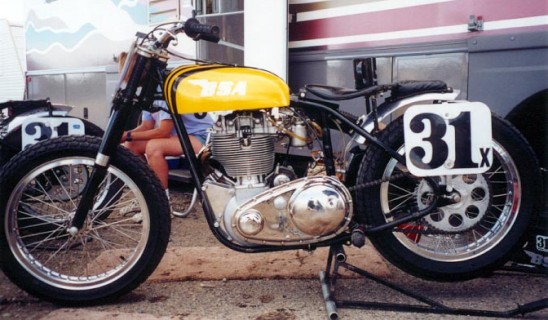

No offense intended......I am from an era when flat track motorcycles were stripped of whatever you didn't need so you could make the bike as light as possible, and whatever had to stay was drilled for lightness and safety wired to keep it together.




Back to top
« Last Edit: 01/09/17 at 05:09:15 by Dave »


Someday I will be old......But not today!

  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: Bash plate?
Reply #14 - 01/12/17 at 20:28:31

I like Axman's design ,but I would  go a step farther by drilling a pair of holes front and back and sawing between the to make a slot in the bottom of the plate centered just below the oil drain plug,this would give you room for a wrench to remove the plug. IF you made a cut from the center of the slot ,opposite the plug and bent the resulting triangles upward and welded a small piece of angle iron to them ,the plug would come out and the oil behind would hit the inverted v and be deflected downward into your oil drain pan,saving removal at every oil change.
Back to top



my old work mates called me MacGyver
  IP Logged
