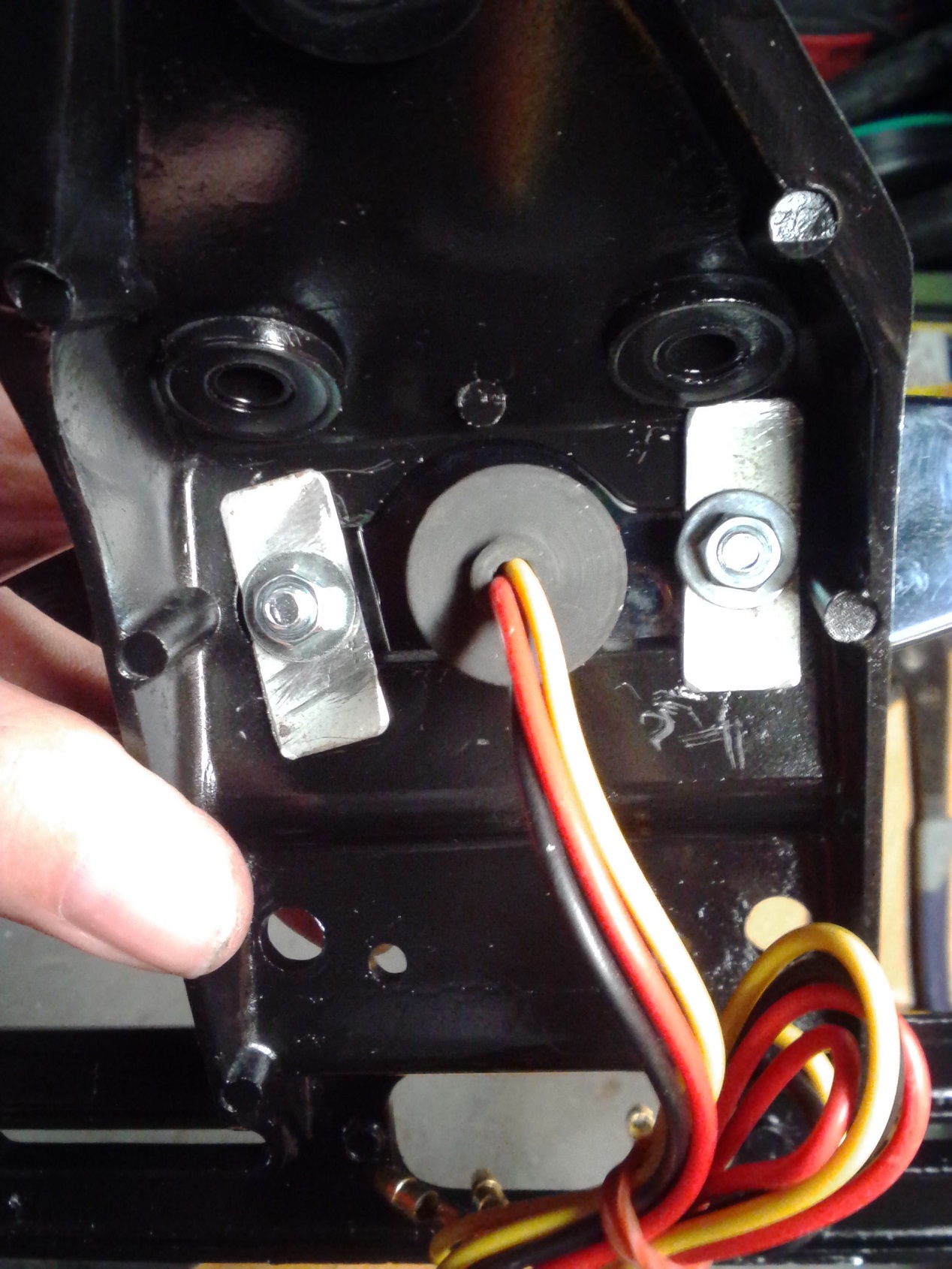

backside details...

Thank you

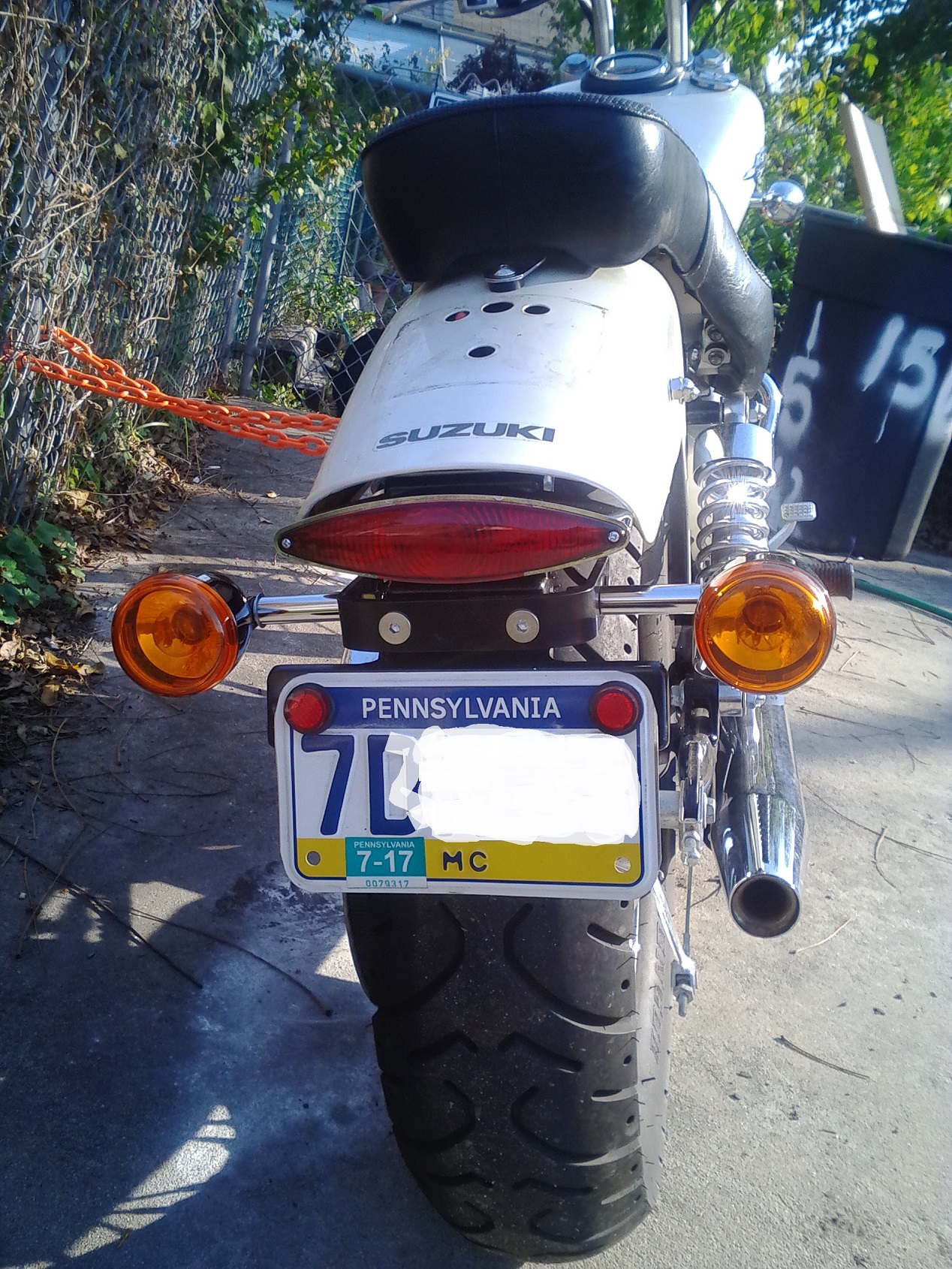

When I got the bike the turn signals were trashed. I rigged something up to get it past inspection but it was a clugey job at best. What you see in the pic is the 2nd rendition. I used some 1" by 1/4" aluminum stock that I bent with my bench vice and then drilled for the mounting bracket and then for the stalks and the wires.

Also I measured the position for the stalk holes so the lenses of the turn signals and the brake light would be on the same vertical plane.

The signal lights are Chris Products
http://www.jpcycles.com/product/306-812
Very solidly made and gorgeous finish. When I get around to it I will order matching lights for the front too.

Thanks Kenny. It's honestly pretty toungue and cheek for now. Don't have much for tools or a garage to work in so I do what I can with what I've got. Time limits me too. I'm real busy so this little project took me almost a week to get done simple as it is. That aluminum bend was tough without a proper bending brake - took 3 attempts to get it right

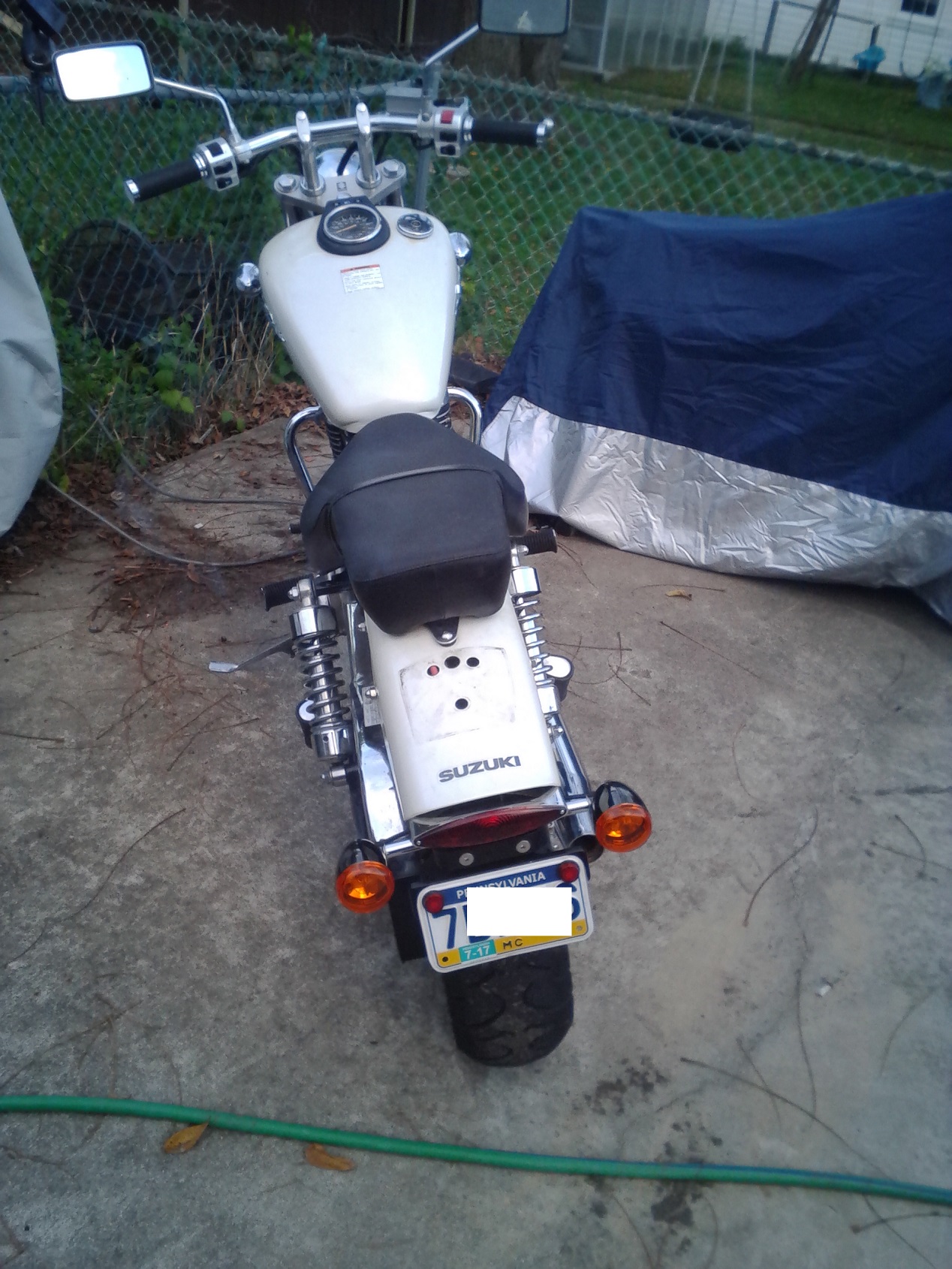

Another angle..

Forgot to mention it - there's a spacer between the aluminum signal bar and the OEM bracket. The two bolts through the bar go through some 3/4" hard rubber equipment feet like you find on an old toaster oven or similar appliance. That helped with getting the lenses aligned as well as providing a bit of vibration reduction. Those rubber feet will likely crush before the bar bends in the case of the bike falling over - I hope...
