Re: Drag bars and grips
Reply #15 - 07/18/16 at 22:46:07

Zip you can't grow smaller  bars but you can cut down longer ones,get 30"s and if you think there to wide bob 'em.
Back to top



my old work mates called me MacGyver
  IP Logged
zipidachimp
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1417
surrey, b.c.
Gender: male
Re: Drag bars and grips
Reply #16 - 07/19/16 at 03:59:15

I'm thinking with 'z' bars I can craft a sheet metal dashboard with tach, speedo and lights, bolt it to the 'z' uprights, put the key in the tank cavity. Cool, no? Cool
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Drag bars and grips
Reply #17 - 07/19/16 at 11:52:04

It sounds good. Be aware of the hazard it poses.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
zipidachimp
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1417
surrey, b.c.
Gender: male
Re: Drag bars and grips
Reply #18 - 07/19/16 at 12:54:22

JOG: forgot about cable. GPS maybe, or maybe not so cool Embarrassed
Back to top


  IP Logged
norm92de
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1180
El Paso TX
Gender: male
Re: Drag bars and grips
Reply #19 - 07/20/16 at 12:19:45

KennyG,
Did you have any tank clearance issues or control cable problems when you put the 2" risers on?

I'm thinking along those lines.

Thanks.
Back to top



2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic.
  IP Logged
Kenny G
Serious Thumper
*****
Offline

SuzukiSavage.com The
Singles Club...LOL

Posts: 1754
Robson Ranch, Denton, Texas
Gender: male
Re: Drag bars and grips
Reply #20 - 07/20/16 at 14:05:49

Norm,

You cannot go under 2"with the risers.

I would try to stay about 2 1/8" just to be safe.

The cables and brake line worked out without a problem.

I did leave the key in the gas cap and bent it over when I moved the bars.

I cut off the existing factory risers and it would have been easy enough to cut then at 2 1/8".

Kenny
Back to top


  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Offline

Where there's a
will, I want to be
in it.

Posts: 28887
L.A. California
Gender: male
Re: Drag bars and grips
Reply #21 - 07/20/16 at 14:09:45

Be aware that the throttle cable comes out the bottom or the front depending on year.
So you may need more room if yours comes out the bottom.
Back to top


WWW   IP Logged
Tocsik
Serious Thumper
*****
Offline

the singularity

Posts: 1163
Denver, CO
Gender: male
Re: Drag bars and grips
Reply #22 - 07/20/16 at 14:15:14

Kenny G wrote on 07/20/16 at 14:05:49:
...

I cut off the existing factory risers and it would have been easy enough to cut then at 2 1/8".

Kenny



How did you cut down the risers?  And did you need to buy some new hardware (shorter bolts)?
Back to top



'08|Raptor|Dyna|Stock jets & no other carb changes @ 5280' alt|'slavy CCT|Kawa front pulley|130/90 rear tire|7" LED headlight|3" straight risers|FIAMM El Grande horns|Mutazu hard bags
  IP Logged
Kenny G
Serious Thumper
*****
Offline

SuzukiSavage.com The
Singles Club...LOL

Posts: 1754
Robson Ranch, Denton, Texas
Gender: male
Re: Drag bars and grips
Reply #23 - 07/20/16 at 17:10:12

Tocsik,

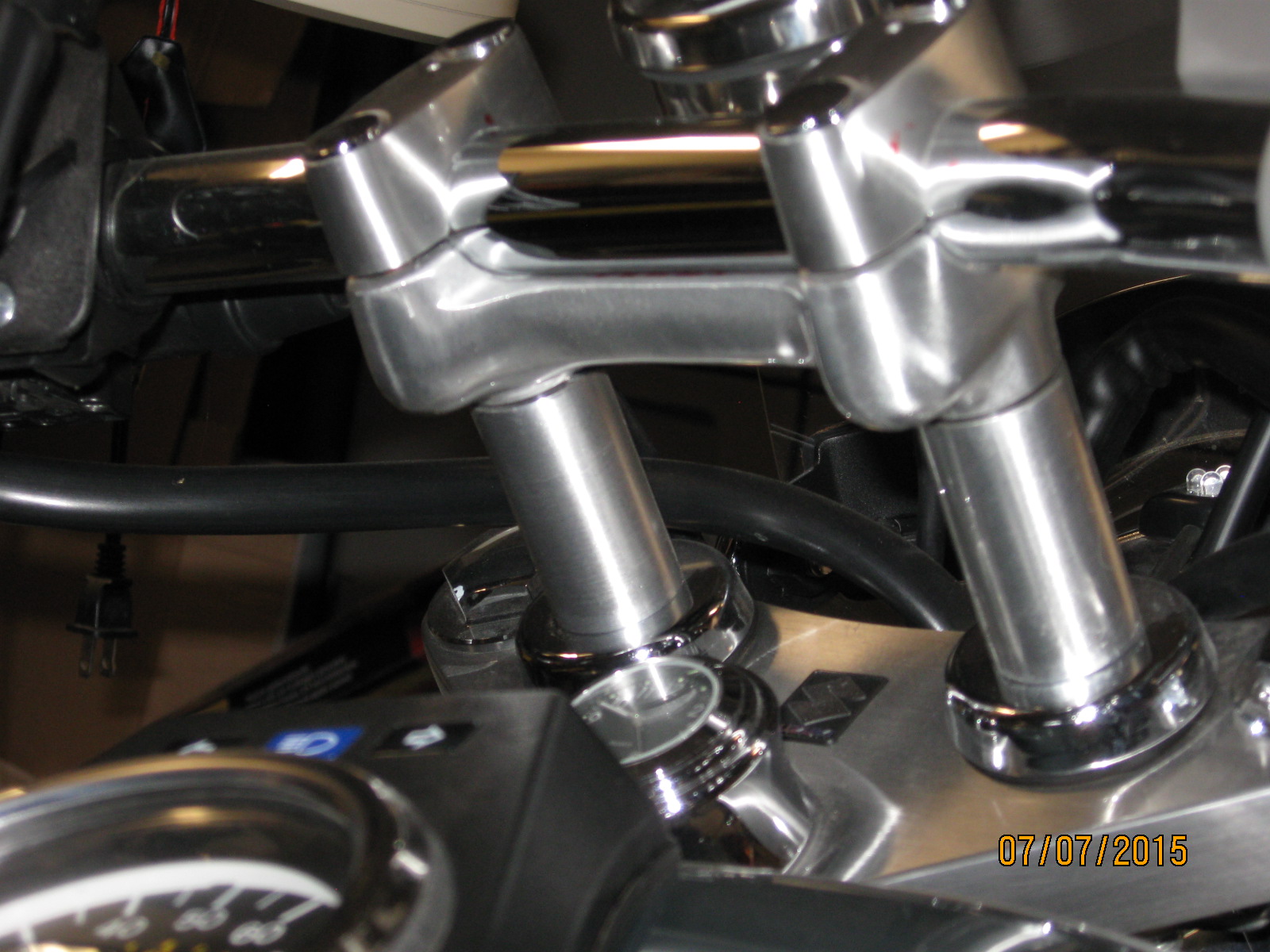

As Verslagen pointed out some model years will require taller risers. My S40 is a 2013 and 2" is just tall enough.

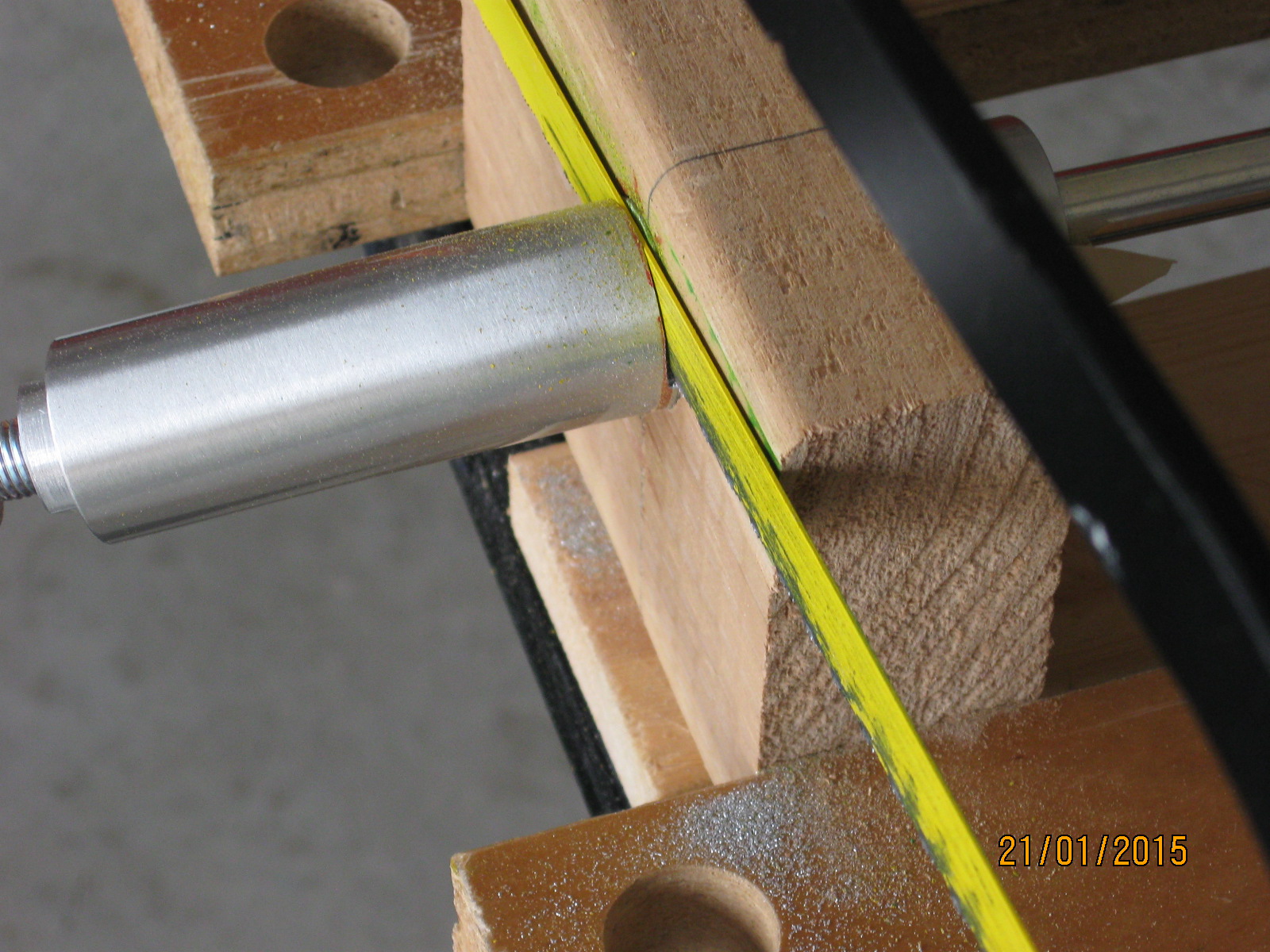

I cut my risers off with a hacksaw, which is very hard way to get precision workmanship. I made a clamp out of a piece of 2x4 and bored a hole in it to match the diameter of the riser and then cut a saw kerf across the edge of the 2x4 so I could clamp it. I then bored and tapped the riser to match the existing metric fastener.

If this is your first metal project, and you don't have a n Atlas Lathe or a Bridgeport you might want to consider buying risers.

I did make risers from socket wrenches and didn't care for them.

If you have a drill press and decide to cut your risers down I can walk you through the process.

Kenny G
