Pulley fondling
06/24/16 at 13:40:37

Decided to do the Kawi 454 front pulley and step up the gearing a bit. There were some truly nasty ones on Ebay. New one on Bandit with the AMA discount was only $90, so I went for it.
Kawi pulley weighed in at 6+ ounces more than the stock Suzi-Q. Whittled down both sides to match the dimensions (thickness and offset) of the stock. Couldn't control myself, and drilled a bunch of holes as well. Still a few ounces more than stock, but much closer  Wink
FWIW, I cut it on the lathe with a carbide insert tool. Pretty easy, although I'd guess the inner surface of the spline was hardened because it sounded and cut nastier in that area.
-Armen
Back to top



In theory, theory and reality are the same. In reality, they aren't...
  IP Logged
Armen
Serious Thumper
*****
Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1452

Re: Pulley fondling
Reply #1 - 06/24/16 at 18:13:35

Dummied it all up tonight. Thanks to all the folks who figured out this could work  Smiley
The extra 2 teeth on the pulley make the belt a REAL tight fit. Couldn't jump it over the edge of the pulley, had to mount the belt to the front pulley and slide it on.

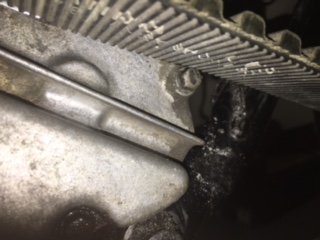

I swapped out the two 8mm head bolts to button heads. But besides those, the bolt at the bottom of the pulley drags on the belt. I'm using the 2" longer RYCA shocks. Prob not an issue with the stock shock (swingarm angle).
I'll countersink the hole and use a flat head allen for that spot.
Moving along...
Back to top



In theory, theory and reality are the same. In reality, they aren't...
  IP Logged
Armen
Serious Thumper
*****
Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1452

Re: Pulley fondling
Reply #2 - 06/25/16 at 05:22:20

I'll probably slot the leading edge of the axle slot in the swingarm to make it easier to put the belt on.
No biggie, just more stuff...
Back to top



In theory, theory and reality are the same. In reality, they aren't...
  IP Logged
old.indian
Serious Thumper
*****
Offline

Fighting Foreign
Terrorism since 1492

Posts: 975
Central New Mexico
Gender: male
Re: Pulley fondling
Reply #3 - 06/25/16 at 06:13:18

I made life easier for myself by having the bike on a lift with the rear wheel jacked up and spinning .  At that point I was able to "trim" belt guards etc. as needed .   (Spin a little. Trim a little ..... . Spin a little.  Trim a little.) It was a bit tight, but I got everything together without having to lengthen the axel slots.      The results are worth the effort.   Smiley
old.indian  ( 25 tooth Kawa front pulley and 12" Intruder 800 shocks)
Back to top



Lectron carb, modified head, stage 3 cam, Wiseco piston, header and Dyna, Varsi's cam chain adjuster, head plug and drilled rotor, Tkat, 12" shocks and 17/43 chain conversion.EdL's 4"FCs
