Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28668 Tucson Az Gender:	Re: Exhaust port goop Reply #15 - 06/19/16 at 15:15:27 Here's what I did with mine... before... after...
Back to top	Ludicrous Speed !... ... ... IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 5112 Manteca , CA Gender:	Re: Exhaust port goop Reply #16 - 06/19/16 at 15:22:17 No Justin is kinda ok with that Ryca brake rod with the 2 bends seems to give alittle locks up but not like stock it has some feel to it and just bought that disc setup from Shawn just not installed yet , Suzuki brake is crap , bike hauls ass but takes forever to stop !
Back to top	The Topic Terminator IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 5112 Manteca , CA Gender:	Re: Exhaust port goop Reply #17 - 06/19/16 at 15:27:33 Justin I still has oem rear shoes what is cure for lock up ?
Back to top	The Topic Terminator IP Logged

Armen

Serious Thumper

Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1452

Re: Exhaust port goop
Reply #18 - 06/19/16 at 16:10:18

Hey Serowbot,
Lots of time involved in that. Looks very promising.
I'll throw my head in the sheep dip tomorrow and start the cleaning rituals.
I'm also going to work on all the casting flashings that block the airflow along the sides of the head.
I still think removing the left side may be a good thing. With the tank I have, it's pretty tough to get to the plug, and I don't think all that metal is adding as much to the cooling as it blocks airflow to the plug area.

Back to top

In theory, theory and reality are the same. In reality, they aren't...

IP Logged

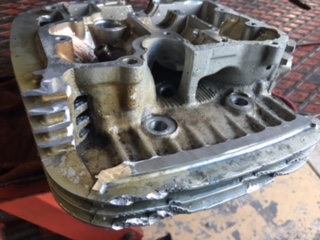

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1452	Re: Exhaust port goop Reply #19 - 06/19/16 at 16:11:28 Roughed out.
Back to top	Savage_head_mod_001.JPG In theory, theory and reality are the same. In reality, they aren't... IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Exhaust port goop
Reply #20 - 06/19/16 at 16:22:51

Ruttly wrote on 06/19/16 at 15:27:33:

Justin I still has oem rear shoes what is cure for lock up ?

I pulled the brake assembly and used a handheld grinder to chamfer the ends of the shoes and cut grooves across the faces of the shoes, decreasing the contact are by between a fourth and a third. If I had kept it I would have done a little more.
Can't put it back, so, if you do it, start with less cutting.
If you angle the grooves a bit you can make it spit the dust out.
I could modulate the pressure and vary the braking and actually Feel the pedal against my boot before it would lock up.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Exhaust port goop
Reply #21 - 06/19/16 at 16:24:25

Armen wrote on 06/19/16 at 16:10:18:

Hey Serowbot,
Lots of time involved in that. Looks very promising.
I'll throw my head in the sheep dip tomorrow and start the cleaning rituals.
I'm also going to work on all the casting flashings that block the airflow along the sides of the head.
I still think removing the left side may be a good thing. With the tank I have, it's pretty tough to get to the plug, and I don't think all that metal is adding as much to the cooling as it blocks airflow to the plug area.

THere is a simple mod to make it swing out and gain access to the plug.

IIRC, it's the right side,, the one that the vent tube runs through. Gotta cut the strap that runs behind the tube, and shorten a bolt by cutting the head off, leaving a bump tall enough to keep it from rotating out. Seat that short bolt and Locktite it. You can use the other bolt normally. It will hold it down and trapped on the short bolt.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

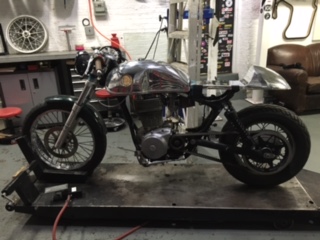

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1452	Re: Exhaust port goop Reply #22 - 06/19/16 at 16:45:09 Justin, No idea what you are saying. I was talking about access to the spark plug. Plug is on the left side of the head. Gas tank blocks access with the extra metal on the left side of the head.
Back to top	seattankbike_001.JPG In theory, theory and reality are the same. In reality, they aren't... IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Exhaust port goop Reply #23 - 06/19/16 at 17:48:30 The trim that blocks access can be modified. I don't remember which side,
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1452	Re: Exhaust port goop Reply #24 - 06/19/16 at 17:59:41 If you mean the chrome stuff, that's long gone. I was talking about the actual casting. Take a look at the pic of the butchered head.
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Exhaust port goop Reply #25 - 06/19/16 at 18:35:59 I can't see well on the kindle. Sorry for the contusion.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Exhaust port goop Reply #26 - 06/21/16 at 16:33:05 When I read that it can be sanded after curing I got scared! How hard can this stuff be if it can be sanded? I've used epoxy in industry ,but when it cured it couldn't be sanded,and some contained ceramic beads for heat and wear resistance.
Back to top	my old work mates called me MacGyver IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1452	Re: Exhaust port goop Reply #27 - 06/21/16 at 17:13:13 Batman, Steel can be sanded, too. Don't lose too much sleep over semantics.
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Exhaust port goop Reply #28 - 06/21/16 at 19:19:36 armen ,I hope the stuff is super-epoxy and works for you.I love the fact that people on this site are trying new things,it benefits us all.good luck,please keep us in the loop.
