Rectifier missing a lead?
05/27/16 at 20:04:49

I've got a stock '07 s40 and I don't get something about the rectifier.

I've noticed that out of six leads described in the manual, only five are physically present. The plug on the port side (male plug wired to rectifier) has leads Y1, Y2 and Y3. The plug on the starboard side (female plug wired to rectifier) has leads R and B/W; no O/B lead. There is no O/B wire from the rectifier and no contact in the plug. There is a corresponding male connection point and wire on the harness's half of the plug.

Tracing the wiring diagram, this lead looks like it is supposed to connect to all kinds of stuff, so I don't get why it's not on my bike.

The bike has run for the five years I've had it, so... my service manual is wrong? Huh

I am indeed looking at the '07 wiring diagram...

Stock White 2007 S40
Raptor petcock
1/2 white spacer

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28752 L.A. California Gender:	Re: Rectifier missing a lead? Reply #1 - 05/27/16 at 20:18:38 would this be from the clymer manual or SSM?
Back to top	Versey's Place Tech Section Index IP Logged

MarkHB Junior Member Offline Go for it! Posts: 88 Ottawa, Canada Gender:	Re: Rectifier missing a lead? Reply #2 - 05/27/16 at 20:27:55 Suzuki Service Manual. Part No. 99500-36088-01E.
Back to top	Stock White 2007 S40 Raptor petcock 1/2 white spacer IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Rectifier missing a lead? Reply #3 - 05/27/16 at 20:53:16 Looks like your right. According to my diagram, you're missing the O/B lead.

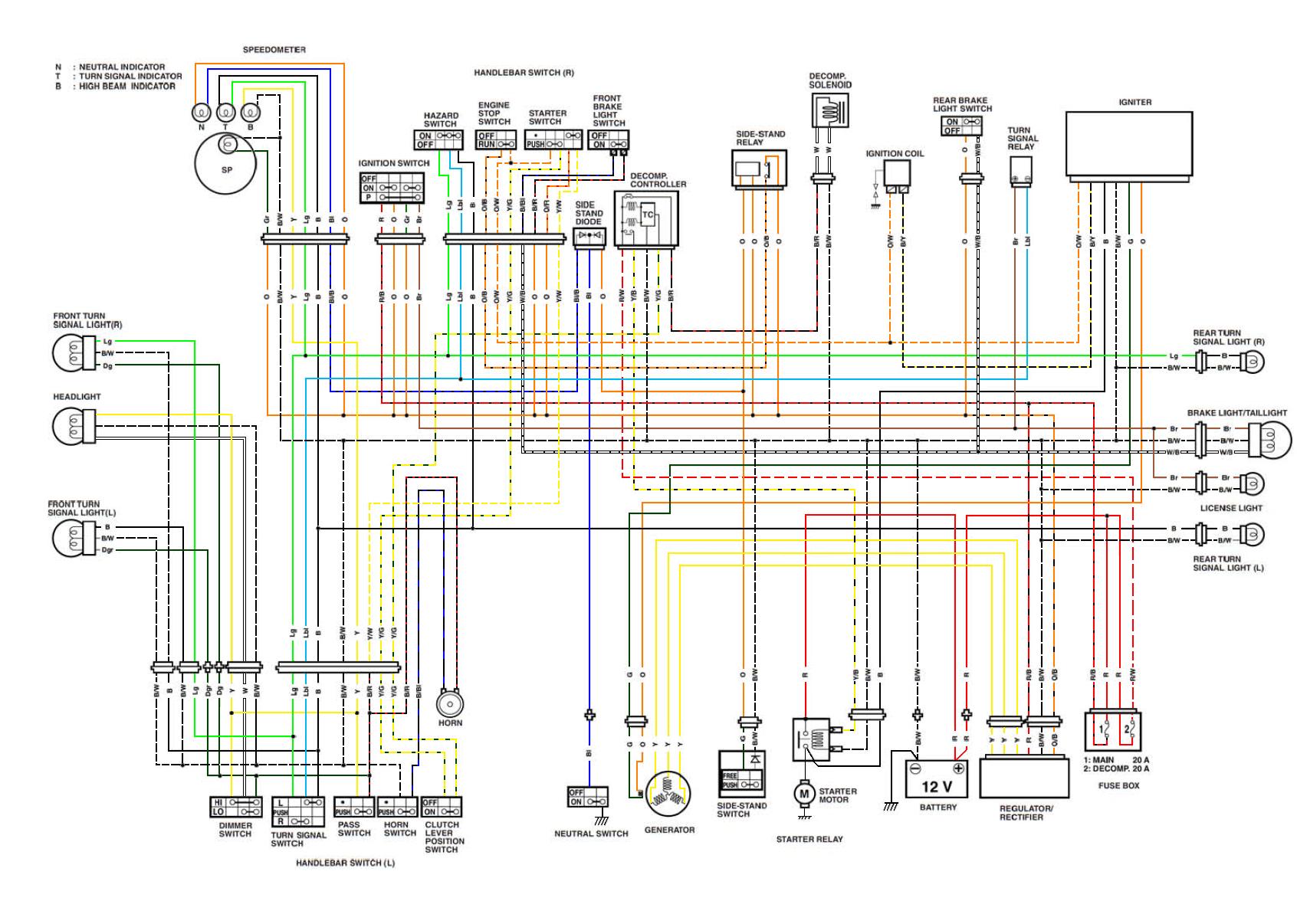

Back to top	2007-2009_Wiring_Diagram_001.jpg There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Rectifier missing a lead?
Reply #4 - 05/27/16 at 23:16:07

Off topic but Very handy to know, that Y-B on the decomp controller, put 12V on it, the starter motor will spin, even if you have the key in your pocket. And, there is a single red wire running right by the decomp controller.

When mine was new it would sometimes just turn off. Starter button did nothing, That would get me going again. It stopped doing that, I never figured out what was happening.
But, to test a few things, knowing this is handy.

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

MarkHB Junior Member Offline Go for it! Posts: 88 Ottawa, Canada Gender:	Re: Rectifier missing a lead? Reply #5 - 05/28/16 at 17:02:22 Kris01 wrote on 05/27/16 at 20:53:16: Looks like your right. According to my diagram, you're missing the O/B lead. Maybe I should bring the unit in to my local Suzuki stealership and ask? BTW, I love that colour-coded wiring diagram. Where'd you get it?
Back to top	Stock White 2007 S40 Raptor petcock 1/2 white spacer IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Rectifier missing a lead? Reply #6 - 05/29/16 at 08:14:02 I color coded it myself so I wouldn't get lost in the maze of black wires! I'm not an electrical genius so every little bit helps!
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Steve H

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1223
Spartanburg, SC
Gender: male

Re: Rectifier missing a lead?
Reply #7 - 05/29/16 at 20:39:27

That wire is an activate signal for the older rectifiers. The newer ones don't have it. They activate from the power being generated. It took a long time and a lot of digging on the internet to find that.

The people that manufacture the rectifier won't even talk to you about it. And, Suzuki doesn't really publish any rectifier information other than this is the rectifier and these leads come out.
