Where does the jack go?
03/05/16 at 15:37:27

Hi All,

This seems like a simple one, but sometimes I wonder if that's what my parents said when they first saw me. I kid.

I can't for the life of me figure out where to place the "arms" of a jack. I have the mc jack from harbor freight and no matter where I place it (front to back on the bike) it is hitting the bracket that goes to the exhaust pipe. That doesn't seem to be right to me.

Anyone have a picture of the under side and where they stick the jack?

Thanks

IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Where does the jack go? Reply #1 - 03/05/16 at 16:36:46 I use pieces of OSB and 2x4's to block up the gap to keep it from hitting all the crap under there; including wiring and cables on both sides. WATCH OUT for that stuff, it's critical to your safety and well being.
Back to top	-The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

pg Serious Thumper Offline Posts: 5273 In Transit	Re: Where does the jack go? Reply #2 - 03/05/16 at 16:40:22 I have a HF lift as well; although, I'm not sure which one you have. If I remember correctly, I have a 10 x 10 piece of wood that I place between the bike and the lift. I usually slide it under the bike on the opposite side of the pipe. I remember the piece of wood is extremely beneficial. perhaps this will help. Best regards,
Back to top	I don't make the rules, I just know what they are..... IP Logged

hotprops Full Member Offline SuzukiSavage.com Rocks! Posts: 180 fort myers fl	Re: Where does the jack go? Reply #3 - 03/06/16 at 15:33:35 have the same jack i cut 1/2 inch piece of plywood 12x13 inch and liquid nailed to the jack rubbers. just cut a relief for the muffler clamp and shove it under from the kickstand side . put the kickstand pad on a piece of 2x4 it will slide right under . add a few eyebolts to hook your strap too
Back to top	IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Where does the jack go? Reply #4 - 03/06/16 at 19:38:03 here's some pics I took today while removing tins for repaint:

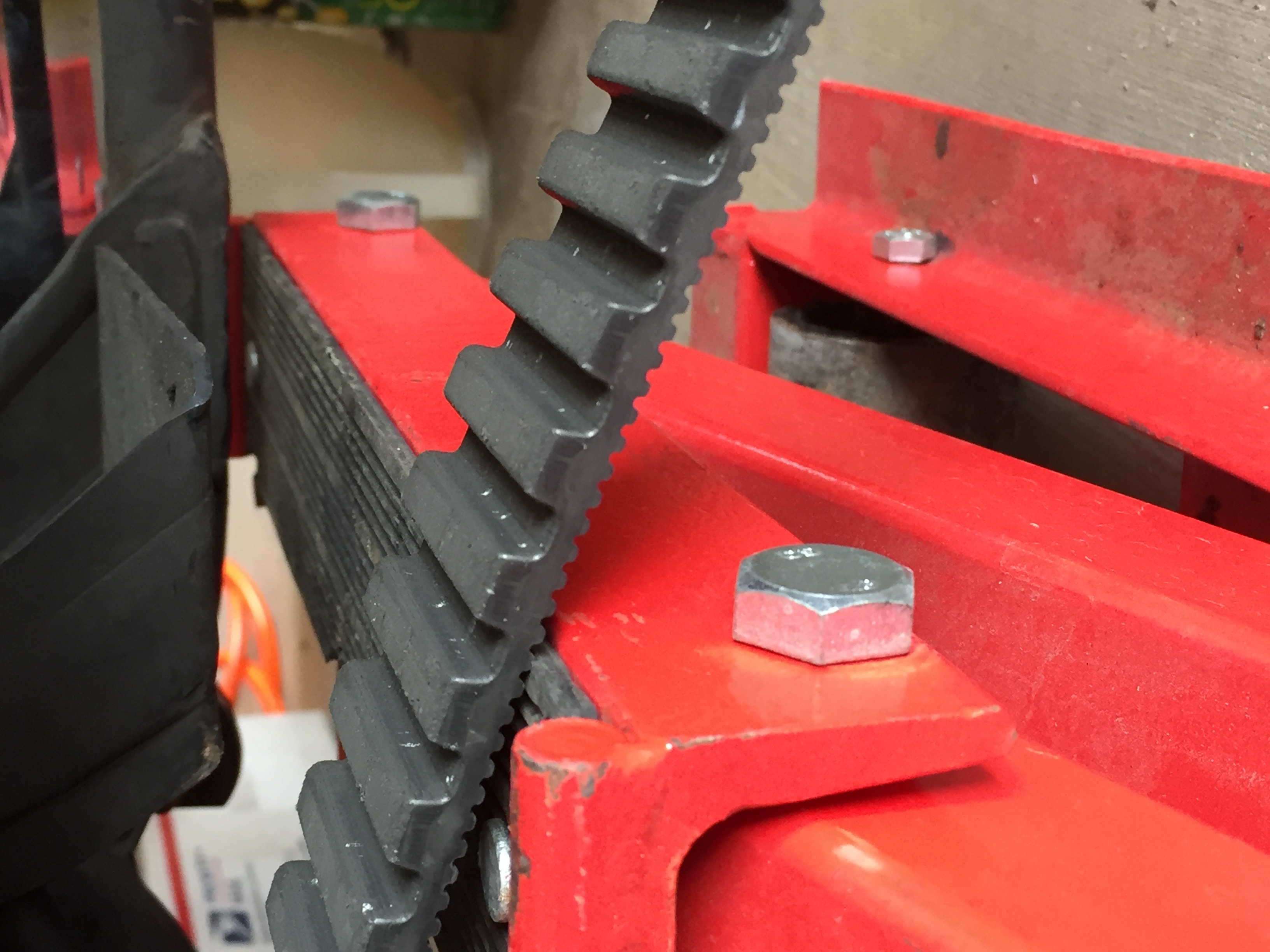

Back to top	IMG_0613.JPG -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Where does the jack go? Reply #5 - 03/06/16 at 19:38:44

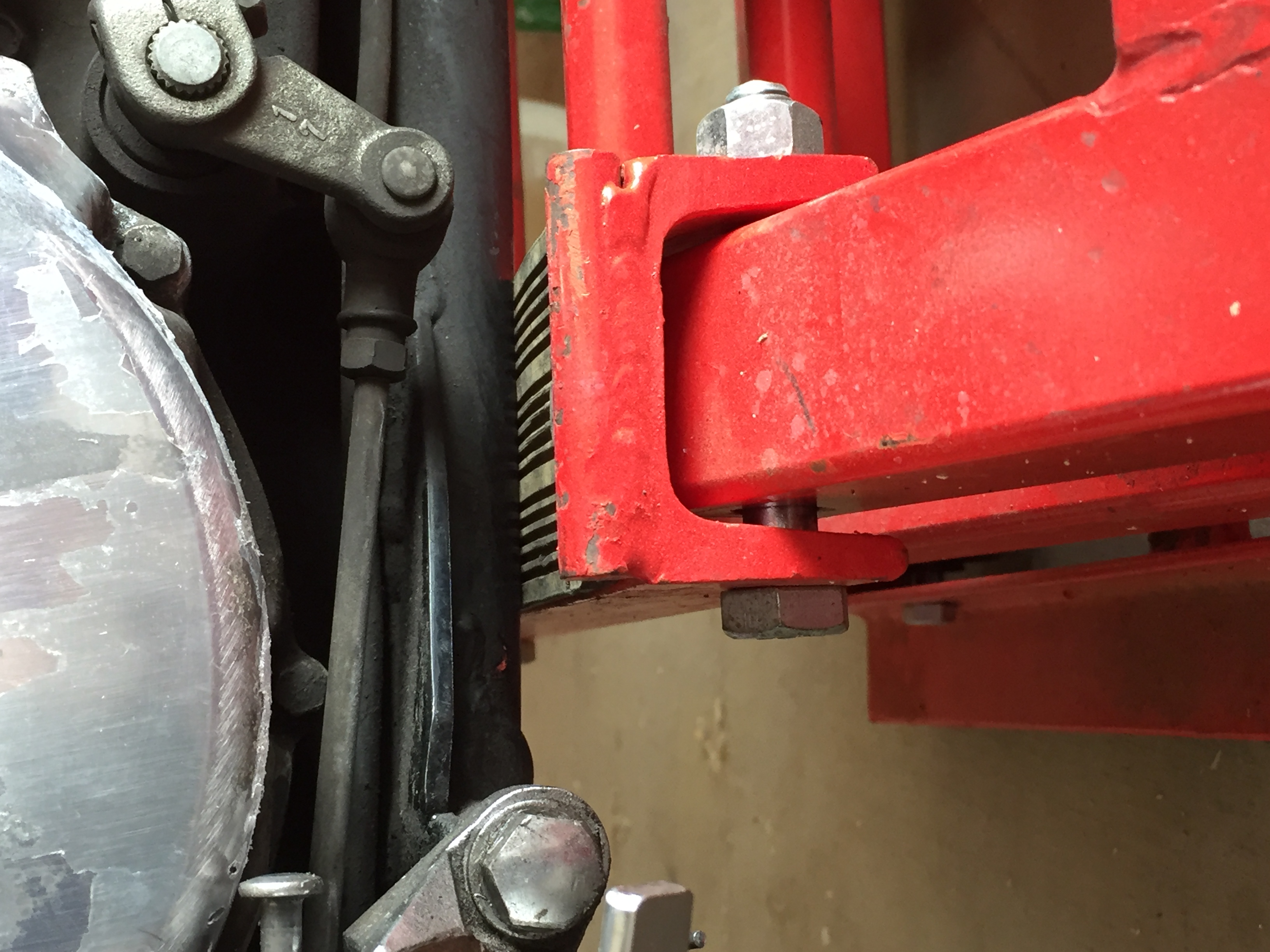

Back to top	IMG_0614.JPG -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Where does the jack go? Reply #6 - 03/06/16 at 19:39:08

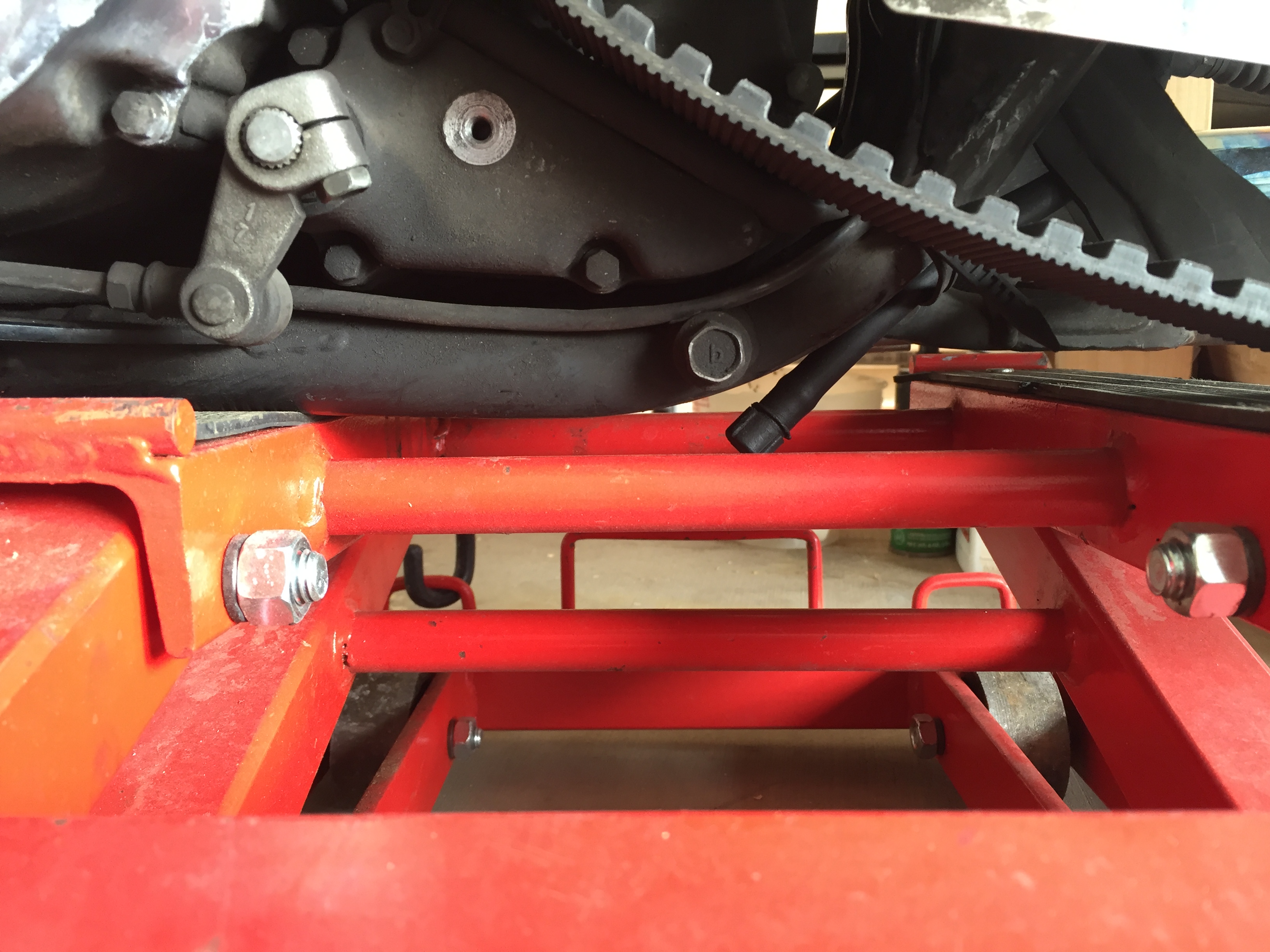

Back to top	IMG_0615.JPG -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Where does the jack go? Reply #7 - 03/06/16 at 19:39:37

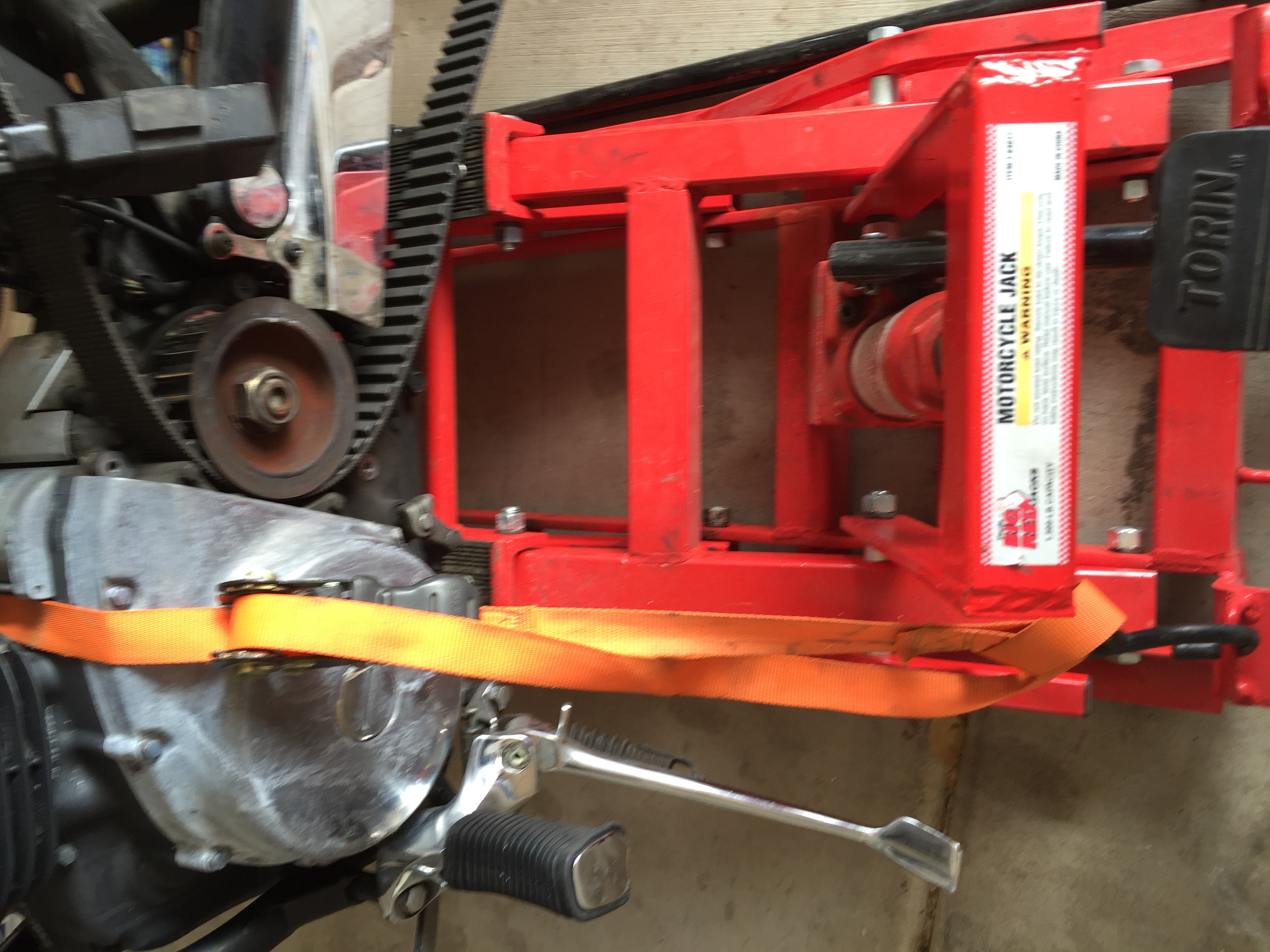

Back to top	IMG_0616.JPG -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Where does the jack go? Reply #8 - 03/06/16 at 19:40:58

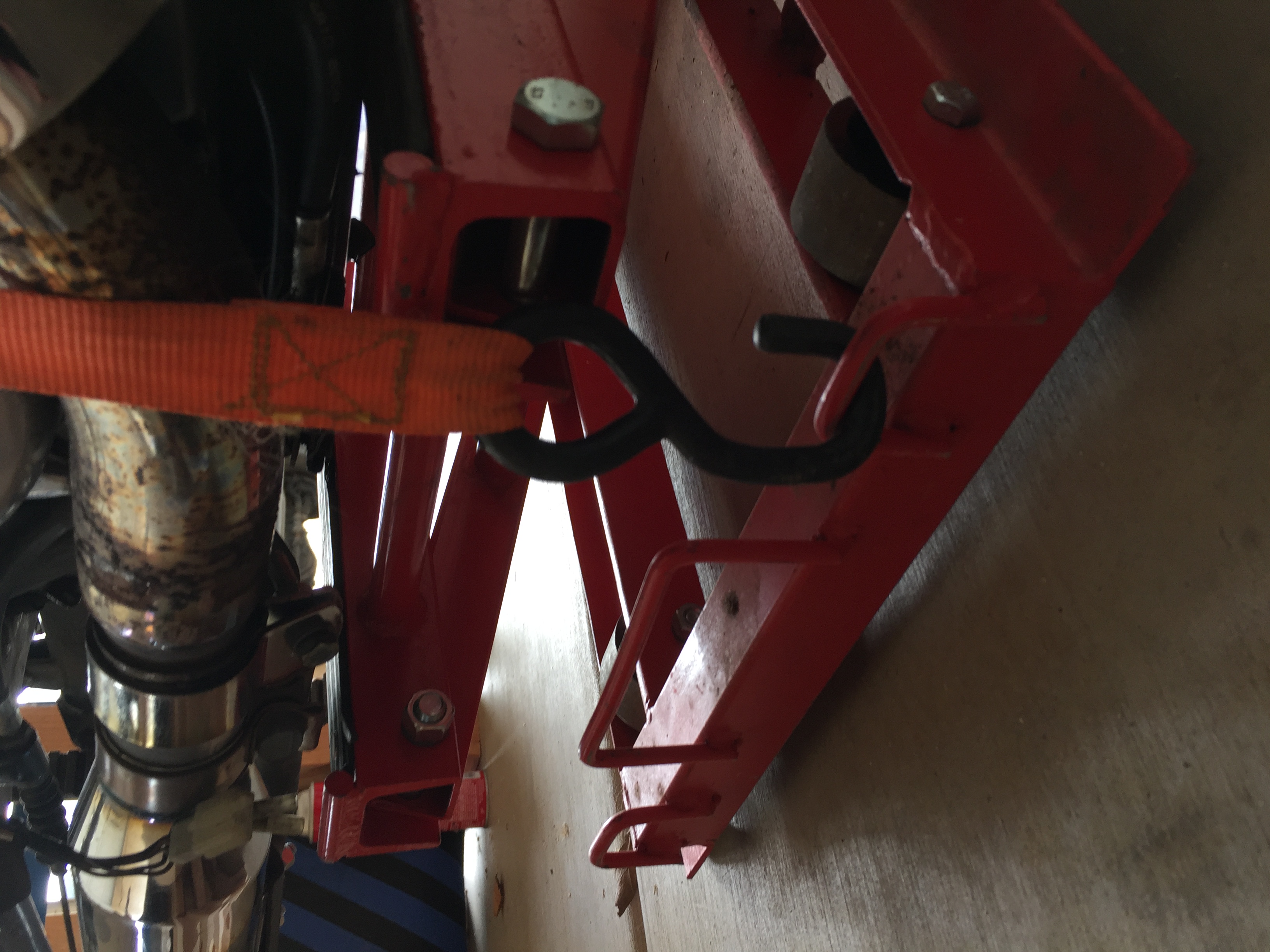

Back to top	IMG_0618.JPG -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

JPSavage YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 42 Ridgewood, NJ Gender:	Re: Where does the jack go? Reply #9 - 03/06/16 at 21:11:39 Thanks everyone. I was a bit nervous there, but I powered through with a little help from my friends.
