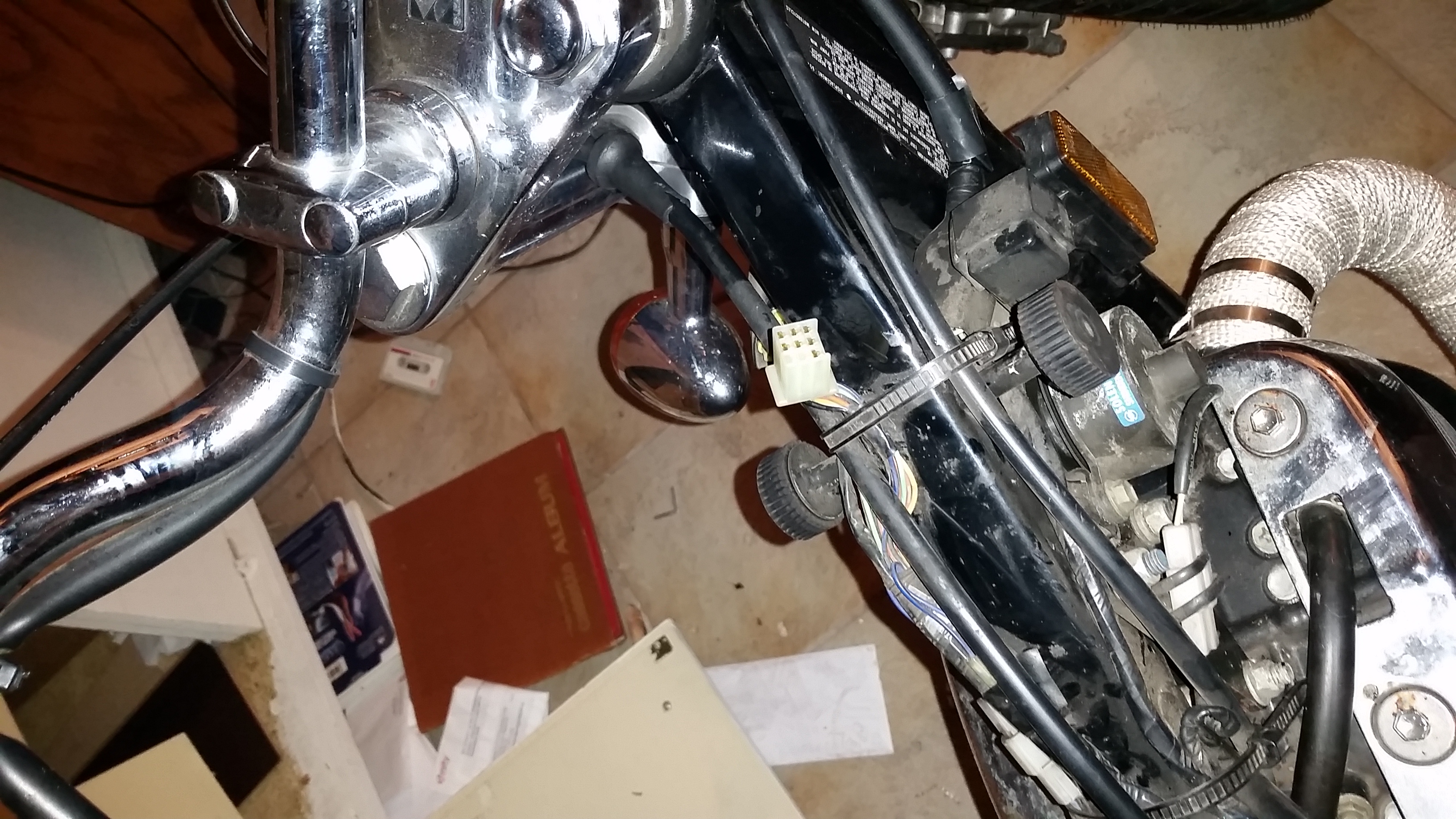

savagegreenhorn7 YaBB Newbies Offline Waka waka! Posts: 41 Oakland, CA Gender:	Wiring under the tank 01/19/16 at 02:08:29 Hello I'm just getting ready to put a new gas tank on my savage having just removed the stock one... I'm just wondering what to do with this little wire cluster thing here? Is there a plug? Should you leave it as is? Is it important to have access to? I am quite confused
Back to top	20160118_234256.jpg "Give a man a match, and he'll be warm for a minute, but set him on fire, and he'll be warm for the rest of his life" IP Logged

youzguyz Serious Thumper Offline Posts: 2538 San Antonio, Texas Gender:	Re: Wiring under the tank Reply #1 - 01/19/16 at 02:21:52 That plugs into the harness that goes to the speedometer assembly on the tank for the turn signals, neutral light, high beam, etc.
Back to top	2002 - Silver (Thumper) 2000 - Green (Mad Hamish) Most motorcycle problems are caused by the nut between the seat and the handlebars. Make sure yours isn't too tight or too loose. IP Logged

savagegreenhorn7 YaBB Newbies Offline Waka waka! Posts: 41 Oakland, CA Gender:	Re: Wiring under the tank Reply #2 - 01/19/16 at 03:42:43 Oh yeah I know that, I'm wondering what to do with it after I put on a new tank that doesn't have the corresponding plug. Ya know?
Back to top	"Give a man a match, and he'll be warm for a minute, but set him on fire, and he'll be warm for the rest of his life" IP Logged

Steve H Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1223 Spartanburg, SC Gender:	Re: Wiring under the tank Reply #3 - 01/19/16 at 04:10:40 The speedo assembly does have a corresponding plug and there's enough clearance. It just sits there after being connected.
Back to top	87 LS650, 2005 Ninja 250, 2009 Yamaha C3, 2001 Honda Reflex. On 2 wheels since 6/80. IP Logged

youzguyz Serious Thumper Offline Posts: 2538 San Antonio, Texas Gender:	Re: Wiring under the tank Reply #4 - 01/19/16 at 04:36:33 savagegreenhorn7 wrote on 01/19/16 at 03:42:43: Oh yeah I know that, I'm wondering what to do with it after I put on a new tank that doesn't have the corresponding plug. Ya know? I presume you don't need all those indicator lights? Just seal it up with tape and tuck it away somewhere.
Back to top	2002 - Silver (Thumper) 2000 - Green (Mad Hamish) Most motorcycle problems are caused by the nut between the seat and the handlebars. Make sure yours isn't too tight or too loose. IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: Wiring under the tank
Reply #5 - 01/19/16 at 09:11:45

Well if you aren't going to have any indicator lights....how are you going to know when the bike is in neutral? Or when your turn signal is on?

I am not entirely sure that the bike will start/run without the neutral indicator light being retained in the circuit? The starter switch and the side stand switch all monitor what the neutral switch is doing - but perhaps they don't care if the indicator light is still in the circuit? My thought is that it will still work without the indicator light....otherwise you could be stranded somewhere if the neutral light were to burn out....and that certainly is not a good design.

It might be best to confirm that the bike still operates normally with that plug not connected to anything.

Back to top

Someday I will be old......But not today!

IP Logged

savagegreenhorn7 YaBB Newbies Offline Waka waka! Posts: 41 Oakland, CA Gender:	Re: Wiring under the tank Reply #6 - 01/19/16 at 10:00:57 Dave: that's a good point... I certainly would like to know when I'm in neutral at the very least. Is there an aftermarket neutral indicator on the market compatible with the ls650?
Back to top	"Give a man a match, and he'll be warm for a minute, but set him on fire, and he'll be warm for the rest of his life" IP Logged

savagegreenhorn7 YaBB Newbies Offline Waka waka! Posts: 41 Oakland, CA Gender:	Re: Wiring under the tank Reply #7 - 01/19/16 at 10:15:04 Maybe this would work? http://www.dimecitycycles.com/2-5-inch-chrome-mini-speedometer-with-white-fac...
Back to top	"Give a man a match, and he'll be warm for a minute, but set him on fire, and he'll be warm for the rest of his life" IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: Wiring under the tank
Reply #8 - 01/19/16 at 10:50:31

I believe any bulb will work - both the Trailtech Vapor and the Speedhut gauge I now use have LED lights, and they work fine. If you use LED's be aware that you will need to wire the neutral light so that the positive wire attaches to the right side of the bulb....the neutral light might operate backwards from the other bulbs in the indicator panel.

On both the Trailtech and the Speedhut gauges - the indicator lights can't be seen to operate in direct sunlight. I ended up installing some very bright LED bulbs, and I had to put a resistor on the blue indicator light for the high beam.....as it was much brighter than the yellow and green lights and would make spots in your eyes if you looked directly at it.

Back to top

Someday I will be old......But not today!

IP Logged

savagegreenhorn7 YaBB Newbies Offline Waka waka! Posts: 41 Oakland, CA Gender:	Re: Wiring under the tank Reply #9 - 01/19/16 at 18:50:51 Thanks Dave, I'll take a look at these for sure. Do you think the one I posted would work? I really like the look of it. http://www.dimecitycycles.com/2-5-inch-chrome-mini-speedometer-with-black-fac...
Back to top	« Last Edit: 01/19/16 at 19:54:38 by savagegreenhorn7 » "Give a man a match, and he'll be warm for a minute, but set him on fire, and he'll be warm for the rest of his life" IP Logged
