Does this look like another dreaded plug/cap leak? (Read 137 times)

Zonablazer Junior Member Offline SuzukiSavage.com Rocks! Posts: 64	Does this look like another dreaded plug/cap leak? 11/28/15 at 10:11:23 Hey all...been having a leak lately and by the way it's leaking it appears to be the ole headcover plug. I just wanted to post some pics any get a few sets of eyes on it. If so it looks like vergslagen1 might be getting some money from me.
Back to top	« Last Edit: 11/28/15 at 13:46:45 by Zonablazer » IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28886 L.A. California Gender:	Re: Does this look like another dreaded plug/cap l Reply #1 - 11/28/15 at 11:53:56 I don't have access to your private account.
Back to top	Versey's Place Tech Section Index IP Logged

Zonablazer Junior Member Offline SuzukiSavage.com Rocks! Posts: 64	Re: Does this look like another dreaded plug/cap l Reply #2 - 11/28/15 at 13:47:25 Updated with images and links to larger pictures. Sorry about that Verslagen
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28886 L.A. California Gender:	Re: Does this look like another dreaded plug/cap l Reply #3 - 11/28/15 at 14:03:44 1st thought is no, not enough oil on the sparkplug deck. I'd remove clean and replace with a dab of rtv under the washer of that forward underside nut. or clean and go for a ride an reassess.
Back to top	Versey's Place Tech Section Index IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Does this look like another dreaded plug/cap l Reply #4 - 11/29/15 at 10:10:08 I had the same leak. cleaned the area and tighten the nut over several run cycles (ride around park let cool down repeat) and now no more leak.
Back to top	-The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

Zonablazer Junior Member Offline SuzukiSavage.com Rocks! Posts: 64	Re: Does this look like another dreaded plug/cap l Reply #5 - 11/29/15 at 14:21:42 I took it off cleaned and added a little rtv to it and tightened it down. I took it for a 20 min ride to get gas and no leak. I'll keep monitoring it and let everyone know if it revisits.
Back to top	IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Does this look like another dreaded plug/cap l Reply #6 - 11/29/15 at 17:55:44 keep checking it a few times, hand tighten as necessary
Back to top	-The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: Does this look like another dreaded plug/cap l
Reply #7 - 11/30/15 at 03:44:52

DesertRat wrote on 11/29/15 at 17:55:44:

keep checking it a few times, hand tighten as necessary

I wouldn't tighten it again....as it will disrupt the sealer after it hardens. If you used a RTV type sealer it should help to keep the nut from loosening. If you find that you need to tighten it again....you will have to take the nut off and clean the hardened sealer off the stud, cylinder and nut before you apply new sealer.

Someday I will be old......But not today!

IP Logged

Zonablazer

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 64

Re: Does this look like another dreaded plug/cap l
Reply #8 - 12/03/15 at 07:31:40

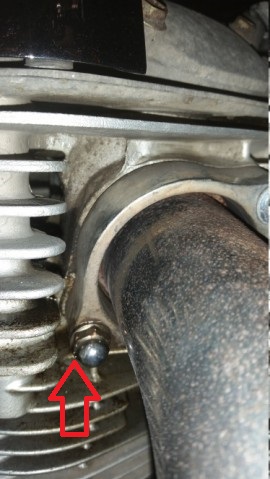

So I've been riding it for a couple of days and the leak returned. At this point I'm not sure if the headgasket is leaking or if its the plug. I'm seeing oil come out of the area in the picture below. I've confirmed that I'm not getting oil into the exhaust system. At this point I believe its most likely the plug.


IP Logged

Zonablazer Junior Member Offline SuzukiSavage.com Rocks! Posts: 64	Re: Does this look like another dreaded plug/cap l Reply #9 - 12/10/15 at 14:18:23 So it's started to leak again and I'm starting to believe that its the cylinder head gasket....anyone know what the complexity of replacing that gasket is...there are posts all over the forum about replacing the plug but what about the cylinder head and head gaskets.
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: Does this look like another dreaded plug/cap l
Reply #10 - 12/11/15 at 04:11:23

If your rubber head plug has never been replaced.....that is the first place to check, and most likely where the leak is coming from. The place where you have your red arrow is exactly under the rubber head plug. It is a little bit challenging to replace the first time, and between reading how to do it in the Clymer manual or the tech section, I would count on spending all day doing it - the second time you do it you should be able to get it done in 4 hours. There are a lot of parts that need to be cleaned up during the process - and that takes a good bit of time. You need a good quality RTV sealant and I would recommend buying the SuzukiBond, Yamabond, Hondabond....it sets up far slower than the gasket maker you buy at the local hardware store and give you more time to work.

Buy the replacement head plug from Verslagen....and you won't ever need to repair the plug again.

Replacing a head gasket is a major pain....because the cylinder head studs are so long you need to take the engine out of the frame. The exhaust system, carb, footpegs, etc. all has to come off the bike. Also the cam has to come out so the cam chain can be released....so you will have to take stuff off the right side of the engine.

Someday I will be old......But not today!

IP Logged
