SuzukiSavage.com - NEWBIE HELP

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: NEWBIE HELP
Reply #15 - 08/22/15 at 19:39:17

If you don't have a multimeter, it's time for one.
Harbor Freight, cheap..
And a battery charger is essential. That's my opinion..
I think a compressor is essential for anyone who owns a vehicle.
Along with antifreeze checker, specific gravity checker for batteries,
jumper cables, tire plugs, etc, ET screaming Cetera,,, but I am just that way..

You can eyeball the bike, see, right by your right ankle, a wire bolted to the engine. Even if it looks okay, unless it tests zero ohms, pull the bolt, clean all contact surfaces.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: NEWBIE HELP Reply #16 - 08/22/15 at 19:48:43 No mechanical work needs done except to get the starter turning the motor over. Have you ever seen the motor turn over? If not, pull the plug again, get some oil in it, let it soak, I like Zoom oil, plastic tube, trace the wall of the cylinder, then, in gear , no plug, roll it,
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: NEWBIE HELP Reply #17 - 08/22/15 at 19:56:42 You can verify continuity (good solid connection to ground).
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: NEWBIE HELP Reply #18 - 08/22/15 at 19:59:38 how to use ohm meter to check continuity Spend some time with that..
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

CAPT CRUNCH

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 36

Re: NEWBIE HELP
Reply #19 - 08/22/15 at 20:19:59

justin_o_guy2 wrote on 08/22/15 at 19:48:43:

No mechanical work needs done except to get the starter turning the motor over.
Have you ever seen the motor turn over?

If not, pull the plug again, get some oil in it, let it soak, I like Zoom oil, plastic tube, trace the wall of the cylinder, then, in gear , no plug, roll it,

no i have not seen the motor fully turn over

Back to top

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: NEWBIE HELP Reply #20 - 08/22/15 at 21:19:02 Then, that's a whole new Square one. Futzing with the carb and putting a new plug in a motor you're wanting to not be a money pit.. Step one, make sure the piston and rings don't wreck the cylinder.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

chzeckmate Serious Thumper Offline Be the person your dog thinks you are Posts: 514 Houston, Texas Gender:	Re: NEWBIE HELP Reply #21 - 08/23/15 at 01:02:20 Have you ever tried to push start it?
Back to top	'05 S40, dyna muffler, rejet, high flow filter, Mobil 1 Racing 4T, Shinko 230 set with 140/90 rear, raptor, seat lift, LED running lights/signals, tach, reversed risers, homemade MR10 Lexan windscreen IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: NEWBIE HELP Reply #22 - 08/23/15 at 08:34:21 It may have been sitting long enough to need care before te engine gets spinning. That's why I typed all that.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: NEWBIE HELP Reply #23 - 08/23/15 at 09:48:24 chzeckmate wrote on 08/23/15 at 01:02:20: Have you ever tried to push start it? All I have to say to that... GOOD LUCK!!!!! You're gonna need it! I tried it once and it wasn't even thinking about starting. So I just used the starter!
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

chzeckmate

Serious Thumper

Offline

Be the person your
dog thinks you are

Posts: 514
Houston, Texas
Gender: male

Re: NEWBIE HELP
Reply #24 - 08/23/15 at 10:21:15

Kris01 wrote on 08/23/15 at 09:48:24:

chzeckmate wrote on 08/23/15 at 01:02:20:

Have you ever tried to push start it?

...I tried it once and it wasn't even thinking about starting.

I've push started mine a couple of times without a problem. Put it in second or third makes it easier. In this case we don't need it to start (although it would be nice) to find out what I want to know. I want to know if the piston is moving.

Back to top

'05 S40, dyna muffler, rejet, high flow filter, Mobil 1 Racing 4T, Shinko 230 set with 140/90 rear, raptor, seat lift, LED running lights/signals, tach, reversed risers, homemade MR10 Lexan windscreen

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: NEWBIE HELP Reply #25 - 08/23/15 at 18:40:03 Hello,,,,he's never seen it turn over. We've seen one engine damaged,, oil in it... First, then in high gear, after oil sits, try gently rocking it. No spark plug. Prove its not seized. Maybe that's why it's not turning over. Do that, then known good battery.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

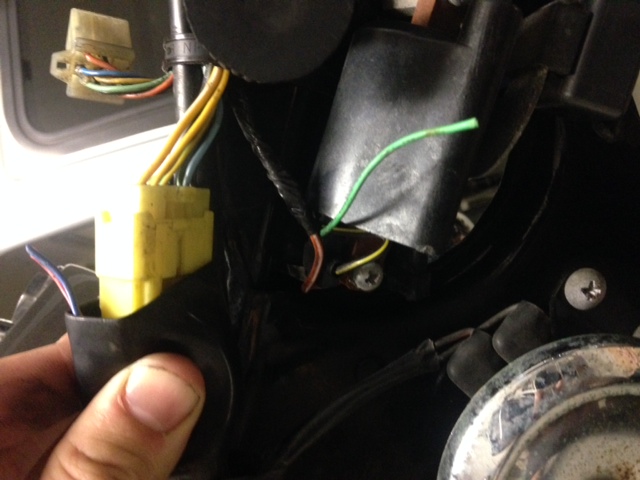

CAPT CRUNCH YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 36	Re: NEWBIE HELP Reply #26 - 08/24/15 at 07:46:17 Quote: Thanks Justin for all your quick responses .. heres a few more photos. still not sure about this hose. I also noticed some wire ends, not sure what those are about
Back to top	photo_3_003.JPG IP Logged

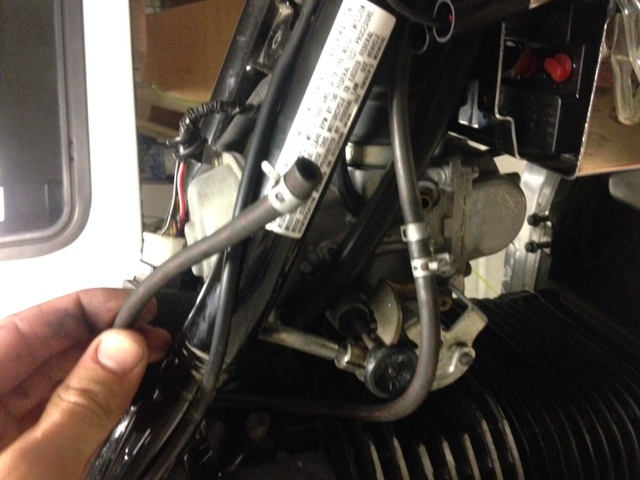

CAPT CRUNCH YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 36	Re: NEWBIE HELP Reply #27 - 08/24/15 at 07:48:51 Unidentified hose
Back to top	photo_1_009.JPG IP Logged

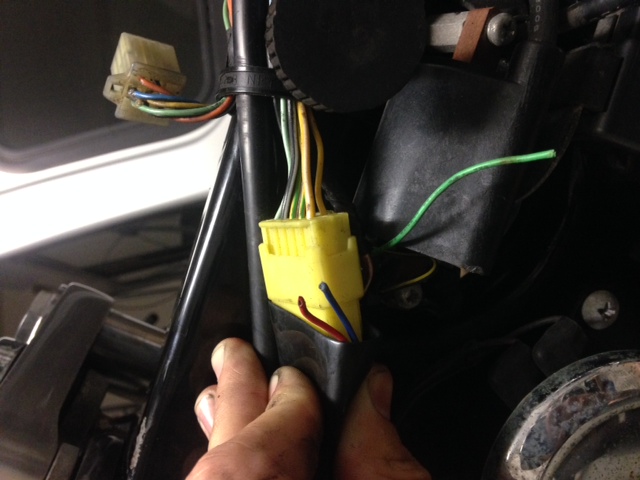

CAPT CRUNCH YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 36	Re: NEWBIE HELP Reply #28 - 08/24/15 at 07:49:29 ..
Back to top	photo_2_004.JPG IP Logged

chzeckmate Serious Thumper Offline Be the person your dog thinks you are Posts: 514 Houston, Texas Gender:	Re: NEWBIE HELP Reply #29 - 08/24/15 at 12:39:57 That hose looks like a crankcase breather but too small in diameter. Is your bike a California model?
Back to top	'05 S40, dyna muffler, rejet, high flow filter, Mobil 1 Racing 4T, Shinko 230 set with 140/90 rear, raptor, seat lift, LED running lights/signals, tach, reversed risers, homemade MR10 Lexan windscreen IP Logged
