Need electrical help
07/11/15 at 13:42:48

I'm attempting to install FIAMM El Grande horns on my bike and something's not quite right.
I have the horns and a Bosch relay (5 prongs; 2 87's).
I ran a 10 awg wire with an in-line fuse from the + battery terminal and connected this to the #30 relay terminal.
Connected the stock horn wire (black/blue according to Clymer for my year) to the #86 terminal on the relay.
Ran a wire to each horn; one from each of the #87 relay terminals.
The horns are mounted to the frame using the tapped holes for the front reflectors and are on metal brackets, so they should be grounded.
The stock horn has 2 wires so I made a "Y" pigtail from the #85 relay terminal, connected the other stock horn wire to that and ran a wire back to the negative battery terminal.

Once everything was wired up, I reconnected the battery and put a fuse in the in-line fuse block for the new relay feed. Soon as I turned the key, I could hear a fuse blow and it ended up being one of the fuses for the bike. The fuse going to the new relay was intact.

The horns come with a spade connector to only one terminal on the horn but include a small metal piece that is basically a male spade on a piece of metal with a hole, I assume for grounding at the mount point. I didn't include it in my set up since the horns are mounted on a metal stud to a metal bracket to a threaded hole in the frame.

Any ideas?
Should I have just grounded the other stock horn wire not in the circuit with the relay? I'm not an expert at the electrical stuff but it seems the relay needs to be grounded and the stock horn has 2 wires so I grounded those together.

Back to top

IP Logged

thumperclone Serious Thumper Alliance Member Offline PGR rider riding with respect Posts: 6067 Grand Junction Colorado Gender:	Re: Need electrical help Reply #1 - 07/11/15 at 14:05:06 youll need a tester me thinks the oem horn is fed hot and the button completes the neg wire to ground
Back to top	standing for those who stood for US IP Logged

Tocsik Serious Thumper Offline the singularity Posts: 1163 Denver, CO Gender:	Re: Need electrical help Reply #2 - 07/11/15 at 14:08:28 Got it figured out. I over complicated the system (very typical of me). I actually found the answer from a buyer on Amazon. The stock horn wires go to #'s 85 and 86, power to #30 horns fed by #87. I'll post up some pics and sounds later. These things are great. Sound like an old Detroit car horn.
Back to top	'08\|Raptor\|Dyna\|Stock jets & no other carb changes @ 5280' alt\|'slavy CCT\|Kawa front pulley\|130/90 rear tire\|7" LED headlight\|3" straight risers\|FIAMM El Grande horns\|Mutazu hard bags IP Logged

Tocsik Serious Thumper Offline the singularity Posts: 1163 Denver, CO Gender:	Re: Need electrical help Reply #3 - 07/11/15 at 18:13:18 Here's how the new horn sounds compared to stock. [img]http://i1115.photobucket.com/albums/k548/Tocsik87/S40/IMG_20150711_163536679_HDR_zpskm5w7vlu.jpg" alt="" title="" border="0" />[/img]
Back to top	'08\|Raptor\|Dyna\|Stock jets & no other carb changes @ 5280' alt\|'slavy CCT\|Kawa front pulley\|130/90 rear tire\|7" LED headlight\|3" straight risers\|FIAMM El Grande horns\|Mutazu hard bags IP Logged

engineer Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 872 Gender:	Re: Need electrical help Reply #4 - 07/11/15 at 20:17:48 I like the new horns, sounds more like a car so maybe people will pay more attention to it.
Back to top	2005 S40, Intruder shocks, Dyna, 52.5/150, 3 washers, 2 turns, modified seat, Raptor IP Logged

Kenny G Serious Thumper Offline SuzukiSavage.com The Singles Club...LOL Posts: 1754 Robson Ranch, Denton, Texas Gender:	Re: Need electrical help Reply #5 - 07/11/15 at 20:51:38 Tocsik, Could you post a picture of the new horns? The horns really sound good. Kenny G
Back to top	IP Logged

chzeckmate Serious Thumper Offline Be the person your dog thinks you are Posts: 514 Houston, Texas Gender:	Re: Need electrical help Reply #6 - 07/11/15 at 23:50:09 Love it!!!
Back to top	'05 S40, dyna muffler, rejet, high flow filter, Mobil 1 Racing 4T, Shinko 230 set with 140/90 rear, raptor, seat lift, LED running lights/signals, tach, reversed risers, homemade MR10 Lexan windscreen IP Logged

Art Webb Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3007 columbus, Texas Gender:	Re: Need electrical help Reply #7 - 07/12/15 at 07:20:32 I put a Fiamm 'freeway blaster' on my old Ninja500 when the stockers died, after that any time i blew the horn my riding buddy jumped (it was loud)
Back to top	IP Logged

Tocsik

Serious Thumper

Offline

the singularity

Posts: 1163
Denver, CO
Gender: male

Re: Need electrical help
Reply #8 - 07/12/15 at 11:07:52

Kenny G wrote on 07/11/15 at 20:51:38:

Tocsik,

Could you post a picture of the new horns?

The horns really sound good.

Kenny G

OK, got it figured out.
From the sides, the horns aren't too noticable. I'll probably switch out the red wires for black and change the connectors to flag-type so that stuff is tucked out of the way better. You can mount them with or without the red backing cups and/or the chrome grills. I left both on and actually like the way the grills match up to the lines on the cooling fins and the coil springs on the rear shocks.

Back to top

IP Logged

Kenny G Serious Thumper Offline SuzukiSavage.com The Singles Club...LOL Posts: 1754 Robson Ranch, Denton, Texas Gender:	Re: Need electrical help Reply #9 - 07/12/15 at 13:03:52 Tocsik, That is a good looking setup. It looks like the horns belong there. Kenny G
Back to top	IP Logged

Art Webb Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3007 columbus, Texas Gender:	Re: Need electrical help Reply #10 - 07/13/15 at 21:58:58 I sure does, and they're louder than a polite fart (stock horn)
Back to top	IP Logged

Boogie_with_Stu Senior Member Offline Look Ma, no hands! Posts: 280 Raleigh, NC Gender:	Re: Need electrical help Reply #11 - 07/16/15 at 12:39:51 Ok, not a hater here....the horns sound great and look good on the bike. To ME anyway, they look like they are on the wrong side. Like, the "coil" of the swirl should start at the bottom and end in the trumpet at the top (basically, if the horns were just swapped left to right). Is it just me mebbe?
Back to top	03 Savage, Pearl Novelty Black,Raptor mod, Boulevard seat, Rectifier mod -'07 Honda Nighthawk 250 stock IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18098 Camp Springs, Kentucky Gender:	Re: Need electrical help Reply #12 - 07/16/15 at 12:43:01 Boogie_with_Stu wrote on 07/16/15 at 12:39:51: To ME anyway, they look like they are on the wrong side. Like, the "coil" of the swirl should start at the bottom and end in the trumpet at the top (basically, if the horns were just swapped left to right) I dunno'......would they fill up with water if turned the other way?
Back to top	Someday I will be old......But not today! IP Logged

Boogie_with_Stu

Senior Member

Offline

Look Ma, no hands!

Posts: 280
Raleigh, NC
Gender: male

Re: Need electrical help
Reply #13 - 07/16/15 at 12:48:44

Interesting question Dave...I haven't a clue. I guess I am just used to top-down symmetry.

Maybe a small drain hole wouldnt hurt? I mean, they WILL get water in them anyway, right? 50 MPH in wet weather, water gets everywhere.

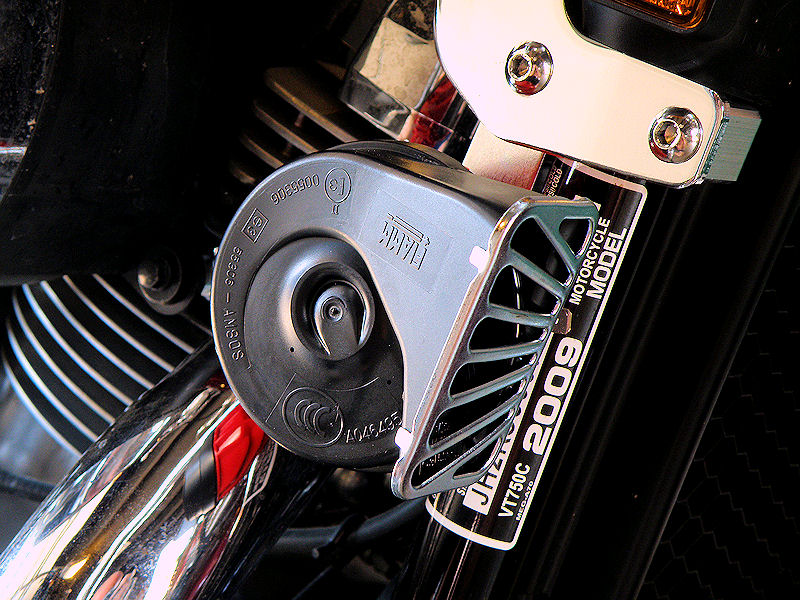

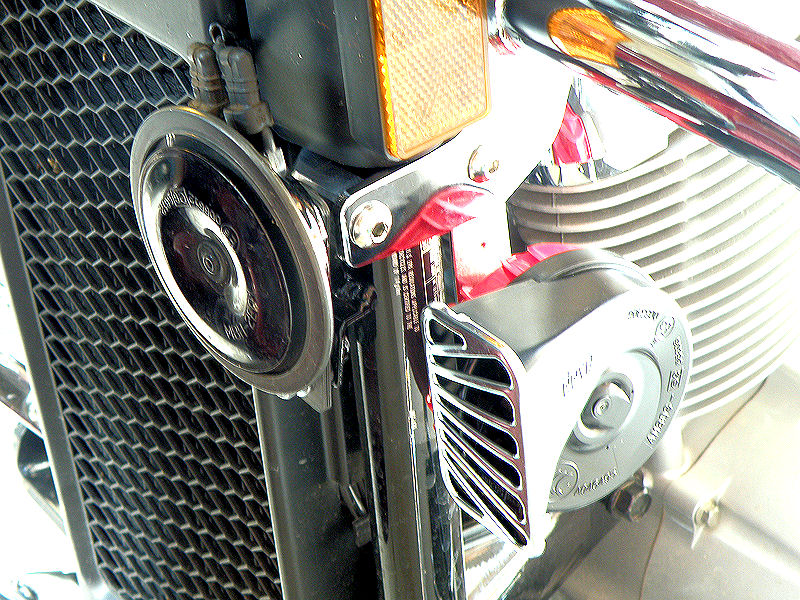

Did a quick Google search and saw these. Not trying to prove anything, just trying to better explain my comment.

Back to top


03 Savage, Pearl Novelty Black,Raptor mod, Boulevard seat, Rectifier mod -'07 Honda Nighthawk 250 stock

IP Logged

Boogie_with_Stu Senior Member Offline Look Ma, no hands! Posts: 280 Raleigh, NC Gender:	Re: Need electrical help Reply #14 - 07/16/15 at 12:54:22 and....
Back to top	Right_Horn.jpg 03 Savage, Pearl Novelty Black,Raptor mod, Boulevard seat, Rectifier mod -'07 Honda Nighthawk 250 stock IP Logged
