Rear wheel alignment and belt tension
06/03/15 at 19:48:33

I got new rear rubber and have installed my rear wheel. I understand the tensioner bolts and how to increase/decrease the belt tension and align the belt on the rear pulley. My questions are:

a) How do I measure proper belt tension? I don't have the 'tool' from the PO. I do see the 'tab' that you are supposed to set the tool on, so is there a general rule of thumb such as 1/2" of travel up and down (1" total), etc. measuring at the measuring tab?

b) How critical is it that the belt ride dead center on the rear pulley? Right now it is riding with about 3/32" gap on the left side (space between the belt and the pulley wall) and 1/16" gap on the right side.

Thanks!

Back to top

IP Logged

FLDoug YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 40	Re: Rear wheel alignment and belt tension Reply #1 - 06/03/15 at 20:41:02 The attached video on belt tension from the tech section should help with your first question. http://suzukisavage.com/cgi-bin/YaBB.pl?num=1335401723
Back to top	IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2626
Auburn, AL
Gender: male

Re: Rear wheel alignment and belt tension
Reply #2 - 06/03/15 at 21:06:58

Thanks FLDoug! That answers the tension question.

I did see on other posts linked to that one that there are different ways to check the alignment of the rear axle such as measuring the distance from swing arm pivot to axle on both sides, but my intuition tells me that I should focus more on the belt tracking near center on the rear pulley and by default that will take care of the wheel being centered and tracking straight.

Am I thinking correctly?

Back to top

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Rear wheel alignment and belt tension Reply #3 - 06/03/15 at 21:29:19 If you take a strong cord and lay it in between the belt and front pulley Push bike till its at the front of the pulley,pull cord across the face of the rear pulley. When it's right,you'll see.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17784
Camp Springs, Kentucky
Gender: male

Re: Rear wheel alignment and belt tension
Reply #4 - 06/04/15 at 02:38:39

As long as the belt has a space on both sides...I believe it is close enough - but if you want to align it better here is what I do.

Set the belt tension where you want it and ride the bike. If the belt is not centered, then loosen the axle nut, and use the right side tension adjuster to correct the alignment. If the belt is riding too close to the right side of the pulley (spoke side), then tighten the right side adjuster a small amount and tighten everything back down and go for another ride. If the belt is riding too close to the the left side of the pulley (swing arm side), then loosen the adjuster bolt a little bit and make sure you push the axle/wheel forward while you tighten the axle nut (I tap the end of the adjuster with a rubber mallet). You might get it right the first time....or it may take a couple of tries. You can do this with the wheel still on the ground - it is not necessary to jack the bike up.

Back to top

Someday I will be old......But not today!

IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2626
Auburn, AL
Gender: male

Re: Rear wheel alignment and belt tension
Reply #5 - 06/04/15 at 05:38:31

Thanks, Dave. That's pretty much what I was doing to get it dialed in where it is, but I have to start over on the alignment as my belt tension is a little too tight and I need to loosen it up some.

I just wanted to make sure that this approach (what you mentioned and Kinda what I was doing) was acceptable versus 'measuring' the distance of swing arm pivot to the bolt, etc. on both sides....

I'm fine with 'chasing the needle' on aligning the belt dead center of the rear pulley with the adjustment screws and calling it complete so long as you old pros say that's sufficient. Wink

Thanks!

Back to top

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17784
Camp Springs, Kentucky
Gender: male

Re: Rear wheel alignment and belt tension
Reply #6 - 06/04/15 at 05:45:12

The belt alignment however doesn't mean the tire/wheel alignment will be perfect. As the bearing in the pulley hub wears it becomes a bit loose and allows the belt tension to move the pulley hub out of alignment, and the pulley tilts slightly forward which will allow the belt to move to the outside of the pulley. When you align the belt in the middle you most likely are getting the tire a tiny bit out of alignment with the front wheel - but I do believe the amount is minimal and not worth worrying about. (And the index marks on the swing arm are OK for getting close - but are not perfectly accurate).

(If you grab your pulley on both sides and can rock it back and forth parallel with the swing arm more than just a little bit (not rotate it as that is normal)....it might be time for you to do the 'floor matt shims".

Back to top

Someday I will be old......But not today!

IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2626
Auburn, AL
Gender: male

Re: Rear wheel alignment and belt tension
Reply #7 - 06/04/15 at 06:46:53

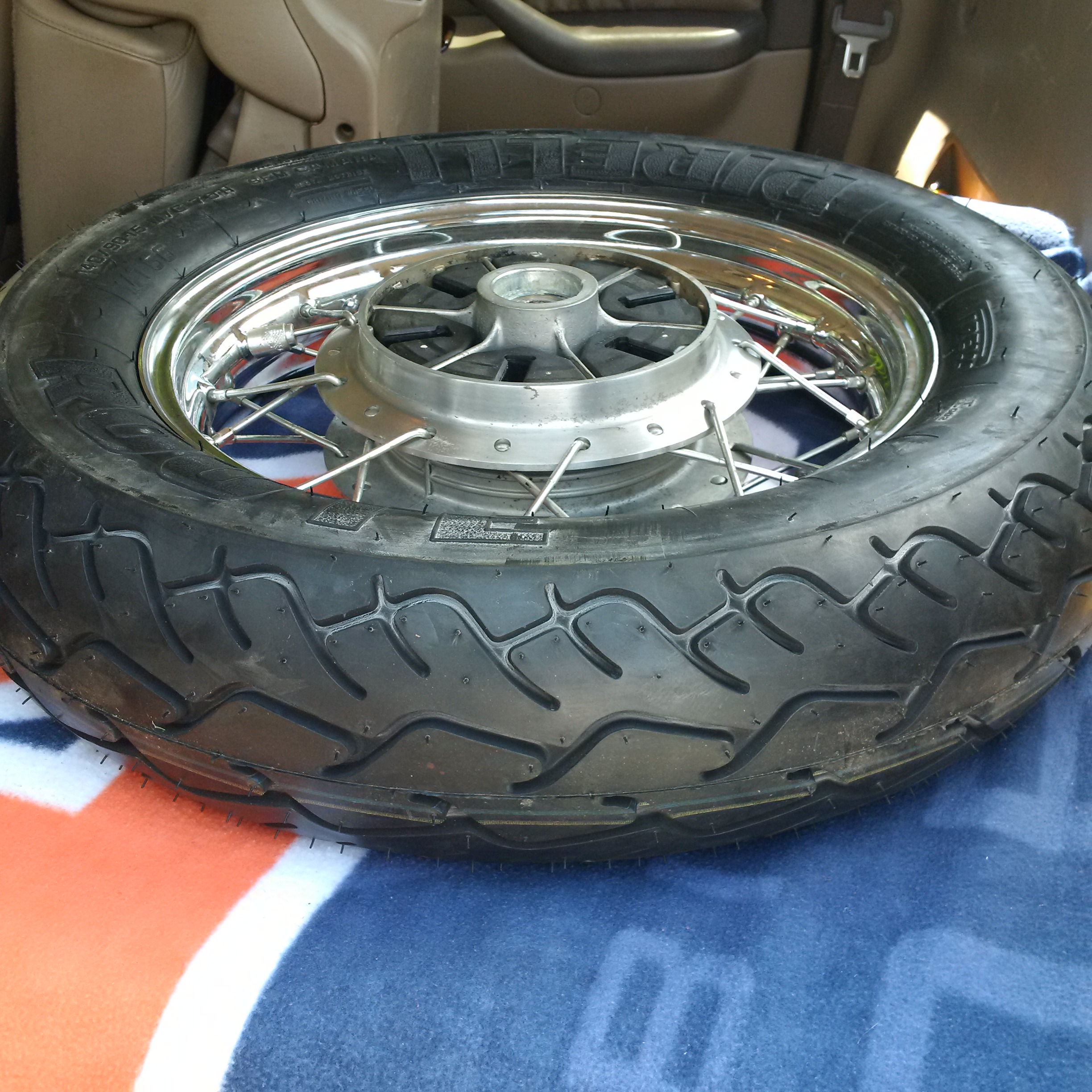

I'll double check it, but I think my pulley is in there pretty solid thus far. Bike is well maintained (not out in the weather) and only have about 4500 miles of easy riding (I am 165lbs and ride like an old man) so it hasn't seen a lot of hard riding to have worn, etc. I recall when taking it apart that the pulley side was very clean inside and didn't show any signs of worn rubber, etc. Just a lot of brake dust on the other side. Grin
