cam chain tensioner arm replacement (Read 104 times)

rxthumper YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 12	cam chain tensioner arm replacement 05/04/15 at 21:29:22 Apparently the noise was not just my cam chain tensioner adjuster, but cam chain tensioner arm is broke. My Clymer is not very clear on removal and replace. Can I replace the cam chain tensioner arm from the bottom of case or will I have to remove the head? Help my wife is ready to ride!!! Thanks in advance!!!
Back to top	IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: cam chain tensioner arm replacement Reply #1 - 05/04/15 at 21:35:24 Describe broken.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

rxthumper

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 12

Re: cam chain tensioner arm replacement
Reply #2 - 05/04/15 at 21:53:05

Moves vertically, not just forward and backward. When it broke, the force actually removed a small piece of aluminum. The tension adjuster was pointing up in about a 2 o'clock position instead pointing down in the 4 o'clock position. For reference, page79,figure 36, upper right piece that looks like a sideways J, is where the end of the tensioner adjuster plunger end hit and remained wedged. Hope that helps!!!

IP Logged

rxthumper YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 12	Re: cam chain tensioner arm replacement Reply #3 - 05/04/15 at 21:55:48 Page 79, figure 36 in my clymer, sorry I left that out!!!
Back to top	IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: cam chain tensioner arm replacement Reply #4 - 05/04/15 at 21:57:26 Im sure that description is gonna martch the picture well. But, a picture would me. Others may get it, im a bit confused.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

rxthumper

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 12

Re: cam chain tensioner arm replacement
Reply #5 - 05/04/15 at 22:08:28

Clymer manual m384 with Ryca bobber on the cover, page 79, figure 36. The tension adjuster plunger is pointing to the 4 o'clock position. Above the end of the plunger is a piece of aluminum shaped like a sideways J. That is where the end of the tensioner adjuster plunger was jammed. It hit that sideways J hard enough to remove a piece!!!!

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28923 L.A. California Gender:	Re: cam chain tensioner arm replacement Reply #6 - 05/04/15 at 22:23:38 from what you describe (how about some pictures) either the guide has come loose at the top or broken in the middle. You can replace the rear guide w/out completely taking the top off, but it'll take some luck.
Back to top	Versey's Place Tech Section Index IP Logged

rxthumper YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 12	Re: cam chain tensioner arm replacement Reply #7 - 05/04/15 at 22:27:14 Can I email you the pics?
Back to top	IP Logged

rxthumper YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 12	Re: cam chain tensioner arm replacement Reply #8 - 05/04/15 at 22:31:31 Sorry for the double post my tablet had a glitch!!!
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28923 L.A. California Gender:	Re: cam chain tensioner arm replacement Reply #9 - 05/04/15 at 22:42:54 rxthumper wrote on 05/04/15 at 22:27:14: Can I email you the pics? Sure, let me know if the email button doesn't work.
Back to top	Versey's Place Tech Section Index IP Logged

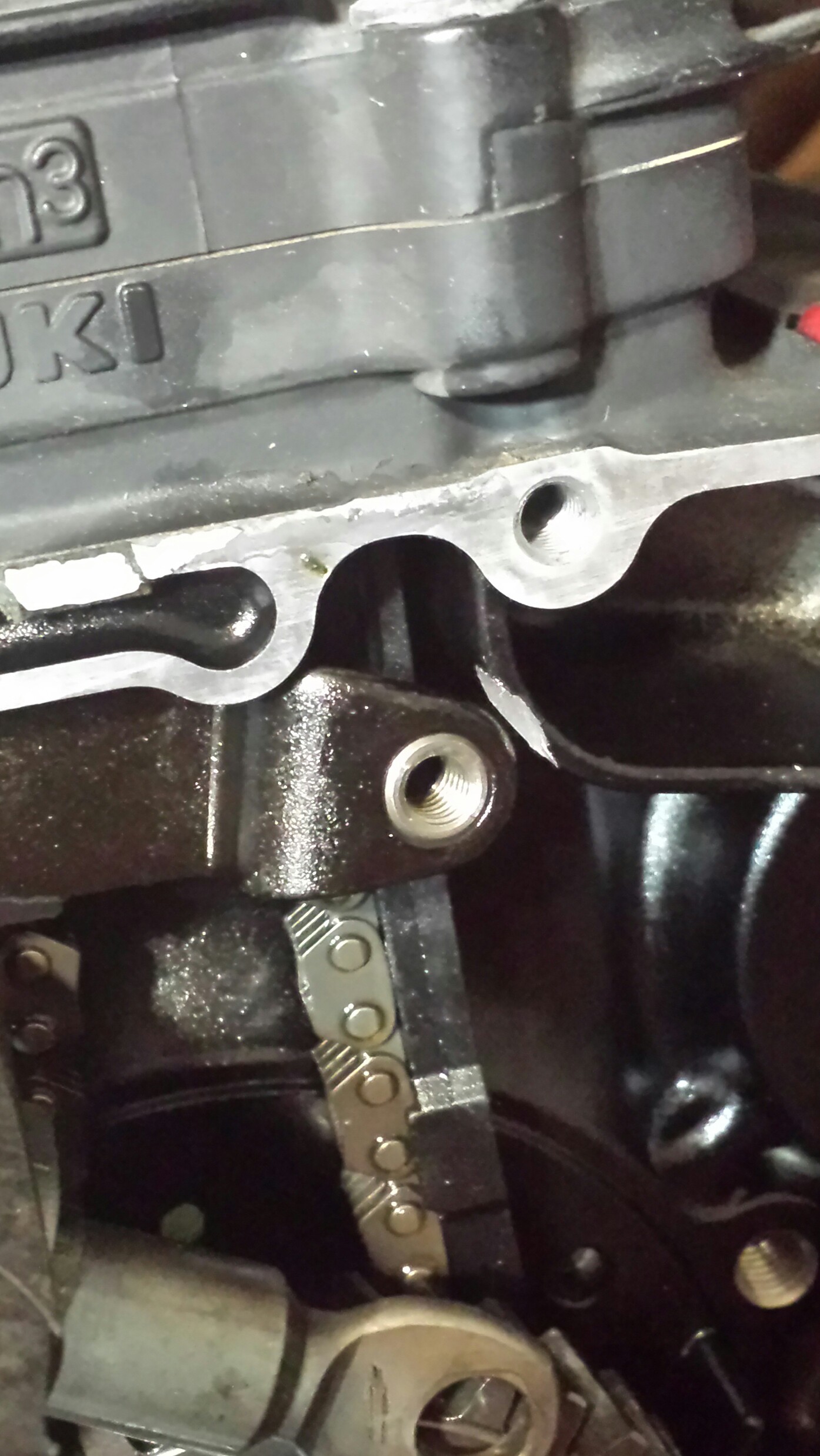

rxthumper YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 12	Re: cam chain tensioner arm replacement Reply #10 - 05/05/15 at 00:06:13 [img][/img]Hope this will shed some light on my issue!!!
Back to top	20150505_003743-1.jpg IP Logged

rxthumper YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 12	Re: cam chain tensioner arm replacement Reply #11 - 05/05/15 at 00:14:03 Back to my original question, can I replace the cam chain tensioner arm by taking the head off, if so, can I do it without removing engine from the frame, or do I have to remove the cylinder?
Back to top	IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28923
L.A. California
Gender: male

Re: cam chain tensioner arm replacement
Reply #12 - 05/05/15 at 07:14:51

rxthumper wrote on 05/05/15 at 00:14:03:

Back to my original question, can I replace the cam chain tensioner arm by taking the head off,

Yes
Quote:

if so, can I do it without removing engine from the frame,

Yes
Quote:

or do I have to remove the cylinder?

No

And as I said earlier, you might be able to replace the rear guide w/out removing the top. Just takes a bit of luck.
