vent tubes on stock airbox (Read 77 times)

Matt_greatlakesstate

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 58
Midland, MI
Gender: male

vent tubes on stock airbox
03/26/15 at 12:33:25

I just became the new owner of a 2001 savage and can't wait for summer Wink

. I have a question about the stock airbox. There is 2 vent tubes on the bottom of it one of mine is capped off and the other is just a hose thats ziptied up not connected to anything. I also have the vent tube on top of the head by the spark plug and that is not connected to anything and has no filter on it. what is the proper routing for these hoses? thanks

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17835
Camp Springs, Kentucky
Gender: male

Re: vent tubes on stock airbox
Reply #1 - 03/26/15 at 13:00:46

The zip tied tube that hangs down is a drain line for the air box.....the front part of the air box has a chamber that acts as a chamber for the crankcase vent from the engine. The vapors go to the front of the air cleaner and the oil and water drain down and flow into that tube....the vapors are burned in the engine. You are supposed to take the cap off the tube when you do an oil change and drain the chamber.

The vent tube from the top of the engine is supposed to connect to the front of the air cleaner housing....just left of the connection for the carb inlet hose.

http://www.hondaofflorence.com/fiche_section_detail.asp?section=432121&catego...

Someday I will be old......But not today!

IP Logged

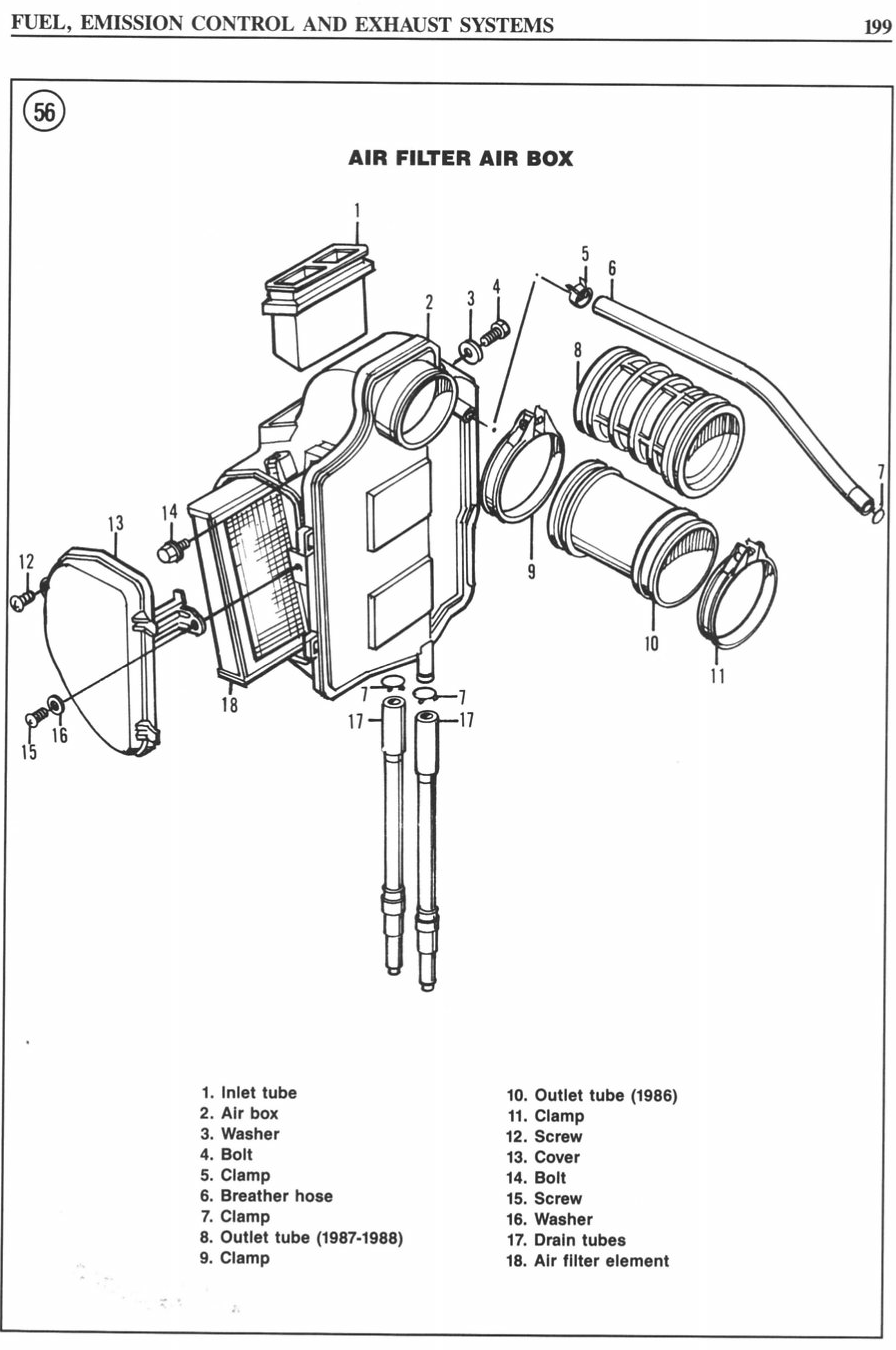

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2629 Amongst the Twisty Roads	Re: vent tubes on stock airbox Reply #2 - 03/26/15 at 13:04:39 From the OM
Back to top	Airbox.png A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 17835 Camp Springs, Kentucky Gender:	Re: vent tubes on stock airbox Reply #3 - 03/26/15 at 13:08:49 Gary: Wonder why the photo you posted has 2 vent tubes? Most bikes only have a single tube, and the other one is capped when it comes from the factory.
Back to top	Someday I will be old......But not today! IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28790 L.A. California Gender:	Re: vent tubes on stock airbox Reply #4 - 03/26/15 at 13:10:14 It's probably from the '86 manual. I think they originally had 2 tubes. Even shows an unreinforced intake tube.
Back to top	Versey's Place Tech Section Index IP Logged

Matt_greatlakesstate Junior Member Offline SuzukiSavage.com Rocks! Posts: 58 Midland, MI Gender:	Re: vent tubes on stock airbox Reply #5 - 03/26/15 at 13:20:23 thanks this has been very helpful. this site is awesome
Back to top	IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2629 Amongst the Twisty Roads	Re: vent tubes on stock airbox Reply #6 - 03/26/15 at 13:26:12 Dave wrote on 03/26/15 at 13:08:49: Gary: Wonder why the photo you posted has 2 vent tubes? Most bikes only have a single tube, and the other one is capped when it comes from the factory. Clymer M384-3, 1986-2004 I'm "fairly" certain that my '95 donor had two plugged vents at the bottom.
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged
