running lights (Read 105 times)

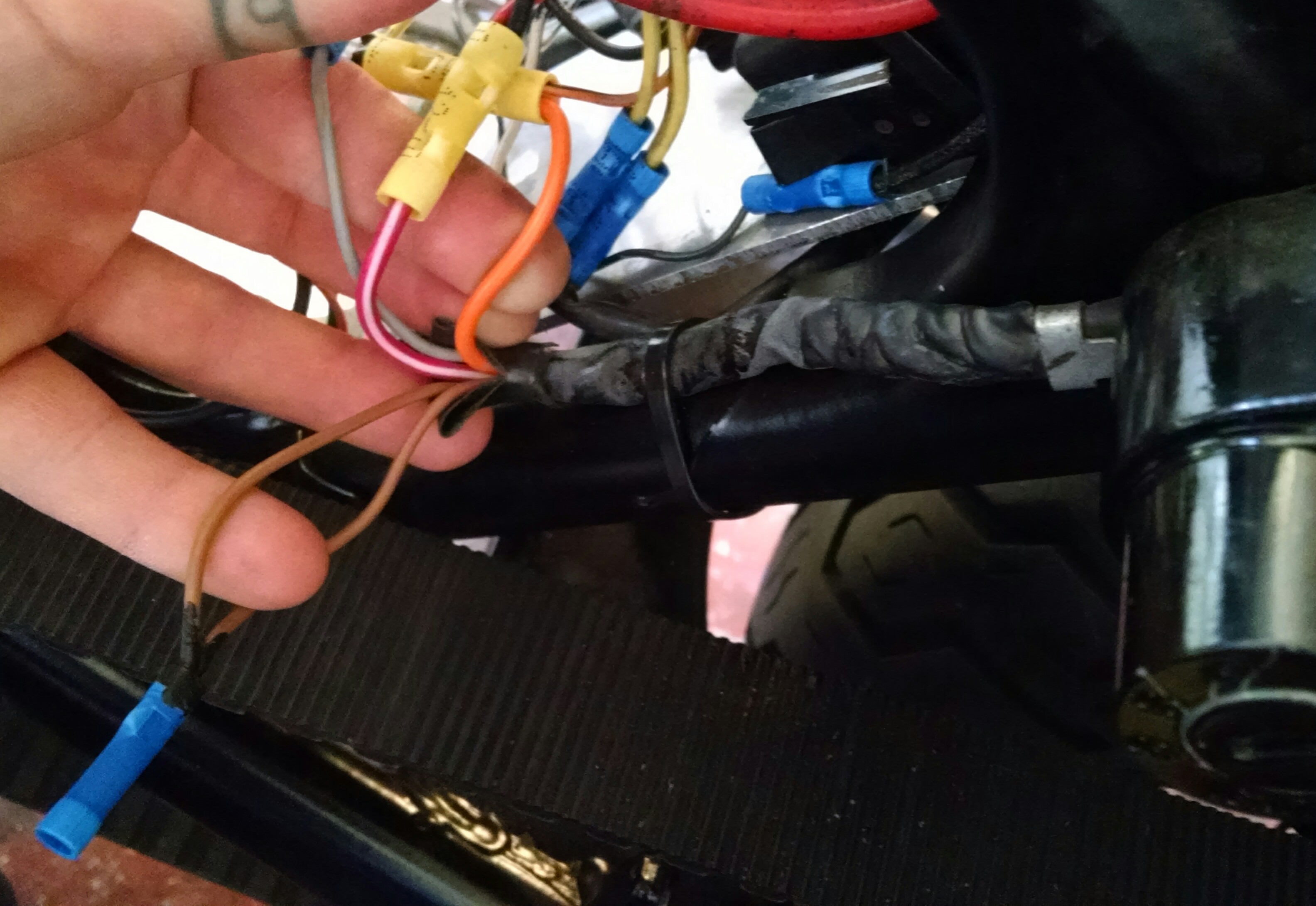

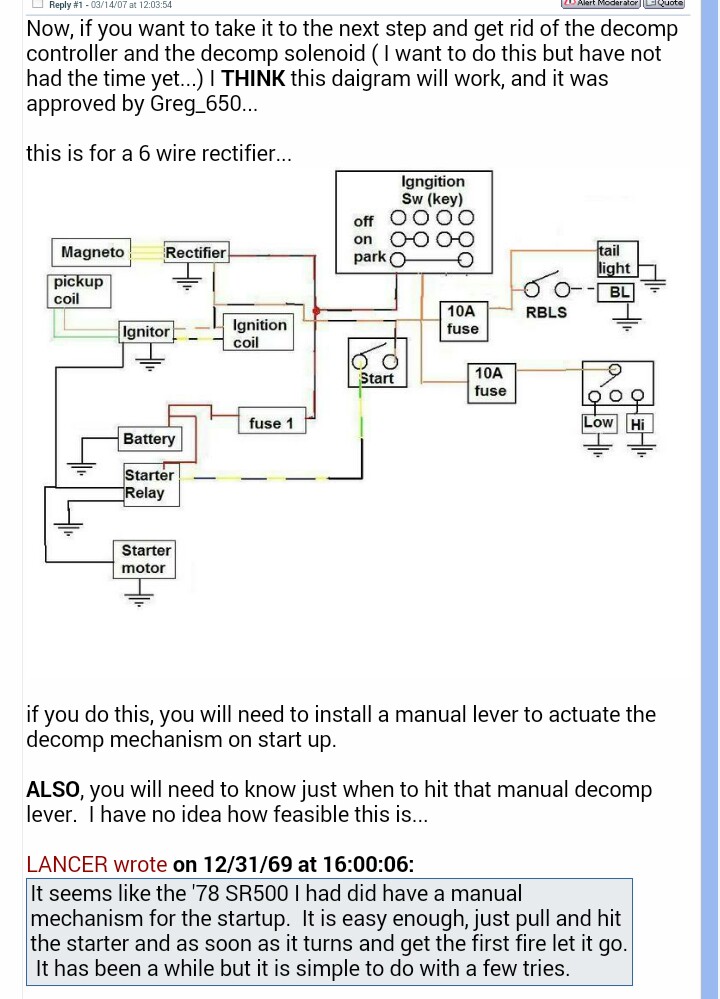

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	running lights 02/21/15 at 13:41:03 Are these two beige-ish wires (on my pinky) coming from my ignition switch for my running lights? this diagram says i can jst use the orange wire.
Back to top	IMG_20150221_133750.jpg '03 LS 650 bobber - Highly modified...crashed it. IP Logged

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: running lights Reply #1 - 02/21/15 at 13:47:30 orange
Back to top	IMG_20150221_134608.jpg '03 LS 650 bobber - Highly modified...crashed it. IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28884 L.A. California Gender:	Re: running lights Reply #2 - 02/21/15 at 13:56:42 the brown wire is for the tail light when the IG switch is set to park
Back to top	Versey's Place Tech Section Index IP Logged

Boogieman

Senior Member

Offline

Bang! Bang!

Posts: 284
NORCAL
Gender: male

Re: running lights
Reply #3 - 02/21/15 at 14:24:47

oh..dont need it, awesome! ok pls stay with me here cuz i been going at this wiring here and there and its making it impossible to remember and apply what you guys are telling me, so I'm just going to stick with it all day 2day and all day tomorrow and just get it done so pls stick with me if possible.

in that diagram the dimmer switch only shows the orange wire being connected to it. now I'm guessing that orange wire actually ends up connecting to the red/black wire coming out of my dimmer switch,, the white and the yellow go to the headlight and the black/white is the ground correct?

Also, can i wire in the front brake light switch using the gray wire from the ignition switch? that would mean it would need its own fuse ya? or nah to hell with another fuse?

'03 LS 650 bobber - Highly modified...crashed it.

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28884 L.A. California Gender:	Re: running lights Reply #4 - 02/21/15 at 21:46:06 might be something that I could help you with if it were in front of me but
Back to top	Versey's Place Tech Section Index IP Logged

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: running lights Reply #5 - 02/22/15 at 12:14:20 thats alright. i thnk it'll work. thnx for responding
Back to top	'03 LS 650 bobber - Highly modified...crashed it. IP Logged
