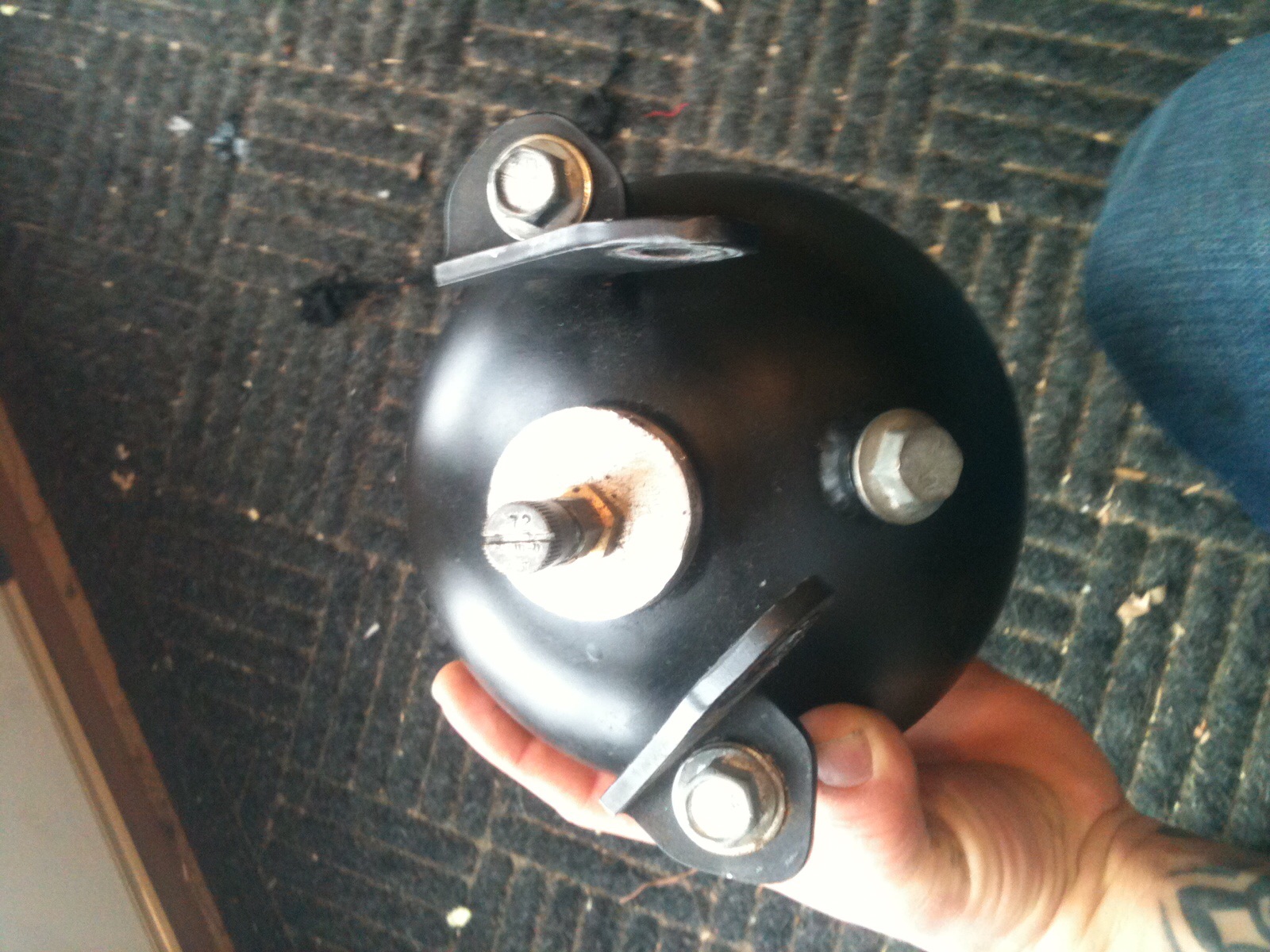

jorge__mendez Junior Member Offline SuzukiSavage.com Rocks! Posts: 74	Re: re positioning carb Reply #15 - 02/09/15 at 09:50:34 ACME bomb
Back to top	image_205.jpg IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2633 Amongst the Twisty Roads	Re: re positioning carb Reply #16 - 02/09/15 at 09:55:37 Not a flooded lead-acid battery, but a gel or AGM batteries don't have a specific "up" installation orientation. The bomb looks interesting. What is the approximate diameter?
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

jorge__mendez Junior Member Offline SuzukiSavage.com Rocks! Posts: 74	Re: re positioning carb Reply #17 - 02/09/15 at 10:02:39 Gary_in_NJ wrote on 02/09/15 at 09:55:37: Not a flooded lead-acid battery, but a gel or AGM batteries don't have a specific "up" installation orientation. The bomb looks interesting. What is the approximate diameter? I would say around 5-6" diameter approx. And the battery I have is a Big Crank battery. It says NON-SPILLABLE.
Back to top	IP Logged

Gary_in_NJ

Serious Thumper

Offline

LS650 Cafe Racer

Posts: 2633
Amongst the Twisty Roads

Re: re positioning carb
Reply #18 - 02/09/15 at 10:12:56

The problem with the bomb is that there's no convenient way to to gain access to the inside to mount a K&N or similar filter. I think you'd need two openings;

1. For the carb inlet. That would need to be about 1-3/4".
2. For airlet. Given the constraints of the shape of the bomb I think you'd need to remove the lower 1/3 of the tank to have enough room to inset a small K&N filter.

Back to top

A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG

IP Logged

jorge__mendez Junior Member Offline SuzukiSavage.com Rocks! Posts: 74	Re: re positioning carb Reply #19 - 02/09/15 at 10:30:37 That kinda sounds like im not gona have a "bomb" looking tank anymore with all that cutting. How about moving the battery? Will that give it more room?
Back to top	IP Logged

Gary_in_NJ

Serious Thumper

Offline

LS650 Cafe Racer

Posts: 2633
Amongst the Twisty Roads

Re: re positioning carb
Reply #20 - 02/09/15 at 10:58:56

The Big Crank battery is an AGM battery that is Sealed, Leakproof, and Spillproof so it can be mounted in any orientation.

As far as the oil tank as air filter box concept, it's just gonna be difficult with a sphere. An old school oil tank is really a perfect hiding spot for an airbox. But it looks like you already have the hardware in hand (literally).

Back to top

A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG

IP Logged

EJID Serious Thumper Offline Work to ride and ride to work. Posts: 1536 Pocatello, ID Gender:	Re: re positioning carb Reply #21 - 02/09/15 at 13:25:56 If you can figure a way to mount that battery on the muffler bracket, you can open up that whole area where the batter & air box currently are so that you can drop that bomb in there... http://suzukisavage.com/cgi-bin/YaBB.pl?num=1404924608/1#1
Back to top	05 S40 15" Memphis Slim, FXDWG Bars, Moved Rear Signals, Saddlebags, Fork Bag, Mini-Tach, Raptor, Cone Filter, Fishtail Muffler, Mix Screw Out 2.5 Turns, 4" Fwd Controls, 147.5 Main/55 Pilot @ 4500 IP Logged

jorge__mendez Junior Member Offline SuzukiSavage.com Rocks! Posts: 74	Re: re positioning carb Reply #22 - 02/09/15 at 17:09:15 I think thats what Im going to end up doing. Figuring out a way to place the battery somewhere else and see how much space I have to work on the carb filter. If not I will just go for the stock filter. I will check tomorrow and see how much space I got.
Back to top	IP Logged

49mack

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 42

Re: re positioning carb
Reply #23 - 02/10/15 at 05:33:38

Dave, I am still having trouble getting my bike to run over 65. I took it to a seemingly knowledgeable Suzuki mechanic (40 years experience) at a local shop and asked him to go over my jetting and float settings. He said he wouldn't touch it until I re-installed the stock air box. He swears the bike will not run well with a pod or round K&N. But my bike ran poorly before I removed the airbox and added a Dyna muffler, white spacer mod, etc. But this gives ride to a question: How do all those Ryca kits run with a K&N or a cone???
I'd appreciate hearing from anyone with a California bike and has "desmogged" it. Ride Safely!

Back to top

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: re positioning carb
Reply #24 - 02/10/15 at 05:45:35

49Mack:

If your bike won't go over 65, there is something wrong with it. It must not be making the normal amount of HP for a stock bike. It could be lots of things, and it needs to be sorted out. The slide in the carb could be sticking, the fuel flow could be limited - if you have the stock vacuum petcock and a different air filter....or the diaphragm is getting stiff or leaky, the fuel flow through the petcock could be too low. Some cone air filters block the hole at the top of the inlet to the carb and make the bike run weird...the rubber has to be trimmed away from the carb inlet to allow air to flow into that hole at the top of the inlet. Your engine could be low on compression, the cam/rockers could be worn and you may not be getting the valve lift or duration you should have.

At this point we don't know enough about your bike to help with a diagnosis. Has your bike ever run well? Did you buy it already modified and the lack of performance came with the bike when you bought it?
