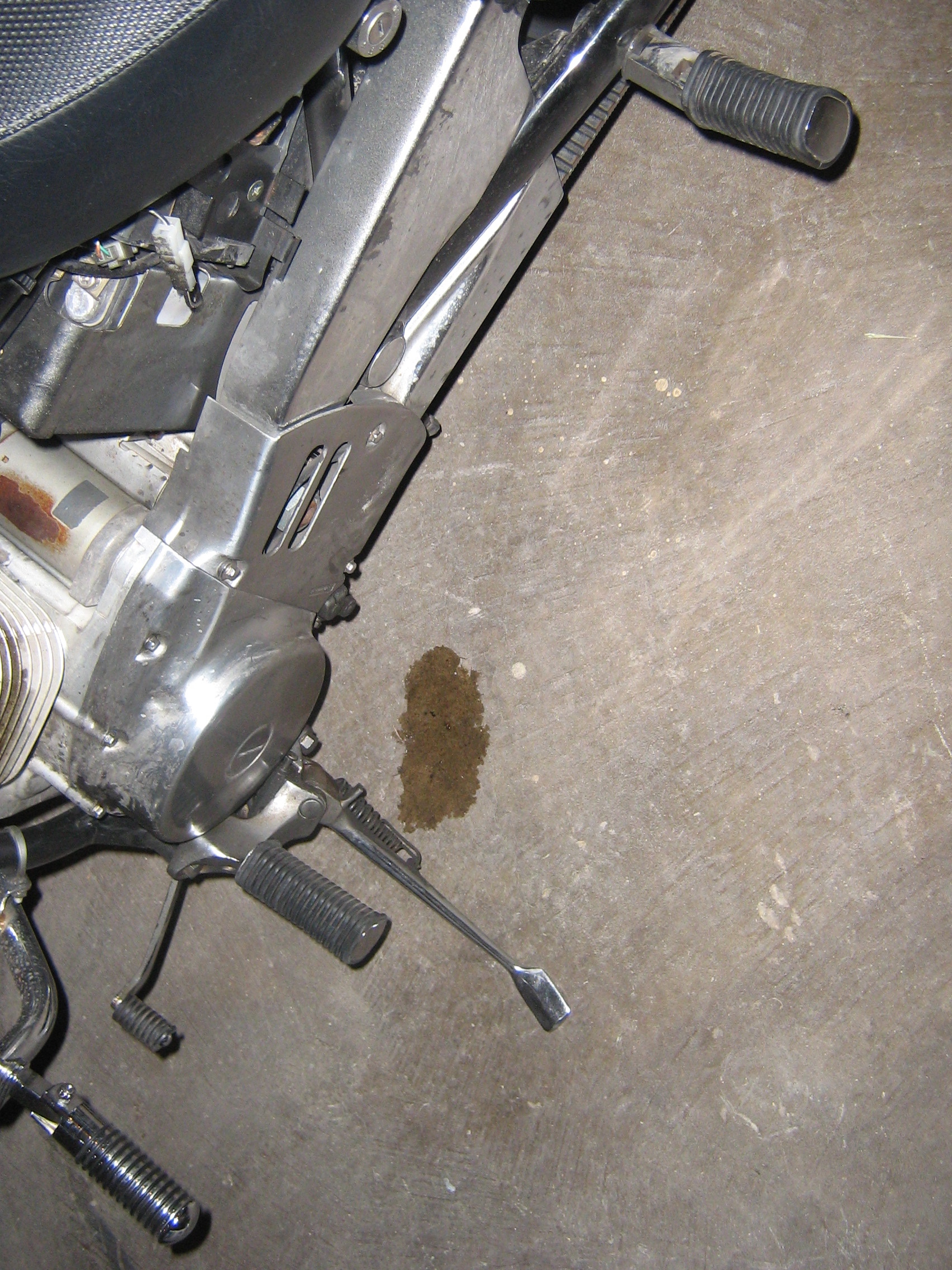

spearheadss Full Member Offline SuzukiSavage.com Rocks! Posts: 161 Wylie, TX Gender:	Oil spot below kick stand 12/03/14 at 18:54:52 First, a little about the bike. I believe it is all stock except for the Raptor petcock, I replaced the original with. I bought the bike last spring and believe the Plug/Cap leaks. I need to check that out. As it is winter time here I will be tearing the bike down. I just have no clue as to where the oil spot is coming from. Any suggestions?
Back to top	IMG_1374.jpg 2001 Suzuki Savage. Screaming Eagle exhaust. Raptor Petcock. Routy's Forward Controls. 150 Main and 50 pilot. IP Logged

1st2know

Senior Member

Offline

Currently between
Savages

Posts: 295
Seattle, WA
Gender: male

Re: Oil spot below kick stand
Reply #1 - 12/03/14 at 21:23:25

Are you sure that's oil?
edit: verify that it's not gas leaking before doing anything. Starting the bike with a leak like that would start a fire.

Make sure the bolts holding the pegs in as well as the bolt by kickstand. Those go through the frame and the engine case and out the other side through the upper heat shield - when they're loose, you'll get a small leak. (that doesn't look like a small leak)

After that, check around the stator cover and shifter seals.

What year is the machine and how many miles/kms?

Back to top

Kaw VN1700, V-Strom 650, Coal powered Chevy Spark.

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28886 L.A. California Gender:	Re: Oil spot below kick stand Reply #2 - 12/03/14 at 21:34:03 when oil comes out the top... sooner or later it'll make it's way to the bottom.
Back to top	Versey's Place Tech Section Index IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28660 Tucson Az Gender:	Re: Oil spot below kick stand Reply #3 - 12/03/14 at 22:19:07 Uh oh!,... leaky kickstand... ...
Back to top	Ludicrous Speed !... ... ... IP Logged

Steve H Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1223 Spartanburg, SC Gender:	Re: Oil spot below kick stand Reply #4 - 12/04/14 at 02:20:34 Man, I hate it when the kickstand springs a leak.
Back to top	87 LS650, 2005 Ninja 250, 2009 Yamaha C3, 2001 Honda Reflex. On 2 wheels since 6/80. IP Logged

raydawg Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 11551 pacific northwest Gender:	Re: Oil spot below kick stand Reply #5 - 12/04/14 at 03:36:40 Steve H wrote on 12/04/14 at 02:20:34: Man, I hate it when the kickstand springs a leak. The kickstand spring can leak? :'(
Back to top	“The biggest big business in America is not steel, automobiles, or television. It is the manufacture, refinement and distribution of anxiety.”—Eric Sevareid (1964) IP Logged

Philmh Junior Member Offline SuzukiSavage.com Rocks! Posts: 61	Re: Oil spot below kick stand Reply #6 - 12/04/14 at 09:58:50 That's what mine looked like when I bought it. From what it looks like, you have oil leaking around your fins as well. Mine was a mess like that and I narrowed it down to a leaky plug. Granted I am new at this and have yet to complete the repair. Start with sealing up the plug and go from there.
Back to top	IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18098 Camp Springs, Kentucky Gender:	Re: Oil spot below kick stand Reply #7 - 12/04/14 at 10:52:27 No.....start with tightening the motor mount/peg bolts.....that is only a 10 minute chore. Then get to the head plug - which is a 6 hour chore the first time you do it.
Back to top	Someday I will be old......But not today! IP Logged

Bubba

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 956
Denver, CO
Gender: male

Re: Oil spot below kick stand
Reply #8 - 12/04/14 at 11:54:34

Similar to the leak I was getting...
2006...never leaked and then I noticed a leak right about there...the kickstand was getting some oil on it too...

I think I isolated it to the stator bolt right above the rear of the shift lever...i've snugged it up (be careful those bolts are easy to snap) and it appears to have gone away...

I also snugged up the peg bolts that run through the engine case just for good measure.

Back to top

'06 lt Blue, Dyna Power pipe, air screw 2 1/4 turns, 52.5 pilot w/ bleed holes, 150 Main, 2/3 spacer, Pirelli MT66 tires, Raptor petcock, 412-4006 Progressive shocks

IP Logged

spearheadss Full Member Offline SuzukiSavage.com Rocks! Posts: 161 Wylie, TX Gender:	Re: Oil spot below kick stand Reply #9 - 12/04/14 at 15:21:59 Thanks for all of the suggestions. I'll get to checking those out and then post when I figure it out.
Back to top	2001 Suzuki Savage. Screaming Eagle exhaust. Raptor Petcock. Routy's Forward Controls. 150 Main and 50 pilot. IP Logged

spearheadss Full Member Offline SuzukiSavage.com Rocks! Posts: 161 Wylie, TX Gender:	Re: Oil spot below kick stand Reply #10 - 12/04/14 at 15:23:06 Serowbot wrote on 12/03/14 at 22:19:07: Uh oh!,... leaky kickstand... ... It can't possibly be a leaky kickstand. I just put new rings in there.
Back to top	2001 Suzuki Savage. Screaming Eagle exhaust. Raptor Petcock. Routy's Forward Controls. 150 Main and 50 pilot. IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28660 Tucson Az Gender:	Re: Oil spot below kick stand Reply #11 - 12/04/14 at 16:43:57 ... ...
Back to top	Ludicrous Speed !... ... ... IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Oil spot below kick stand Reply #12 - 12/05/14 at 21:23:50 Maybe its all GOOD! Maybe its all REAL Good!,, Maybe it ISNT an oil Leak from the bike at all,, Maybe its a Gusher just tryin to oooze up thru your driveway,,
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

anebv8 Senior Member Offline SuzukiSavage.com Rocks! Posts: 280 Rangiora,New Zealand Gender:	Re: Oil spot below kick stand Reply #13 - 12/15/14 at 22:53:15 mine leaves a puddle there too,was thinking it was coming from clutch cover and trickling along the bolts or the oil bung,only things I've touched...lately
Back to top	my_bike_008.jpg Ago Solvo Intereo Puteus IP Logged

jashmash21 YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 8	Re: Oil spot below kick stand Reply #14 - 12/16/14 at 10:34:40 I had the same leak right after I had done some work on the bike. Tightening up the motor mount foot-peg bolts seemed to have done the trick. No more leaking kickstand, one month and counting
