Drive belt guards (Read 83 times)

hangsout

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 26
Oshawa ont
Gender: male

Drive belt guards
11/26/14 at 19:49:07

Hi everyone. So I have been picking away at my 87 savage project and have run into a problem. Please bare with me as my termination may not be correct..... Here we go. When trying to put parts back on I ran into a problem. We are talking about the upper and lower belt guards and the front drive pully cover (1n234). When I try to put on the lower belt guard it seems to be to far forward and rubs against the front drive pully. I'm wondering if I misplaced a spacer or something. Also it's been a year since I took the tins off and I'm not sure if the lower guard mounting point goes over the top belt guard or under it. Been trying to find pics to see if I'm missing something but to no avail. If someone could point me to an exploded view that would be great. Thanks in advance

Stan

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28760 L.A. California Gender:	Re: Drive belt guards Reply #1 - 11/26/14 at 20:39:58 lower 1st then upper. if you're having problems, a pic or two will help.
Back to top	Versey's Place Tech Section Index IP Logged

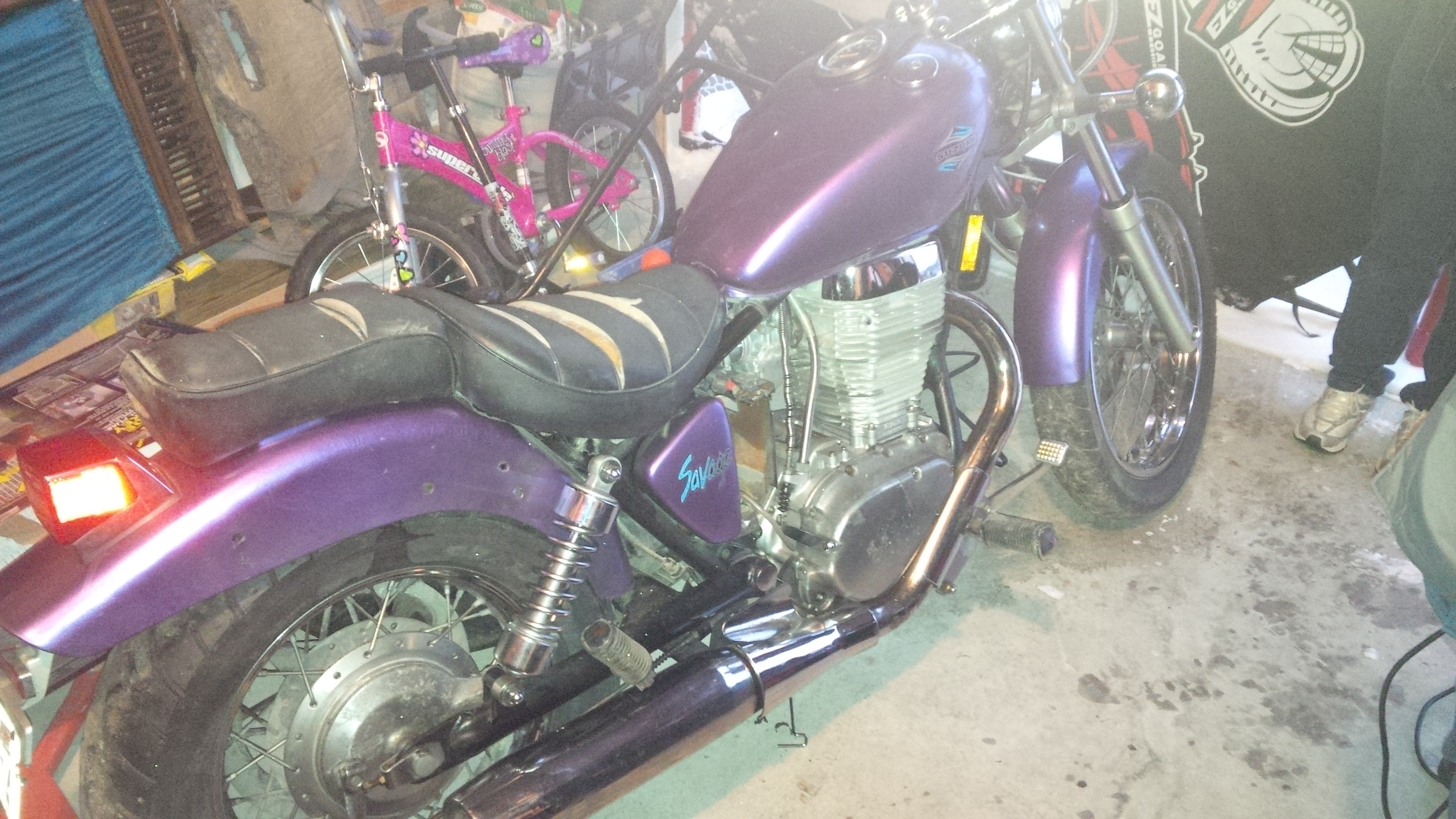

hangsout YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 26 Oshawa ont Gender:	Re: Drive belt guards Reply #2 - 11/26/14 at 21:09:06 Thanks for the reply. Yes i understand the hunger for pictures. I dont have any of the priblem but i do have a few older ones that i will try to post. I will take pics of the priblem tmoro. Here (hopefully) is what i started with last winter.
Back to top	IMG_00000216.jpg IP Logged

hangsout YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 26 Oshawa ont Gender:	Re: Drive belt guards Reply #3 - 11/26/14 at 21:12:33 Didnt like the color so i did this.
Back to top	IMG_20140420_183029.jpg IP Logged

hangsout YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 26 Oshawa ont Gender:	Re: Drive belt guards Reply #4 - 11/26/14 at 21:14:17 Hmmmm. Can i only put in one pic per post?
Back to top	IMG_20140418_173240.jpg IP Logged

hangsout YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 26 Oshawa ont Gender:	Re: Drive belt guards Reply #5 - 11/26/14 at 21:15:47 Thought i would like this....
Back to top	IMG_20140421_152007.jpg IP Logged

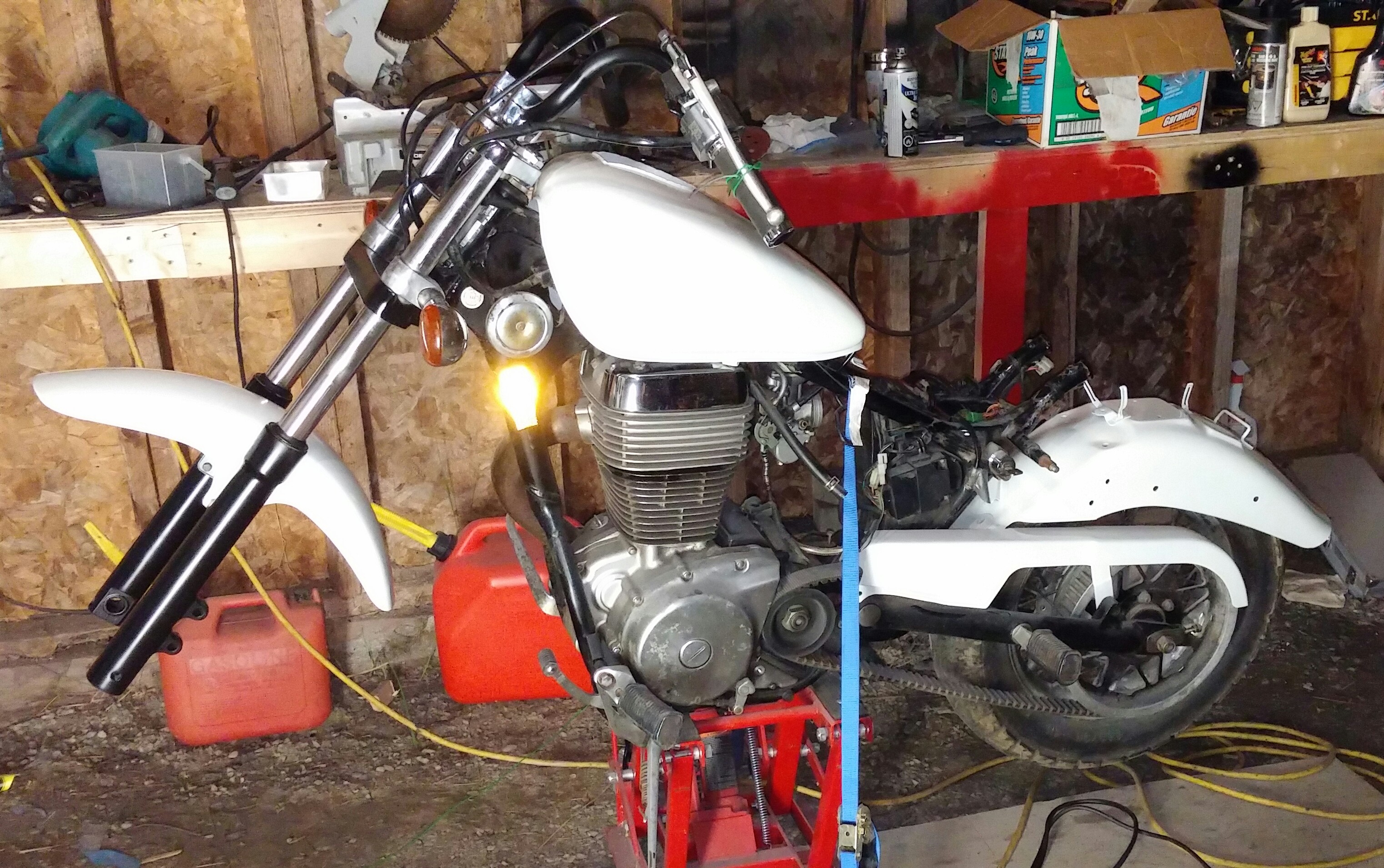

hangsout YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 26 Oshawa ont Gender:	Re: Drive belt guards Reply #6 - 11/26/14 at 21:36:19 But decided to go more like this...(just mock up)
Back to top	20141004_0245472.jpg IP Logged

hangsout YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 26 Oshawa ont Gender:	Re: Drive belt guards Reply #7 - 11/26/14 at 21:38:32 I will post more up to date and problem specific pictures tomoro. Again thanks.
Back to top	IP Logged

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	Re: Drive belt guards Reply #8 - 11/26/14 at 21:54:49 Personally I like white. Yes you can post multiple pics in one post.
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28760 L.A. California Gender:	Re: Drive belt guards Reply #9 - 11/26/14 at 22:26:08 paulmarshall wrote on 11/26/14 at 21:54:49: Personally I like white. Yes you can post multiple pics in one post. He's uploading them, so no, he can only show one at a time.
Back to top	Versey's Place Tech Section Index IP Logged

Demin Serious Thumper Offline We need more chlorine in the gene pool Posts: 2435 Warren,Ohio Gender:	Re: Drive belt guards Reply #10 - 11/27/14 at 05:08:17 I liked the purple...But that's me.
Back to top	Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE finish '77 Yamaha XS650 bobber Bought another one finish'79 Harley custom bobber(NEXT) IP Logged

hangsout

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 26
Oshawa ont
Gender: male

Re: Drive belt guards
Reply #11 - 11/27/14 at 07:23:53

The bike is for my wife and she likes the white and black thing so..... Eventually its gonna get bobbed. This is to get her comfortable riding her own machine. Once she's good to go it will get hacked down. I saw a spot that says "how to add pictures" or something so I will read that before I post more. Maybe I won't sound like William shattered typing. One pic at a time is a bit of a time waster I think. Also, I was looking last night and can't seem to find where I change my location. If anyone could direct me that would be good.
Okay. Have a great day.

S

IP Logged
