Timing cover replacement... hex head...
11/15/14 at 08:46:43

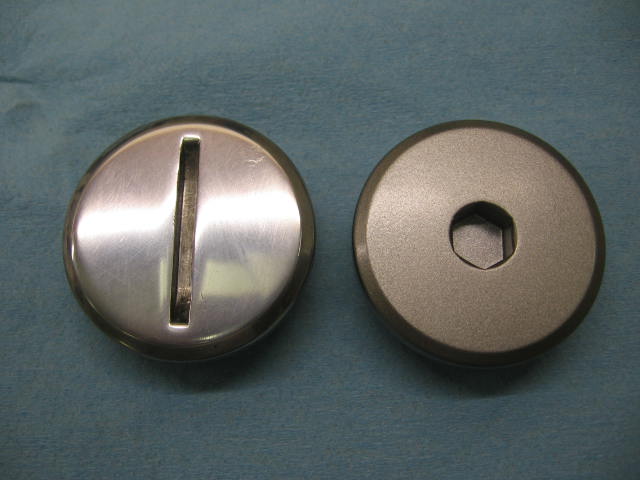

If you are looking to replace your slotted timing port cover with a hex head, chromed... you want to order one from a M50/C50 or VS800 Intruder...
Cost is about $12.00... + shipping or tax...
...or,...DR650 that appears to be the same - but is painted, it is part number 09259-36016-20H, and it was $ 9.00...

Part # 09259-36008(chrome)...09259-36016-20H(painted)...
Back to top

« Last Edit: 12/05/14 at 09:24:09 by Serowbot »

Ludicrous Speed !... ... Huh...
  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 16839
Camp Springs, Kentucky
Gender: male
Re: Timing cover replacement... hex head...
Reply #1 - 01/15/15 at 04:06:04

I just got my plug for the DR650.....Suzuki Part #09259-36016-20H.

It fits the bike fine, and the paint can be stripped off and the part buffed to match the polished aluminum engine case.
