handlebar risers (Read 540 times)

brownie17 Junior Member Offline Riding the wave. Posts: 56 Indiana Gender:	handlebar risers 09/30/14 at 18:44:25 What's a good height riser for drag bars so they don't hit the tank?
Back to top	IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1380 surrey, b.c. Gender:	Re: handlebar risers Reply #1 - 09/30/14 at 20:14:47 If you use the base platform of the stock risers, you should have enough clearance. Tried it once, OK. You will need a shorter brake line.
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28751 L.A. California Gender:	Re: handlebar risers Reply #2 - 09/30/14 at 20:27:45 depends on the year. newer years have the throttle cable come out of the control in the front older out the bottom. I have Z bars with 3" of rise, that's the lowest I would recommend.
Back to top	Versey's Place Tech Section Index IP Logged

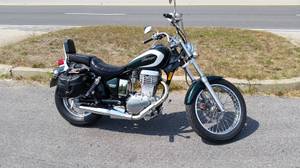

brownie17 Junior Member Offline Riding the wave. Posts: 56 Indiana Gender:	Re: handlebar risers Reply #3 - 10/01/14 at 03:19:16 I have the handlebars like in this picture. I would like to go with about 2" riser and drag bars. Will I need to get new cables?
Back to top	post_image1_001.jpg IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1380 surrey, b.c. Gender:	Re: handlebar risers Reply #4 - 10/01/14 at 12:29:16 those look taller than the risers you want. the cable will probably need replacing/shortened. I have lower bars than stock and the brake line was way too long to fit properly. Throttle wasn't a problem.
Back to top	IP Logged

brownie17 Junior Member Offline Riding the wave. Posts: 56 Indiana Gender:	Re: handlebar risers Reply #5 - 10/01/14 at 13:12:38 My bike is a 2000 with stock handlebars. They have a small riser at the bottom. I made a couple 1 1/2 risers to go on top of them. Those risers with drag bars is my goal.
Back to top	IP Logged

Demin Serious Thumper Offline We need more chlorine in the gene pool Posts: 2435 Warren,Ohio Gender:	Re: handlebar risers Reply #6 - 10/01/14 at 13:46:57 I think it was Cflow that used to be on here.Did his like that and he had to use broomstick bars.So it would clear the tank.
Back to top	Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE finish '77 Yamaha XS650 bobber Bought another one finish'79 Harley custom bobber(NEXT) IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28751 L.A. California Gender:	Re: handlebar risers Reply #7 - 10/01/14 at 13:56:24 what width drag bars are you going to use?
Back to top	Versey's Place Tech Section Index IP Logged

Demin Serious Thumper Offline We need more chlorine in the gene pool Posts: 2435 Warren,Ohio Gender:	Re: handlebar risers Reply #8 - 10/01/14 at 15:24:35 I know the stock drag bars won't clear.Maybe a couple inches wider will work.
Back to top	Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE finish '77 Yamaha XS650 bobber Bought another one finish'79 Harley custom bobber(NEXT) IP Logged

brownie17 Junior Member Offline Riding the wave. Posts: 56 Indiana Gender:	Re: handlebar risers Reply #9 - 10/01/14 at 15:47:50 I think I'll mock them up, test them and have them custom made. I'll pay some pics later.
Back to top	IP Logged

brownie17 Junior Member Offline Riding the wave. Posts: 56 Indiana Gender:	Re: handlebar risers Reply #10 - 10/01/14 at 15:48:38 I meant to say, I'll post some pics later.
Back to top	IP Logged

gizzo

Serious Thumper

Offline

SuzukiCabbage. It's
Savage.

Posts: 1318
Australia

Re: handlebar risers
Reply #11 - 10/01/14 at 23:42:13

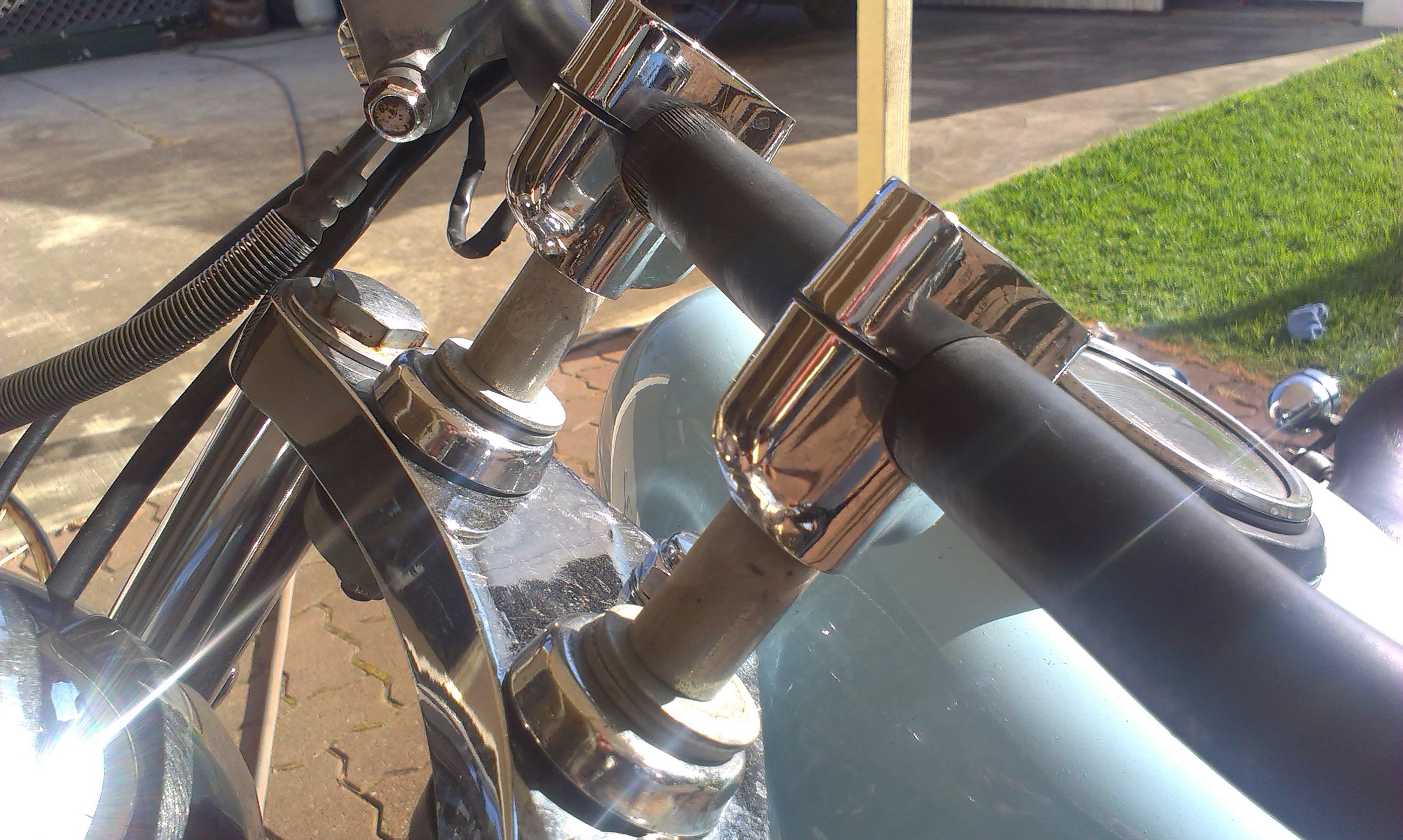

Just measured mine. I have 3" between the top triple clamp and the bottom of the handlebar. The actual riser height is 1.5" of tube between the rubber/chrome mount thing on the top clamp and the original handlebar clamp. In other word, the original bar riser arrangement plus 1.5".
I'll take a pic. The flat washers are because the tubes I had were that much too short. The tube + washers = 1.5"
My bars are flat drag bars with 2" pullback. That clears the tank only just.
The stock cables and brake hose work fine on my one.
Hope that makes sense and is helpful.


IP Logged

brownie17 Junior Member Offline Riding the wave. Posts: 56 Indiana Gender:	Re: handlebar risers Reply #12 - 10/02/14 at 03:18:51 Thanks. That's exactly the same measurement on my risers. How wide are your handlebars? Could you post a pic a little farther back so I can see the setup?
Back to top	IP Logged

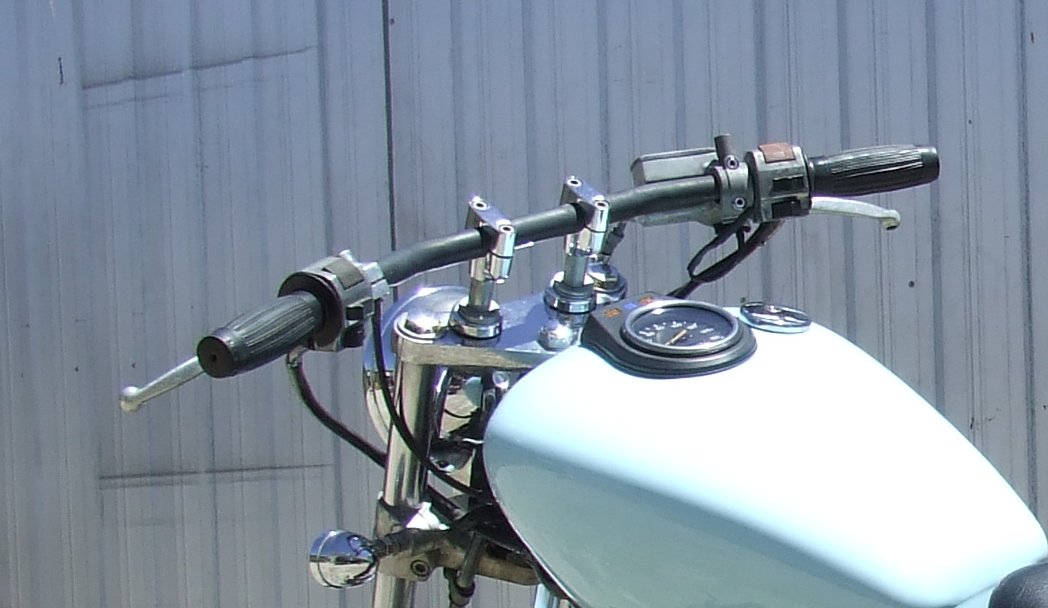

gizzo Serious Thumper Offline SuzukiCabbage. It's Savage. Posts: 1318 Australia	Re: handlebar risers Reply #13 - 10/02/14 at 04:06:46 No worries. the pic makes it look like the bars are pointing up a bit, they're not really. The pulled back tip are in at 90 deg to a line through the risers, so the point down a little. The bars are 29" tip to tip. HTH.
Back to top	bar_pic.jpg IP Logged

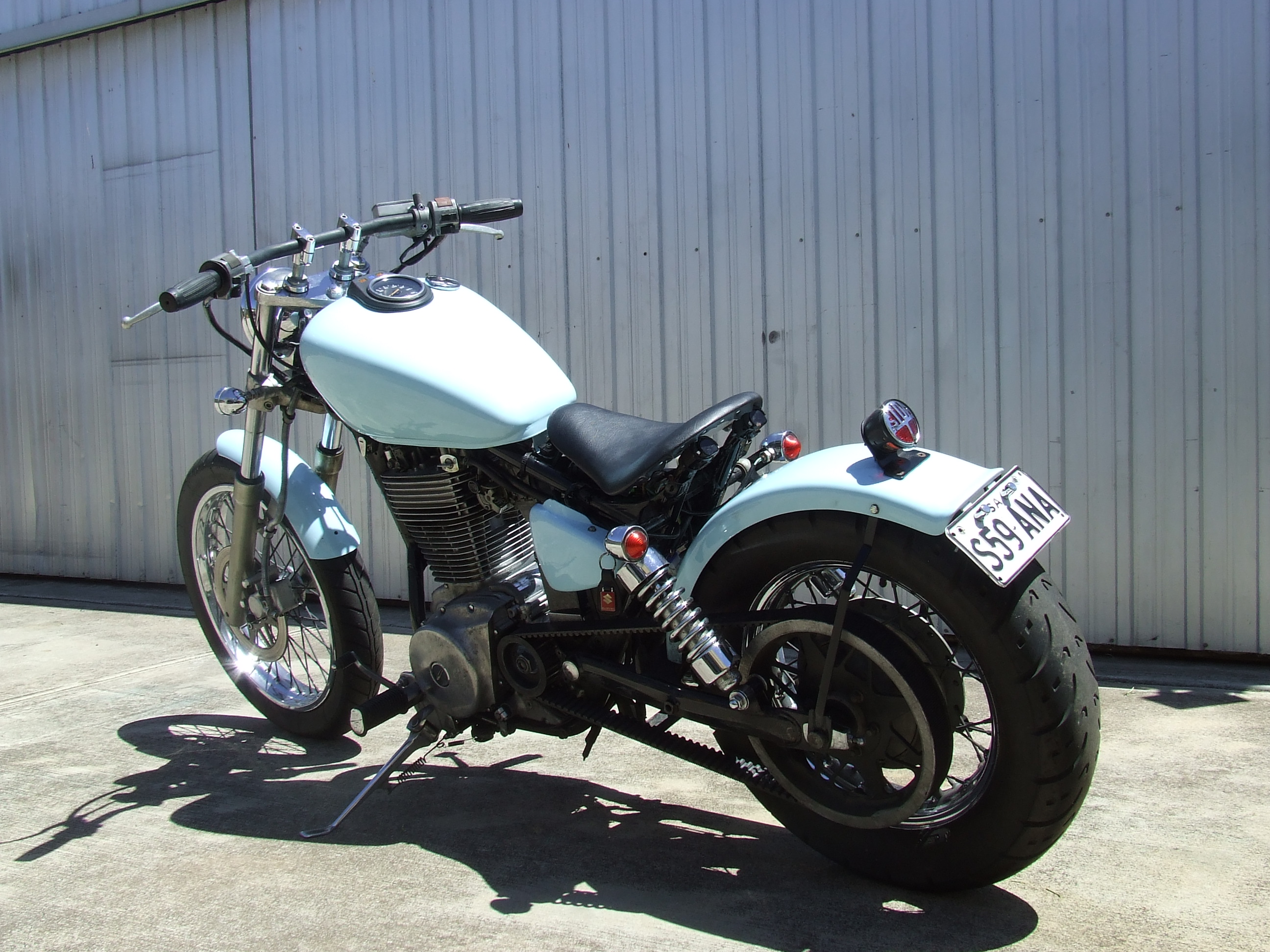

gizzo Serious Thumper Offline SuzukiCabbage. It's Savage. Posts: 1318 Australia	Re: handlebar risers Reply #14 - 10/02/14 at 04:10:06 May as well post one of the full scooter. The bars suit it (IMO )
Back to top	DSCF6356_001.JPG IP Logged
