Demin Serious Thumper Offline We need more chlorine in the gene pool Posts: 2435 Warren,Ohio Gender:	Re: Fork mounted headlight options Reply #15 - 09/21/14 at 05:20:08 Why not drill 1 hole and put a base mount light on it?Drilled the bottom tree of my '86 and mounted a custom light.
Back to top	Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE finish '77 Yamaha XS650 bobber Bought another one finish'79 Harley custom bobber(NEXT) IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Fork mounted headlight options Reply #16 - 09/21/14 at 06:05:47 I wanna say Paladin had a light that looked like it came off of a locomotive.. I liked that thing.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

ezornes239 Junior Member Offline SuzukiSavage.com Rocks! Posts: 82	Re: Fork mounted headlight options Reply #17 - 09/23/14 at 17:33:53 Got everything today. darn brackets are supposed to fit 35-38mm forks, but they barely work, gonna have to buy longer bolts and they don't even come close to meeting each other. Got them because they were the cheapest and I thought they'd fit, But might have to spring for more expensive ones that go up to 41mm...
Back to top	IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18098 Camp Springs, Kentucky Gender:	Re: Fork mounted headlight options Reply #18 - 09/25/14 at 10:26:02 I am a bit confused by Dime City's description. In one area they claim the lense is plastic, and then in their written description they say it is euro style glass lens. http://www.dimecitycycles.com/black-and-chrome-7-inch-metric-style-headlight-... What is it........glass or plastic?
Back to top	Someday I will be old......But not today! IP Logged

mpescatori Serious Thumper Offline Romanum Thumperium Cavalco, yeaaah !!! Posts: 3547 Rome, Italy Gender:	Re: Fork mounted headlight options Reply #19 - 09/26/14 at 03:58:31 Kris01 wrote on 09/18/14 at 20:30:59: What is the extra bulb in the housing? That "extra light" is the parking light which is mandatory in Europe. The Savage has it as well, I believe, because if you "switch off" by turning your key up instead of down, the parking lights stay on, front and rear.
Back to top	Maurizio Pescatori, Esq. Gentleman Rider Mikuni BST40, K&N filter, Stage2 cam, Verslagen tensioner, Sportster muff, 120 proof moonshine, Pirelli MT 66 tourers... and a chain conversion too ! IP Logged

Fishbulb

Ex Member

Re: Fork mounted headlight options
Reply #20 - 09/26/14 at 06:42:37

Why bother finding out? Buy the shell only and put a 7" Hella or Cibie H4 headlight in there.

Dave wrote on 09/25/14 at 10:26:02:

I am a bit confused by Dime City's description. In one area they claim the lense is plastic, and then in their written description they say it is euro style glass lens.

http://www.dimecitycycles.com/black-and-chrome-7-inch-metric-style-headlight-...

What is it........glass or plastic?

Back to top

IP Logged

cafecarl Junior Member Offline I love old motorcycles Posts: 58 Maine Gender:	Re: Fork mounted headlight options Reply #21 - 09/26/14 at 07:20:46 I bought a headlight from DCC. It was the chrome euro model I think. The lens was glass. Since I had the wire loom apart anyway, I connected the small bulb to the park circuit as previously stated in other posts. Works fine but I never use it.
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: Fork mounted headlight options
Reply #22 - 09/26/14 at 08:43:00

Fishbulb wrote on 09/26/14 at 06:42:37:

Why bother finding out? Buy the shell only and put a 7" Hella or Cibie H4 headlight in there.

Dave wrote on 09/25/14 at 10:26:02:

I am a bit confused by Dime City's description. In one area they claim the lense is plastic, and then in their written description they say it is euro style glass lens.

http://www.dimecitycycles.com/black-and-chrome-7-inch-metric-style-headlight-...

What is it........glass or plastic?

I think you are really on to something here. I had a car back in the 80's that had a 4 headlight system with 4 Cibie lights with 100 Watt bulbs - plus driving lamps with 100 Watt bulbs...... and it really lit up the road.

Here is a quote from the Danial Stern site:

There are four basic differences between Hella Vision Plus DOT and a Cibie / Hella ECE/E-code lamps.

First is in the lighting pattern. For us in the US, the regulations date from the 50's. The US DOT mandates a dispersed pattern that puts a percentage of the light output UP and to both sides of the road so that overhead or roadside signs, which may not have other lighting or reflective characteristics, are lit for you.

The European standard allows all the light to go on the road - they have a law that any overhead or roadside sign has to have it's own, independent lighting or must be highly reflective. So not only is there more light on the road with your low-beams, the high-beams are more precise as well. There is also a triangle of light on the right side to light up roadside signs.

The effect is that the E-code lights actually put more light on the road for you to drive with, and offend oncoming traffic MUCH LESS because of the sharp cutoff in the lighting pattern; and all of this with the same wattage lamps as in the US. That's on low beam. Because of the DOT low-beam requirements, and the resulting lens and reflector design, it's impossible to get a good high beam.

So if you buy a 7" bucket from Dime City, and then buy a 7" Hella or Cibie headlight assembly and install a good H4 bulb.....you are going to have about the best affordable headlight that you can get.

Satin Black Bucket - $ 54.95:
http://www.dimecitycycles.com/vintage-cafe-racer-caferacer-bobber-brat-choppe...

Chrome Bucket (Deep British style bucket) - $ 62.95:
http://www.dimecitycycles.com/vintage-cafe-racer-caferacer-bobber-brat-choppe...

Gloss Black Bucket - $ 74.95:
http://www.dimecitycycles.com/vintage-cafe-racer-caferacer-bobber-brat-choppe...

Daniel Stern Lighting E-Code Headlight:
Hella $ 42.00, Cibie $ 78.00
http://www.headlightservices.com/Headlamps.html

That last item we need to locate....is the headlight mounting arm that works best with the Savage forks.

Back to top

Someday I will be old......But not today!

IP Logged

arteacher Serious Thumper Offline Ride as if your naked and invisable! Posts: 2581 London ontario Gender:	Re: Fork mounted headlight options Reply #23 - 09/27/14 at 07:19:34 This begs the question: Is the stock headlight for the European S40 E-code or DOT?
Back to top	white '07, Raask exh, Corbin seat, slipstreamer shie, Raptor, Routy's fwd controls, Baron tach, Frisco bars, Isogrips, Headlight and taillight modulators, Dial-a- jet, AME 9 deg chop kit, K&N air flt IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18098 Camp Springs, Kentucky Gender:	Re: Fork mounted headlight options Reply #24 - 09/27/14 at 17:33:10 arteacher wrote on 09/27/14 at 07:19:34: This begs the question: Is the stock headlight for the European S40 E-code or DOT? Go look at your headlight bulb....and see if it has DOT or E on it. I suspect anything imported to the US has DOT on it.
Back to top	Someday I will be old......But not today! IP Logged

arteacher Serious Thumper Offline Ride as if your naked and invisable! Posts: 2581 London ontario Gender:	Re: Fork mounted headlight options Reply #25 - 09/27/14 at 17:40:16 I don't have a European bike, I have an American bike, purchased in Canada, so mine has DOT on it. Maybe one of our European brothers could look at theirs and see?
Back to top	white '07, Raask exh, Corbin seat, slipstreamer shie, Raptor, Routy's fwd controls, Baron tach, Frisco bars, Isogrips, Headlight and taillight modulators, Dial-a- jet, AME 9 deg chop kit, K&N air flt IP Logged

ezornes239

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 82

Re: Fork mounted headlight options
Reply #26 - 09/28/14 at 17:25:15

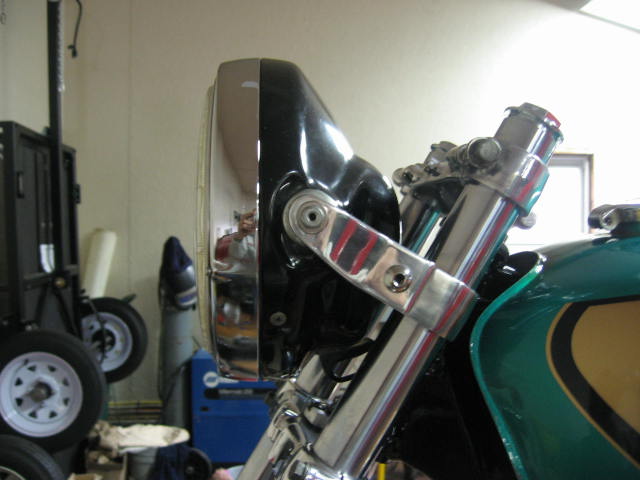

Finally got the new headlight mounted yesterday. Sits pretty far out, but I guess that's just how fork mounted lights are. Had to bend the brackets a bit, and will still probably upgrade to ones that fit a bit better around the forks in the next couple weeks. I still need to get some rubber washers to keep it tight on the brackets, they're tightened down pretty good and there's still some wiggle up and down. I have to readjust it like twice just on the way home from work. Can't figure out why it's not staying in place.

What do you all think? Might bring it a bit lower after looking at these picture.

Still gotta tap the new part for the rear turn signals and get those on and wired tomorrow.

And crappity smack that dent on the tank is nasty.

Back to top

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: Fork mounted headlight options
Reply #27 - 09/29/14 at 03:56:43

Yes, it does look like your headlight is out a couple inches too far.

No....fork mounted lights don't have to stick out that far. You just haven't found the right set of mounts yet. One possibility might be to use one of the holes farther in, and trim away the excess mount for the outer holes. Since you got black mounts it would be easy to cut some off and repaint them black.

I made my own mounts out of aluminum and used the turn signal clamps for the attachment to the forks. You just need shorter arms to bring the headlight in farther.

Dave

Back to top


Someday I will be old......But not today!

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: Fork mounted headlight options
Reply #28 - 09/29/14 at 04:58:54

You might be able to find a pair of brackets from another motorcycle that works. Here are a pair of Yamaha IT brackets that fit 38mm forks, and they are short.
http://www.ebay.com/itm/Yamaha-IT175-IT250-IT400-Headlight-Head-light-Mountin...

Here is a list of motorcycles that use 38mm forks:

38 Honda CR-125R (81-83)
38 Honda XR-250R (84-85)
38 Kawasaki KX-80R2/R3/R4/R5/R6/R7 (92-97)
38 Kawasaki KX-125 A6-A7 (80-81)
38 Kawasaki KDX-200 A1-A3 (83-85)
38 Kawasaki KX-250 A5-A7 (79-81)
38 Kawasaki KDX-400 A1-A2 (79-80)
38 Kawasaki KX-420 A1-A2 (80-81)
38 Kawasaki KL-600A1 “KLR” (84)
38 Kawasaki ZX-600C1-C6 “Ninja” (88-93)
38 Kawasaki ZX-600C7-C10 “Ninja 600R” (94-97)
38 Kawasaki KL-650A1-A18 “KLR650″ (87-04)
38 Kawasaki VN-700A1 “Vulcan” (85)
38 Kawasaki VN-750A2-A20 “Vulcan” (86-04)
38 Kawasaki ZX-750F1-F4 “Ninja” (87-90)
38 Kawasaki ZL-900A1/A2 “Eliminator” (85-86)
38 Kawasaki ZX-900A1-A3 “Ninja” (84-86)
38 Kawasaki KZ-1000C1-C4 “Police” (78-81)
38 Kawasaki KZ-1000J1-J3 (81-83)
38 Kawasaki KZ-1000K1/K2 “Ltd” (81-82)
38 Kawasaki KZ-1000P1-P20 “Police” (82-01)
38 Kawasaki ZL-1000A1 (87)
38 Kawasaki KZ-1100A1-A3 (81-83)
38 Kawasaki KZ-1100B1/B2 “GP” (81-82)
38 Kawasaki KZ-1100D1/D2 “Spectre” (82-83)
38 Kawasaki ZN-1100B1/B2 “Ltd” (84-85)
38 Suzuki RM-125 N/T/X/Z (79-82)
38 Suzuki RM-125 D (83)
38 Suzuki PE-175 Z/D/E (82-84)
38 Suzuki RM-250 N/T/X/Z (79-82)
38 Suzuki RM-400N/T (79-80)
38 Suzuki LS-650 FG/PG/FH/PH/PJ (86-88 )
38 Suzuki LS-650 PS/PT/PV/PW/PX/PY/PK1/PK2/PK3 “Savage”
(95-03)
38 Yamaha YZ-125 H/J/K (81-83)
38 Yamaha IT-175 J (82)
38 Yamaha IT-175 K (83)
38 Yamaha IT-250 H/J (81-82)
38 Yamaha YZ-250 D/E/F/G (77-80)
38 Yamaha FZR-400 U/SUC/W/SWC (88-89)
38 Yamaha FZR-400 A/SAC (90)
38 Yamaha YZ-400 D/E/F (77-79)
38 Yamaha IT-465 H (81)
38 Yamaha IT-465 J (82)
38 Yamaha YZ-465 G (80)
38 Yamaha XT-550 J/K (82-83)
38 Yamaha FZR-600 W/WC/AC/B/BC (89-91)
38 Yamaha FZR-600 RA/RAC/RB/***/RD/RDC/RE/REC (90-93)
38 Yamaha FZR-600 RF/RFC/RG/RGC/RH/RHC/RJ/RJC (94-97)
38 Yamaha XJ-600 SD/SDC/SE/SEC/SF/SFC/SG/SGC “Seca II” (92-96)
38 Yamaha XJ-600 SH/SHC/SJ/SJC “Seca II” (96-97)
38 Yamaha FZX-700S/SC/T/TC (86-87)
38 Yamaha XJ-700N/NC/S/SC “Maxim” (85-86)
38 Yamaha XJ-700 XN/XNC/XS/XSC “Maxim” (85-86)
38 Yamaha XV-700L/LC/N/NC “Virago” (84-85)
38 Yamaha XV-700CS/CSC/CT/CTC “Virago” (86-87)
38 Yamaha XV-700 J1/J1C (97)
38 Yamaha XV-750 U/UC/W/WC/A/AC/B/BC “Virago” (88-91)
38 Yamaha XV-750 D/DC/E/EC/F/FC/G/GC/H1/H1C/J1/J1C “Virago”
(92-97)
38 Yamaha XV-1000 L/LC/N/NC “Virago” (84-85)
38 Yamaha XV-1100 S/SC/T/TC/U/UC “Virago” (86-88 )
38 Yamaha XV-1100 W/WC/A/AC/B/BC/D/DC/E/EC “Virago” (89-93)
38 Yamaha XV-1100 F/FC/G/GC/H/HC/J/JC “Virago” (94-97)

Back to top

Someday I will be old......But not today!

IP Logged

ezornes239 Junior Member Offline SuzukiSavage.com Rocks! Posts: 82	Re: Fork mounted headlight options Reply #29 - 09/29/14 at 09:21:19 I wonder if I still have the clamps from the front signals stored somewhere.
