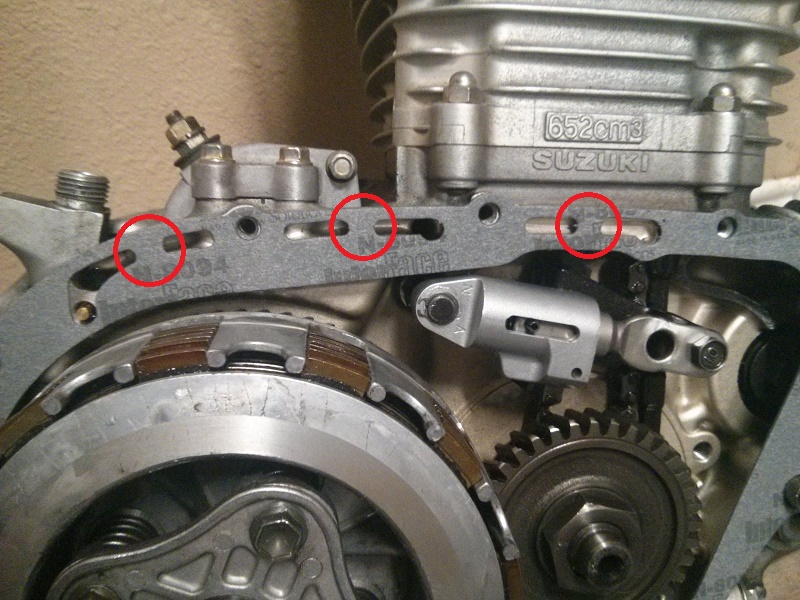

demonhunter YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 17	Clutch Cover Gasket 07/29/14 at 09:07:17 I finally got around to installing my Verslavy adjuster and need some input on whether or not I ordered the correct gasket for my clutch cover. My old gasket does not have the small "bridge" in the oil passage areas highlighted in the photo. There are three sections to the old gasket instead of six if that makes sense. Which one is correct? Thanks.
Back to top	IMG_20140727_221221.jpg IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18098 Camp Springs, Kentucky Gender:	Re: Clutch Cover Gasket Reply #1 - 07/29/14 at 09:27:53 The "bridged" gasket will work just fine. Use it. Dave
Back to top	Someday I will be old......But not today! IP Logged

demonhunter YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 17	Re: Clutch Cover Gasket Reply #2 - 07/29/14 at 09:41:03 Dave wrote on 07/29/14 at 09:27:53: The "bridged" gasket will work just fine. Use it. Dave Thank you sir.
Back to top	IP Logged

DavidOfMA Senior Member Offline Getting back in gear after a long time away Posts: 336 Beverly, MA Gender:	Re: Clutch Cover Gasket Reply #3 - 07/30/14 at 06:57:48 I'm about to replace my adjuster and am not clear on what's the best sealant to use on the clutch cover gasket, if any. What has worked best for others?
Back to top	- David IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28657 Tucson Az Gender:	Re: Clutch Cover Gasket Reply #4 - 07/30/14 at 07:25:28 If it's a new gasket,.. don't use any RTV... (they come with seal stuff already applied around the oil passages)... ... or just a dab around that neutral wire exit...
Back to top	Ludicrous Speed !... ... ... IP Logged

DavidOfMA

Senior Member

Offline

Getting back in gear
after a long time
away

Posts: 336
Beverly, MA
Gender: male

Re: Clutch Cover Gasket
Reply #5 - 07/30/14 at 14:11:01

Serowbot wrote on 07/30/14 at 07:25:28:

If it's a new gasket,.. don't use any RTV... (they come with seal stuff already applied around the oil passages)...
... or just a dab around that neutral wire exit...

Thanks. Gasket is new. Other than breaking off bolts that haven't been moved in a long time, which I'll be careful not to do, is there anything else that frequently goes wrong in this process? It looks fairly straightforward, but it's been 35 yeas since I did much wrenching on a bike, and I've forgotten most of what I once knew about it.

Back to top

- David

IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 28657
Tucson Az
Gender: male

Re: Clutch Cover Gasket
Reply #6 - 07/30/14 at 15:35:53

Okay,...
1. There's a funky little clutch actuator thingy, that can fall out... make sure it's in place before you button up.
2. Remember to remove the bit of zip tie or whatever from the cam adjuster to release the spring once you have it bolted in...
...(I bought a Savage last year, and had a cam chain noise... When I opened it up, the adjuster was still compressed by the plastic bit)... Grin

...
3. dab of RTV on the neutral wire exit
4. ... uhh... I don't have a 4... Huh

...

Back to top

Ludicrous Speed !... ... Huh

...

IP Logged

Drestakil

Full Member

Offline

innocent bystander

Posts: 178
Southern Illinois
Gender: male

Re: Clutch Cover Gasket
Reply #7 - 07/30/14 at 17:40:33

Serowbot wrote on 07/30/14 at 15:35:53:

Okay,...
1. There's a funky little clutch actuator thingy, that can fall out... make sure it's in place before you button up.
2. Remember to remove the bit of zip tie or whatever from the cam adjuster to release the spring once you have it bolted in...
...(I bought a Savage last year, and had a cam chain noise... When I opened it up, the adjuster was still compressed by the plastic bit)... Grin

...
3. dab of RTV on the neutral wire exit
4. ... uhh... I don't have a 4... Huh

...

Number 4 was probably the most important thing to remember.

Back to top

IP Logged

S-P

Serious Thumper

Offline

Back in the saddle
again

Posts: 816
Phoenix, AZ
Gender: male

Re: Clutch Cover Gasket
Reply #8 - 07/30/14 at 18:22:00

Drestakil wrote on 07/30/14 at 17:40:33:

Number 4 was probably the most important thing to remember.

4. Be sure you have the clutch cable little thingy that goes into the case in the right position when you put it back together, otherwise you'll have to pull the case again and set it right. PAY ATTENTION to how things come off/out so you can put them back in the same position and place (like nuts, bolts and washers...)

Back to top

IP Logged

Drestakil

Full Member

Offline

innocent bystander

Posts: 178
Southern Illinois
Gender: male

Re: Clutch Cover Gasket
Reply #9 - 07/30/14 at 18:47:41

S-P wrote on 07/30/14 at 18:22:00:

4. Be sure you have the clutch cable little thingy that goes into the case in the right position when you put it back together, otherwise you'll have to pull the case again and set it right. PAY ATTENTION to how things come off/out so you can put them back in the same position and place (like nuts, bolts and washers...)

I thought that was listed as #1. Unless the "clutch cable little thingy" is different than the "funky little clutch actuator thingy". I'll have to check the Suzuki part numbers.

Back to top

IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28657 Tucson Az Gender:	Re: Clutch Cover Gasket Reply #10 - 07/30/14 at 19:53:36 Same thingy... S-P's saying not only make sure it's in there,.. but, make sure it's the right way 'round... ... Uhhh,... I think that's the 4. I was lookin' for... ...
Back to top	Ludicrous Speed !... ... ... IP Logged

S-P

Serious Thumper

Offline

Back in the saddle
again

Posts: 816
Phoenix, AZ
Gender: male

Re: Clutch Cover Gasket
Reply #11 - 07/30/14 at 20:00:06

Drestakil wrote on 07/30/14 at 18:47:41:

I thought that was listed as #1. Unless the "clutch cable little thingy" is different than the "funky little clutch actuator thingy". I'll have to check the Suzuki part numbers.

No... I think you all are talking about the clutch shaft inch long thingy inside the engine. I'm talking about the little keeper bracket doo hickey on the outside of the engine where the clutch cable goes into the engine and there's that little arm/lever that the cable goes through... I don't know the Suzuki part number for it. I DO know that if you don't get that oriented correctly when you are putting the side cover on and cable in, you'll have to pull the cover to turn it back the right way. Tongue

Back to top

IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28886
L.A. California
Gender: male

Re: Clutch Cover Gasket
Reply #12 - 07/30/14 at 20:19:26

S-P wrote on 07/30/14 at 20:00:06:

Drestakil wrote on 07/30/14 at 18:47:41:

I thought that was listed as #1. Unless the "clutch cable little thingy" is different than the "funky little clutch actuator thingy". I'll have to check the Suzuki part numbers.

No... I think you all are talking about the clutch shaft inch long thingy inside the engine. I'm talking about the little keeper bracket doo hickey on the outside of the engine where the clutch cable goes into the engine and there's that little arm/lever that the cable goes through... I don't know the Suzuki part number for it. I DO know that if you don't get that oriented correctly when you are putting the side cover on and cable in, you'll have to pull the cover to turn it back the right way. Tongue

You guys have been using that "V" wash stuff again haven't you. Huh

Back to top

Versey's Place
Tech Section Index

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Clutch Cover Gasket Reply #13 - 07/31/14 at 04:41:56 The clutch actuator shaft has a real cheap Oring.Just saying... I managed to flip the cable cage after I had the cover on.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged
