oil seepage (Read 99 times)
dhabicht1
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 23

oil seepage
07/12/14 at 12:11:49

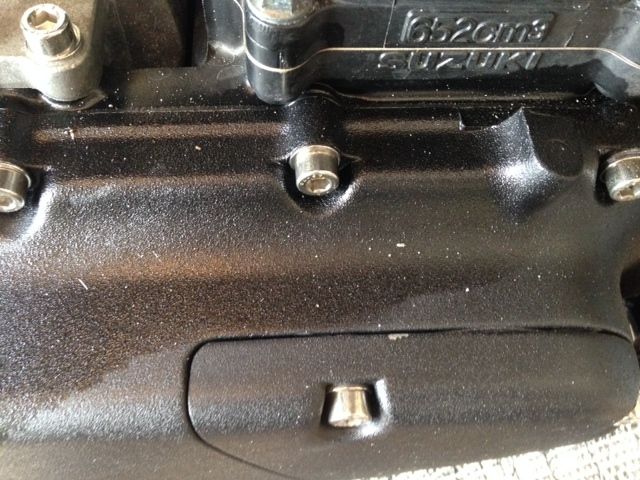

Any ideas where this oil might be coming from?  It is a new gasket and all the rubber washers are in the right place.
Back to top


  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Offline

Where there's a
will, I want to be
in it.

Posts: 28754
L.A. California
Gender: male
Re: oil seepage
Reply #1 - 07/12/14 at 15:11:24

Could be coming from the oil fill port. New o ring?
Back to top


WWW   IP Logged
dhabicht1
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 23

Re: oil seepage
Reply #2 - 07/12/14 at 15:17:01

not a new O ring but I'll check.  It seems it would have to run uphill to come from the O ring
Back to top


  IP Logged
NickGann
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 75

Re: oil seepage
Reply #3 - 07/12/14 at 15:34:55

speedo cable?
Back to top


  IP Logged
HondaLavis
Senior Member
****
Offline

It's nothing
personal; the other
one came first.

Posts: 451
Plano, TX
Re: oil seepage
Reply #4 - 07/12/14 at 19:56:17

Clean it off REALLY REALLY GOOD, then dry it extremely thoroughly.  Sprinkle some baby powder, run her up, and let it idle for a while.  Look for wherever the powder gets oily first to help identify the source.
Back to top



"You ride a single cylinder motorcycle??"

"When you're good, one is all you need." Wink

I guess that means I'm no good anymore; I've got 4 more cylinders! '08 Yamaha FJR1300 and still '01 Savage
  IP Logged
dhabicht1
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 23

Re: oil seepage
Reply #5 - 07/13/14 at 13:41:04

i'll try the baby powered this week, it isn't the speedo I checked that
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17799
Camp Springs, Kentucky
Gender: male
Re: oil seepage
Reply #6 - 07/13/14 at 18:05:24

I was getting a little bit of oil in that spot...but only occasionally and I could not figure out where it was coming from.  It would get in that spot, and in little spray droplets on the top of the right side of the fuel tank.  Some days it would not leak at all....sometimes it would.

One day I had the bike spotless, and after a ride around the block I found a big glob of oil, and the weird thing was that it was from the connection at the speedometer cable.  Apparently what happens is that when I would accelerate really hard in the first few gears, the internal crankcase pressure would build enough that it would force some oil out the speedo nut on the crankcase. I could go for weeks without any oil if I rode the bike normal.  It turns out that only on hard acceleration runs would the crankcase build up enough pressure to make the speedo cable leak.  The oil would then be caught by the wind and carried forward onto the case, and somehow it would also blow into a fine mist that got deposited onto the top of the tank.  I have my speedo eliminated and the cable blocked off - so I put a new larger O-ring on the nut and the problem was solved.

So....it could be the O-ring on the oil filler - or it could be the speedo drive....as the wind causes the oil to go weird places.

Dave
Back to top

« Last Edit: 07/14/14 at 04:17:37 by Dave »

Someday I will be old......But not today!

  IP Logged
HondaLavis
Senior Member
****
Offline

It's nothing
personal; the other
one came first.

Posts: 451
Plano, TX
Re: oil seepage
Reply #7 - 07/13/14 at 19:00:01

Dave wrote on 07/13/14 at 18:05:24:
So....it could be the O-ring on the oil filler - or it could be the speedo drive....as the wind causes the oil to go weird places.

Dave


This is so very true.  That is why I am partial to idle leak tests.  The wind variable is eliminated.
Back to top



"You ride a single cylinder motorcycle??"

"When you're good, one is all you need." Wink

I guess that means I'm no good anymore; I've got 4 more cylinders! '08 Yamaha FJR1300 and still '01 Savage
  IP Logged
dhabicht1
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 23

Re: oil seepage
Reply #8 - 07/13/14 at 19:28:52

I'll check all tomorrow, thanks for all the suggestions
