Beagle Full Member Offline 1998 Suzuki Savage Posts: 217 Ohio Gender:	Headlight Fog Lights 07/05/14 at 16:14:00 Has anyone ever installed mini lights by their headlights? I guess you could call them fog lights but I'm sure they would have to be low wattage but would probably help make sure everyone see you.
Back to top	IP Logged

Fishbulb Ex Member	Re: Headlight Fog Lights Reply #1 - 07/05/14 at 18:22:56 been looking into this as well, maybe something small on the engine crash bars instead. A little more light, and more visibility to other motorists would be the goals... I changed out to a 7" hella headlight, and that helped a lot. STill need to install the relay, but one step at a time!
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Online

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: Headlight Fog Lights
Reply #2 - 07/06/14 at 04:56:16

You only have about 100 Watts of generating power......so don't get too carried away. If you add white lights on the sides of the headlights, you might want to uplug the yellow running lights in the front turn signals to save you 6 Watts (3 watts each).

Some folks who ride lots of short trips have found the charging system doesn't keep up with the starting chores....even with the stock lighting.

Dave

Back to top

Someday I will be old......But not today!

IP Logged

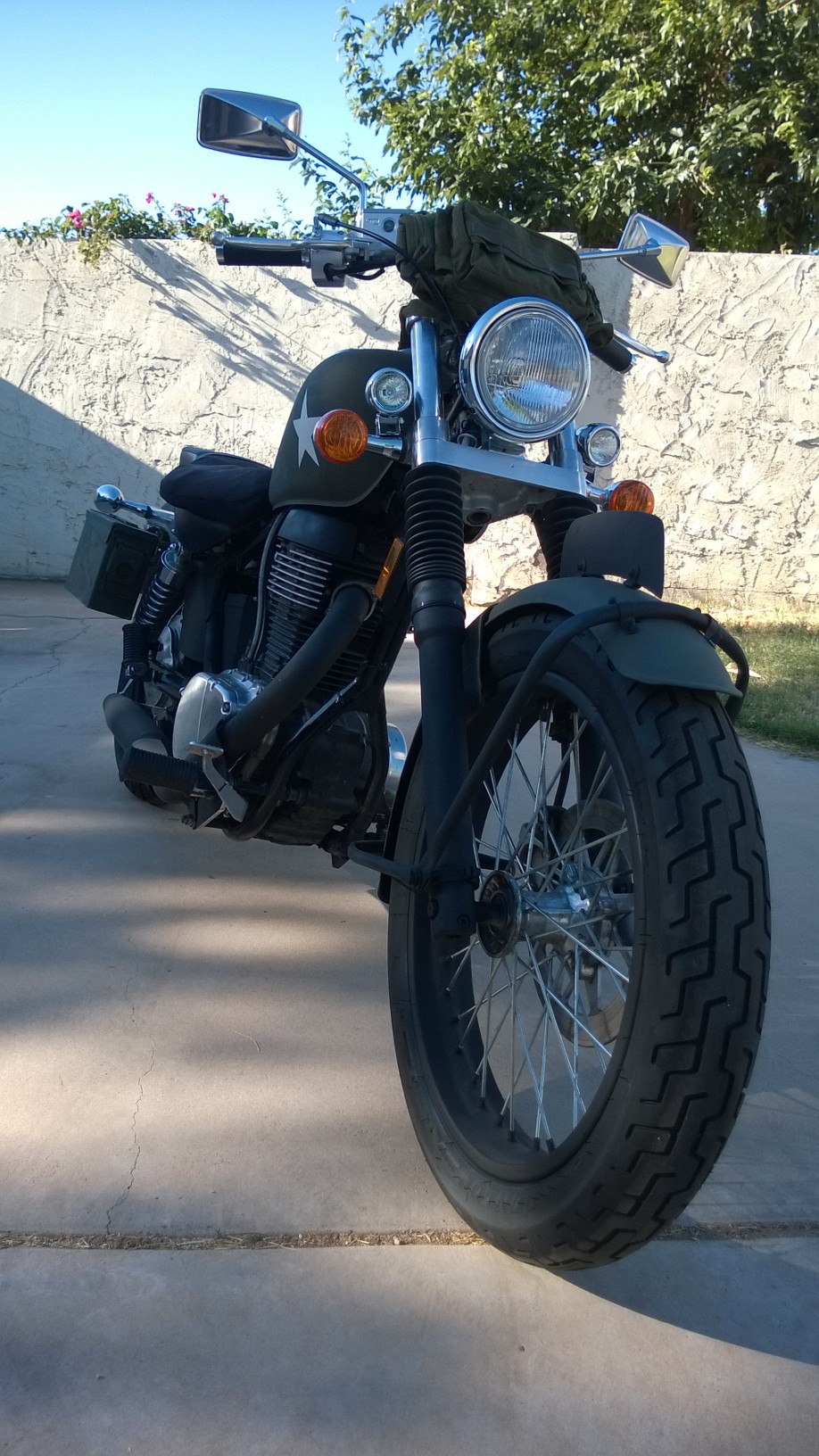

S-P Serious Thumper Offline Back in the saddle again Posts: 816 Phoenix, AZ Gender:	Re: Headlight Fog Lights Reply #3 - 07/06/14 at 07:50:13 You mean like this? I just did these about 3 weeks ago, no problem with the battery so far, but I usually ride a minimum of 10-20 miles when I do. Not a lot of short trips. Pretty simple, let me know if you want details/how-to.
Back to top	front_001.jpg IP Logged

Beagle Full Member Offline 1998 Suzuki Savage Posts: 217 Ohio Gender:	Re: Headlight Fog Lights Reply #4 - 07/06/14 at 08:06:29 S-P wrote on 07/06/14 at 07:50:13: You mean like this? I just did these about 3 weeks ago, no problem with the battery so far, but I usually ride a minimum of 10-20 miles when I do. Not a lot of short trips. Pretty simple, let me know if you want details/how-to. Yes, that would work for me! Please let me know about this!
Back to top	IP Logged

WD

Serious Thumper
2005 No Login

Offline

Professional
"scooter
trash".

Posts: 5207
Rosemark TN
Gender: male

Re: Headlight Fog Lights
Reply #5 - 07/06/14 at 09:23:00

Almost bought those exact lights earlier this week. Read the wattage, decided not to get them. That adds 50-100 watts draw to an already far below substandard electrical system.

Figure out what bike can donate a better stator and reg/rec before you install that much excess current draw. There is insufficient room for a dual stator system in our left side engine case...

Back to top

On 2 wheels since 7/87

Black and Chrome 2003 1950s style custom

IP Logged

Fishbulb Ex Member	Re: Headlight Fog Lights Reply #6 - 07/06/14 at 17:27:09 Thoughts on going with LED for less draw? Thanks!
Back to top	IP Logged

NickGann Junior Member Offline SuzukiSavage.com Rocks! Posts: 75	Re: Headlight Fog Lights Reply #7 - 07/06/14 at 18:23:25 Fishbulb wrote on 07/06/14 at 17:27:09: Thoughts on going with LED for less draw? Thanks! I was wondering the same thing...which made me also wonder if anyone uses LED headlights?
Back to top	IP Logged

S-P

Serious Thumper

Offline

Back in the saddle
again

Posts: 816
Phoenix, AZ
Gender: male

Re: Headlight Fog Lights
Reply #8 - 07/06/14 at 18:34:55

WD wrote on 07/06/14 at 09:23:00:

Almost bought those exact lights earlier this week. Read the wattage, decided not to get them. That adds 50-100 watts draw to an already far below substandard electrical system.

Figure out what bike can donate a better stator and reg/rec before you install that much excess current draw. There is insufficient room for a dual stator system in our left side engine case...

I hear ya, WD. From what I've read I was pushing the charging system. I got them at O'Reilly's in the "off-road" lighting section, they are 35 watts each... so I was concerned about that too. So far I haven't had any issues with my battery, so I'm hanging with them. I don't know if you can buy lower wattage bulbs for these lights (they are REALLY bright!) I may look into that anyway because they are really bright and to lower the wattage draw... I'm sure Batteries/Bulbs Plus will have replacement bulbs.

Back to top

IP Logged

WD

Serious Thumper
2005 No Login

Offline

Professional
"scooter
trash".

Posts: 5207
Rosemark TN
Gender: male

Re: Headlight Fog Lights
Reply #9 - 07/07/14 at 00:20:48

At any of my local auto parts stores or "Great Wall of China Mart", those lights are 50-55 watts each.

You can get lower wattage H1 or H3 bulbs, it's just a royal pain in the ass to special order them. I've seen them as low as 20 watts when I was still in the bike business full time, as a stocked item. Anything less (down to 3w) was special order only, with obligatory $25 fee on top of the part price.

Back to top

On 2 wheels since 7/87

Black and Chrome 2003 1950s style custom

IP Logged

S-P

Serious Thumper

Offline

Back in the saddle
again

Posts: 816
Phoenix, AZ
Gender: male

Re: Headlight Fog Lights
Reply #10 - 07/07/14 at 08:18:17

WD wrote on 07/07/14 at 00:20:48:

At any of my local auto parts stores or "Great Wall of China Mart", those lights are 50-55 watts each.

You can get lower wattage H1 or H3 bulbs, it's just a royal pain in the ass to special order them. I've seen them as low as 20 watts when I was still in the bike business full time, as a stocked item. Anything less (down to 3w) was special order only, with obligatory $25 fee on top of the part price.

I was going to pull one and take it to "Batteries Plus", they just added lighting and say they have bulbs for everything. I got these at O'Reilly's. They're about 2 inches across. They had some bigger ones that might have been more wattage. We also have some pretty decent custom lighting stores that carry a LOT of custom bulbs for art lighting, pin lights etc. etc. I've had good luck finding odd ball halogens there.

Back to top

IP Logged
