Re: HELP!! Will not run, does crank, has spark
Reply #30 - 06/11/14 at 21:19:53

oldNslow wrote on 06/11/14 at 19:02:53:

Quote:

, anyone thinking igniter box?

If it was a bad igniter I'm pretty sure you wouldn't be getting a spark.

+1
Quote:

Maybe the decompression solenoid is stuck and the cable is pulling on the lever. Or maybe the cable is just dry/frayed and is stuck. If it's holding the exhaust valves open the bike won't start.

true, but it will clatter.

Back to top

Versey's Place
Tech Section Index

IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28841
L.A. California
Gender: male

Re: HELP!! Will not run, does crank, has spark
Reply #31 - 06/11/14 at 21:21:37

Serowbot wrote on 06/11/14 at 17:38:31:

Not that it's the problem, but... bypass both the clutch and sidestand cut-outs... just to be sure...
You can reconnect once you get it figured out if you want...

The thing here is that the starter is spinning... so both safeties are ok.
if no spin then 1 or both are bad.

Back to top

Versey's Place
Tech Section Index

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28841 L.A. California Gender:	Re: HELP!! Will not run, does crank, has spark Reply #32 - 06/11/14 at 21:23:39 If you are still stuck, start from square 1 and reconfirm everything. spark, gas, air.
Back to top	Versey's Place Tech Section Index IP Logged

shovelbum87 Full Member Offline SuzukiSavage.com Rocks! Posts: 158 New Hampshire Gender:	Re: HELP!! Will not run, does crank, has spark Reply #33 - 06/12/14 at 02:05:39 verslagen1 wrote on 06/11/14 at 19:13:32: Your 1st problem is the battery, get a new 1. It's a brand new battery
Back to top	NEVER argue with a woman holding a torque wrench or a spray gun! IP Logged

shovelbum87

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 158
New Hampshire
Gender: female

Re: HELP!! Will not run, does crank, has spark
Reply #34 - 06/12/14 at 02:11:55

Now like I said I suck at electrical but could the ignitor still send a signal to the coil just not at the right time? It seems like a timing issue but I don't know how I could check that it's not like it's adjustable. I'm so lost, any one want to buy a very pretty boat anchor? I will start back at the beginning and triple check everything

Back to top

NEVER argue with a woman holding a torque wrench or a spray gun!

IP Logged

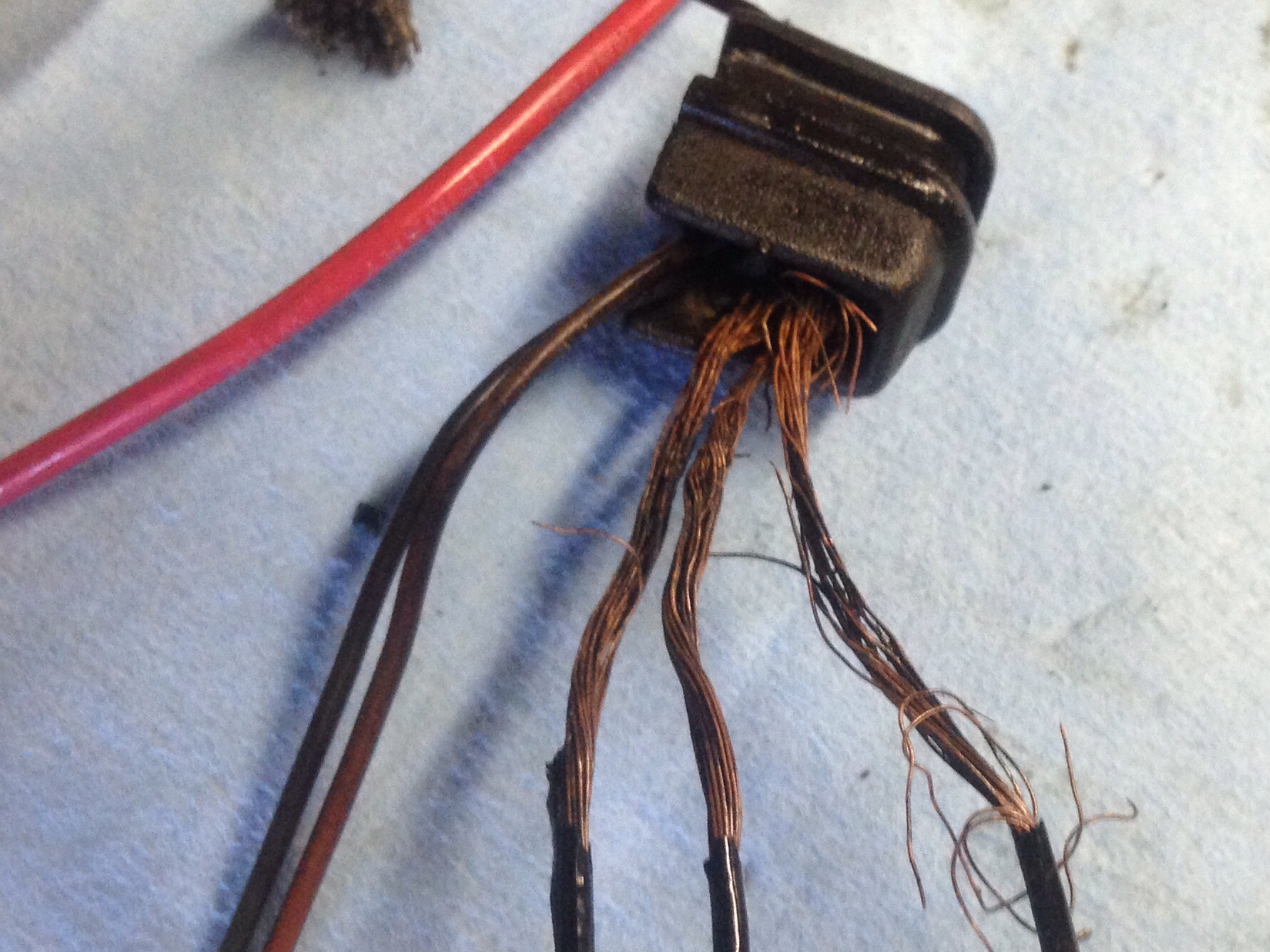

jcstokes Serious Thumper Offline SuzukiSavage.com is very useful Posts: 2119 Mauku New Zealand Gender:	Re: HELP!! Will not run, does crank, has spark Reply #35 - 06/12/14 at 02:21:21 When the stator wires crossed and shorted, is there any possibility that the polarity was reversed?
Back to top	Completely stock 2010 S40, aftermarket rev counter and back pack, Airhawk seat pad IP Logged

shovelbum87 Full Member Offline SuzukiSavage.com Rocks! Posts: 158 New Hampshire Gender:	Re: HELP!! Will not run, does crank, has spark Reply #36 - 06/12/14 at 02:30:38 jcstokes wrote on 06/12/14 at 02:21:21: When the stator wires crossed and shorted, is there any possibility that the polarity was reversed? I haven't a clue, any idea what to do to check? They looked like they had been that way for a while
Back to top	image_157.jpg NEVER argue with a woman holding a torque wrench or a spray gun! IP Logged

Seaweednh

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 132
Newbury, MA
Gender: male

Re: HELP!! Will not run, does crank, has spark
Reply #37 - 06/12/14 at 03:35:04

verslagen1 wrote on 06/11/14 at 21:16:52:

Seaweednh wrote on 06/11/14 at 19:33:38:

I would check the timing.

loaded question... how do check the timing?

answer... you can't, either it sparks at the right time or it don't.

Spark at the right time and the valve must open and close at the right time too. One with out the other and the engine will run poorly or not at all. I worked on a non-motorcycle engine that ran well, and then didn't and then ran well again. This went on for some time and the exhaust pipe would get cherry red. Pulled the flywheel to find the drift key was sheared.

Back to top

IP Logged

shovelbum87 Full Member Offline SuzukiSavage.com Rocks! Posts: 158 New Hampshire Gender:	Re: HELP!! Will not run, does crank, has spark Reply #38 - 06/12/14 at 04:18:44 The pipe was cherry due to the sticky needle on my old carb, I replaced it with a much nnewer rebuilt one, cured the excessively rich problem
Back to top	NEVER argue with a woman holding a torque wrench or a spray gun! IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: HELP!! Will not run, does crank, has spark Reply #39 - 06/12/14 at 08:54:03 Having spark when the plug is out & laying against the block is one thing, having spark when the starter is pulling against compression is another. To KNOW youve got spark, leave the plug in, pull the wire & stick another plug in it & then test.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Steve H

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1223
Spartanburg, SC
Gender: male

Re: HELP!! Will not run, does crank, has spark
Reply #40 - 06/12/14 at 16:18:51

If you haven't changed the plug, you might have one of those rare ones that fires just fine but does nothing under compression.

I've only had a couple of those in my life and they are usually a pain...you take it out and check it...fine...put it back and start hunting something else. Finally, you just put something else in there for the heck of it and it starts right up.

Not saying that's your problem, just another something to think about.

Hope you get it fixed soon. It's a shame to miss out on good riding weather cause it won't run.

Back to top

87 LS650, 2005 Ninja 250, 2009 Yamaha C3, 2001 Honda Reflex. On 2 wheels since 6/80.

IP Logged

humblegeo Junior Member Offline SuzukiSavage.com Rocks! Posts: 74	Re: HELP!! Will not run, does crank, has spark Reply #41 - 06/12/14 at 19:09:13 I would think about investing in a compression test gauge setup which is a nice tool to have when trouble shooting these type starting issues. I got Mine from O'Reilly Auto Supply. Seems like it was $30-35. You may already have one though.
Back to top	IP Logged

S-P

Serious Thumper

Offline

Back in the saddle
again

Posts: 816
Phoenix, AZ
Gender: male

Re: HELP!! Will not run, does crank, has spark
Reply #42 - 06/12/14 at 20:00:20

At some point maybe it just makes sense to take it to a mechanic and have them troubleshoot the wiring and starting system. I've chased electrical issues on cars for days/weeks and had a shop find the problem in a half hour for 50 bucks. It's like me with construction... people ask me all the time in the drywall aisle at Home Depot "How do you patch a hole?". Well, I have 33 years of experience and there's just some things you can't teach someone in 10 minutes. I used to tell my employees: There's a difference between 30 years of experience and one year of experience 30 times. Wink

Back to top

IP Logged

shovelbum87

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 158
New Hampshire
Gender: female

Re: HELP!! Will not run, does crank, has spark
Reply #43 - 06/14/14 at 18:29:13

Alright here's the update, borrowed a friends compression tester to verify compression is within 145-200 psi we have 60, crap! Let's hope it's gas washed, pour some mystery oil in the plug hole, cranks over and runs beauty! Awesome! Head to the parts store to grab some oil so I can change the oil and get the diluted crap out of it. Come back and try it again cranks and cranks and cranks, no fire. Well maybe it's really diluted, I change the oil and adjust the valves for the heck of it. It cranks and cranks and cranks. Now I'm thinking rings? It had sat for over ten years before I got it and I suspect that the cyl wall may have rusted and when I got it last year I only put 300 miles on it and that may have worn the rust off and now it's only holding good compression when I put oil on top of the cyl. :'( Undecided

Back to top

NEVER argue with a woman holding a torque wrench or a spray gun!

IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 17894 Camp Springs, Kentucky Gender:	Re: HELP!! Will not run, does crank, has spark Reply #44 - 06/14/14 at 18:43:00 I have never seen any running engine suddenly develop a lack of compression due to worn out rings or a bad cylinder....unless it was run low on oil and scored. When the cylinder or rings are worn it normally develops an oil burning problem long before it develops a compression problem.
Back to top	Someday I will be old......But not today! IP Logged
