Ultimate catch can!
06/04/14 at 19:37:00

Got my K&N RC-1250 today and ripped out the airbox (what a pain)

I had a breather filter that I purchased online earlier when messing with intake ideas

I had this little plastic piece that will catch all the oil (with me emptying it once in a while)

Check it out!

In the near future I'm getting a little battery and gonna relocate and shave/hide stuff, for now this will do.

Back to top

IP Logged

S-P Serious Thumper Offline Back in the saddle again Posts: 816 Phoenix, AZ Gender:	Re: Ultimate catch can! Reply #1 - 06/04/14 at 19:58:01 Nice! I'd like to ditch my airbox too, so... what's involved and how much of a pain is it? I already have a KN filter, but it sits on top of the battery box scrunched against the airbox.
Back to top	IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28660 Tucson Az Gender:	Re: Ultimate catch can! Reply #2 - 06/04/14 at 22:12:57 I can't tell,... are those filters oiled?... You do need to oil them... or they ain't filterin'... Neat oil-catch, do-hicky, thing... ...
Back to top	Ludicrous Speed !... ... ... IP Logged

Yoshi

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 874
LongIsland, N.Y.
Gender: male

Re: Ultimate catch can!
Reply #3 - 06/05/14 at 03:19:15

you need to pull your battery out and then remove 3 bolts and wiggle wigle wiggle, cuss cuss cuss :-D

Those filters are oiled, the K&N comes preoiled and the other filter is a different brand (thats why it looks brighter then the K&N)

Im gonna take the breather filter and run it underneath the seat to hide it
(Thought about it last night while laying in bed)

Thanks guys)

Back to top

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28886 L.A. California Gender:	Re: Ultimate catch can! Reply #4 - 06/05/14 at 07:19:43 They're all oiled sooner or later.
Back to top	Versey's Place Tech Section Index IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Ultimate catch can! Reply #5 - 06/05/14 at 09:47:17 K&N sells a filter cleaner & an oil spray.. They come with cleaning instructions, dry time, etc..
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

ToesNose Serious Thumper Offline Pardon me, do you have Hot Sauce? Posts: 1993 Mooresville, NC Gender:	Re: Ultimate catch can! Reply #6 - 06/06/14 at 06:12:53 verslagen1 wrote on 06/05/14 at 07:19:43: They're all oiled sooner or later.
Back to top	The Suzuki LS650, bringing Miles of Smiles everywhere! IP Logged

BalingWire

Full Member

Offline

"The savage in
man is never quite
eradicated."
HDT

Posts: 238
Wauseon, Ohio
Gender: male

Re: Ultimate catch can!
Reply #7 - 06/21/14 at 09:28:38

Yoshi wrote on 06/05/14 at 03:19:15:

...then remove 3 bolts...

My K&N filter is here. I removed the battery and box. I've got 2 bolts off the air cleaner assembly. I'm wiggling, holding my just tongue right, but can't get it out.

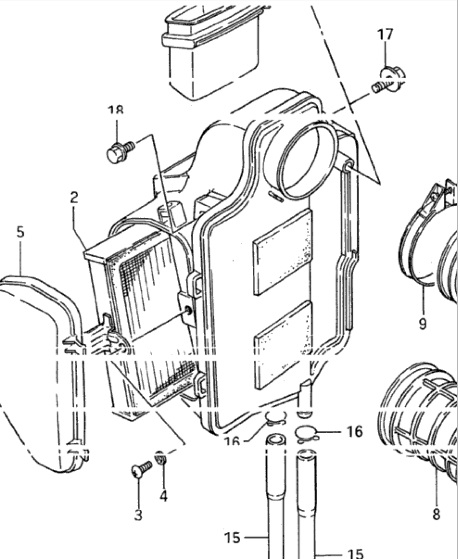

Where is that third bolt? I found the two easy ones, #17 and #18. Is there one on the bottom somewhere, perhaps behind the belt guard, that the parts diagram doesn't show?

Somebody help me before I have to start ~~cursing~~ quoting Shakespeare...

Out, darned spot! out, I say! One; two: why, then, ’tis time to do ’t. Hell is murky! Fie, my lord, fie! ~Macbeth (Act V. Scene I)

http://www.suzukipartshouse.com/oemparts/a/suz/50d32df1f8700232d0b3d552/air-c...

Back to top


"The satisfactions of manifesting oneself concretely in the world through manual competence have been known to make a man quiet and easy."
Shop Class as Soulcraft: An Inquiry Into the Value of Work

IP Logged

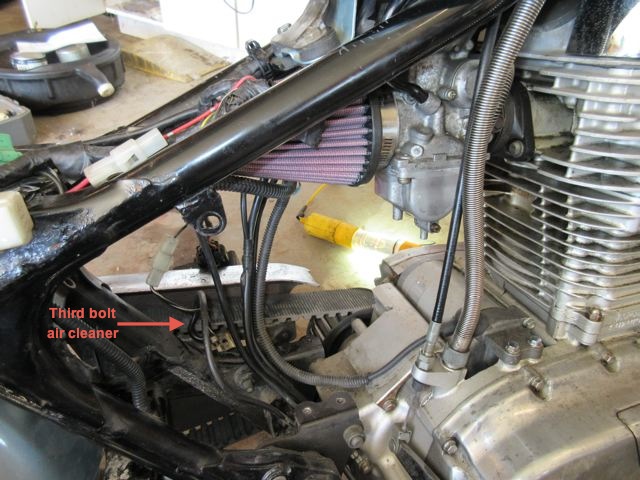

BalingWire Full Member Offline "The savage in man is never quite eradicated." HDT Posts: 238 Wauseon, Ohio Gender:	Re: Ultimate catch can! Reply #8 - 06/21/14 at 11:21:15 Using the correct theological method, I did discover the trinity. That third bolt on the left side, with the belt guard in the way. I got whole air cleaner removed, after also removing the carb, and my K&N filter is installed finally. Yay!
Back to top	IMG_0006.jpg "The satisfactions of manifesting oneself concretely in the world through manual competence have been known to make a man quiet and easy." Shop Class as Soulcraft: An Inquiry Into the Value of Work IP Logged

S-P

Serious Thumper

Offline

Back in the saddle
again

Posts: 816
Phoenix, AZ
Gender: male

Re: Ultimate catch can!
Reply #9 - 06/21/14 at 21:59:50

BalingWire wrote on 06/21/14 at 11:21:15:

Using the correct theological method, I did discover the trinity. That third bolt on the left side, with the belt guard in the way. I got whole air cleaner removed, after also removing the carb, and my K&N filter is installed finally.

Yay!

YAY indeed! Nothing is as easy as it looks in the diagrams. Roll Eyes

I got my airbox and battery box out but I just got a new big battery, so I'm going to wait until it dies until I get a smaller one and do a "real" battery mod. For now it is just wedged into the air box space with a bracket to keep it from shifting.
